2ADM5-HP0063BT KID SAFE HEADPHONES

INSTRUCTION MANUAL Congratulations, and thank you for choosing the Kid Safe Wireless Headphones. This manual will help you operate the Kid Safe Wireless Headphones, but firstly you should familiarize yourself with the Bluetooth functionality of your mobile phone or other devices before using the Kid Safe Wireless Headphones. 1 X Micro USB Cable 1 X Instruction Manual To use your Bluetooth headphones, you must first pair your headphones with a mobile phone or other Bluetooth device. Once your Bluetooth headphones is paired to a specific mobile phone, they will remain paired and automatically recognize each other whenever they are within range. Use a mobile phone with Bluetooth function or other Bluetooth devices to perform necessary pairing action. After pairing, the LED indicator slowly blinks with blue. Plug the Micro USB to the Micro USB port. When charging, the LED indicator turns red. After full charging, the LED indicator turns off. Answering a Call Product Specification Turn on your phone and ensure the Bluetooth function is activated. Turn on the headphones, enter the pairing mode. Search your Bluetooth devices on your phone by following the phone’s instructions. Refer to your phone’s user manual for more information. After a few seconds the phone will list the “BT AVENGERS HP” as a discover device. Select it and follow your phone’s instructions to select this pairing. Your phone will confirm the pairing, and then press Yes/OK. Use the Micro USB cable accessory provided with this headphones. Connect the Micro USB plug to the Micro USB charging port on the headphones positioned at in headphones diagram on page 2. Connect the USB plug to a USB port on a computer or wall adapter to activate charging. **Make sure to keep the headphones charging for a minimum of 2 hours before initial use. USB PlugMicro USB Plug 1 Please follow the rules depicted in this manual closely to ensure your safety. Before using this Bluetooth headphones, we would strongly encourage you to read through this user manual. Do not modify, repair or dismantle this Bluetooth headphones. Doing so may result in fires, electric shocks, complete breakdown of this Bluetooth headphones, etc. All are not covered under warranty. Be more wary of any edges, uneven surfaces, metal parts, accessories and its packaging so as to prevent any possible injury or damage. Do not use an diluent or volatile liquid to clean the Bluetooth headphones. Do not use the Bluetooth headphones in a hazardous location. 1 X Kid Safe Wireless Headphones Press and hold the On / Off Button for 3 seconds. After turning on, the LED indicator flashes red/blue. Press and hold the On / Off Button for 3 seconds. Play / Pause Music Press On / Off button to play music and press it again to pause music. Driver Diameter40 mm 20 Hz - 20 KHz < 85 dB 32 Ohms Li-ion Battery 3.7V 180 mAh ≤32.8 Feet 2 Hours 2 - 3 Hours Frequency Range Sensitivity Impedance Power Supply Battery Capacity Voltage Receiver Distance Charging Time Playing Time Press On / Off button to answer phone call, press On / Off button again to end call. Press and hold 2 seconds to reject call. Double click to redial last call. 4.2. Pairing to Mobile phone or other device4.3. Charging your headphones 7. FCC Statement Finally, select to connect with Kid Safe Wireless Headphones from your phone. Charging Turn off Pairing Turn on & Enter the pairing mode 2. Packaging Contents4. How to use1. IntroductionTable of contents 1 Introduction································ 2 Packaging Contents····················· 3 Connection Diagram····················· 4 How To Use······························· 4.1 General Function··················· 4.2 Pairing To Mobile Phone·········· 4.3 Charging Your Product············ 5 Product Specification··················· 6 FAQ········································· Statement·································· 7 FCC Statement··························· 1 2 2 3 3 4 5 6 6 7 8 -The input voltage to the product is 5V 1A. -In order to charge the product in safe manner and reliable conditions, please only adopt certified appropriate charger/ adapter for charging the product. -Only charge the product at ambient temperatures between 10 deg °C/ 50 deg °F and 40 deg °C/104 deg °F. - Do not heat above 70 deg °C/158 deg °F, e.g. Do not expose to sunlight or throw into fire. -Switch off the product after use. -Please note that we won’t take any responsibility for any wrong operation (e.g. Voltage higher than 5V) as this may result in severe injury or loss of property, and we cannot control the operating process during the time the user using this product. -In extreme cases, abuse or misuse of Lithium battery pack can lead to explosion, heat generation, fire development or smoke development. Safety instructions for the lithium battery and charging the product Warning: • You must select a qualified charger from a regular manufacturer. • You must charge the Bluetooth headphones if it has not been used for more than 6 months. 1 1. Why is there no power even when the headphones is turned on ? Ans: Ensure the battery has been charged up to 1 hour for initial use. 2. There is no sound when playback. Ans: Check the connection between headphones with phone or computer, if the connection is not established, please connect again. Make sure the headphones is paired and connected with your target phone or other master device. Microphone On / O Button LED Indicate Micro USB Charging port KID SAFE WIRELESS HEADPHONES AGES 6+ 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with t…

Text truncated - open the document above for the full version.

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road,Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] Date: 07/22/2020 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Zeeva International Limited hereby declare that： Product Name: BT KID SAFE HEADPHONES Model No: HP-0063 FCC ID: 2ADM5-HP0063 For BT Mode: BLE are disable by software For Below are activated: Bluetooth BDR(GFSK) , EDR(π/4‐DQPSK), EDR(8DPSK) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely Yours, Signature: Printed Name: Akshay P Butani Tiltle: Vice President

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] FCC Authorization 07/14/2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Zeeva International Limited the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President QA-FR-170-B

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] Date: 07/22/2020 Product Similarity Declaration To Whom It May Concern, We, Zeeva International Limited hereby declare that we have a product named asBT KID SAFE HEADPHONES (Model No: HP-0063) FCC ID: 2ADM5-HP0063 was tested by BACL, meanwhile, for our marketing purpose, we would like to list a series models on reports and certificate, all the models are identical schematics, except for the differences as below, 1. Only difference model No. and Description with different product name, UPC#, SKU#. Model No. Description UPC# SKU# HP-0063-AVENGER BT KID AVENGERS HP DTR 192234062463- 3354677- HP-0063-PRINCES BT KID PRINCESS HP DTR 192234062456 3354040 HP-0063-SPIDERMAN BT KID SPEDERMAN HP DTR 192234062449 3354032 HP-0204 BT METALLIC HP AST 192234062791 3357258 No other changes are made to them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Printed Name:Akshay P Butani Title: Vice President

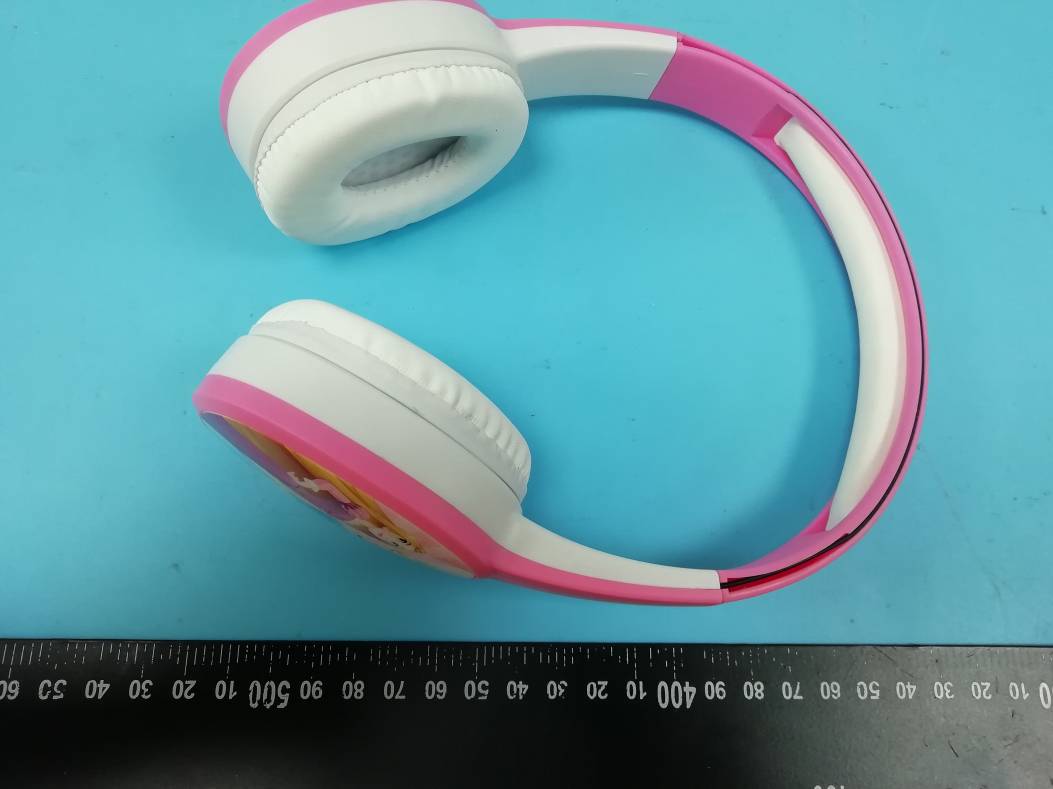

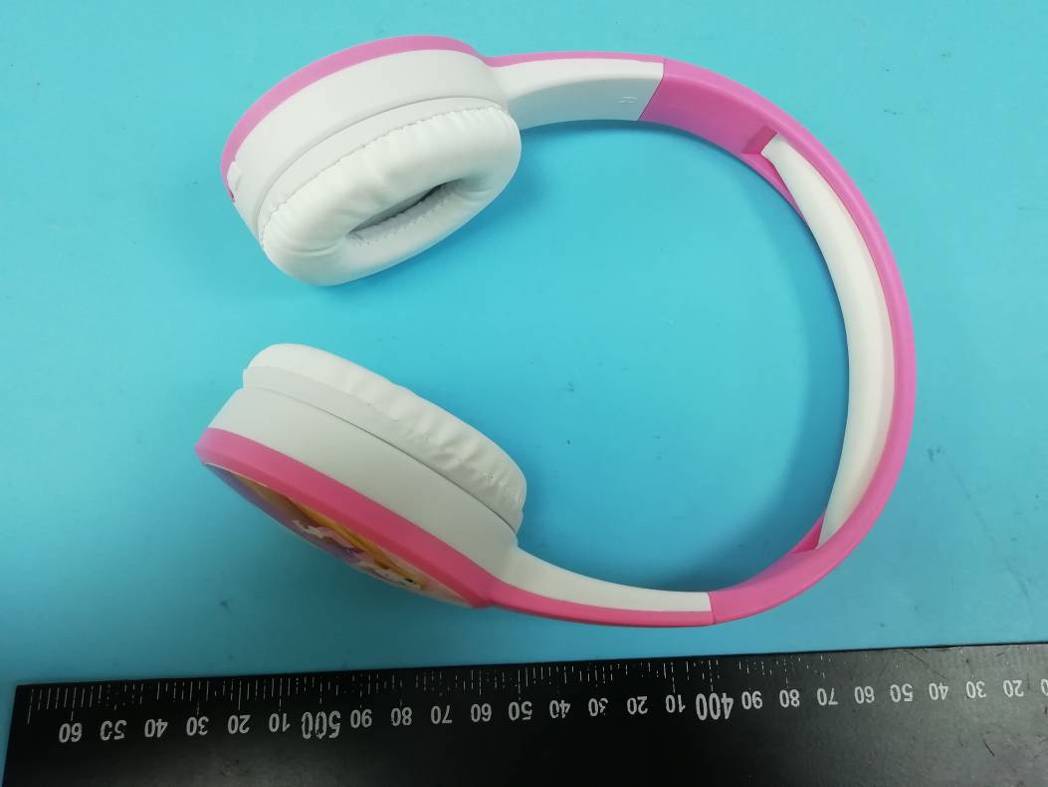

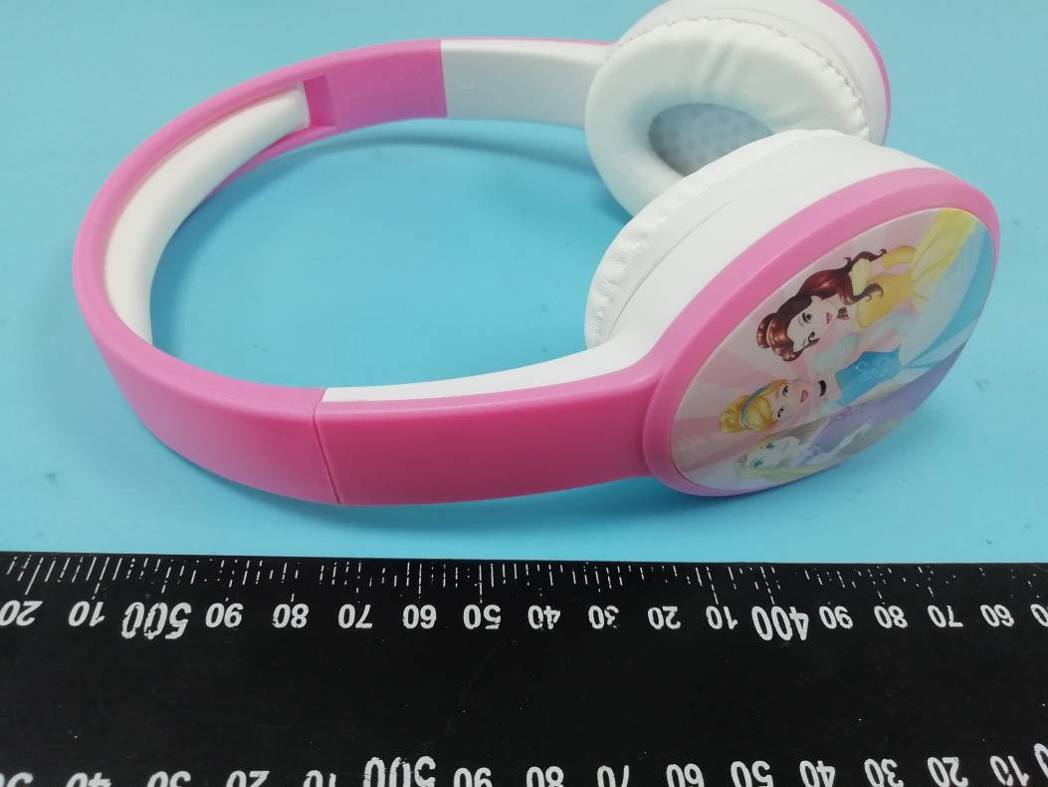

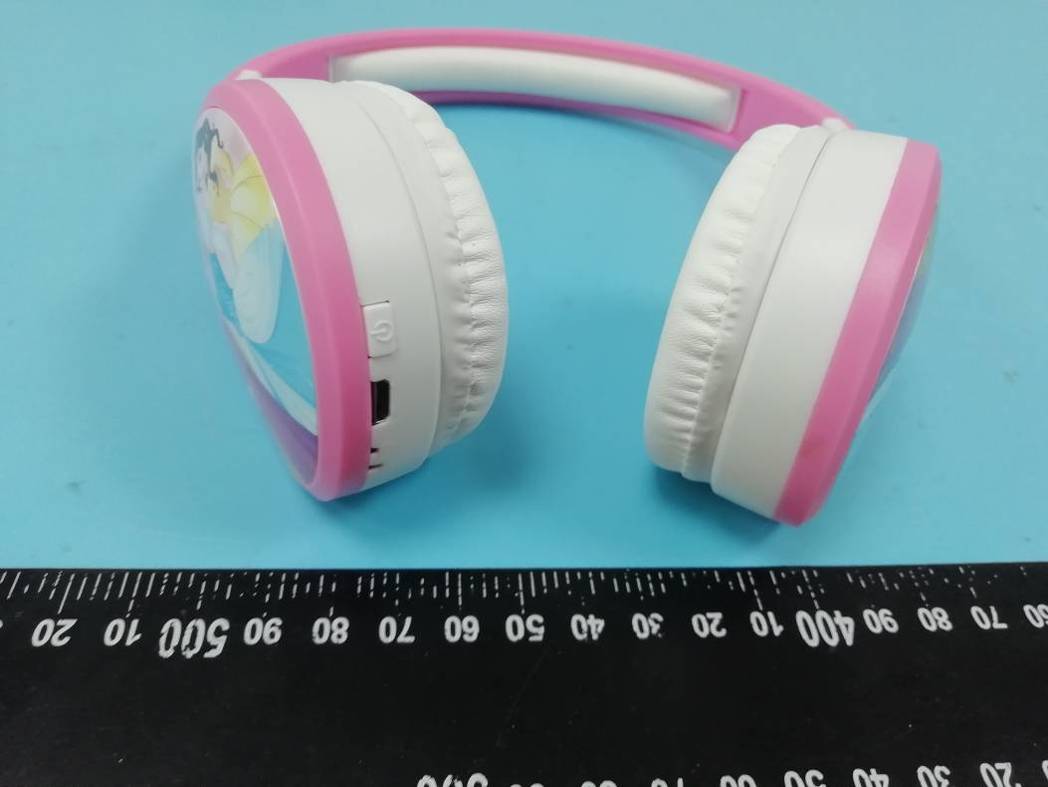

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200623832-RF Page 1 of 3 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200623832-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200623832-RF Page 3 of 3

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200623832-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200623832-RF Page 1 of 5 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200623832-RF Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200623832-RF Page 3 of 5 Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200623832-RF Page 4 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200623832-RF Page 5 of 5 Battery

Bluetooth schematic diagram function description 1, Battery proveides energy for the Bluetooth chip(AC6969A),Crystal oscillator(24MHz) provides the clock signal for the Bluetooth chip. 2,. In standby broadcast state, press the switch to play bluetooth 3, Bluetooth signals get thorough a matching circuit,and then transmitted to the space through the antenna(2402MHZ-2480MHz). 4,When the product is connected,the product can be two way communication with modeile phones, and then phones Bluetooth module sends Bluetooth signals into space 5, the product erceives the Bluetooth signal through an antenna,transmission to the Bluetooth. 6,chip via matching circuit,the signal amplifies the audio signal through an amplifer and plays out the audio signal from the speaker.

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong FCC ID: 2ADM5-HP0063 Report Type: Original Report Product Type: BT KID SAFE HEADPHONES Re port Number: RSZ200623832-00 Re port Date: 2020-07-20 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200623832-00 FCC Part 15.247 Page 2 of 54 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE ...................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ........................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
