2ADM5-LD-00018 FT APP CTRL STRIP LIGHTS

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] FCC Authorization 04/24/2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Zeeva International Limited the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President QA-FR-170-B

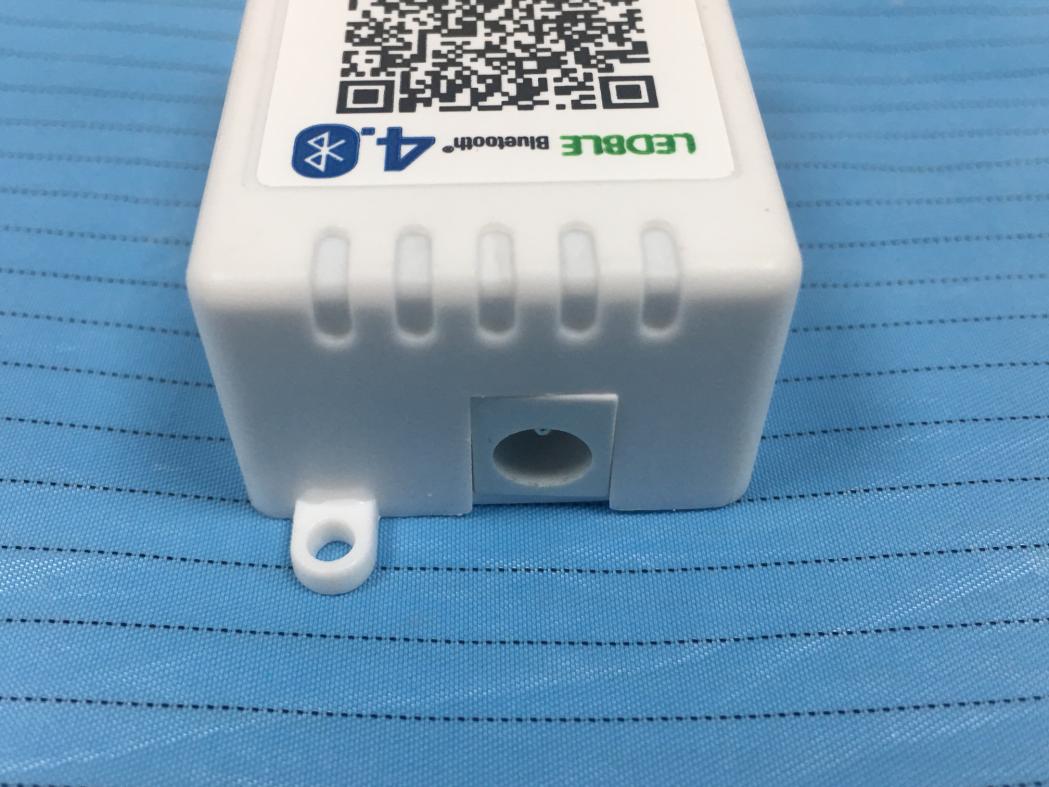

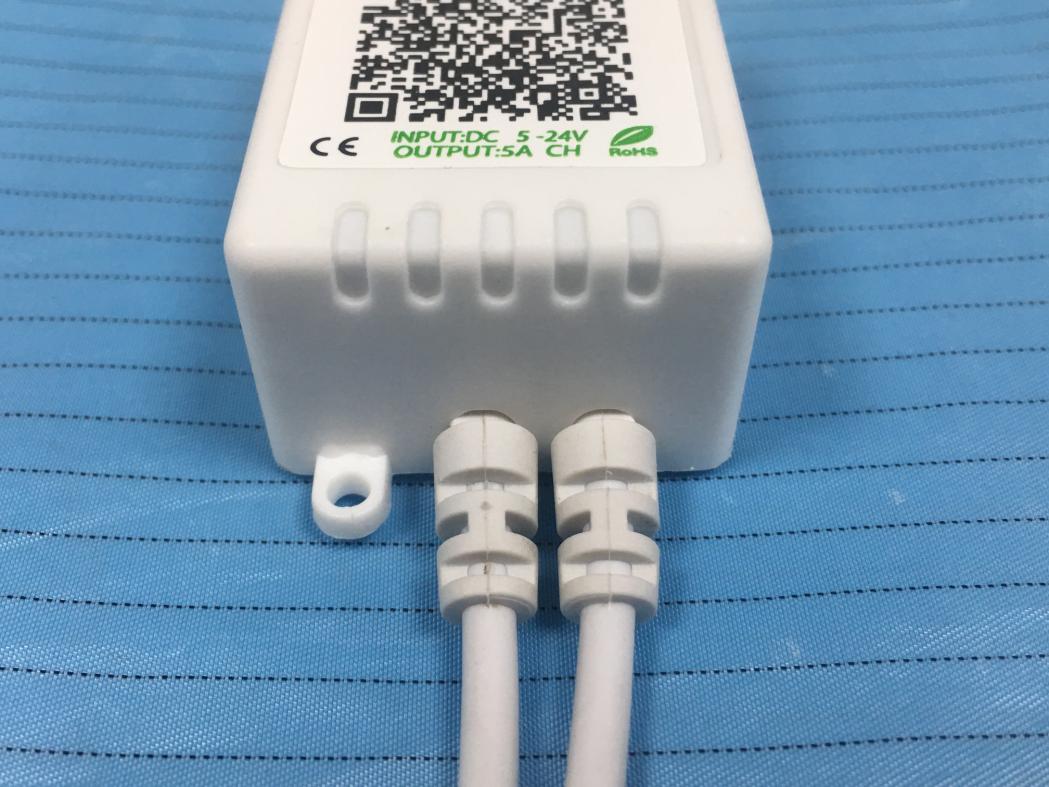

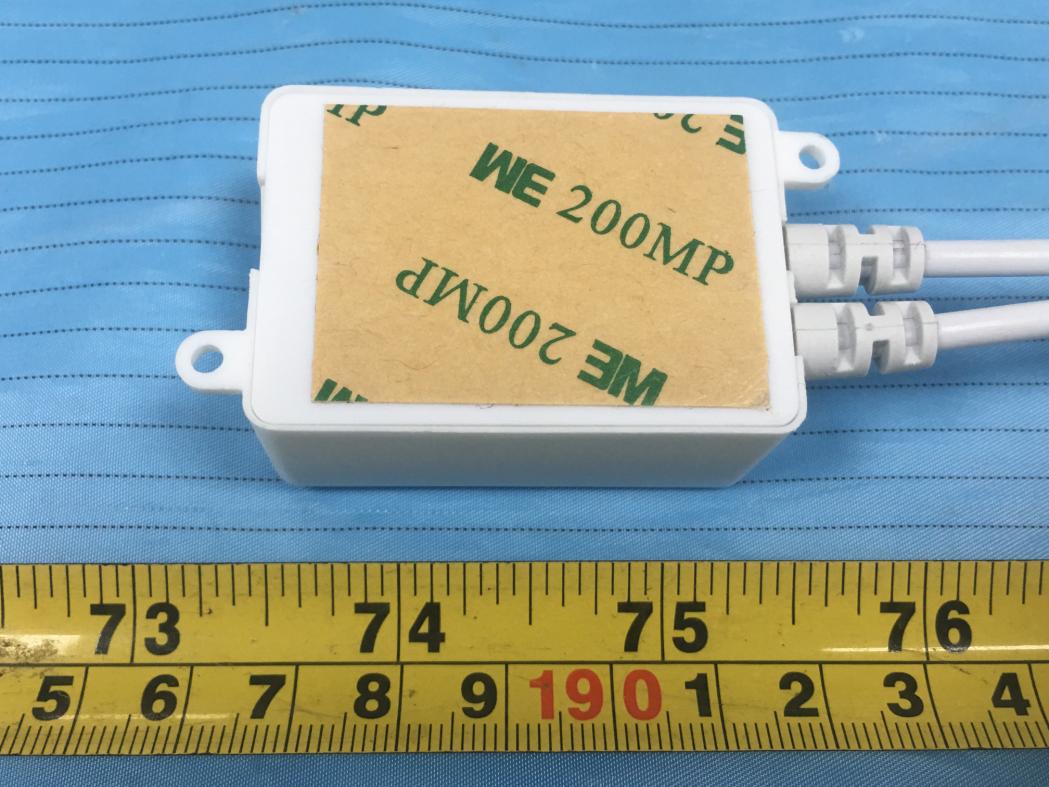

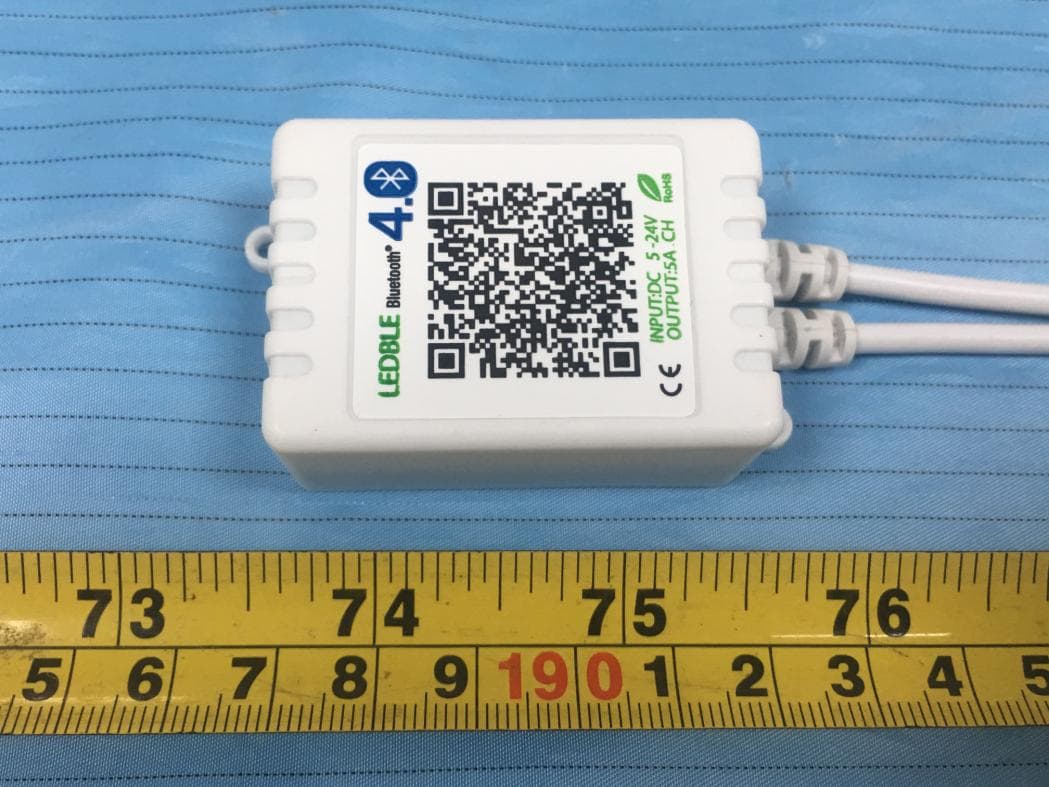

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

Description of Operation Input (DC 5V) provides energy for the Bluetooth chip (Y89); Crystal oscillator (12MHz) provides the clock signal for the Bluetooth chip. Bluetooth signals get through a matching circuit, and then transmitted to the space through the antenna (2402-2480MHz). When the product is connected, the product can in two-way communication with other Bluetooth Devices, and then the device’s Bluetooth module sends Bluetooth signals, the product receives the Bluetooth signal through an antenna, transmission to the Bluetooth chip via matching circuit.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA Output 3.3V/1A VCC3V3 V_12V V_12V VCC3V3 VCC3V3VCC3V3 VCC3V3 VCC3V3 Title Size Document NumberRev Date:Sheetof <Doc><RevCode> <Title> B 11Thursday, March 12, 2020 Title Size Document NumberRev Date:Sheetof <Doc><RevCode> <Title> B 11Thursday, March 12, 2020 Title Size Document NumberRev Date:Sheetof <Doc><RevCode> <Title> B 11Thursday, March 12, 2020 IRD U2 HT7533 ADJ/GND 1 VOUT 3 VIN 2 C2 100nF,6.3V C26 1uF,6.3V C25 10uF,6.3V R1610R,5% U1 Y89 GP4/SCL/PWM2 1 GP5/SDA/PWM2INV/PWM3 2 GP7/PWM0 3 SWS 4 GP10/PWM1 5 VPP6P75V 6 VDDDEC 7 GP17/PWM2INV/ANA0 8 GP18/ANA1 9 GP22/SCL/ANA2 10 GP23/SDA/ANA3 11 XC1 12 XC2 13 VDD3 14 VSS 15 ANT 16 + C29 NC/47uF/35V/5X7 IRG R C7 0.1uF/10V C31 NC C6 0.1uF/10V Y1 12MHZ_12pF_10ppm 14 23 B C8 10uF/6.3V B1 IRV Q3 SI2300 C4 10nF/25V J1 DC_POWER_JACK 5 3 4 + C3 1uF/25V D1 1N5819,0R U4 AT24C02 A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 Q1 SI2300 E1 ANTENNA G C30 NC Q2 SI2300 R_LEDG_LED B_LED ANT R_LED SDA G_LED SCL B_LED SDA SCL XC2 XC1 XC1 XC2 VDDDEC IR_INPUT IR_INPUT

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong FCC ID: 2ADM5-LD-0001 R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e: 8 F T A P P C T R L S T R I P L I G H T S Report Number: RSZ200311830-00 Report Date: 2020-04-29 Reviewed By: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200311830-00 FCC Part 15.247 Page 2 of 28 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 DUTY CYCLE ................................................................................................................................................................ 6 DUTY CYCLE ................................................................................................................................................................ 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE.................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 11 APPLICABLE STANDARD ............................................................................................................................................ 11 RESULT ...................................................................................................................................................................... 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ............................................................................…

Text truncated - open the document above for the full version.

Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] Limit[MHz] Verdict BLE Ant1 2402 0.668 0.5 PASS 2440 0.672 0.5 PASS 2480 0.672 0.5 PASS Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 Appendix C: Maximum conducted Peak output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE Ant1 2402 -0.50 <=30 PASS 2440 1.44 <=30 PASS 2480 1.50 <=30 PASS Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE Ant1 2402 -16.66 <=8 PASS 2440 -15.28 <=8 PASS 2480 -15.54 <=8 PASS Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 Appendix E: Band edge measurements Test Result Test Graphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
