2ADM5-LD-0003BLUETOOTH MOOD LIGHT

Contents Specifications Control With Your Phone Product Overview Power On/Off Instruction Manual Thank you for purchasing the LUMIN + APP CONTROL SMART LIGHT. This manual provides more information about this product, please read the instructions carefully before using. Keep all relevant information for future reference Pair The SMART LIGHT With Your Smartphone Batteries Installation For Smart LightFCC Statement IMPORTANT: BATTERY INFORMATION Control With Your Phone A B C D E AF G H I B D E C F G H I Lamp List Color Wheel Mode On/O Button Brightness Control Mode Selection Settings Image Eyedropper Tool Adjustable Color Wheel Color preset Frequent used color & Classic colors INSTRUCTION MANUAL x1 LUMIN + Smart Light x1 Compatible With: iOS & Android Method 1: Scan the QR Code for quick download. Method 2: Search and install “HappyLighting” in the Apple App Store or Google Play Store. Bluetooth device request: For Apple device, requires iOS 8.0 or later. For Android device, requires Android Ver 4.3 or later. iPod, iPhone, iPad and App Store are trademarks of Apple Inc. registered in the U.S. and other countries. Android TM , Google Play and the Google Play logo are trademarks of Google, Inc. APP CONTROL SMART LIGHT LUMIN + On/O Button On/O Button Power On/Off Press the ON/OFF button once to turn on the LUMIN + SMART LIGHT. Press the ON/OFF button once to turn o the LUMIN + SMART LIGHT. Power Supply: 3 x AAA 1.5V batteries (Not included) Lumin + Smart Light x 1 Instruction Manual x 1 Use any of the below methods to download to the App: 1. Power on the SMART LIGHT. 2. Keep the distance between your SMART LIGHT and smartphone within 32.8 Feet. 3. Activate the Bluetooth function on your smartphone and the lights will connect automatically. To install batteries into the Smart Light, open the battery box cover to access battery compartment. Insert 3 x “AAA” 1.5V batteries (Not Included) into the battery box. Batteries should be placed as shown on the diagram. Put back in place the battery box cover. Notice: When placing the batteries, you must insert according to the correct polarity, the Smart Light won’t function if batteries are reversed. 1. TO AVOID BATTERY LEAKAGE a. Always follow the instructions carefully. Use only batteries specified and be sure to insert them correctly by matching the + and - polarity markings. b. Do not mix old batteries and new batteries or standard (carbon-zinc) with alkaline batteries. c. Remove exhausted or dead batteries from the product. d. Remove batteries if product is not to be played with for a long time. e. Do not short-circuit the supply terminals. 2. Should this product cause, or be affected by local electrical interference, move it away from other electrical equipment. Reset (switching ON & OFF again or removing and re-inserting batteries) if necessary. This device complies with the part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or experienced radio/ TV technician for help. FCC ID: 2ADM5-LD-0003 Push 1 Pull Out 2 Made in China Item # LD-0003 Distributed by 1616 Holdings, Inc. 701 Market Street, Suite 200 Philadelphia, PA 19106 Product: LD-0003 IM Approval:Date: Date: 4 JUN 2020 LD-0003 IM Size: 420 x 110mm LED STRIP LIGHTS X 1 CONTROL BOX X 1 REMOTE CONTROL X 1 INSTRUCTION MANUAL X 1 CR 2025 BATTERY ( FOR RC) X 1 USB CABLE X 1 RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

1Mbit FlashAntenna 128 KB Date Memory MCU 32bit UART G SPI P JTAG12C I Power Management Temperature Sensor General Timers O 32 MHz Crystal Clock Sys GPIOPWMM U WDTADCX RTC XC610

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] FCC Authorization 07/14/2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Zeeva International Limited the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President QA-FR-170-B

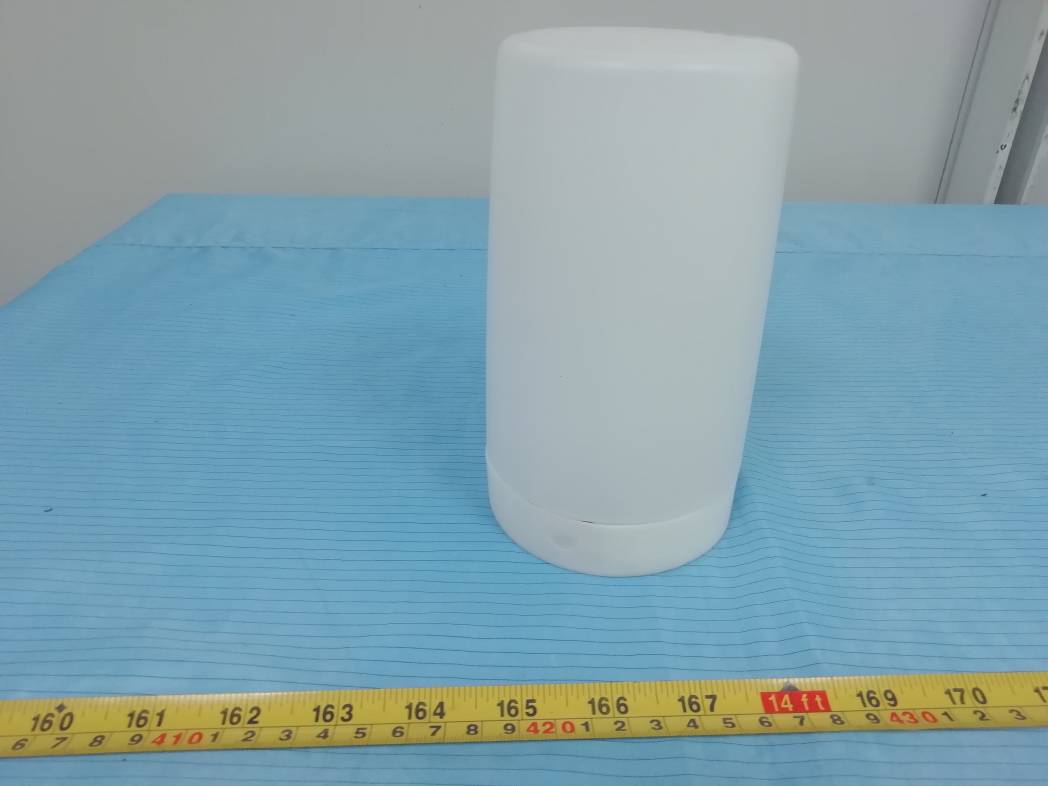

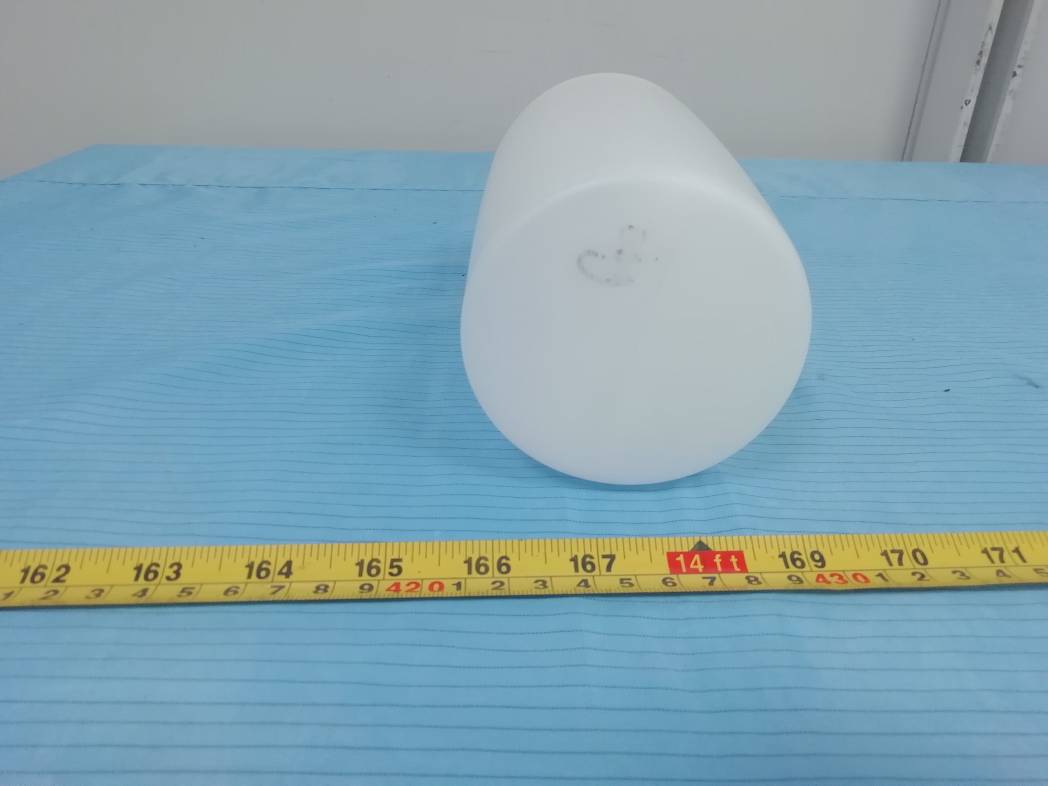

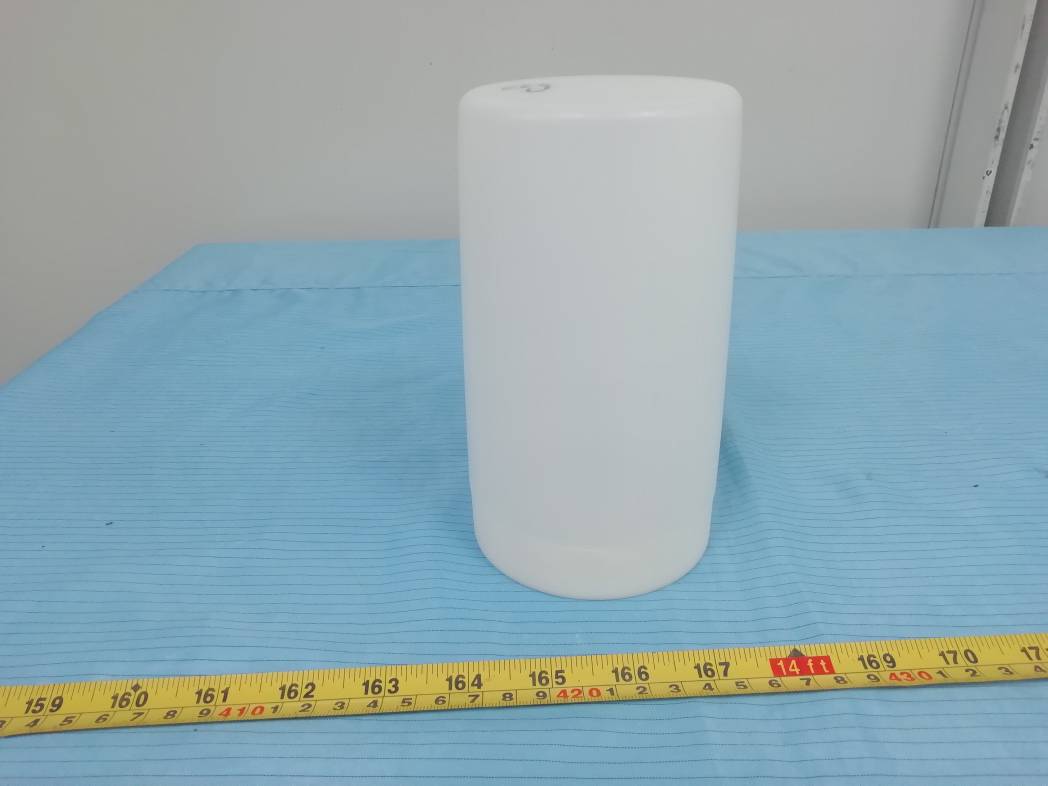

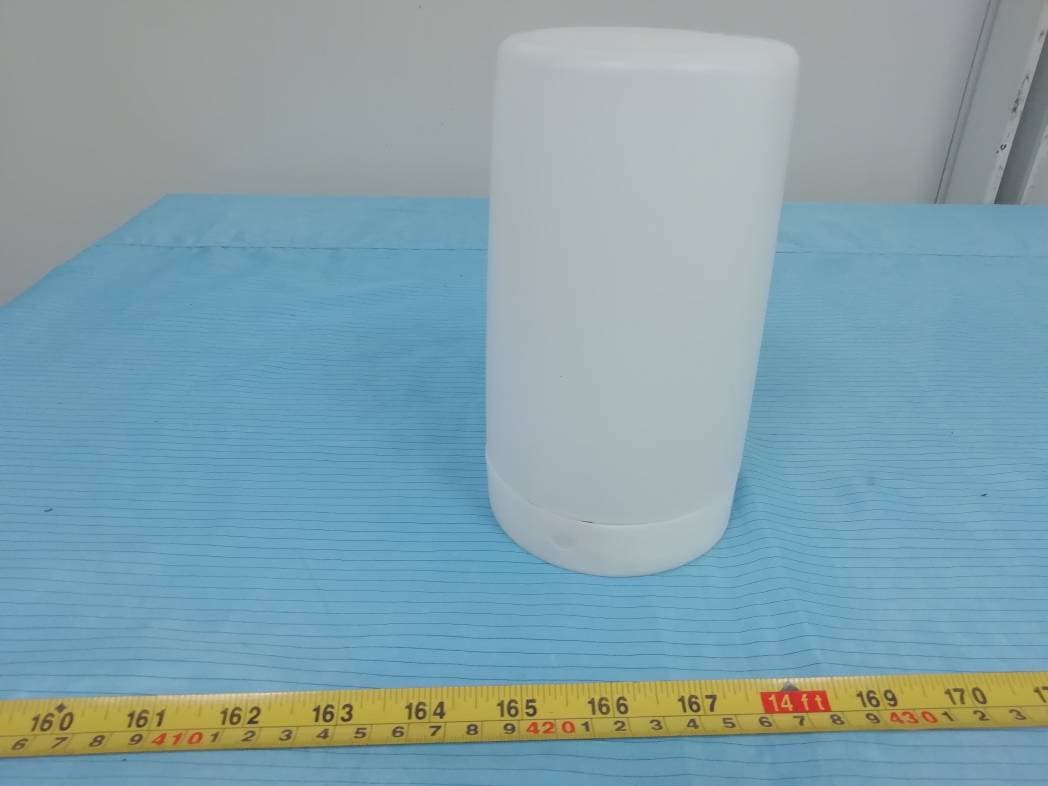

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200616831-RF Page 1 of 2 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200616831-RF Page 2 of 2

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200616831-RF Page 1 of 3 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200616831-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200616831-RF Page 3 of 3 BLE Antenna

3 CircuitDescriptions The32MHzcrystaloscillatordrivesthebaseofU. ThemodulationprovidedbyXC610.Theoutputofhasthematching networkconsistingthatlimittheharmoniccontentandeffectthepropercouplingoftheantenna totheoutputstage. Thereisnoexternalgroundconnection.Thegroundisonlythatoftheprintedcircuitboard. ElectriccurrentissuppliedbyInput4.5V; ThetransmitterisaPortableWirelessMusicSystemoperatingat 2402-2480MHzband.Theoperationisachievedby differentcombinationsofformpulsemodulatingsignalonthe2400MHzcarrier frequency. WhentheNTAGispositionedintheRFfield,thehighspeedRFcommunicationinterfaceallows thetransmissionofthedataandenabletheBluetoothpairing.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2020/5/15/Sheet of File:F:\\\.SchDocDrawn By: SWD 1 SWCK 2 BOOT 3 HVOUT 4 HVIN 5 DECAP100NF 6 DECAP1UF 7 GPIO1/ADC5 8 GPIO0/ADC4 9 GPIO19/ADC2/RX 10 GPIO18/ADC3/TX 11 XC1 12 XC2 13 AVDD 14 GND 15 ANT 16 XC610 Y1 32M C10 104 C8 NC C6 103 C5 NC C7 105 C4 1.5PF L2 NC L1 NC ANT1 ANTENNA C11 105 GND GND PWM3 PWM5 PWM4 PWM0 PWM2 RX TX GND GND GND GNDGND GND GND R62.7K R9 1K R72.7K R10 1K R82.7K R11 1K R1G1B1 Q3 AO3400 Q4 AO3400 Q5 AO3400 IN 1 G N D 2 OUT 3 U1 662K C2 106 C1 106 3.3V VCC C3 104 D1 ZZM3V3 3.3V PWM0PWM4PWM5 1 2 3 4 P1 PWM0 TX RX GNDPWM2 PWM3 S1 S W - P B VCC Q2 SS8050 100K R1 10K R5 4V5 GND 3.3K R4 5K R2 10K R3 EC B Q1 SI2305 C9 106 GND U3

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower 33 Wang Chiu Road, Kowloon Bay, HongKong Report Type: Original Report Product Type: BLUETOOTH MOOD LIGHT Re port Number: RSZ200616831-00 Re port Date: 2020-07-07 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID: 2ADM5-LD-0003 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200616831-00 FCC Part 15.247 Page 2 of 32 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 DUTY CYCLE ................................................................................................................................................................ 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) (1) & §2.1093 – RF EXPOSURE ..................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 13 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 13 TEST DATA ................................................................................................................................................................ 13 …

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
