2ADM5-SP-0207BBT MULTIROOM SPEAKER

ON OFF DC 5V 5.8GHz wireless connection Bluetooth Thank you for purchasing the Unify Multi-Connection Bluetooth Speaker. This manual provides more information about this wireless speaker, please read the instructions before using. Instruction Manual Product Overview Multi-Connection Power on Note: Always power off the speaker when not in use. Power off Reconnect Wireless speaker to your mobile device 4. You will hear a beep sound when pairing is successful. When powered on, the wireless speaker will automatically connect with the last successfully paired device. Pair Wireless speaker with your mobile device 2. Power on the wireless speaker. 3. Activate the Bluetooth function on your phone within range and select “ BT UNIFY SPEAKER ” from the list shown. Package Contents 1. Keep the distance between your wireless speaker and mobile phone (or other devices) within 32.8 Feet. Switch on the Power Button. Switch off the Power Button. Back Front -The input voltage to the product is DC 5V 1A. -In order to charge the product in safe manner and reliable conditions, please only adopt certified appropriate charger/ adapter for charging the product. -Only charge the product at ambient temperatures between 10 deg °C/ 50 deg °F and 40 deg °C/104 deg °F. - Do not heat above 70 deg °C/158 deg °F, eg. Do not expose to sunlight or throw into fire. -Switch off the product after use. -Please note that we won’t take any responsibility for any wrong operation (eg. Voltage higher than 5V) as this may result in severe injury or loss of property, and we cannot control the operating process during the time the user using this product. -In extreme cases, abuse or misuse of Lithium battery pack can lead to explosion, heat generation, fire development or smoke development. Safety instructions for the lithium battery and charging the product FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. This Keep All Relevant Information For Future Reference On/Off switch LED Indicator Micro USB Charging Port FAQ If the Wireless speaker cannot be paired with your device, please try the following: Ensure that your speaker is in pairing mode or reconnection mode. Ensure that Bluetooth search function of your mobile device is activated. If the Wireless speaker cannot be recharged: If you use a power outlet, ensure that the power supply is connected securely and the outlet works. If you use a computer, ensure that it is connected and the USB port is powered. FCC ID: 2ADM5-SP-0207B ITEM# SP-0207B Technical specification Driver Diameter: 52 mm Impedance: 4 Ohms Power Supply: Li-ion Battery 3.7V 1200 mAh Playtime: 1.5-2 Hours Charging Time: 3 Hours Bluetooth Range: 32.8 Feet Charging Method: USB Charging Micro USB Charging Cable Included Made in China Includes: 1(One) Speaker 3.5in. x 7.1in. x 3.5in. (8.9cm x 18cm x 8.9cm) 1(One) Charging Cable 19.7in. (50cm) 1(One) Instruction Manual Multi-Connection BLUETOOTH SPEAKER (Need more than 1pc Unify Multi-Connection Bluetooth Speaker to perform this function.) 1. Make sure all Unify Multi-Connection Bluetooth Speaker are unpaired from Bluetooth devices 2. Turn off all Unify Multi-Connection Bluetooth Speaker. 3. Turn on 1pc and pair with your Bluetooth device as “Host Speaker”. 4. After the first speaker is connected to your Bluetooth device, turn on other Unify Multi-Connection Bluetooth Speakers as “Branch Speaker”. 5. Start playing music from the connected Bluetooth device, the “Branch Speaker” will automatically connected with the Host speaker. The LED on the Branch speakers will turns to green. 6. “Host Speaker” and “Branch Speaker” will start playing the music. Remark: for this Multi-Connection, please note only 1 “Host Speaker” connect with Bluetooth device. Pair both Host and Branch speakers to Bluetooth devices may cause the multi-connection function failure. 1. Use the Micro USB charging cable provided with this wireless speaker. 2. Connect the Micro USB plug to Micro USB charging port on the speaker, then connect the USB plug to a USB port on a computer or wall adapter to begin charging. 3. The LED Indicator will turn red while charging and will turn off once fully charged. NOTE: • You must select a qualified charger from a regular manufacturer. • You must charge the Wireless speaker if it has been not used for more than 6 months. Charging your Wireless speaker For your safety, please always use appropriate 5V input charger/Adapter to charge the product…

Text truncated - open the document above for the full version.

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road,Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] Date: 08/15/2022 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Zeeva International Limited hereby declare that Product Name: BT MULTIROOM SPEAKER Model No.: SP-0207B FCC ID: 2ADM5-SP-0207B For BT Mode: BLE 1M/2M For Below are activated: For BT Mode: Bluetooth BDR(GFSK) EDR(8DPSK) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely Yours, Signature: Printed Name: Akshay P Butani Tiltle: Vice President For below are disabled by software: For 5.8G: FSK For 5.8G: GFSK

RF BLUETOOTH BK3266QN40F LED Crystal oscillator 26MHZ BK5813 5.8G 5639 Crystal oscillator Micro charging CL4056D LI BATTERY 3.7V B00ST power amplifier AN8110 horn 2402-2480MHz 5731-5795MHz 16MHZ ANT

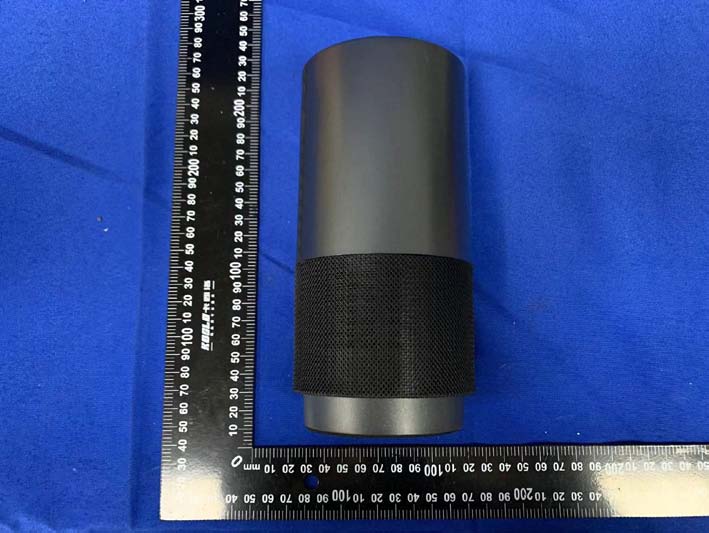

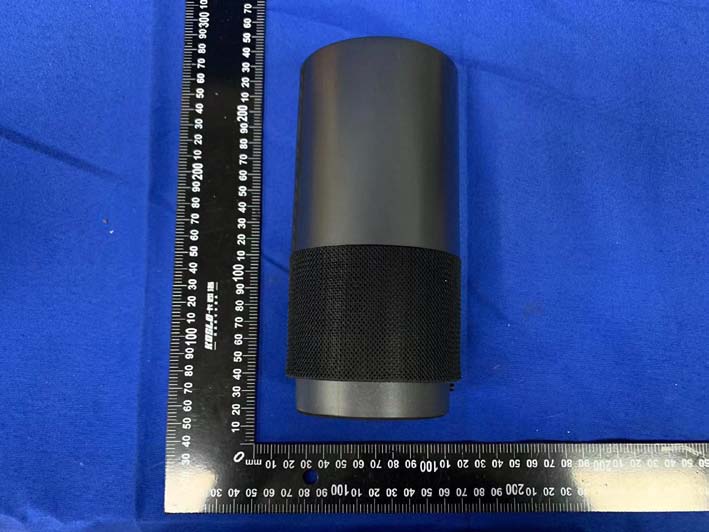

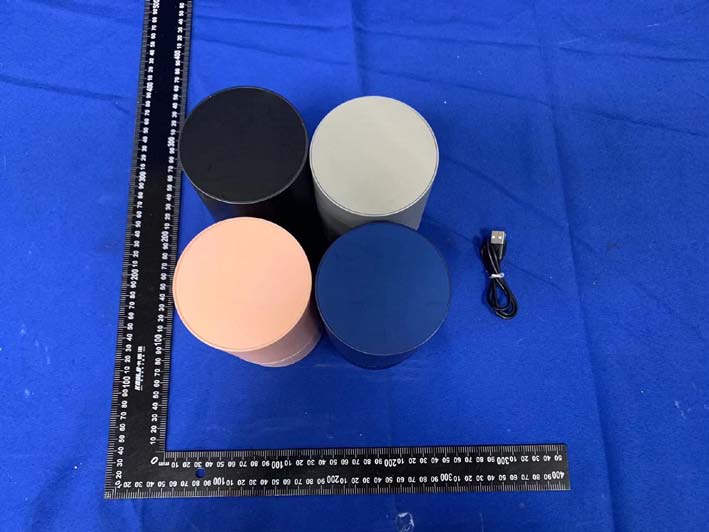

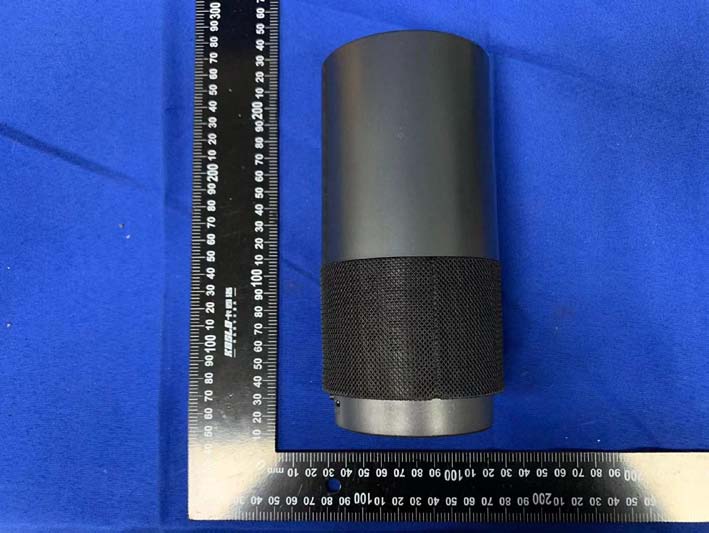

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220804-35519E-RF Page 1 of 4 External Photos Note: Only the exterior color is different Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220804-35519E-RF Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220804-35519E-RF Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220804-35519E-RF Page 4 of 4

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220804-35519E-RF Page 1 of 4 Internal photos BT Antenna 5.8G antenna port Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220804-35519E-RF Page 2 of 4 5.8G Antenna Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220804-35519E-RF Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220804-35519E-RF Page 4 of 4

Circuit Description Battery (DC 3.7V) provides energy for the Bluetooth chip (BK3266QN40F); Crystal oscillator (26MHz) provides the clock signal for the Bluetooth chip. Bluetooth signals get through a matching circuit, and then transmitted to the space through the antenna (2402-2480MHz). When the product is connected, the product can in two-way communication with other Bluetooth Devices, and then the device’s Bluetooth module sends Bluetooth signals into space, the product receives the Bluetooth signal through an antenna, transmission to the Bluetooth chip via matching circuit. 5.8G SRD Chip: BK5813, Crystal oscillator: 16MHz Frequency Range: 5731-5795MHz

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect testresults are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Te l : +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 18: 2021-11-09 Page 1 of 27 FCC – 2.4GHz TEST REPORT Applicant Name : Zeeva International Limited Address : Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Report Number: SZ3220804-35519E-RF-00B FCC ID: 2ADM5-SP-0207B Test Standard (s) FCC PART 15.249 Sample Description Product Type: BT MULTIROOM SPEAKER Model No.: SP-0207B Trade Name: N/A Date Received: 2022-08-04 Date of Test: 2022-09-30 to 2022-10-14 Report Date: 2022-10-18 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Roger.Ling Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZ3220804-35519E-RF-00B Version 18: 2021-11-09 Page 2 of 27 FCC – 2.4GHz TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 SUPPORT CABLE DESCRIPTIONS ................................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC §1.1307 (B) & §2.1093 – RF EXPOSURE ........................................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST RESULT ............................................................................................................................................................. 10 FCC§15.203 – ANTENNA REQUIREMENT ........................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC§15.207 (A) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 FCC§15.205, §15.209 & §15.249(D) – RADIATED EMISSIONS ........................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 TEST EQUIPMENT SETUP ............................................................................................................................................ 16 EUT SETUP ................................................................................................................................................................ 17 TEST PROCEDURE ...............................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220804-35519E-RF Page 1 of 2 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220804-35519E-RF Page 2 of 2 Photo of Radiated Emission Measurement Below 1GHz Photo of Radiated Emission Measurement Above 1GHz
