2ADM5-SP-0218BT LED CARABINER SPEAKER AST2

Thank you for purchasing the Portal Wireless Speaker. This manual provides more information about this wireless speaker, please read the instructions before using. SP-0218 Wireless Speaker Manual Instruction Manual 1. Use the Micro USB charging cable provided with this wireless speaker. 2. Connect the Micro USB plug to Micro USB charging port on the speaker, then connect the USB plug to a USB port on a computer or wall adapter to begin charging. 3. The light will turn red while charging and will turn off once fully charged. NOTE: Product Overview Power on Power off Reconnect Wireless speaker to your mobile device 4. You will hear a beep sound when pairing is successful. When powered on, the wireless speaker will automatically connect with the last successfully paired device. Pair Wireless speaker with your mobile device 2. Power on the wireless speaker. 3. Activate the Bluetooth function on your phone within range and select “ BT PORTAL SPK ” from the list shown. • You must select a qualified charger from a regular manufacturer. • You must charge the Wireless speaker if it has been not used for more than 12 months. Package Contents FAQ If the Wireless speaker cannot be paired with your device, please try the following: Ensure that your speaker is in pairing mode or reconnection mode. Ensure that Bluetooth search function of your mobile device is activated. Charging your Wireless speaker Technical Specification Size: H: 100mm x W: 322.5mm 1. Keep the distance between your wireless speaker and mobile phone (or other devices) within 32.8 Feet. If the Wireless speaker cannot be recharged: If you use a power outlet, ensure that the power supply is connected securely and the outlet works. If you use a computer, ensure that it is connected and the USB port is powered. Slide the ON/OFF switch to the “ON” position. Slide the ON/OFF switch to the “OFF” position. Back Front FCC ID: 2ADM5-SP-0218 -The input voltage to the product is DC 5V 1A. -In order to charge the product in safe manner and reliable conditions, please only adopt certified appropriate charger/ adapter for charging the product. -Only charge the product at ambient temperatures between 10 deg °C/ 50 deg °F and 40 deg °C/104 deg °F. - Do not heat above 70 deg °C/158 deg °F, eg. Do not expose to sunlight or throw into fire. -Switch off the product after use. -Please note that we won’t take any responsibility for any wrong operation (eg. Voltage higher than 5V) as this may result in severe injury or loss of property, and we cannot control the operating process during the time the user using this product. -In extreme cases, abuse or misuse of Lithium battery pack can lead to explosion, heat generation, fire development or smoke development. Safety instructions for the lithium battery and charging the product FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Keep All Relevant Information for Future Reference 05JAN22 Distributed by 1616 Holdings, Inc. 701 Market Street, Suite 200 Philadelphia, PA 19106 Driver Diameter : 45 mm Impedance : 4 Ohms Playing Time : 1.5 - 2 Hours Charging Time : 1.5 - 2 Hours Power Supply : Li-Ion Battery 3.7V 300 mAh Bluetooth Range : 32.8 feet Micro USB Charging Cable Included 1(One) Wireless Speaker 3.9 in. x 3.9 in. x 1.6 in. (9.9 cm x 9.9 cm x 4.1 cm) 1(One) Micro-USB Charging Cable 19.7 in. (50 cm) 1(One) Instruction Manual PORTAL PORTABLE WIRELESS SPEAKER Micro USB Charging port On/Off switch

AC6965 LTK5128 MUTE 24MHZ LP4054 BT ANT U1 U4 Y1 RF1 AUDIO USB5V INPUT U2 J1 BATTERY 3.7V 3.7V 3.7V 3.7V 5V 3.7V SPK LED 2402-2480MHz

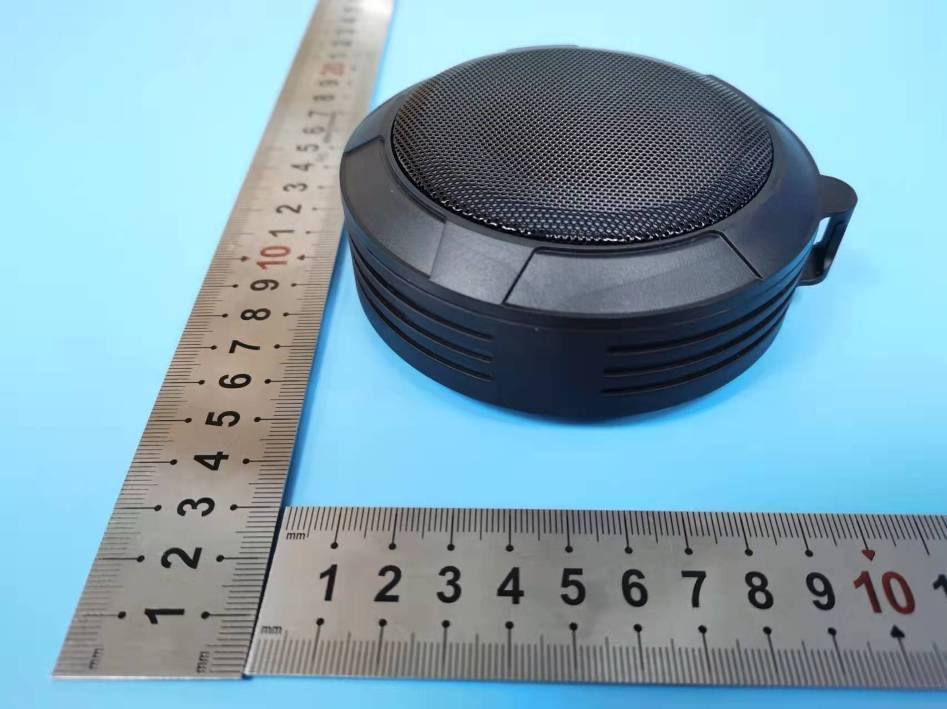

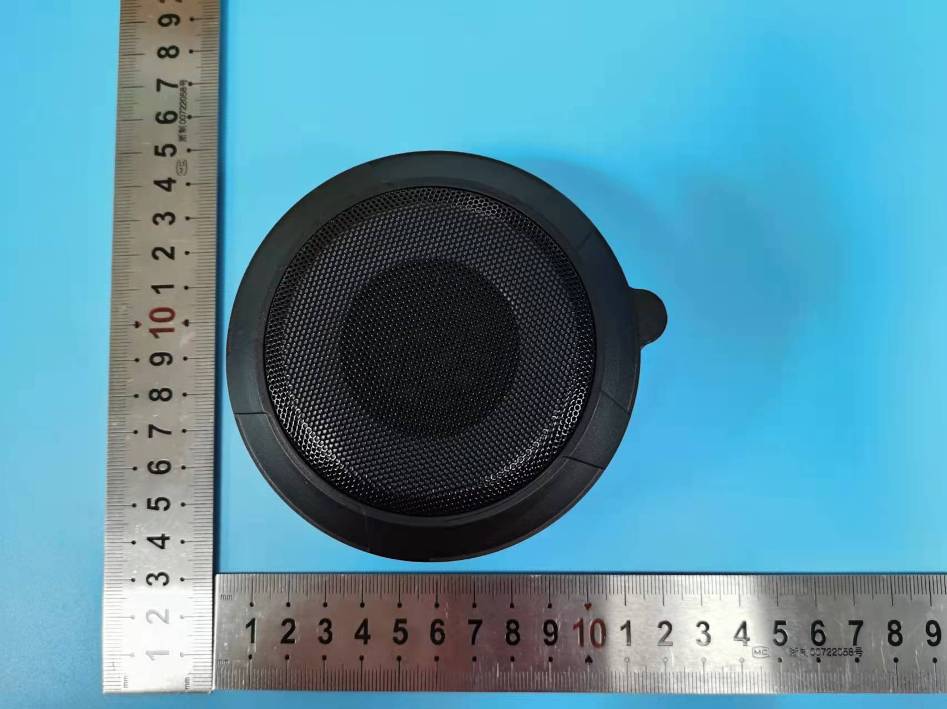

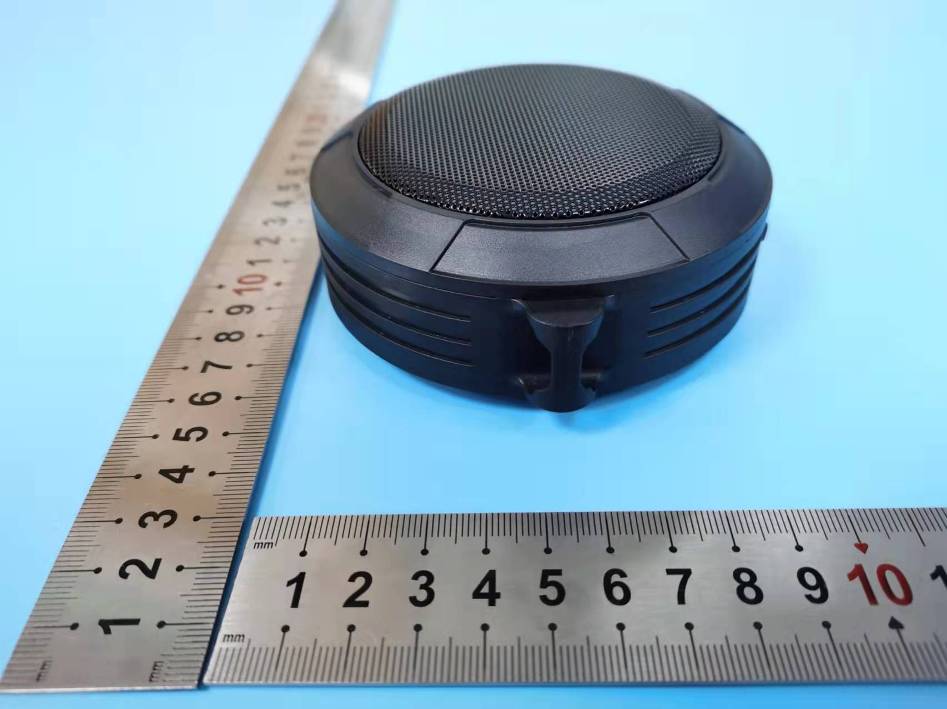

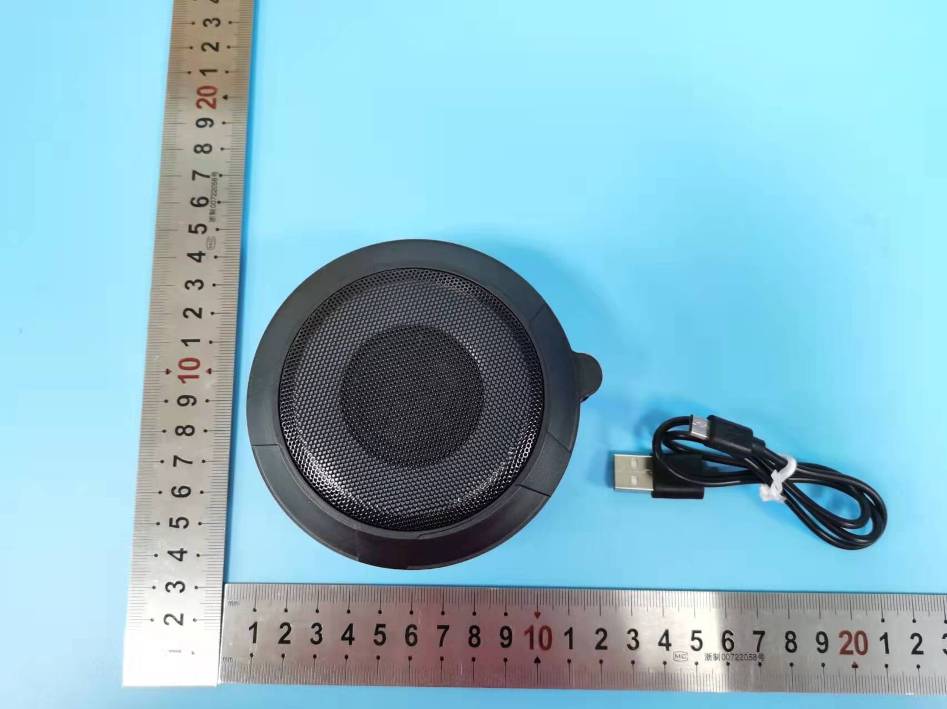

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 1 of 5 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 2 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 3 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 4 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 5 of 5

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 1 of 6 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 2 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 3 of 6 Antenna Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 4 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 5 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 6 of 6

AC6965 24MHz CircuitDescription 1.Battery(3.7V)providesenergyfortheBluetoothchip( ) ;Crystal oscillator()providestheclocksignalfortheBluetoothchip.Bluetoothsignals getthroughamatchingcircuit,andthentransmittedtothespacethroughthe antenna（2402MHz‐2480MHz）.Whentheproductisconnected,theproductcanbe intwo‐waycommunicationwithotherBluetoothdevices,andthenthedevice's BluetoothmodulesendsBluetoothsignalsintospace,theproductreceivesthe Bluetoothsignalthroughanantenna,transmissiontotheBluetoothchipvia matchingcircuit.

24K-333-27K SPK221223 1216 C3 105 1 CHG 2 GND 3 BAT 4 VCC 5 PROG U2 LP4054 R2 3.6K 1 2 LED2 RED R3 1K 1 VCC 2 D- 3 D+ 4 ID 5 GND 10 11 67 14 J1 1 B+ 1 B- C4 105 1 GND C11 106 C12105 R1 100k 1 SP+ 1 SP- R627K 1 SD 2 BYP 3 MODE 4 INN 5 VON 6 VCC 7 GND 8 VOP 9 PG U1 LTK5128 C10 333 R15 24K 1A 2 B 3C 4 GND 5 GND SW2 R11 47R R4 NC B-R-G- B+R+G+ 5 31 6 4 2 LED3 B-R-G- B+R+G+ 5 31 6 4 2 LED4 B-R-G- B+R+G+ 5 31 6 4 2 LED5 1 5V 1 23 Q3 3904 R1047R R16 10K 1 23 Q5 3904 R1747R R18 10K 1 23 Q4 3904 R19 47R R20 10K B-R-G- B+R+G+ 5 31 6 4 2 LED6 R80R Y124MHZ C8 105 1 A 2 2 ADC9/AUX1R/SD0CLK/PB7 ADC8/SD0CMD/AUX1L/PB6 BT_OSCO BT_OSCI VSS0 BT_RF FMIP ADC5/PB1 PB5/LDO_IN DACL VBAT ADC7/SD0DAT/PB4 VDDIO PA0/SD_PG/ADC0 DACVSSVCOM PA1/MIC/ADC1PA2/MIC_BIASPA3/AUX0L/ADC2PA4/AUX0R/ADC3USBDP/ADC13USBDM/PC3/SD0DATPC4/SD0CMDPC5/SD0CLK 123456789 101112 13 1415161718192021222324 U 4 A C 6 96 5 C9 105 C16 105 C20 2.7PF 1 23 Q1 3904 R5 47R R9 10K 1 23 Q2 3904 R1347R R14 10K 1 23 Q6 3904 R21 47R R22 10K R26 0R 1 GND 2 OUT 3 IN U3 C1 105 R70R 1234 CON1 NPC-4P-1.25 1234 CON2 NPC-4P-1.25 BAT BAT VMCU MUTE VMCU VMCU DACL VMCU OUTG1 OUTR1OUTB1 OUTG2 OUTR2OUTB2 VMCU OUTG1 OUTR1OUTB1 OB1 OR1 OG1 OUTG1 OUTR1 OUTB1 BT_OSCIBT_OSCO BT_OSCI BT_OSCO 3.3V VMCU OR2 DACL USB_DP OB1OR1OG1 AUX-IN AUX_DET MUTE MIC BLED OG2OB2AB/D OUTG2 OUTR2 OUTB2 VMCU OG2 OR2 OB2 GA RA BA

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “ ★ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 11: 2021-11-09 Page 1 of 63 FCC-BT TEST REPORT Applicant Name : Zeeva International Limited Address : Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Report Number : SZ3211230-68251E-RF FCC ID: 2ADM5-SP-0218 Test Standard (s) FCC PART 15.247 Sample Description Product Type: BT LED CARABINER SPEAKER AST2 Model No.: SP-0218 Date Received: 2021-12-30 Date of Test: 2022-01-05 Report Date: 2022-01-07 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Fan Yang Candy Li EMC Engineer RF Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZ3211230-68251E-RF Version 11: 2021-11-09 Page 2 of 63 FCC-BT TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE .................................................................................. 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST RESULT: ............................................................................................................................................................ 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...............................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 1 of 2 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3211230-68251E-RF Page 2 of 2 Photo of Radiated Emission Measurement Below 1GHz Photo of Radiated Emission Measurement Above 1GHz
