2ADM5-SP-0227V2BT FABRIC RUGGED SPK AST2

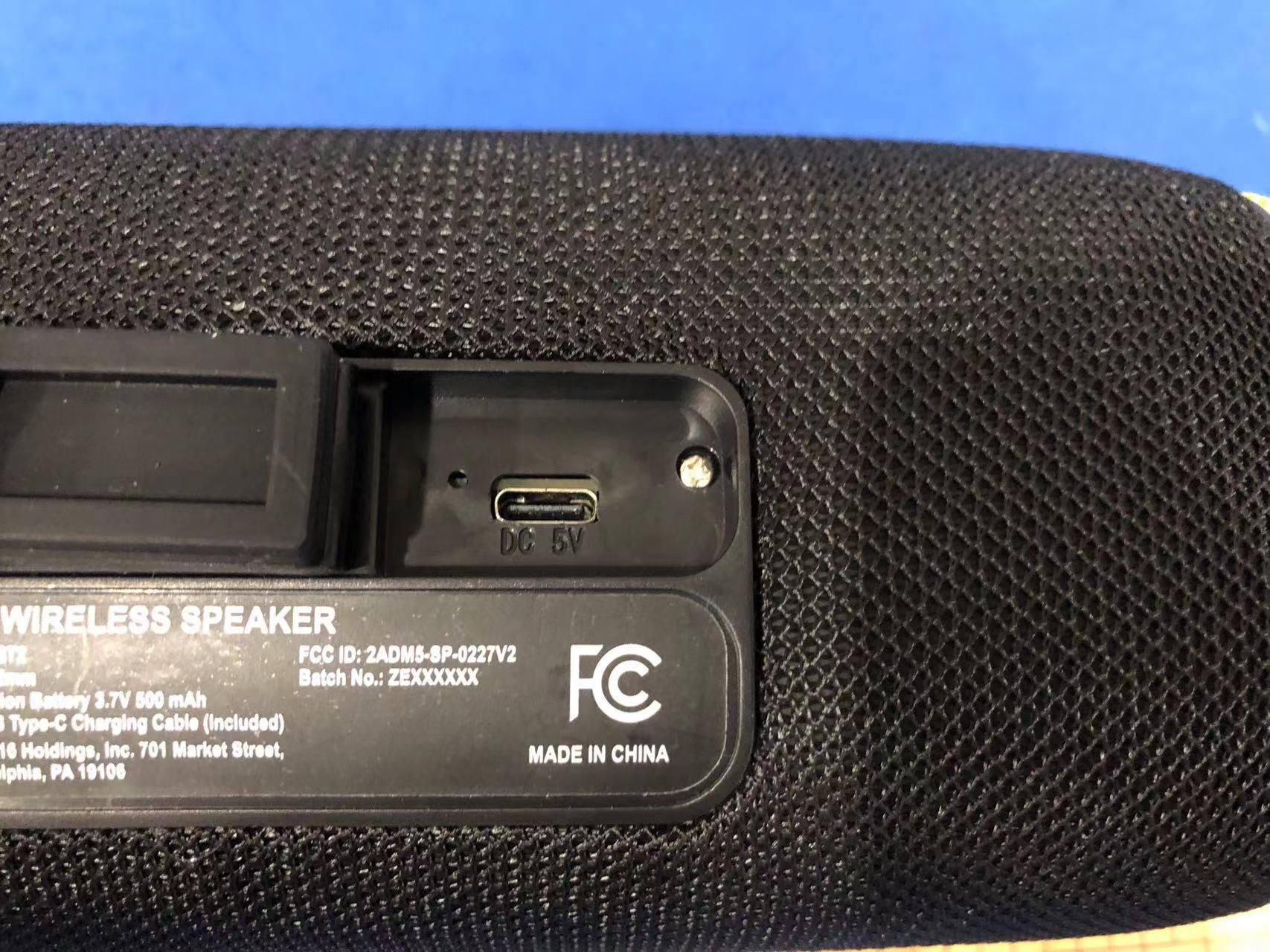

USB Product Overview Power on: Press and hold 2 second on the Power Button. Power off: Press and hold 2 second on the Power Button. Note: Always power off the speaker when not in use. Package Contents Reconnect Wireless speaker to your mobile device When powered on, the wireless speaker will automatically connect with the last successfully paired device. Pair Wireless speaker with your mobile device 1. Keep the distance between your wireless speaker and mobile phone (or other devices) within 32.8 Feet. 2. Power on the wireless speaker. 3. Activate the Bluetooth function on your phone within range and select “BT REVERB SPK” from the list shown. 4. You will hear a beep sound when pairing is successful. Includes: 1(One) Reverb Wireless Speaker 3.54in. x 7.87in. x 3.54in. (8.5cm x 23cm x 8.5cm) 1(One) Charging Cable 11.8in. (30cm) / 1(One) Instruction Manual Front Back -The input voltage to the product is DC 5V 1A. -In order to charge the product in safe manner and reliable conditions, please only adopt certified appropriate charger/adapter for charging the product. -Only charge the product at ambient temperatures between 10°C/50°F and 40°C/104 °F. - Do not heat above 70°C/158°F, eg. Do not expose to sunlight or throw into fire. -Switch off the product after use. -Please note that we won’t take any responsibility for any wrong operation (eg. Voltage higher than 5V) as this may result in severe injury or loss of property, and we cannot control the operating process during the time the user using this product. -In extreme cases, abuse or misuse of Lithium battery pack can lead to explosion, heat generation, fire development or smoke development. Safety instructions for the lithium battery and charging the product Bluetooth Speaker Mode Play/Pause: Short press the Power Button once. Next Track: Short press the “+” Button Previous Track: Short press the “–” Button Volume Up: Long press the “+” Button Volume Down: Long press the “-” Button FM Radio Mode Switch to FM Radio Mode: Short press the Power Button 2 times. Short press the Power Button 2 times again will back to Bluetooth Speaker mode. Auto Scan: Short press the Power Button. Next Channel: Short press the “+” Button Previous Channel: Short press the “–” Button Volume Up: Long press the “+” Button Volume Down: Long press the “-” Button FAQ If the Wireless speaker cannot be paired with your device, please try the following: Ensure that your speaker is in pairing mode or reconnection mode. Ensure that Bluetooth search function of your mobile device is activated. If the Wireless speaker cannot be recharged: If you use a power outlet, ensure that the power supply is connected securely and the outlet works. If you use a computer, ensure that it is connected and the USB port is powered. Technical specification Specifications: Driver Diameter: 52 mm Impedance: 4 Ohms Power Supply: Li-ion Battery 3.7V 500 mAh Playtime: 1.5-2 Hours Charging Time: 1.5-2 Hours Bluetooth Range: 32 Feet Bluetooth Version: 5.3 USB Type-C Charging Cable Included FM Radio Mode IPX4 Water Resistant FCC STATEMENT Keep All Relevant Information For Future Reference FCC ID: 2ADM5-SP-0227V2 Distributed by 1616 Holdings, Inc. 701 Market Street, Suite 200 Philadelphia, PA 19106 Made in China ITEM# SP-0227-AST2 1. Use the USB Type-C charging cable provided with this wireless speaker. 2. Open the water resistant cover, connect the USB plug to a USB port on wall adapter, then connect the USB Type-C plug to USB Type-C charging port on the speaker to begin charging. 3. The LED Indicator will turn red while charging and will turn off once fully charged. NOTE: • You must select a qualified charger from a regular manufacturer. • You must charge the Wireless speaker if it has been not used for more than 6 months. Charging your Wireless speaker For your safety, please always use appropriate 5V output charger/ Adapter to charge the product. DO NOT USE Quick Charging USB Adapter to charge the product, as it might damage the product. CAUTION: The USB Type-C charging cable included with this item is intended for use with this product. Only use the included USB Type-C charging cable to charge this product. USB PlugUSB Type-C Charging Plug 1234 1. Volume Down/Previous Song Button 2. Power/Bluetooth/FM Radio Mode Button 3. Volume Up/Next Song Button 4. Water Resistant Cover (Inside have USB Type-C Charging Port) Power On/Off Thank you for purchasing the Reverb Wireless Speaker. This manual provides more information about this wireless speaker, please read the instructions before using. Instruction Manual REVERB WIRELESS SPEAKER WITH CORD HANDLE DC 5V LED Indicator When open the water resistant cover USB Type-C Charging Cable rating 5V/1A Max. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by 1616 Holdings, Inc. is under license. Other trademarks and trade names are those of their respective owners. This device complies with the part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television …

Text truncated - open the document above for the full version.

ReportNo.EDG2405270358E00101RPage1of74Ver.1.0 TESTREPORT ProductName：BTFABRICRUGGEDSPKAST2 ModelNumber：SP-0227-AST2 FCCID：2ADM5-SP-0227V2 Preparedfor:ZeevaInternationalLimited Address:Suite1007B,10thFloor,ExchangeTower,33WangChiu Road,KowloonBay,HongKong,China Preparedby:EMTEK(DONGGUAN)CO.,LTD. Address:-1&2/F.,Building2,ZoneA,ZhongdaMarineBiotechnology ResearchandDevelopmentBase,No.9,XinchengAvenue, SongshanhuHigh-technologyIndustrialDevelopmentZone, Dongguan,Guangdong,China TEL:+86-0769-22807078 FAX:+86-0769-22807079 ReportNumber:EDG2405270358E00101R Date(s)ofTests:May27,2024toJun17,2024 Dateofissue:Jun17,2024 $二维码$ ReportNo.EDG2405270358E00101RPage2of74Ver.1.0 TableofContents 1TESTRESULTCERTIFICATION..................................................................................................................................................3 2EUTTECHNICALDESCRIPTION.................................................................................................................................................5 3SUMMARYOFTESTRESULT.....................................................................................................................................................6 4TESTMETHODOLOGY.................................................................................................................................................................7 4.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS......................................................................................................7 4.2MEASUREMENTEQUIPMENTUSED..................................................................................................................................7 4.3DESCRIPTIONOFTESTMODES..........................................................................................................................................8 5FACILITIESANDACCREDITATIONS........................................................................................................................................9 5.1FACILITIES..............................................................................................................................................................................9 5.2EQUIPMENT............................................................................................................................................................................9 5.3LABORATORYACCREDITATIONSANDLISTINGS.........................................................................................................9 6TESTSYSTEMUNCERTAINTY.................................................................................................................................................10 7SETUPOFEQUIPMENTUNDERTEST.....................................................................................................................................11 7.1RADIOFREQUENCYTESTSETUP1.................................................................................................................................11 7.2RADIOFREQUENCYTESTSETUP2.................................................................................................................................11 7.3CONDUCTEDEMISSIONTESTSETUP.............................................................................................................................13 7.4BLOCKDIAGRAMCONFIGURATIONOFTESTSYSTEM.............................................................................................14 7.5SUPPORTEQUIPMENT........................................................................................................................................................14 8FREQUENCYHOPPINGSYSTEMREQUIREMENTS...............................................................................................................15 8.1StandardApplicable.................................................................................................................................................................15 8.2EUTPseudorandomFrequencyHoppingSequence................................................................................................................15 8.3EqualHoppingFrequencyUse................................................................................................................................................16 8.4FrequencyHoppingSystem.....................................................................................................................................................16 9TESTREQUIREMENTS...............................................................................................................................................................17 9.120DB&99%BANDWIDTH.....................................................................................................................................................17 9.2CARRIERFREQUENCYSEPARATION..............................................................................................................................28 9.3NUMBEROFHOPPINGFREQUENCIES............................................................................................................................31 9.4AVERAGETIMEOFOCCUPANCY(DWELLTIME)........................................................................................................34 9.5MAXIMUMPEAKCONDUCTEDOUTPUTPOWER.........................................................................................................44 9.6CONDUCTEDSUPRIOUSEMISSION.................................................................................................................................50 9.7RADIATEDSPURIOUSEMISSION.....................................................................................................................................60 9.8CONDUCTEDEMISSIONTEST...........................................................................................................................................69 9.9ANTENNAAPPLICATION................................................…

Text truncated - open the document above for the full version.

ReportNo.EDG2405270358E00101RPage40of74Ver.1.0 2DH5-Ant1-Hop-PASS ReportNo.EDG2405270358E00101RPage41of74Ver.1.0 3DH1-Ant1-Hop-PASS ReportNo.EDG2405270358E00101RPage42of74Ver.1.0 3DH3-Ant1-Hop-PASS ReportNo.EDG2405270358E00101RPage43of74Ver.1.0 3DH5-Ant1-Hop-PASS ReportNo.EDG2405270358E00101RPage44of74Ver.1.0 9.5MAXIMUMPEAKCONDUCTEDOUTPUTPOWER 9.5.1ApplicableStandard AccordingtoFCCPart15.247(b)(1)andKDB558074D0115.247MEASGUIDANCEv05r02 AccordingtoICRSS-247.5.4andRSS-Gen6.12 9.5.2ConformanceLimit ThemaxForfrequencyhoppingsystemsoperatinginthe2400-2483.5MHzbandemployingatleast75 non-overlappinghoppingchannels:1watt.Forallotherfrequencyhoppingsystemsinthe2400-2483.5MHzband: 0.125watts. 9.5.3TestConfiguration Testaccordingtoclause7.1radiofrequencytestsetup1 9.5.4TestProcedure Asanalternativetoapeakpowermeasurement,compliancewiththelimitcanbebasedonameasurementofthe maximumconductedoutputpower. Usethefollowingspectrumanalyzersettings: SetSpan=approximately5timesthe20dBbandwidth,centeredonahoppingchannel(about8MHz) SetRBW>the20dBbandwidthoftheemissionbeingmeasured(about3MHz) SetVBW  RBW SetSweep=auto SetDetectorfunction=peak SetTrace=maxhold Allowthetracetostabilize.Usethemarker-to-peakfunctiontosetthemarkertothepeakoftheemissionto determinethepeakamplitudelevel. TestResults Temperature: 25 ̊ C RelativeHumidity:45% ATMPressure:1011mbar Note:N/A Test Mode AntennaFrequency[MHz] ConductedPeak Powert[dBm] Conducted Limit[dBm] Verdict DH5Ant12402-2.63≤20.97PASS DH5Ant12441-2.62≤20.97PASS DH5Ant12480-3.19≤20.97PASS 2DH5Ant12402-2.00≤20.97PASS 2DH5Ant12441-2.01≤20.97PASS 2DH5Ant12480-2.31≤20.97PASS 3DH5Ant12402-1.61≤20.97PASS 3DH5Ant12441-1.50≤20.97PASS 3DH5Ant12480-2.18≤20.97PASS ReportNo.EDG2405270358E00101RPage45of74Ver.1.0 DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS ReportNo.EDG2405270358E00101RPage46of74Ver.1.0 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS ReportNo.EDG2405270358E00101RPage47of74Ver.1.0 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS ReportNo.EDG2405270358E00101RPage48of74Ver.1.0 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS ReportNo.EDG2405270358E00101RPage49of74Ver.1.0 3DH5-Ant1-2480-PASS ReportNo.EDG2405270358E00101RPage50of74Ver.1.0 9.6CONDUCTEDSUPRIOUSEMISSION 9.6.1ApplicableStandard AccordingtoFCCPart15.247(d)andKDB558074D0115.247MEASGUIDANCEv05r02 AccordingtoICRSS-2475.5 9.6.2ConformanceLimit Inany100kHzbandwidthoutsidethefrequencybandinwhichthespreadspectrumintentionalradiatoris operating,theradiofrequencypowerthatisproducedbytheintentionalradiatorshallbeatleast20dBbelowthat inthe100kHzbandwidthwithinthebandthatcontainsthehighestlevelofthedesiredpower,basedoneitheran RFconducted,providedthetransmitterdemonstratescompliancewiththepeakconductedpowerlimits. 9.6.3TestConfiguration Testaccordingtoclause7.1radiofrequencytestsetup1 9.6.4TestProcedure Thetransmitteroutput(antennaport)wasconnectedtothespectrumanalyzer Referencelevelmeasurement Establishareferencelevelbyusingthefollowingprocedure: SetinstrumentcenterfrequencytoDSSchannelcenterfrequency. SetSpan=approximately5timesthe20dBbandwidth,centeredonahoppingchannel. SettheRBW=100kHz.SettheVBW≥3xRBW. SetDetector=peak.SetSweeptime=autocouple. SetTracemode=maxhold.Allowtracetofullystabilize. UsethepeakmarkerfunctiontodeterminethemaximumMaximumconducetedlevel. Notethatthechannelfoundtocontainthemaximumconducetedlevelcanbeusedtoestablishthereference level. Band-edgemeasurement Usethefollowingspectrumanalyzersettings: Span=wideenoughtocapturethepeakleveloftheemissionoperatingonthechannelclosesttotheband-edge, aswellasanymodulationproductswhichfalloutsideoftheauthorizedbandofoperation SetRBW  1%ofthespan=100kHzSetVBW  3xRBW SetSweep=autoSetDetectorfunction=peakSetTrace=maxhold Allowthetracetostabilize.Setthemarkerontheemissionatthebandedge,oronthehighestmodulation productoutsideoftheband,ifthislevelisgreaterthanthatatthebandedge.Enablethemarker-deltafunction, thenusethemarker-to-peakfunctiontomovethemarkertothepeakofthein-bandemission.Themarker-delta valuenowdisplayedmustcomplywiththelimitspecifiedinthisSection. Now,usingthesameinstrumentsettings,enablethehoppingfunctionoftheEUT.Allowthetracetostabilize. Followthesameprocedurelistedabovetodetermineifanyspuriousemissionscausedbythehoppingfunction alsocomplywiththespecifiedlimit. Emissionlevelmeasurement Usethefollowingspectrumanalyzersettings: Span=wideenoughtocapturethepeaklevelofthein-bandemissionandallspuriousemissions(e.g.,harmonics) fromthelowestfrequencygeneratedintheEUTupthroughthe10thharmonic.(30MHzto25GHz).SetRBW= 100kHzSetVBW  RBW SetSweep=autoSetDetectorfunction=peakSetTrace=maxhold Allowthetracetostabilize.Setthemarkeronthepeakofanyspuriousemissionrecorded.Theleveldisplayed mustcomplywiththelimitspecifiedinthisSection. ReportNo.EDG2405270358E00101RPage51of74Ver.1.0 9.6.5TestResults Temperature: 25 ̊ C RelativeHumidity:45% ATMPressure:1011mbar Note:N/A Alltheantennaandmodesmodehavebeentested,andtheworstresultrecordedwasreportasbelow: Bandedgemeasurements TestModeAntennaChNameFrequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1Low2402-3.85-47.32≤-23.85PASS DH5Ant1High2480-4.54-47.88≤-24.54PASS DH5Ant1LowHop_2402-4.23-47.92≤-24.23PASS DH5Ant1HighHop_2480-4.18-47.38≤-24.18PASS ReportNo.EDG2405270358E00101RPage52of74Ver.1.0 DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS ReportNo.EDG2405270358E00101RPage53of74Ver.1.0 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS ReportNo.EDG2405270358E00101RPage54of74Ver.1.0 ConductedSpuriousEmission TestModeAntennaFrequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant124020~Reference-3.92-3.92---PASS DH5Ant1240230~1000-3.92-47.66≤-23.92PASS DH5Ant124021000~26500-3.92-50.62≤-23.92PASS DH5Ant124410~Reference-3.87-3.87---PASS DH5Ant1244130~1000-3.87-42.05≤-23.87PASS DH5Ant124411000~26500-3.87-50.8≤-23.87PASS DH5Ant124800~Reference-4.57-4.57---PASS DH5Ant1248030~1000-4.57-47.23≤-24.57PASS DH5Ant124801000~26500-4.57-50.46≤-24.57PASS ReportNo.EDG2405270358E00101RPage55of74Ver.1.0 DH5-Ant1-2402-0~Reference-PASS DH5-Ant1-2402-30~1…

Text truncated - open the document above for the full version.

Rev1/26/2023 ZeevaInternationalLimited FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024.06.18 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2ADM5-SP-0227V2 ZeevaInternationalLimited(“theapplicant”)certifiesthattheequipmentforwhichauthorizationis soughtisnot“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuantto section2.903oftheFCCrules. Sincerely, KEVINTSO Rev1/26/2023 ZeevaInternationalLimited FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024.06.18 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:2ADM5-SP-0227V2 ZeevaInternationalLimited(“theapplicant”)certifiesthat,asofthedateofthefilingoftheapplication, theapplicantisnotidentifiedontheCoveredList(asaspecificallynamedentityoranyofitssubsidiaries oraffiliates)asanentityproducing“covered”equipment. Sincerely, KEVINTSO

ZeevaInternationalLimited Suite 1007B,10th Floor, ExchangeTower,33 Wang Chiu Road,KowloonBay, Hong Kong, China Date: [2024.05.27 ] FederalCommunicationsCommission Authorizationand EvaluationDivision 7435 OaklandMills Road Columbia, MD 21046 FCC ID :2ADM5-SP-0227V2 FRN: 0024102113 US Agent –AttestationStatement/ Part 2.911(d)(7) [ZeevaInternationalLimited]certifies,that as of [202 4.0 5.27 ], we have designatedFCC US Agent,LLC to acceptserviceof processon our behalffor FCC ID :2ADM5-SP-0227V2 [ZeevaInternationalLimited], acceptsto maintainan agent of serviceof processin the United Statesfor no less than one year after her the granteehas permanentlyterminatedall marketing and importationof the applicableequipmentwithin the U.S., or the conclusionof any Commissionrelatedadministrativeor judicialproeitceedinginvolvingthe equipment,whichever is later. FCC US Agent,LLC, acceptsas of the date of the filing of this application,the obligationof being the designatedagent for the purposeof acceptingserviceof processon behalfof [Zeeva InternationalLimited]for FCC ID :2ADM5-SP-0227V2 DesignatedAgentInformation: CompanyName:FCC US Agent,LLC FRN: 0033402884 Address:3722 IllinoisAvenue,Saint Charles,IL, 60174,USA ContactPerson:Tim Payne Phone:708-571-3148 Email:[email protected] Sincerely, Company:[ZeevaInternationalLimited]DesignatedAgent:FCC US Agent,LLC CompanyRepresentative:[KevinTso]DesignatedAgentRepresentative:Tim Payne Signature:[Signature]Signature:

Rev11/20/07 ZeevaInternationalLimited FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationof FCCID:2ADM5-SP-0227V2 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram Schematics OperationalDescription BlockDiagram Schematics OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,Wealsorequestingthe commissiontograntshort-termconfidentialityrequestonthefollowingattachmentsuntil180 daysaftertheGrantDateofEquipmentAuthorizations. ExhibitTypeFileName Date:2024.06.18 Sincerely, KEVINTSO

ZeevaInternationalLimited FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Date:2024.06.18 SUBJECT:FCCID:2ADM5-SP-0227V2 ToWhomItMayConcern: I,theundersigned,herebystatesthisequipmenthasbeentestedandfoundtocomply withthelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules,and willapplytheSupplier'sDeclarationofConformityproceduretotheclassB computerperipheralportionofthiscompositedevice.IunderstandthefollowingFCC requirements: 1.DevicessubjecttotheSDoCprocedurearerequiredtobetestedtoshow compliancewiththeFCCtechnicalregulationsbyarecognizedaccreditedtesting laboratory.ThetestinglaboratorymustbeaccreditedbyaCommissionapproved accreditationbodyordesignatedunderthetermsofagovernment-to-government MutualRecognitionAgreement(MRA).Alistingofthoseaccreditedtesting laboratoriesthathavebeenrecognizedbytheCommissionispublishedontheFCC Webpage:https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm(Selectthe "accredited"optiontosearchforFCCrecognizedaccreditedtestfirms.) 2.Pt2.1077containsthelistofinformationthatmustbeincludedintheSupplier's DeclarationofConformity,whichmustbesuppliedwitheachproductsold.The SDoCcomplianceinfoshallbeincludedintheUser’sManualorasaseparate sheet.Theinfomustcontainthename,address,andphonenumberofthe responsibleparty,whichmustbelocatedwithintheUnitedStates.Accordingto 2.909(b),theresponsiblepartyiseithertheManufactureroriftheproductis importedtheImporter. Regards, ZeevaInternationalLimited ------------------------------- （ KevinTso ）

ZeevaInternationalLimited FederalCommunicationsCommission AuthorizationandEvaluationDivision 7453OaklandMillsRoad Columbia,MD21046 Date:2024.06.18 SUBJECT:FCCApplicationfor(FCCID:2ADM5-SP-0227V2) ToWhomItMayConcern: We,theundersigned,herebyauthorizeSamLvatEMTEK(DONGGUAN)CO.,LTD.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyEMTEK(DONGGUAN)CO.,LTD.onourbehalfshallhave thesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, Sincerely, KEVINTSO

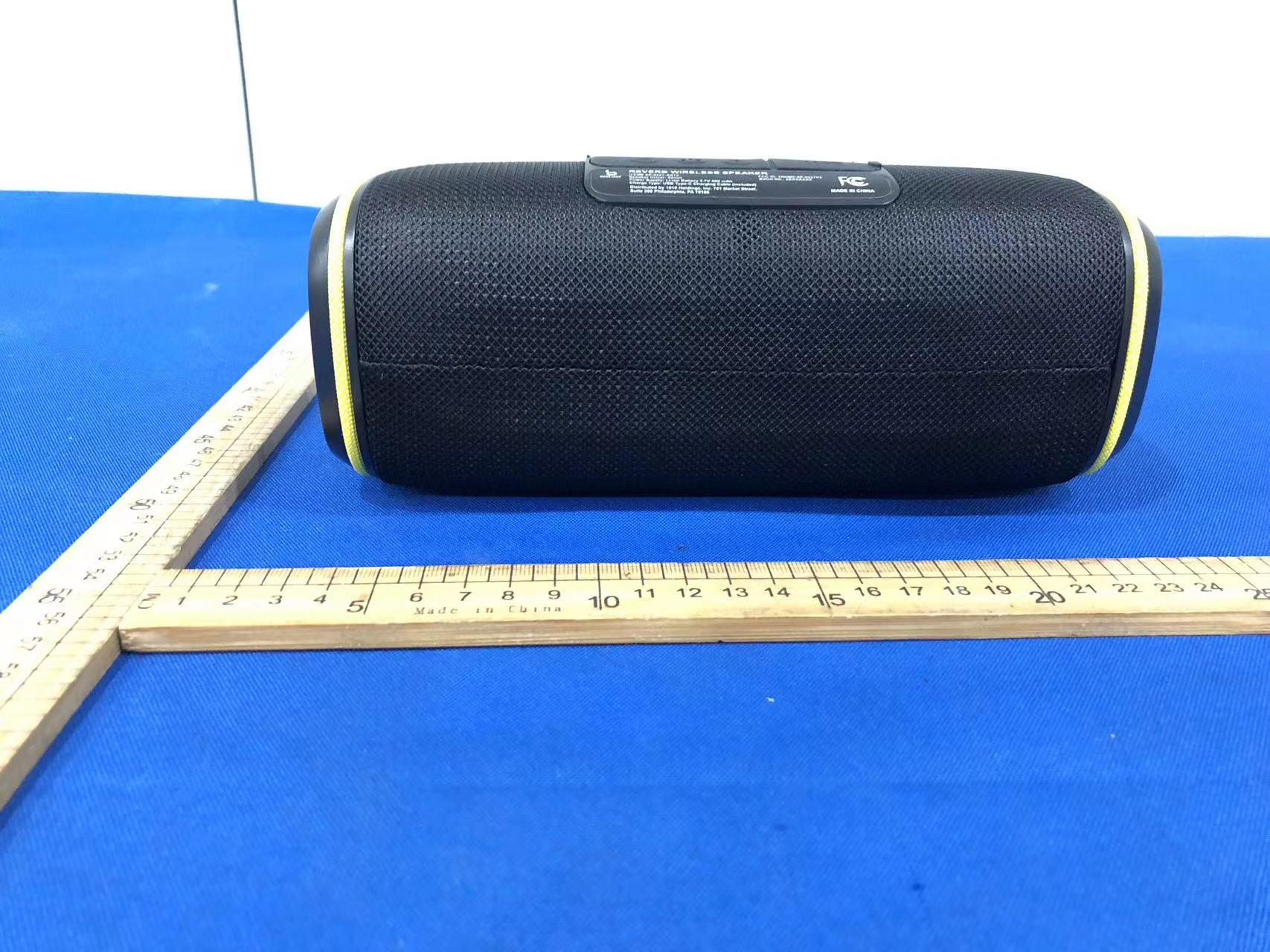

ReportNo.EDG2405270358E001Page1of5Ver.1.0 FCCID:2ADM5-SP-0227V2 ReportNo.EDG2405270358E001Page2of5Ver.1.0 ReportNo.EDG2405270358E001Page3of5Ver.1.0 ReportNo.EDG2405270358E001Page4of5Ver.1.0 ReportNo.EDG2405270358E001Page5of5Ver.1.0

ReportNo.EDG2405270358E001Page1of3Ver.1.0 FCCID:2ADM5-SP-0227V2 ReportNo.EDG2405270358E001Page2of3Ver.1.0 BTANT ReportNo.EDG2405270358E001Page3of3Ver.1.0

ReportNo.EDG2405270358E00102RPage1of7Ver.1.0 TESTREPORT ProductName：BTFABRICRUGGEDSPKAST2 ModelNumber：SP-0227-AST2 FCCID：2ADM5-SP-0227V2 Preparedfor:ZeevaInternationalLimited Address:Suite1007B,10thFloor,ExchangeTower,33WangChiu Road,KowloonBay,HongKong,China Preparedby:EMTEK(DONGGUAN)CO.,LTD. Address:-1&2/F.,Building2,ZoneA,ZhongdaMarineBiotechnology ResearchandDevelopmentBase,No.9,XinchengAvenue, SongshanhuHigh-technologyIndustrialDevelopmentZone, Dongguan,Guangdong,China TEL:+86-0769-22807078 FAX:+86-0769-22807079 ReportNumber:EDG2405270358E00102R Date(s)ofTests:May27,2024toJun17,2024 Dateofissue:Jun17,2024 $二维码$ ReportNo.EDG2405270358E00102RPage2of7Ver.1.0 TableofContents 1.TESTRESULTCERTIFICATION...............................................................................................................................................3 2.EUTSPECIFICATION.................................................................................................................................................................5 3.TESTREQUIREMENT................................................................................................................................................................6 4.MEASUREMENTRESULT.........................................................................................................................................................7 ReportNo.EDG2405270358E00102RPage3of7Ver.1.0 1.TESTRESULTCERTIFICATION Applicant:ZeevaInternationalLimited Address: Suite1007B,10thFloor,ExchangeTower,33WangChiuRoad,KowloonBay, HongKong,China Manufacturer:ZeevaInternationalLimited Address: Suite1007B,10thFloor,ExchangeTower,33WangChiuRoad,KowloonBay, HongKong,China EUT:BTFABRICRUGGEDSPKAST2 ModelName:SP-0227-AST2 Trademark:N/A MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT §15.247(i),§2.1093 PASS TheaboveequipmentwastestedbyEMTEK(DONGGUAN)CO.,LTD.Thetestdata,dataevaluation,test procedures,andequipmentconfigurationsshowninthisreportweremadeinaccordancewiththeprocedures giveninANSIC63.10(2013)andtheenergyemittedbythesampleEUTtestedasdescribedinthisreportisin compliancewiththerequirementsofFCCRulesFCC§15.247(i),§2.1093. Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport DateofTest:May27,2024toJun17,2024 Preparedby: WarrenDeng/Editor Reviewer: TimDong/Supervisor Approve&AuthorizedSigner: SamLv/Manager ReportNo.EDG2405270358E00102RPage4of7Ver.1.0 ModifiedHistory VersionReportNo.RevisionDateSummary EDG2405270358E00102R/OriginalReport ReportNo.EDG2405270358E00102RPage5of7Ver.1.0 2. EUTSpecification CharacteristicsDescription Product:BTFABRICRUGGEDSPKAST2 ModelNumber:SP-0227-AST2 SKU:9101170,9101171,9101172 UPC:1922342306161,1922342306178,1922342306185 COLOR:BLACK,BLUE,GREENMULTI Sample:1# DataRate: 1MbpsforGFSKmodulation 2Mbpsforπ/4-DQPSKmodulation 3Mbpsfor8DPSKmodulation Modulation: GFSK,π/4-DQPSK,8DPSK OperatingFrequency Range(s): 2402-2480MHz NumberofChannels: 79channels TransmitPowerMax: -1.5dBm(0.000708W) AntennaGain:3.44dBi Powersupply: DC5VfromUSB DC3.7Vfrombattery Evaluationapplied:MPEEvaluation SAREvaluation ReportNo.EDG2405270358E00102RPage6of7Ver.1.0 3. TestRequirement SAREvaluation Accordingto447498D01V06,systemsoperatingundertheprovisionsofthissectionshallbeoperatedina mannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines. RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,usingmeasurementsorcomputer simulation.WhenroutineSARevaluationisnotrequired,portabletransmitterswithoutputpowergreaterthan theapplicablelowthresholdrequireSARevaluationtoqualityforTCBapproval. OneantennaisavailablefortheEUT.Theminimumseparationdistanceis5mm. ReportNo.EDG2405270358E00102RPage7of7Ver.1.0 4. MeasurementResult Antennagain:3.44dBi Transmit Frequency (MHz) Mode Measured Power (dBm) Tuneup Power (dBm) Maxtune uppower (dBm) Calculation Result Calculation threshold(1 -gSAR) 2402GFSK-2.63 -2±1-1 0.24623 2441GFSK-2.62-2±1-10.24823 2480GFSK-3.19-3±1-20.19873 2402Π/4-DQPSK-2.00-2±1-10.24623 2441Π/4-DQPSK-2.01-2±1-10.24823 2480Π/4-DQPSK-2.31-2±1-10.25023 24028DPSK-1.61-1±100.31003 24418DPSK-1.50-1±100.31253 24808DPSK-2.18-2±1-10.25023 AccordingtoKDB447498D01V06,nostand-alonerequiredforBTantenna,andnosimultaneousSAR measurementisrequired. ***EndofReport***

Page 1 of 12 Antenna Test Report Report No.: AGC13300220902PA01 PRODUCT DESIGNATION : F BT RFANT BRAND NAME : N/A MODEL NAME : 2.4GRFANT APPLICANT : Shenzhen FengRuiYuan Technology Co.,Ltd.Dong Guan Branch DATE OF ISSUE : Sep.19,2022 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC13300220902PA01 Page 2 of 12 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Sep.19,2022 Valid Initial release Report No.: AGC13300220902PA01 Page 3 of 12 TABLE OF CONTENTS 1. PRODUCT INFORMATON ...................................................................................................................... 4 2. TEST FACILITY ....................................................................................................................................... 5 3. TEST EQUIPMENT LIST ......................................................................................................................... 5 4. MEASUREMENT UNCERTAINTY .......................................................................................................... 5 5. TEST SUMMARY LIST ............................................................................................................................ 5 6. TEST SETUP ........................................................................................................................................... 6 7. TEST RESULTS ...............................................…

Text truncated - open the document above for the full version.
