2ADM5-SP-0712BT PRT CYLINDER SPKR

Thank you for purchasing the Fabric Wireless Speaker. This manual provides more information about this wireless speaker, please read the instructions before using. Instruction Manual Product Overview Power on Note: Always slide the Power switch to “OFF” position when not in use. Power off Reconnect Wireless speaker to your mobile device 4. You will hear a beep sound when pairing is successful. When powered on, the wireless speaker will automatically connect with the last successfully paired device. Pair Wireless speaker with your mobile device 2. Power on the wireless speaker. 3. Activate the Bluetooth function on your phone within range and select “ BT PRINTED SPK ” from the list shown. Package Contents 1. Keep the distance between your wireless speaker and mobile phone (or other devices) within 32.8 Feet. Slide the ON/OFF switch to the “ON” position. Slide the ON/OFF switch to the “OFF” position. Fabric Wireless Speaker x 1pc Micro USB Charging Cable x 1pc Instruction Manual x 1pc Back Front -The input voltage to the product is DC 5V 1A. -In order to charge the product in safe manner and reliable conditions, please only adopt certified appropriate charger/ adapter for charging the product. -Only charge the product at ambient temperatures between 10 deg °C/ 50 deg °F and 40 deg °C/104 deg °F. - Do not heat above 70 deg °C/158 deg °F, eg. Do not expose to sunlight or throw into fire. -Switch off the product after use. -Please note that we won’t take any responsibility for any wrong operation (eg. Voltage higher than 5V) as this may result in severe injury or loss of property, and we cannot control the operating process during the time the user using this product. -In extreme cases, abuse or misuse of Lithium battery pack can lead to explosion, heat generation, fire development or smoke development. Safety instructions for the lithium battery and charging the product FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Keep all relevant information for future reference On/Off Switch Micro USB Charging Port Distributed by 1616 Holdings, Inc. 701 Market Street, Suite 200 Philadelphia, PA 19106 Made in China WIRELESS SPEAKER FABRIC LED Indicator 1. Use the Micro USB cable provided with this wireless speaker. 2. Connect the Micro USB plug to Micro USB charging port on the speaker, then connect the USB plug to a USB port on a computer or wall adapter to begin charging. 3. The light will turn red while charging and will turn off once fully charged. NOTE: • You must select a qualified charger from a regular manufacturer. • You must charge the Wireless speaker if it has been not used for more than 12 months. Charging your Wireless speaker For your safety, please always use appropriate 5V input charger/Adapter to charge the product. DO NOT USE Quick Charging USB Adapter to charge the product, as it might damage the product. FAQ If the Wireless speaker cannot be paired with your device, please try the following: Ensure that your speaker is in pairing mode or reconnection mode. Ensure that Bluetooth search function of your mobile device is activated. Technical specification If the Wireless speaker cannot be recharged: If you use a power outlet, ensure that the power supply is connected securely and the outlet works. If you use a computer, ensure that it is connected and the USB port is powered. Driver Diameter: 52mm Impedance: 4 Ohms Power Supply: Li-ion Battery 3.7V 300 mAh Play Time: 1.5-2 Hours Charging Time: 1.5-2 Hours Bluetooth Range: 32.8 Feet Micro USB Cable Included FCC ID: 2ADM5-SP-0712

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road,Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] Date: 06/04/2020 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Zeeva International Limited hereby declare that： Product Name: BT PRT CYLINDER SPKR Model No: SP-0712 FCC ID: 2ADM5-SP-0712 For BT Mode: BLE 2M, EDR(8DPSK) are disable by software For Below are activated: Bluetooth BDR(GFSK) , EDR(π/4‐DQPSK), BLE 1M Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely Yours, Signature: Printed Name: Akshay P Butani Tiltle: Vice President

RAM Flash ROM MCU Kafmba SDP 2.4GHZ Radio I/O Battery Charge circuitry Audio power AMP lfer XTAL 24M 2.402-2.480GhZ Antenna matching

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] FCC Authorization 04/24/2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Zeeva International Limited the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President QA-FR-170-B

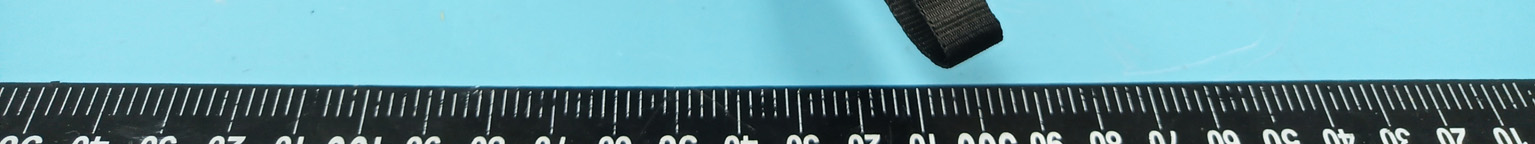

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna Chip

24MHz AC6928 Circuit Description 1. Battery(3.7V)provides energy for the Bluetooth chip( ) ; Crystal oscillator() provides the clock signal for the Bluetooth chip. Bluetooth signals get through a matching circuit, and then transmitted to the space through the antenna（2402MHz‐2480MHz）. When the product is connected, the product can be in two‐way communication with other Bluetooth devices, and then the device's Bluetooth module sends Bluetooth signals into space, the product receives the Bluetooth signal through an antenna, transmission to the Bluetooth chip via matching circuit.

AC6928 MCU DP 24M/12P C27 105PF C2 105PF C10 105PF BT_OSCO BT_OSCI FMIP BT_RF BT_AVDD ADC12/PR2 ADC12/PR1 RTCVDD VBAT PWMH2H/ADC9/AUX0R/PB5 VDDIO VSSIO VCOM DACVDD DACL PA0/MIC/PA3/AUX1L/ADC0 USBDP/PA4/AUX1R/ADC1 USBDM/PC3/SD1DAT/ADC10 PC4/SD1CMD/ADC4 PC5/SD1CLK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 U1 C25 224P C4 224P C42 105 C45 105 3 +IN 4 -IN 7 GND 6 VDD 1 SHDN 2 BYPASS 5 VO1 8 VO2 9 GND U5 LTK5128 R43 22K C46 104 R2 10K GND R DP/GND DM/L V+ 1 2 3 4 5 6 8 9 12 USB1 R34 1K LED2 RED - + BATT 1 2 3 4 5 SW1 SW-SK-12D07 1 CHRG 2 GND 3 BAT 4 VCC 5 PROG U2 4054 R14 3K D1 S4 C3 105 R3 100K SP+ SP- R4 1K LED3 BLUE C23 224P R48 474P C43 10K C44 NC DM MIC DACVDD VCOM GND +3.3V Y1 RF BT_AVDD RTCVDD MUTE VBAT DACL VBAT BAT+ VBAT VBAT R MUTE GND DACL

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower 33 Wang Chiu Road, Kowloon Bay, HongKong, China FCC ID: 2ADM5-SP-0712 Report Type: Original Report Product Type: BT PRT CYLINDER SPKR Re port Number: RSZ200330830-00A Re port Date: 2020-05-29 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A FCC Part 15.247 Page 2 of 29 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE ...................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ..................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 1 of 16 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] Limit[MHz] Verdict DH1 Ant1 24020.888--- PASS 24410.882--- PASS 24800.885--- PASS 2DH1 Ant1 24021.233--- PASS 24411.233--- PASS 24801.260--- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 2 of 16 Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 3 of 16 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 4 of 16 Appendix B: Maximum conducted Peak output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402-4.27<=20.97 PASS 2441-4.16<=20.97 PASS 2480-3.67<=20.97 PASS 2DH1 Ant1 2402-3.65<=20.97 PASS 2441-3.65<=20.97 PASS 2480 -3.17 <=20.97 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 5 of 16 Appendix C: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop1.003>=0.588 PASS 2DH1 Ant1 Hop1.000>=0.822 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 6 of 16 Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 7 of 16 Appendix D: Time of occupancy Test Result TestMode Antenna Channel Burst Width [ms] Total Hops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.373300.123<=0.4 PASS DH3 Ant1 Hop 1.621500.243<=0.4 PASS DH5 Ant1 Hop 2.861000.286<=0.4 PASS 2DH1 Ant1 Hop 0.383300.126<=0.4 PASS 2DH3 Ant1 Hop 1.631100.179<=0.4 PASS 2DH5 Ant1 Hop 2.87800.229<=0.4 PASS Note 1: A period time=0.4*79=31.6(S), Result= Burst Width* Total Hops Note 2: Total Hops=Hopping Number in 3.16s*10 Note 3: Hopping Number in 3.16s=Total of highest signals in 3.16s (Second high signals were other channel) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 8 of 16 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 9 of 16 DH5_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 10 of 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 11 of 16 2DH5_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 12 of 16 Appendix E: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop79>=15 PASS 2DH1 Ant1 Hop79>=15 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 13 of 16 Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 14 of 16 Appendix F:Band edge measurements Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 15 of 16 DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200330830-00A Page 16 of 16 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
