2ADM5-SP-0761BT HOME DECOR SPKR AST

Thank you for purchasing the Habit Wireless Speaker. This manual provides more information about this wireless speaker, please read the instructions before using. Instruction Manual Product Overview Power on Note: Always power off the speaker when not in use. Power off Reconnect Wireless speaker to your mobile device 4. You will hear a beep sound when pairing is successful. When powered on, the wireless speaker will automatically connect with the last successfully paired device. Pair Wireless speaker with your mobile device 2. Power on the wireless speaker. 3. Activate the Bluetooth function on your phone within range and select “ BT HABIT SPK ” from the list shown. Package Contents 1. Keep the distance between your wireless speaker and mobile phone (or other devices) within 32.8 Feet. Press the Power/Play/Pause Button and hold on 2 second. Press the Power/Play/Pause Button and hold on 2 second. Habit Wireless Speaker x 1pc Micro USB Charging Cable x 1pc Instruction Manual x 1pc Back Front -The input voltage to the product is DC 5V 1A. -In order to charge the product in safe manner and reliable conditions, please only adopt certified appropriate charger/ adapter for charging the product. -Only charge the product at ambient temperatures between 10 deg °C/ 50 deg °F and 40 deg °C/104 deg °F. - Do not heat above 70 deg °C/158 deg °F, eg. Do not expose to sunlight or throw into fire. -Switch off the product after use. -Please note that we won’t take any responsibility for any wrong operation (eg. Voltage higher than 5V) as this may result in severe injury or loss of property, and we cannot control the operating process during the time the user using this product. -In extreme cases, abuse or misuse of Lithium battery pack can lead to explosion, heat generation, fire development or smoke development. Safety instructions for the lithium battery and charging the product FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Keep all relevant information for future reference Micro USB Charging Port Prev./ Volume Down Button Next/ Volume Up Button 1. Use the Micro USB cable provided with this wireless speaker. 2. Connect the Micro USB plug to Micro USB charging port on the speaker, then connect the USB plug to a USB port on a computer or wall adapter to begin charging. 3. The LED Indicator will turn red while charging and will turn off once fully charged. NOTE: • You must select a qualified charger from a regular manufacturer. • You must charge the Wireless speaker if it has been not used for more than 12 months. Charging your Wireless speaker For your safety, please always use appropriate 5V input charger/Adapter to charge the product. DO NOT USE Quick Charging USB Adapter to charge the product, as it might damage the product. FAQ If the Wireless speaker cannot be paired with your device, please try the following: Ensure that your speaker is in pairing mode or reconnection mode. Ensure that Bluetooth search function of your mobile device is activated. Technical specification If the Wireless speaker cannot be recharged: If you use a power outlet, ensure that the power supply is connected securely and the outlet works. If you use a computer, ensure that it is connected and the USB port is powered. Driver Diameter: 52mm x 2 Impedance: 4 Ohms Power Supply: Li-ion Battery 3.7V 1200 mAh Playtime: 7-8 Hours Charging Time: 2.5-3 Hours Bluetooth Range: 32.8 Feet Micro USB Cable Included FCC ID: 2ADM5-SP-0761 HABIT WIRELESS SPEAKER Power/Play/Pause ButtonLED Indicator Distributed by 1616 Holdings, Inc. 701 Market Street, Suite 200 Philadelphia, PA 19106 Made in China ITEM# SP-0761 Product: SP-0761 IM SKU: Approval:Date: Date: 24 Sep 2020 SP-0761 HABIT WIRELESS SPEAKER IM S ize: 322.5(w) x 100(h) mm

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road,Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] Date: 10/29/2020 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Zeeva International Limited hereby declare that： Product Name: BT HOME DÉCOR SPKR AST Model No: SP-0761 FCC ID: 2ADM5-SP-0761 For BT Mode: EDR(8DPSK) ,BLE are disable by software For Below are activated: Bluetooth BDR(GFSK) , EDR(π/4‐DQPSK), Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely Yours, Signature: Printed Name: Akshay P Butani Tiltle: Vice President

RAM Flash ROM MCU Kafmba SDP 2.4GHZ Radio I/O Battery Charge circuitry Audio power AMP lfer XTAL 24M 2.402-2.480GhZ Antenna matching AC6925

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] FCC Authorization 10/29/2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Zeeva International Limited the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President QA-FR-170-B

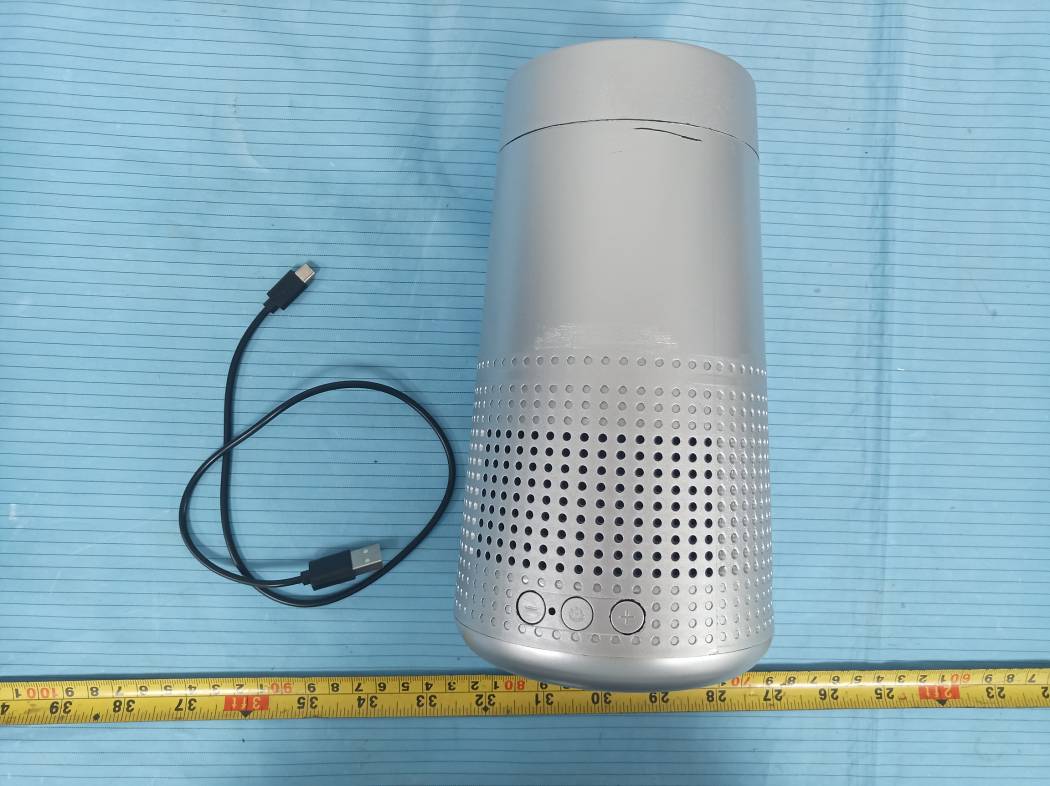

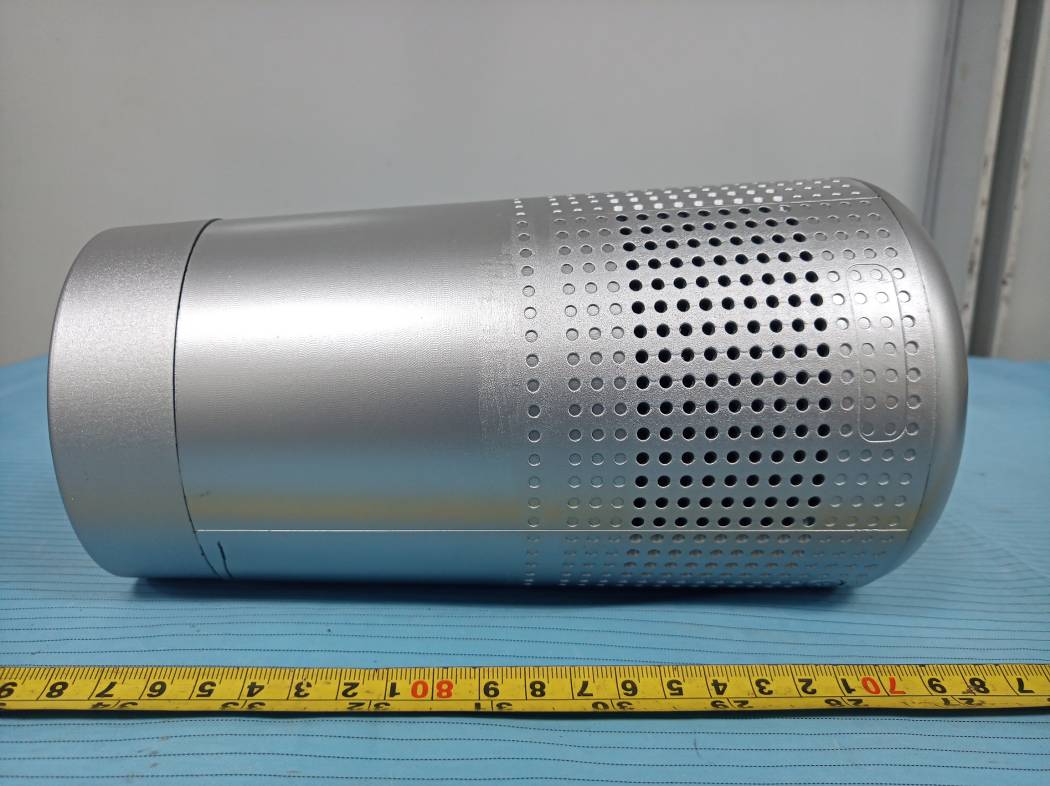

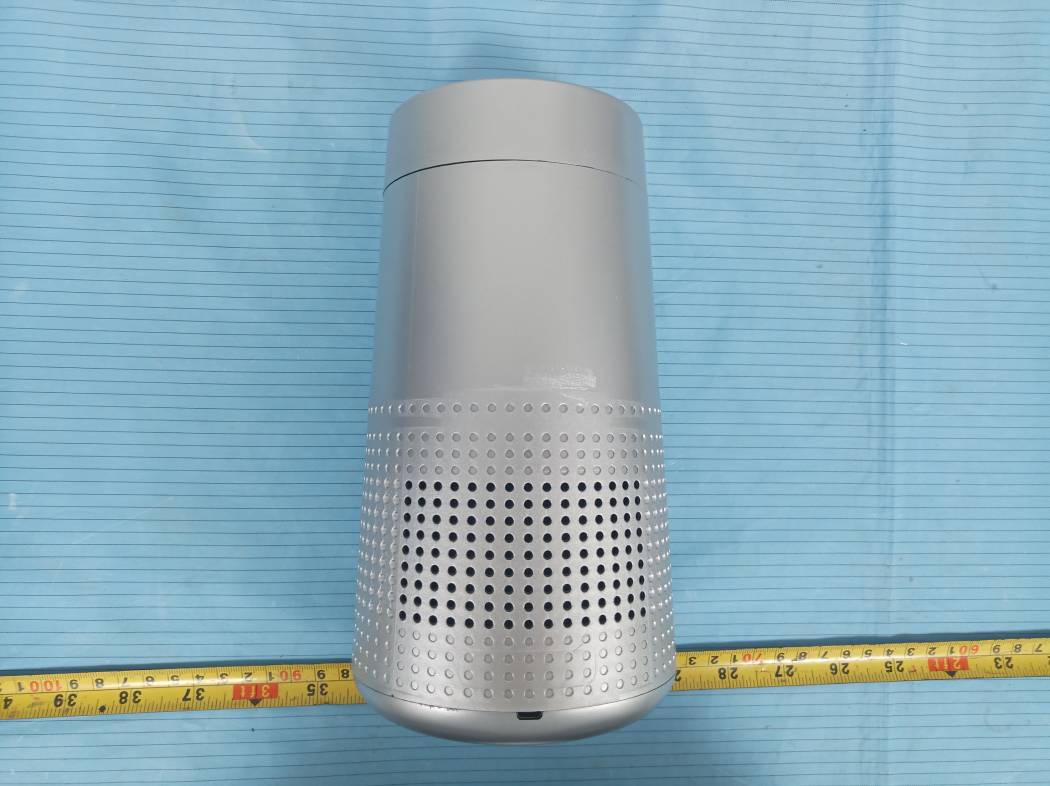

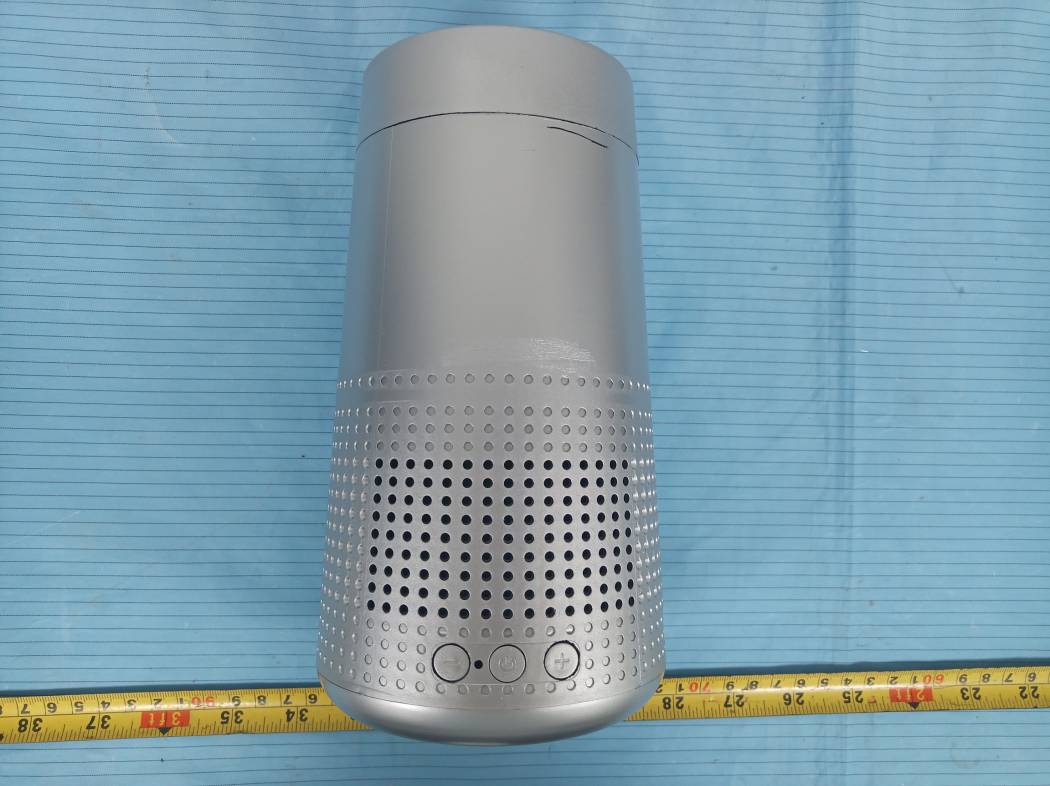

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201013833-RF Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201013833-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201013833-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201013833-RF Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201013833-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201013833-RF Page 1 of 4 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201013833-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201013833-RF Page 3 of 4 Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201013833-RF Page 4 of 4

AC6925 24MHz CircuitDescription 1.Battery(3.7V)providesenergyfortheBluetoothchip( ) ;Crystal oscillator()providestheclocksignalfortheBluetoothchip.Bluetoothsignals getthroughamatchingcircuit,andthentransmittedtothespacethroughthe antenna（2402MHz‐2480MHz）.Whentheproductisconnected,theproductcanbe intwo‐waycommunicationwithotherBluetoothdevices,andthenthedevice's BluetoothmodulesendsBluetoothsignalsintospace,theproductreceivesthe Bluetoothsignalthroughanantenna,transmissiontotheBluetoothchipvia matchingcircuit.

MCU B+B- 123456789 10 13141516171819 2021222324 1112 BAEN Y1 24M/12P C23105C21105 C20 105 U4 C24 105 GNDRDP/GND DM/LV+ 12345 68 91 2 USB R1 470R D1 RED -+ 1 CHRG 2 GND 3 BAT 4 VCC 5 PROG U1 4063 R6 1K5 S1 0R C1 NC R2 470R D2 BLUE R172.7P + C16 470uF 1 + 2 - SP-L CPOIT OUTNOUTP INNINP AVBATCTRLCNCPPVBAT 123456 78910 11 U3 CS5230E R16 33K C 1 9 1 0 4 R1120K C 6 104 C 8 4 7 5 C1 2 106 C11 106 R1510K C18224 + C17 470uF 1 + 2 - SP-R CPOIT OUTNOUTP INNINP AVBATCTRLCNCPPVBAT 123456 78910 11 U2 CS5230E R14 33K C15 104 R1220K C10 104 C5 475 C9 106 C1 3 106 R1310K R10 7K5 C14224 C2 NC C27 NC C7 105 C4 105 12 POWER 12 NEXT/V+ 12 PREV/V- R4 15K R5 51K R8 22K G S D IN OUT Q1ST2301 R3 100 K B CE Q2 9014 R9 1K R7 10K + C26 470uF D3 BAT54C C22 105 BAT+ GND DMDP VMCU 3.3V DACL VMCU VMCU DACL VMCU VMCU MUTE MUTE DACLDACR ADKEY ADKEY 3.3V VMCU BAEN BAT+ BAT+ AC6925

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Zeeva International Limited Suite 1007B,10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, HongKong, China FCC ID: 2ADM5-SP-0761 Report Type: Original Report Product Type: BT HOME DÉCOR SPKR AST Re port Number: RSZ201013833-00 Re port Date: 2020-10-21 Reviewed B y: Nancy Wang RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201013833-00 FCC Part 15.247 Page 2 of 46 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 RESULT ...................................................................................................................................................................... 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 13 TEST DATA .........................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
