2ADM5-SP-0903BT FLAME LANTERN SPKR AST

Zeeva International Limited
BT FLAME LANTERN SPKR AST - FCC ID 2ADM5-SP-0903 - Zeeva International Limited
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
May 16, 2021
Application Purpose
Original Equipment
Date of Application
May 16, 2021
Equipment Note
BT FLAME LANTERN SPKR AST
Frequency Range
2402.00000000 - 2480.00000000
Company
Zeeva International Limited
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Block Diagram

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road,Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] Date: 04/20/2021 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Zeeva International Limited hereby declare that: Product Name: BT FLAME LANTERN SPKR AST Model No: SP-0903 FCC ID: 2ADM5-SP-0903 For BT Mode: BLE 1M/2M are disable by software For Below are activated: Bluetooth BDR(GFSK) ,EDR(π/4‐DQPSK ,8DPSK) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely Yours, Signature: Printed Name: Akshay P Butani Tiltle: Vice President

Block Diagram

Status LED Blue/Red Bluetooth BK3269 Oscillator 26MHZ Lithium Battery FUS/TVS Speaker Micro USB Download&Charge Antenna LDO 3/1.2/1.8V KEY ON/OFF Charge mamagement Power amplifier[HT6872] LED MCU LED Over 2402-2480MHz

External Photos

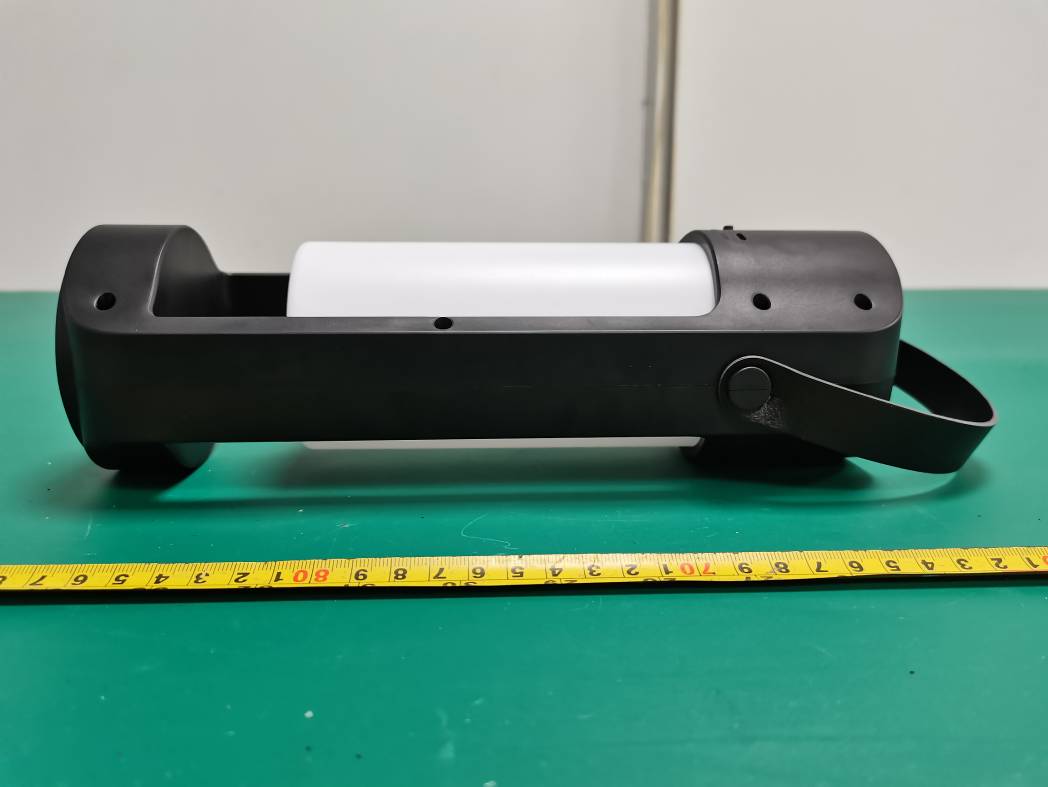

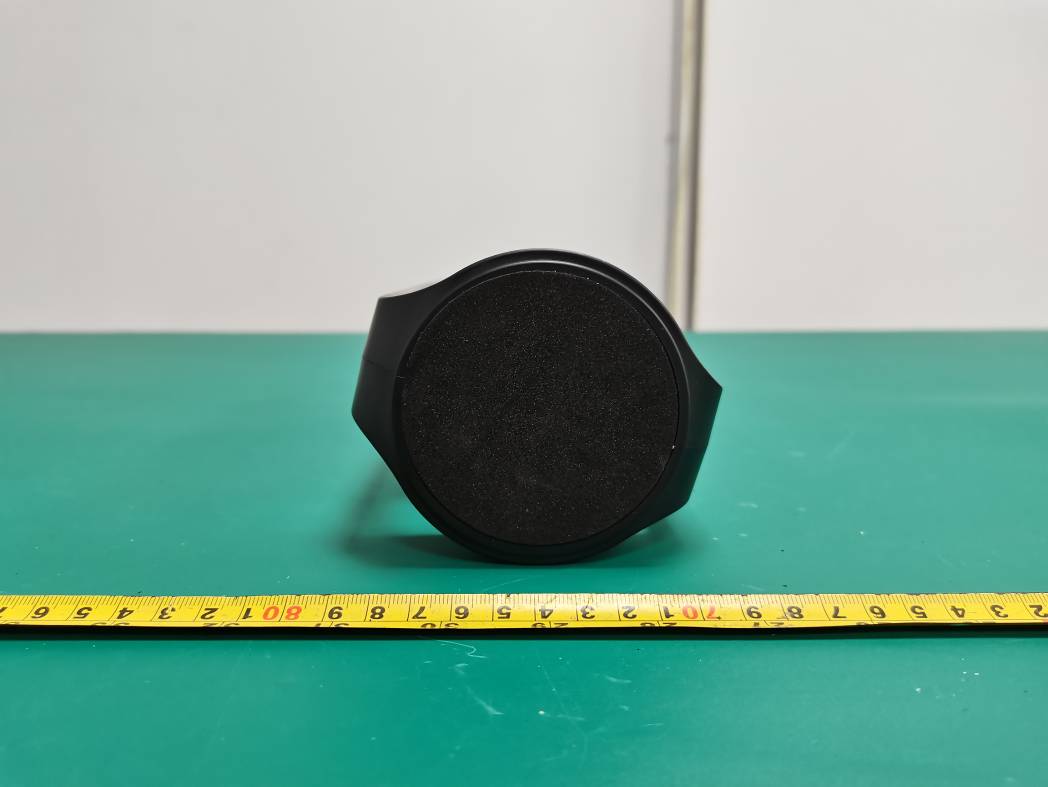

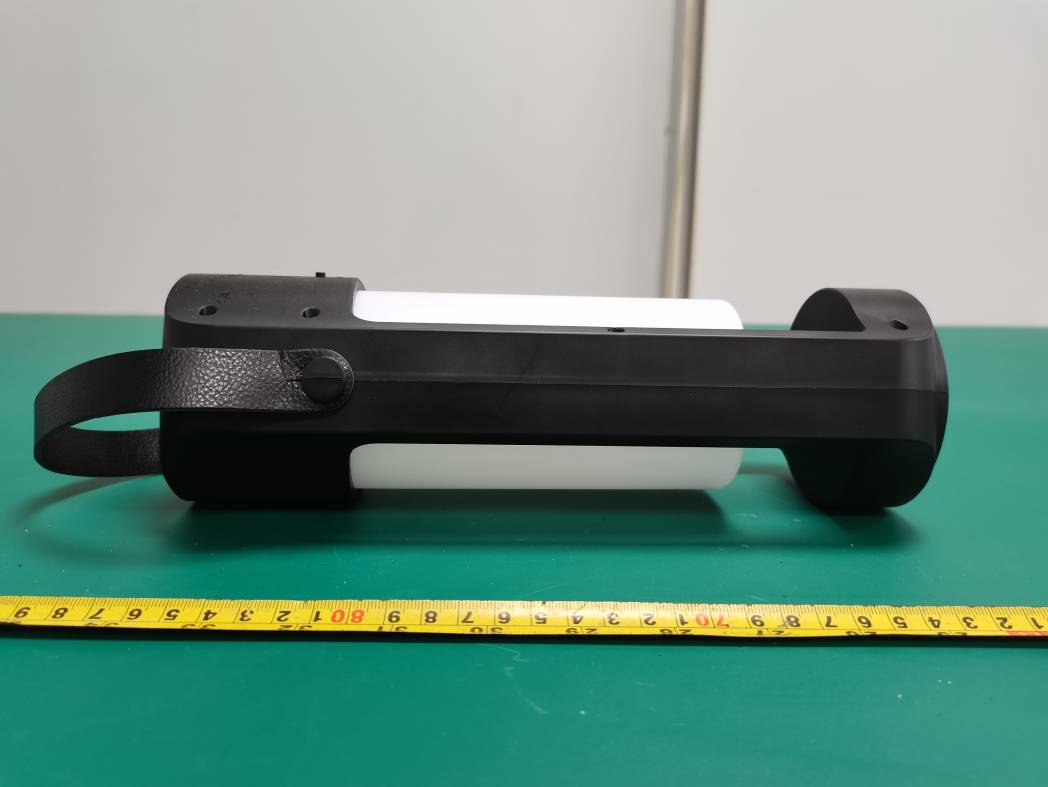

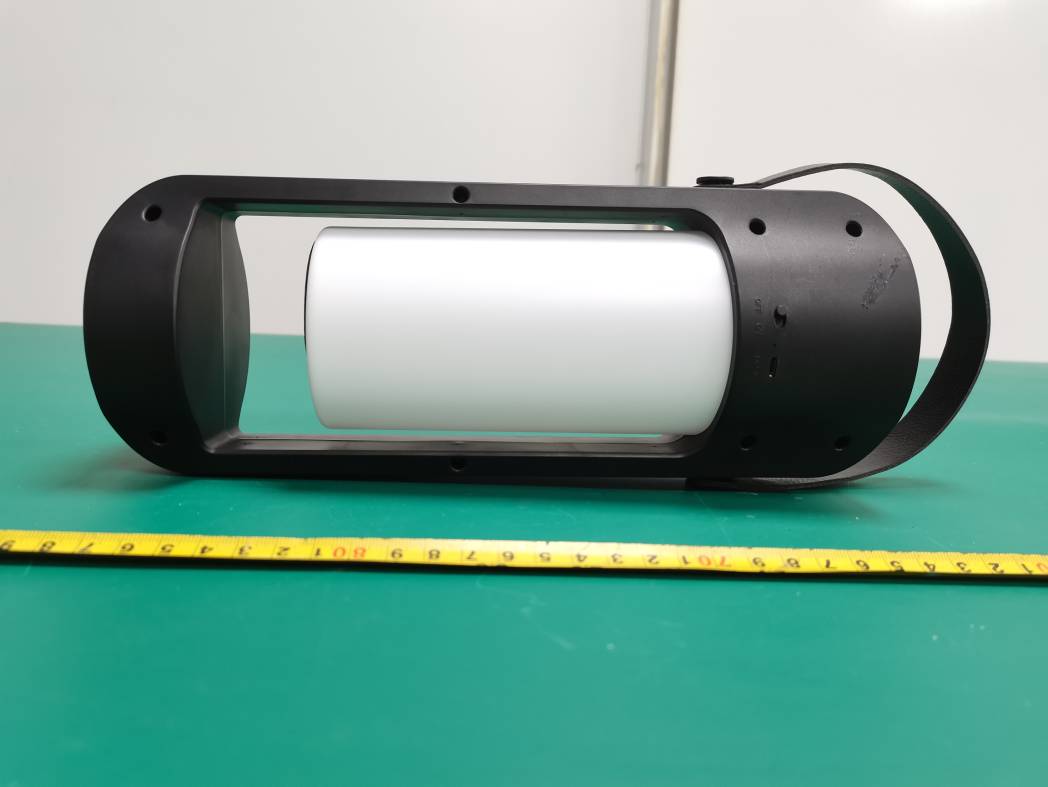

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210317-07131E-RF Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210317-07131E-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210317-07131E-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210317-07131E-RF Page 4 of 4

ID Label/Location Info

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210317-07131E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Internal Photos

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210317-07131E-RF Page 1 of 4 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210317-07131E-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210317-07131E-RF Page 3 of 4 BT Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210317-07131E-RF Page 4 of 4

Operational Description

B attery provides energy for the Bluetooth chip(BK3269 ); Crystal oscillator(2 6MHz) provides the clock signal for the Bluetooth chip. Products is in broadcasting state when stand by, broadcasting Bluetooth signals according to a certain time interval. Bluetooth signals get through a matching circuit, and then transmitted to the space through the antenna(2402MHz-2480MHz). When the product is connected, the product can be in two-way communication with mobile phones, and then the phone's Bluetooth module sends Bluetooth signals into space, the product receives the Bluetooth signal through an antenna, transmission to the Bluetooth chip via matching circuit.the signal amplifies the audio signal through an amplifier and plays out the audio signal from the speaker

Schematics

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2021/3/5Sheet of File:F:\MT\..\SBA-BSMK-SP0903-BK3269.SchDocDrawn By: RF 1 GPIO0 2 GPIO1 3 LINER/GPIO4 4 LINEL/GPIO5 5 GPIO2 6 GPIO3 7 GPIO15 8 G P I O 1 4 9 V D D I O 3 V P L A 1 0 G N D D I G 1 1 V D D A I G 1 2 V C C 3 S Y S 1 4 V C C 4 B A T 1 5 V C C 5 U S B 1 6 V D D A N A 1 3 MICRP 17 AUDRP 18 AUDRN 19 AUDLN 20 AUDLP 21 GNDAUD 22 VCOM 23 PA_MUTE 24 G P I O 1 3 2 5 G P I O 1 2 2 6 G P I O 1 1 2 7 U S B D N _ G P I O 6 2 8 U S B D P _ G P I O 7 2 9 X O 3 0 X I 3 1 G N D 3 2 G N D 3 3 U1 BK3269-32P GND 12 3 4 Y1 26M GND PA_MUTE C3 2.7P C2 10P L1 NC L2 NC 1 BT-ANT1 ANT GND GND C11 105 GNDGND C12 225 C13 225 GNDGND C14 105 C15 105 GND C4NC GND AGND R1 0R AGNDGND CTRL 1 BYPASS 2 IN- 3 IN+ 4 OUT+ 5 VDD 6 GND 7 OUT- 8 U3 HT6872 C6105 GNDGND C10 106/10V C7474 C9474 R5 18K R6 18K 1 PAD3 SPKL- 1 PAD4 SPKL+ VBAT GND SPKL- SPKL+ R3 1K R2 10K GND AUDLP AUDLN AUDLN AUDLP PA_MUTE BAT GND V D D I O 3 1 GND1 GND VBAT 1 PAD9 GND 1 PAD6 VLED D5R GND 1 ID 2 D+ 3 D- 4 VBUS 5 6 7 8 9 10 11 USB1 MICRO-USB-5P GND GND D4 ESD GND C17 105 GHRG 1 GND 2 BAT 3 VCC 4 PROG 5 U4 4054 VBAT GND R12 2.2K GND GND C16 105 GND R10 1K 1 PAD5 5V GPIO2 VCC5V VCC5V PTC1 0.5A 1 PAD1 DP 1 PAD2 DN GND R9 0R R7 0R R11 0R R82K VCC3V D3 BLUE GPIO2 V C C 3 V Q1 S8050 GPIO3 R14 100K GND R13 1K 1 PAD8 LED- 1 PAD7 VLED GPIO3 GND 2 3 1 S1 MSK-12C01-07 开关 VBAT BAT D 3 G 1 S 2 Q2 CJK3401 GND R40 1K R41 100K BAT VLED VLED R32 100K GND C31100P C32100P GND

Test Report

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong FCC ID: 2ADM5-SP-0903 Report Type: Original Report Product Type: BT FLAME LANTERN SPKR AST Re port Number: SZ3210317-07131E-00 Re port Date: 2021-05-07 Reviewed B y: Jacob Kong RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ3210317-07131E-00 FCC Part 15.247 Page 2 of 56 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE ...................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS ......................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210317-07131E-RF Page 1 of 2 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210317-07131E-RF Page 2 of 2 Radiated Emissions – Front View (Above 1 GHz) Radiated Emissions – Rear View (Above 1 GHz)
