2ADM5-SP-0911BT WIRELESS CHARGING SPKR

Thank you for purchasing the Revive Wireless Speaker. This manual provides more information about this wireless speaker, please read the instructions before using. SP-0911 Wireless Speaker Manual Instruction Manual 1. Use the Micro USB cable provided with this wireless speaker. 2. Connect the Micro USB plug to Micro USB charging port on the speaker, then connect the USB plug to a USB port on a computer or wall adapter to begin charging. 3. The light will turn red while charging and will turn off once fully charged. 1. Use the Micro USB cable provided with this wireless speaker. 2. Connect the Micro USB plug to Micro USB charging port on the speaker, then connect the USB plug to a USB port on a computer or wall adapter. 3. Put your wireless charging enabled devices on the top of the speaker to begin charging. NOTE: Product Overview Power on Power off Reconnect Wireless speaker to your mobile device 4. You will hear a beep sound when pairing is successful. When powered on, the wireless speaker will automatically connect with the last successfully paired device. Pair Wireless speaker with your mobile device 2. Power on the wireless speaker. 3. Activate the Bluetooth function on your phone within range and select “ BT REVIVE SPK ” from the list shown. • You must select a qualified charger from a regular manufacturer. • You must charge the Wireless speaker if it has been not used for more than 12 months. Package Contents FAQ If the Wireless speaker cannot be paired with your device, please try the following: Ensure that your speaker is in pairing mode or reconnection mode. Ensure that Bluetooth search function of your mobile device is activated. Charging your Wireless speaker Wireless Charging Function Technical Specification Size: H: 100mm x W: 322.5mm 1. Keep the distance between your wireless speaker and mobile phone (or other devices) within 32.8 Feet. If the Wireless speaker cannot be recharged: If you use a power outlet, ensure that the power supply is connected securely and the outlet works. If you use a computer, ensure that it is connected and the USB port is powered. Slide the ON/OFF switch to the “ON” position. Slide the ON/OFF switch to the “OFF” position. Revive Wireless Speaker x 1pc Micro USB Charging Cable x 1pc Instruction Manual x 1pc Back Front FCC ID: 2ADM5-SP-0911 -The input voltage to the product is DC 5V 1A. -In order to charge the product in safe manner and reliable conditions, please only adopt certified appropriate charger/ adapter for charging the product. -Only charge the product at ambient temperatures between 10 deg °C/ 50 deg °F and 40 deg °C/104 deg °F. - Do not heat above 70 deg °C/158 deg °F, eg. Do not expose to sunlight or throw into fire. -Switch off the product after use. -Please note that we won’t take any responsibility for any wrong operation (eg. Voltage higher than 5V) as this may result in severe injury or loss of property, and we cannot control the operating process during the time the user using this product. -In extreme cases, abuse or misuse of Lithium battery pack can lead to explosion, heat generation, fire development or smoke development. Safety instructions for the lithium battery and charging the product FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. RF warning statement: Keep All Relevant Information for Future Reference 21JAN21 Made in China Distributed by 1616 Holdings, Inc. 701 Market Street, Suite 200 Philadelphia, PA 19106 WIRELESS SPEAKER REVIVE Driver Diameter: 40 mm Impedance: 4 Ohms Charging Time: 1.5 - 2 Hours Playing Time: 1.5 - 2 Hours Rechargeable Li-Ion Battery 3.7V 1200mAh Bluetooth Range: 32.8 feet With Wireless Charging Function Micro USB Charging portOn/Off switch This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.

Dat To: Au t 743 W e Pro Mo FCC For Fo r Blu Ex c mo ma co m Sin c Sign Prin Tilt te: 2021/0 FEDERAL thorizatio 35 Oaklan e, Zeeva In oduct Nam odel No: SP C ID: 2ADM r BT Mode r Below ar etooth BD cept for th odify/chan nufacture mpliance w cerely You nature: nted Nam le: Vice P r 02/08 COMMU n and Eva d Mills R o nternation me: BT WIR P‐0911 M5‐SP‐091 e: BLE 1M/ re activate DR(GFSK) , he manufa nge the RF er’s respon with Comm urs, e: Aksha y resident NICATION luation Di oad Colum nal Limited RELESS CH 11 /2M are d ed: , EDR(π/4 acturer, th paramete nsibility to mission’s y P Butani Zeeva Int Suite 1007 Road,Kow Tel: +852 E-mail: a NS COMMI ivision mbia, MD 2 d hereby d HARGING S isable by ‐DQPSK), he end use ers. We ac o provide t rules. ternational Lim 7B, 10th Floor wloon Bay, Ho 2-2868 0511 | akshay.butan ISSION 21046 declare th SPKR software EDR(8DP S er does no cknowledg the radio mited , Exchange To ng Kong Fax: +852-25 [email protected] hat： SK) ot have an ge that it configura ower, 33 Wang 524 1986 com y capabilit is the tions to e g Chiu ty to nsure

24M crystal oscillator 2.4G Antenna AC6969 Wireless charge function DC 5V ON/OFF power amplifier Speaker Bluetooth: 2402~2480MHz Wireless charging Antenna Coil: 110-205kHz

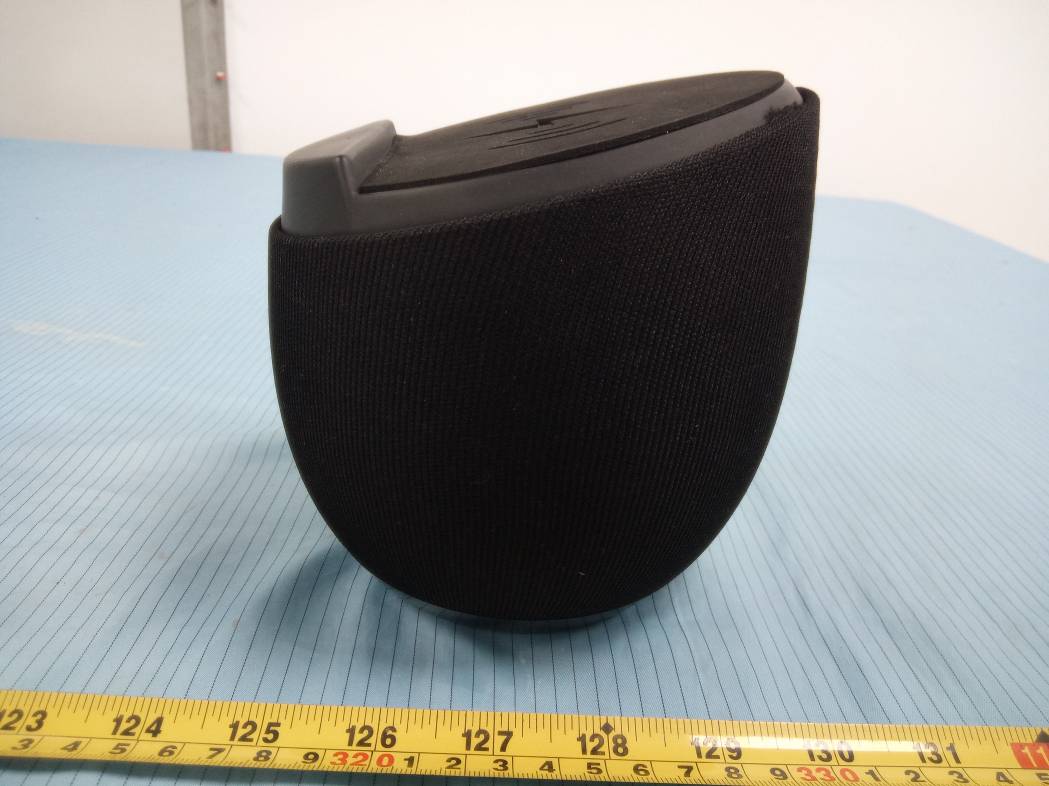

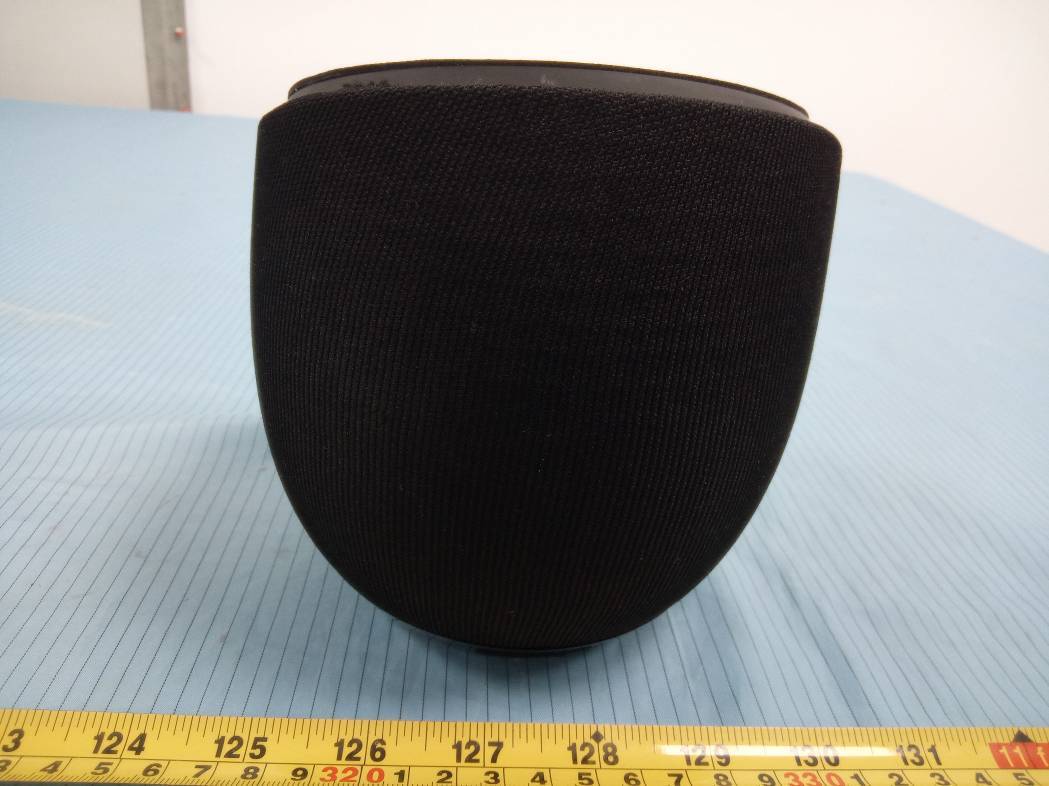

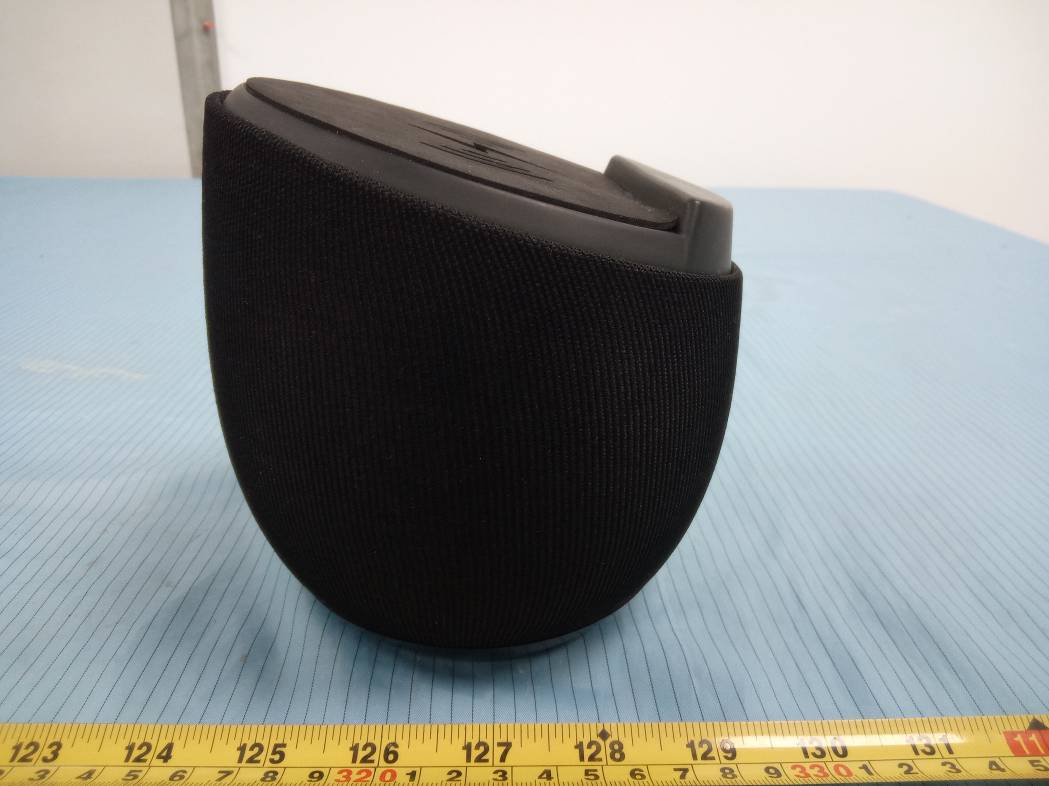

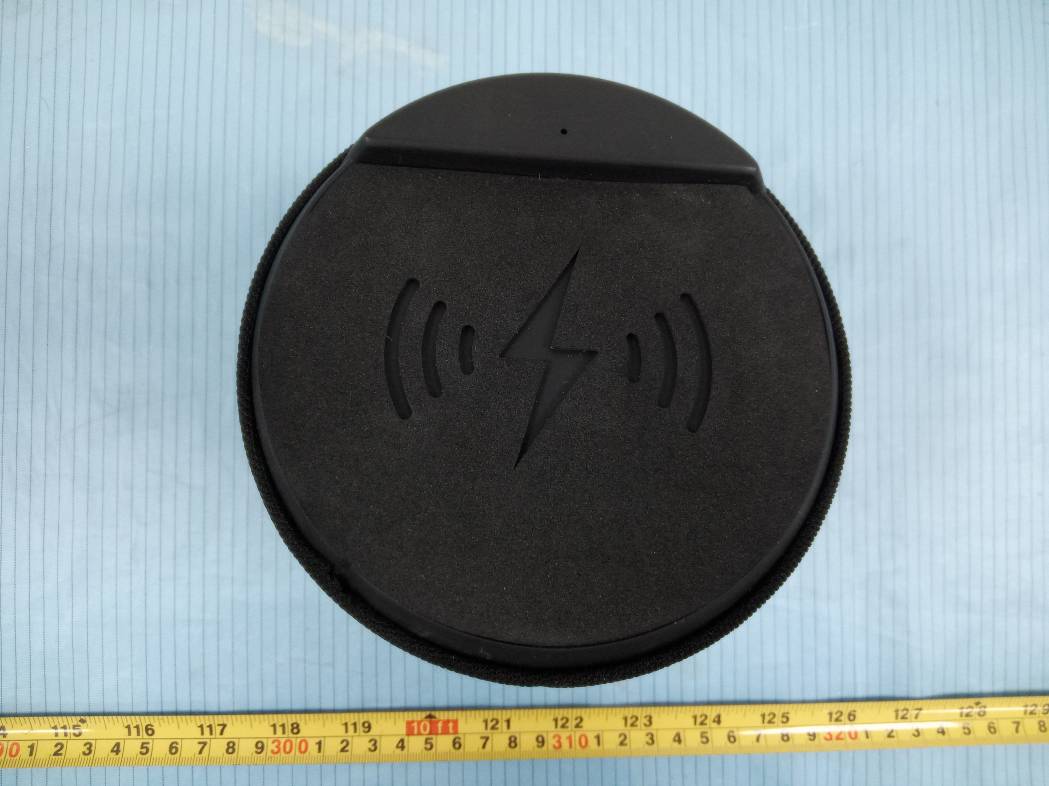

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF Page 1 of 6 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF Page 2 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF Page 3 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF Page 4 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF Page 5 of 6 BT Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF Page 6 of 6 Wireless charging Antenna

CIRCUIT DERCRIPTION 1. Battery(3.7V)provides energy for the Bluetooth chip( AC6969) ; Crystal oscillator( 24Mhz) provides the clock signal for the Bluetooth chip. Bluetooth signals get through a matching circuit, and then transmitted to the space through the antenna （ 2402MHz‐2480MHz ） . When the product is connected, the product can be in two‐way communication with other Bluetooth devices, and then the device's Bluetooth module sends Bluetooth signals into space, the product receives the Bluetooth signal through an antenna, transmission to the Bluetooth chip via matching circuit. 2. The main control IC drives the MOS tube (Drive circuit), the MOS push-pull capacitor and the inductor resonate, sent out 10~20V voltage /110-205K oscillating, The communication module detects and receives the signal and feedback to MCU. MCU will adjust the transmission frequency according to the signal to control the circuit within a certain range. The main control operating frequency is 24MHz. Frequency Range: 110-205kHz

LDO-IN/PB5 1 VBAT 2 VDDIO 3 PB1/ADC5 4 FMIP 5 BT-RF 6 BT-OSCI 7 BT-OSCO 8 ADC12/SD0CLK/PC5 9 ADC11/SAK0CMD/PC4 10 ADC14/SD0DAT/PC3/DM 11 ADC3/PA4/DP 12 PA1/PA0 13 VSSIO 14 VCOM 15 DACL 16 U1 VMCU VDDIO Y1 24MHZ C2 NC GND BT OSCO BT OSCI C1 NC BT OSCO BT OSCI C3 105 C5 105 GND C4 105 GND DACL MUTE BT-ANT1 ANTENNA_PIFA GND L1 NC R1 0R L2 NC AB/D LED IO1 LED IO2 LED IO3 LOUL- R510K LOUL+ GND C6 105 MUTE C7 106 GND DACL VMCU C10 472 1 2 J1 SPK R3 33K SD 1 BYP 2 MODE 3 IN 4 VON 5 VDD 6 GND 7 VOP 8 U2 5128 LOUL+ LOUL- GND C8 224 C9 563R424K AB/D BAT1 4.2V 105 R7 3K6 CHRG 1 GND 2 BAT 3 VCC 4 PROG 5 U3 CW4054 CHARGE R6 1K LED1 0603 GND VBAT VBUS 1 D- 2 D+ 3 GND 4 G 5 USB1 USB-MIN GND VUSB S1 VMCU R2 100K VMCU LED2 R19 330R VCC 1 K1 2 K2 3 K3 4 K4 5 K5 6 K6 7 GND 8 U5 MCU/SOP8 R18 10K C18 104 GND R12 5R1 5V VOUT DATA RPWM1RPWM2 RPWM3 RPWM4 1 Q2 AO3401 1 Q4 AO3402 R24 10K R22 10K RPWM1 RPWM2 GND C21 0.1uF/50V C22 0.1uF/50V C24 0.1uF/50V C26 0.1uF/50V RB P1 Coil(6. 5uH) C23 1uF/50V C25 10P/50V C27 10P/50V GND 1 Q1 AO3401 1 Q3 AO3402 R23 10K R25 10K RPWM4 RPWM3 5V VOUT DATA R21 330R VCC 1 K1 2 K2 3 K3 4 K4 5 K5 6 K6 7 GND 8 U4 LM358 R20 680K R14 10K C15 0.1uF GND C13 0.1uF GND 5V VOUT C20 473 GND GND C19 473 R11 10K R10 100K 5V VOUT R17 68K GND C16 473 D1 IN4148 C17 104 GND R16 33K R13 1K5 RB R9 100K C14 0.1uF GND R8 2.2M AC6969

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong, China FCC ID: 2ADM5-SP-0911 Report Type: Original Report Product Type: BT WIRELESS CHARGING SPKR Re port Number: RSZ201215832-00A Re port Date: 2021-01-28 Reviewed B y: Jacob Kong RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201215832-00A FCC Part 15.247 Page 2 of 53 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 RESULT ...................................................................................................................................................................... 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 14 TEST DATA ...................................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201215832-RF Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
