2ADM5-SP0167Giant speaker

Keep All Relevant information for Future Reference iPod ® , iPhone ® and iPad ® are trademarks of Apple Inc. registered in the U.S. and other countries. Android ™ is trademarks of Google, Inc. BASS JAXX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. “FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.” FCC ID: 2ADM5-SP0167 Bluetooth Giant Speaker Instruction Manual Introduction Package Contents Connection Diagram How to use 4.1 General function 4.2 Pairing to mobile phone 4.3 Charging your speaker Product Specifications FAQ FCC Statement 1 2 2 3 3 4 5 6 6 7 1 2 3 4 5 6 7 Congratulations, and thank you for choosing the Bluetooth Giant Speaker. This manual will help you operate the Bluetooth Giant Speaker, but you should first familiarize yourself with the Bluetooth functionality of your mobile phone or other devices before using the Bluetooth Giant Speaker. 1Please follow the rules depicted in this manual closely to ensure your safety. Before using this Bluetooth speaker, we would strongly encourage you to read through this user manual. 2Be wary of any edges, uneven surfaces, metal parts, accessories and its packaging to prevent any possible injury or damage. Do not modify, repair or dismantle this speaker. Doing so may result in fire, electric shock, complete breakdown of this Bluetooth speaker, etc. All of which are not covered under warranty. 3 Do not use any diluent or volatile liquid to clean the Bluetooth speaker. 4 Do not use the Bluetooth speaker in a hazardous location. 5 123 1.Introduction2. Package Contents 5.Product Specifications7.FCC Statement 4.How to use 4.3.Charging your speaker 4.1.General Functions 4.2.Pairing to a mobile phone or other device Pairing to a Bluetooth Enabled Mobile Phone: Warning: To use your Bluetooth speaker, you must first pair your speaker with a phone or a computer. Once your Bluetooth speaker is paired to a specific mobile device, they will remain paired and automatically recognize each other whenever they are within range. 1.Why is there no power even when the Speaker is turned on? 2.There is no sound during playback. Ans: Ensure the battery has been charged up to 6 hours for initial use. Ans: Check the connection between the speaker and the phone or computer, if the connection is not established,please connect again.Make sure the speaker is paired with your Bluetooth enabled device. 3.Connection Diagram Safety Rules You can play music, watch TV shows/movies, and play games with your device, with all of the sound coming from the speaker. Turn on your phone and ensure the Bluetooth function is activated. Turn on the speaker, enter the pairing mode. Search the Bluetooth devices on your phone by following the phone’s instructions. Refer to your phone’s user manual for more information. After a few seconds the phone will list the “SP-0167-Giant Speaker” as a discover device. Select it and follow your phone’s instructions to select this pairing. Use the Micro USB cable provided with this speaker. Connect the Micro USB plug to the Micro USB charging port on the speaker positioned at in speaker diagram on page 2. Connect the USB plug to a USB port on a computer or wall adapter to activate charging. 2 **Make sure to keep the speaker charging for a minimum of 6 hours before initial use. You must select a qualified charger from a regular manufacturer. You must charge the Bluetooth speaker if it has been not used for more than 12 months. USB PlugMicro USB Plug Contents 1X Bluetooth Giant Speaker 1X Micro USB Cable 1X User Manual 1X Aux-in Cable 1. On/Off Switch 2. Micro USB Charging Port 3. LED Indicator 4. Aux-in Port FrontBack 4321 Rechargeable Li-ion Battery DC5VAUDIO-INOFF/ON Slide the button to the right. Use a Bluetooth enabled mobile phone or other Bluetooth enabled device to perform necessary pairing action. Slide the button to the left. Plug the Micro USB end to the port for charging device. Aux-in Mode Plug the Aux-in cable to the audio port, then plug the other end to your music device. Turn on & Enter the pairing mode Pairing Turn off Charging Desired ResultRequired Action Bluetooth Version Bluetooth Range Driver Diameter Output Power Voltage Impedance Battery Capacity Working Hours Charging Hours Charge Type 2.1 ≤ 32 Feet 76 mm 5 W 3.7 V 4 Ohms 900mAh Li-ion Battery 5-6 Hours 3-4 Hours Micro USB Cable (Included) 6.FAQ

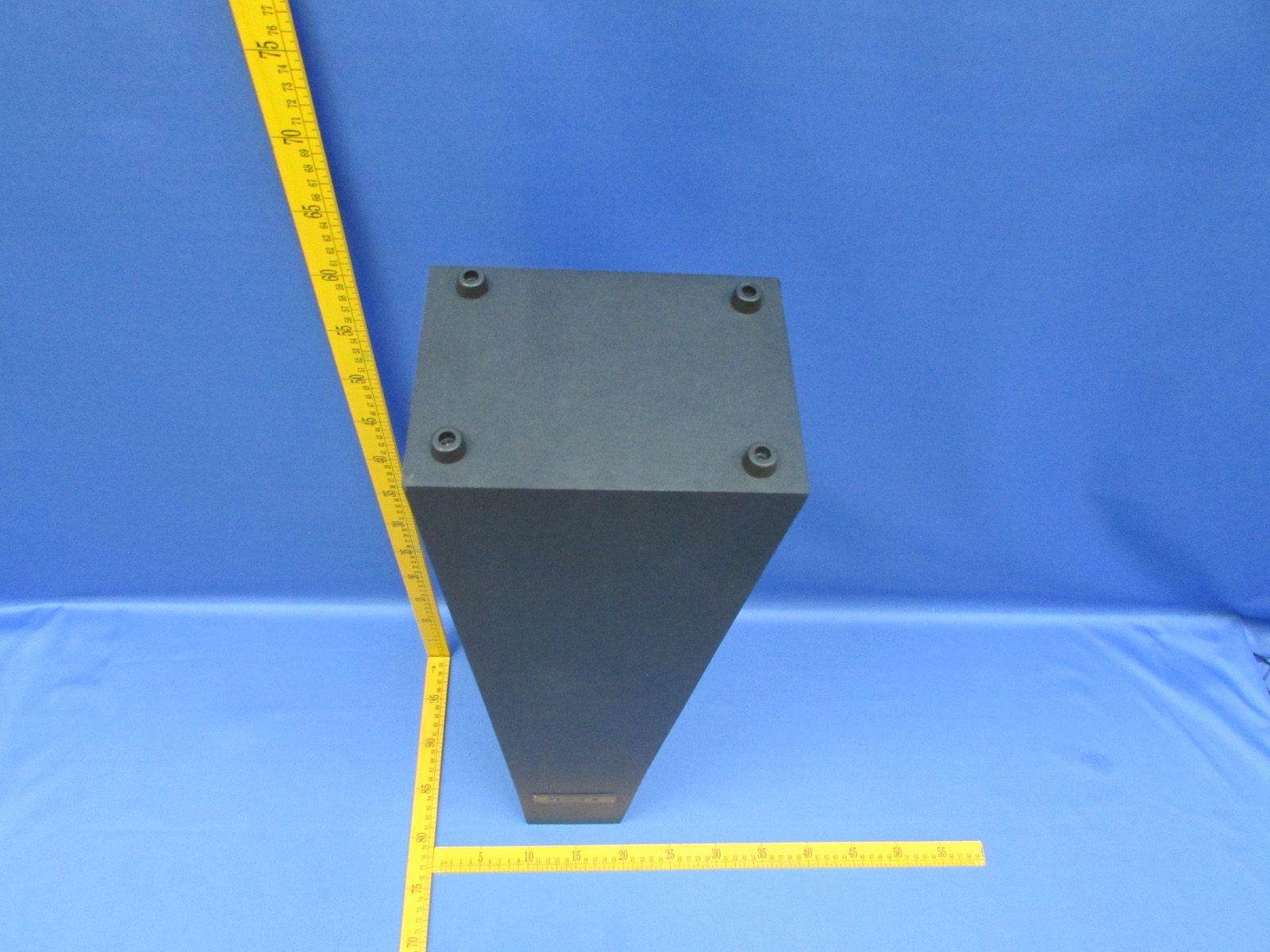

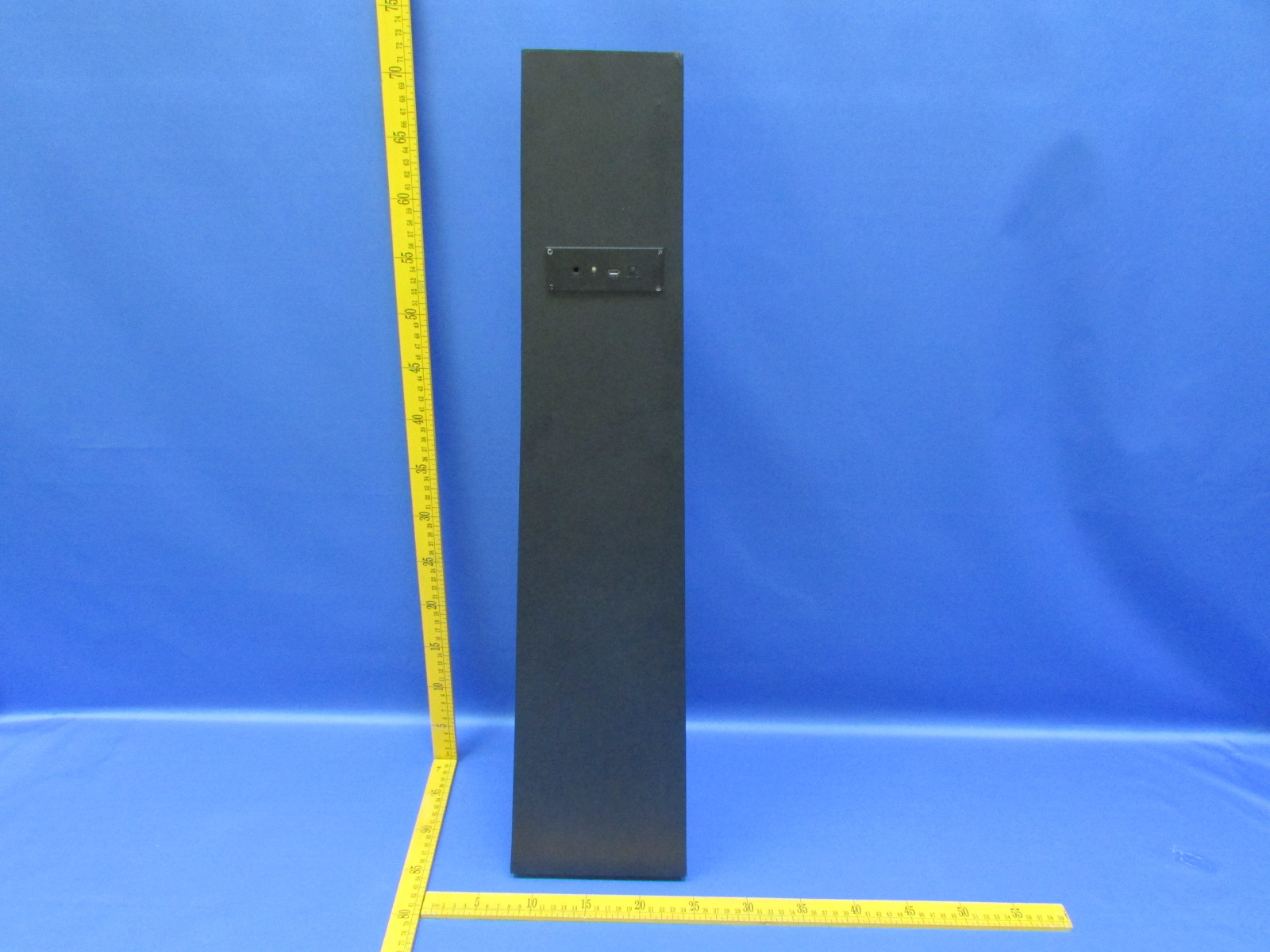

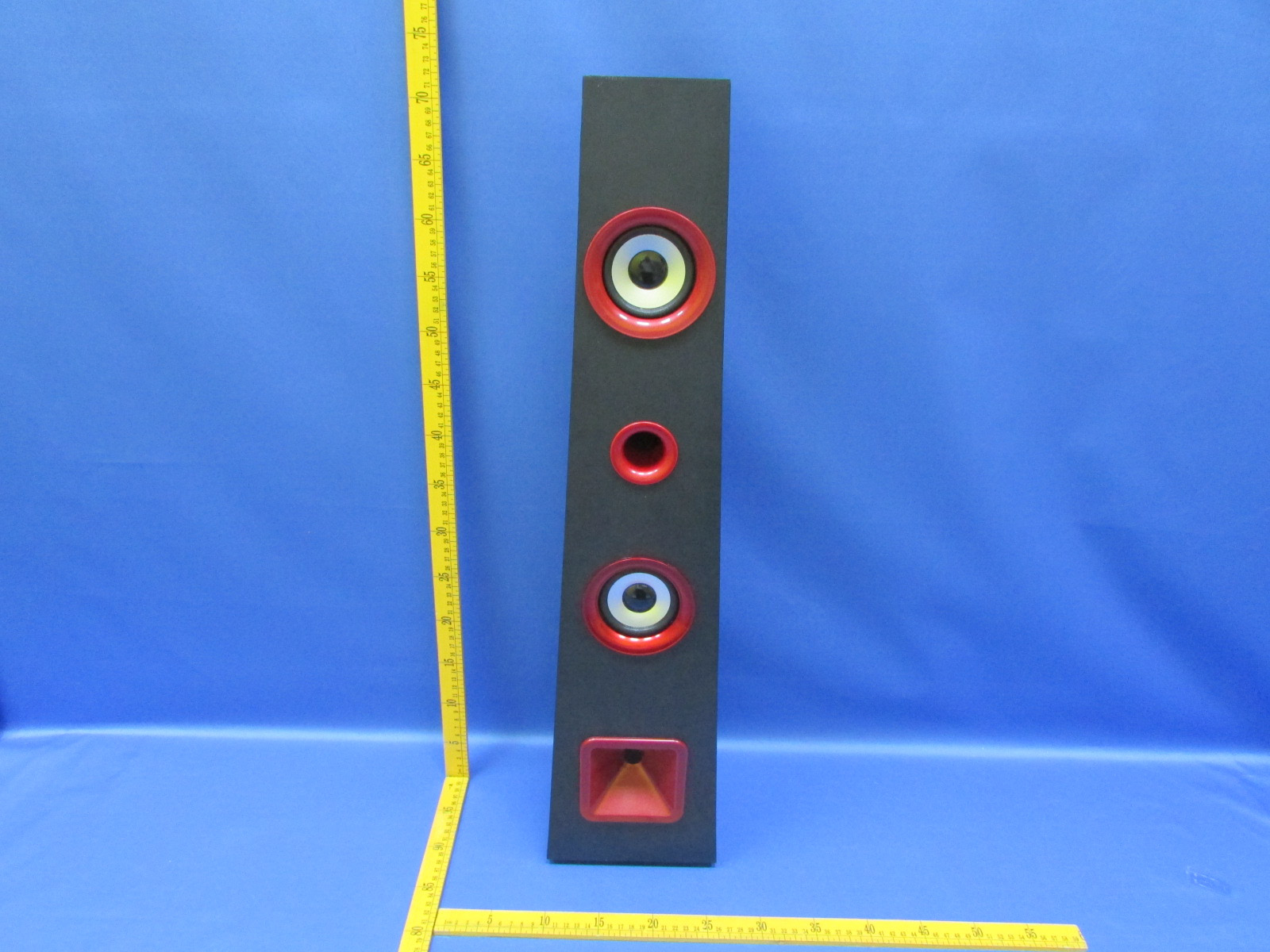

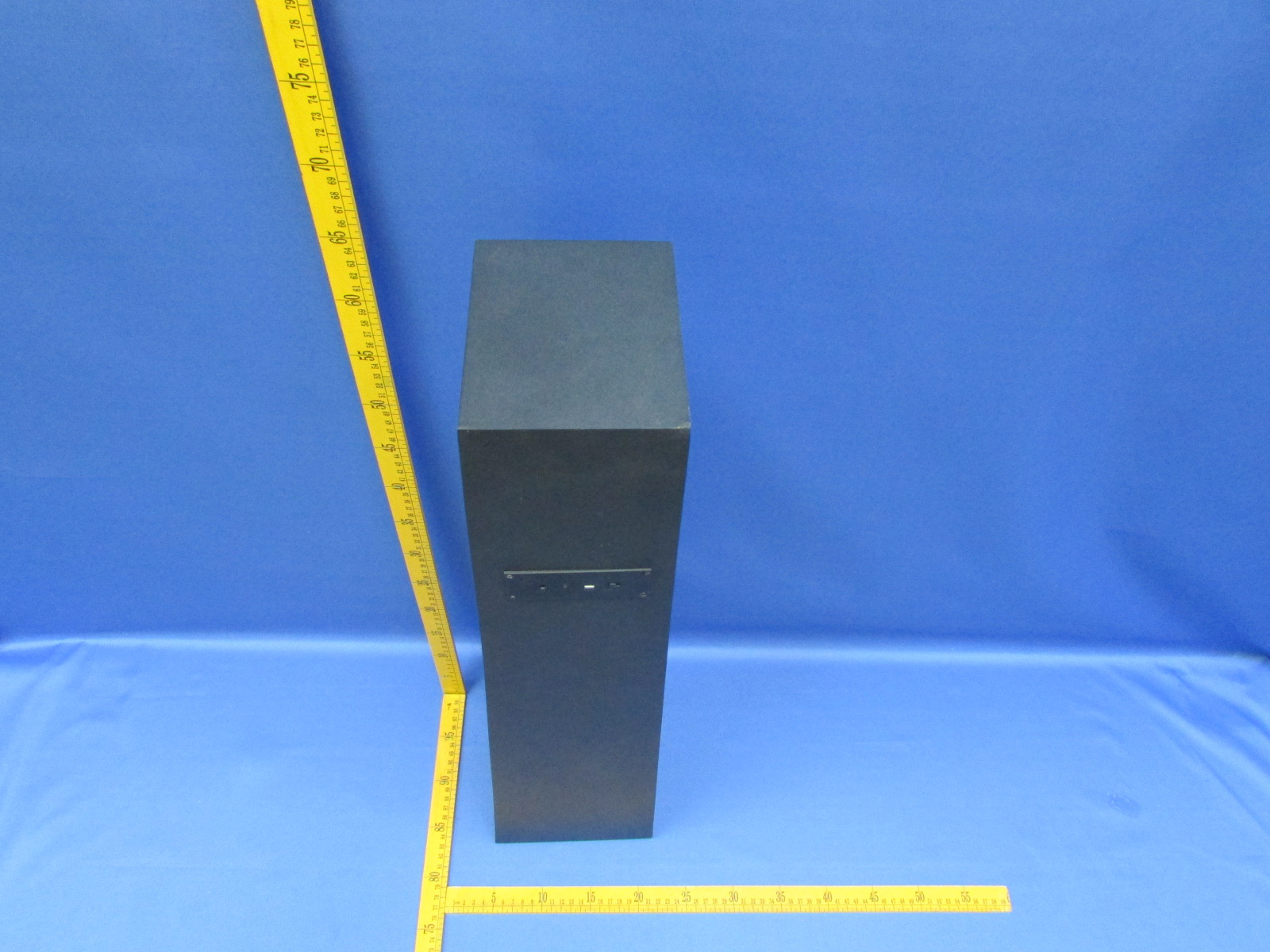

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs - Constructional Details M odel SP-0167 External Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location and Label Sample for model: SP-0167 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Model:SP-0167 FCC ID: 2ADM5-SP0167 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND INDUSTRY CANADA LICENSE-EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Model SP-0167 Internal photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 65 Reference No. .................... : WTS15S0831663E FCC ID ................................ : 2ADM5-SP0167 Applicant ............................ : Zeeva International Limited Address .............................. : Suite 1007B,10th Floor, Exchange Tower,33 Wang Chiu Road, Kowloon Bay, Hongkong, China Manufacturer .................... : Shenzhen G-Kindly Electronic Co.,Ltd Address .............................. : F4,Building C, ZhongHeng HuaFa Industory Zone, No. 8, XingFa Road, GongMing Street Office, GuangMing New District, ShenZhen, Guangdong Product Name .................... : Giant speaker Model No. ........................... : SP-0167 Standards........................... : FCC CFR47 Part 15 Section 15.247:2014 Date of Receipt sample .... : Aug. 11, 2015 Date of Test........................ : Aug. 12, 2015 ~ Aug. 18, 2015 Date of Issue ...................... : Aug. 21, 2015 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTS15S0831663E Page 2 of 65 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Radiated Spurious Emissions 15.205(a) 15.209 15.247(d) PASS Band edge 15.247(d) 15.205(a) PASS Conduct Emission 15.207 PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: WTS15S0831663E Page 3 of 65 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ...................................................................................................................................... 1 2 TEST SUMMARY ............................................................................................................................................. 2 3 CONTENTS ....................................................................................................................................................... 3 4 GENERAL INFORMATION ............................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T. .......................................................................................................... 5 4.2 DETAILS OF E.U.T. .................................................................................................................................... 5 4.3 CHANNEL LIST ............................................................................................................................................ 5 4.4 TEST MODE ................................................................................................................................................ 6 4.5 TEST FACILITY ............................................................................................................................................ 6 5 EQUIPMENT USED DURING TEST ............................................................................................................. 7 5.1 EQUIPMENTS LIST ...................................................................................................................................... 7 5.2 MEASUREMENT UNCERTAINTY .................................................................................................................. 8 5.3 TEST EQUIPMENT CALIBRATION ................................................................................................................ 8 6 CONDUCTED EMISSION ............................................................................................................................... 9 6.1 E.U.T. OPERATION .................................................................................................................................... 9 6.2 EUT SETUP ................................................................................................................................................ 9 6.3 MEASUREMENT DESCRIPTION ................................................................................................................... 9 6.4 CONDUCTED EMISSION TEST RESULT .................................................................................................... 10 7 RADIATED SPURIOUS EMISSIONS .......................................................................................................... 12 7.1 EUT OPERATION ...................................................................................................................................... 12 7.2 TEST SETUP ............................................................................................................................................. 13 7.3 SPECTRUM ANALYZER SETUP ................................................................................................................. 14 7.4 TEST PROCEDURE ................................................................................................................................... 15 7.5 SUMMARY OF TEST RESULTS .................................................................................................................. 16 8 BAND EDGE MEASUREMENT .......................................…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs – Model SP-0167 Test Setup Photograph – Conducted Emission Test Setup at Test Site 1# Photograph – Radiation Spurious Emission Test Setup Below 30MHz at Test Site 2# Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 30MHz-1GHz at Test Site 2# Above 1GHz at Test Site 1#
