SMT1 User Guide 1 SMT1 Dual SIM Dual Standby GSM/WCDMA Android Smart Phone User Guide 1 Safety & Notice WARNING: Please pay attention to these guidelines, it’s dangerous and may break the law, even the manufacturer will not underta ke any responsibility to the user who does not follow with the following recommendations or im proper to use the Smart Phone. ‹ If the phone supports the “Flight mode” function, please set the mode as “Flight mode” on the plane. If not support, please tu rn off the phone before boarding, because the phone may cause interference in aircraft. Please follow any restrictions on the a irplane. ‹ Switch the device off near the fuel, chemicals, or blasting areas. Keep the device away from the children. ‹ While driving please obey local laws and regulations with regard to Smart Phone use. When talking on the phone while driving, please obey the following rules: Concentrate on driving and be aware of traffic conditions; if your Smart Phone has a hands-fre e function, please use it in this mode. Under poor driving conditions, please stop the car before you dial or pick up the phone. ‹ Switch off the Smart Phones in the hospital or other forbidden using Smart Phone place. The Smart Phones will affect the norma l work of electronic equipment and medical devices, such as pacemakers, hearing aids and other medical electronics equipment. ‹ Non-original accessories and components are not provided with repair warranty qualification. ‹ Please do not disassemble your phone by yourself, if your phone is out of order, please contact your supplier. ‹ Please do not charge the Smart Phone before battery is installed. Do not short-circuit the battery. ‹ Smart Phone must be charged in the good ventilated and cooling environment, and away from flammable and explosive materials. ‹ In case of demagnetization, please keep Smart Phone away fr om the magnetic material, such as disks, credit card etc. ‹ Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode elec tronic circuits. If your device does get wet, remove the battery, and contact with the supplier. ‹ Do not use the Smart Phone in too high or too low temperature environment, and do not expose the Smart Phone to strong sunligh t or high humidity. ‹ Do not use liquid or wet cloth with strong detergent to clean the device. ‹ This Smart Phone is provided photograph, video recording and sound recording functions; please follow the relevant laws and re gulations to use those functions. Photograph, video recording and sound recording without authorization may violate laws and re gulations. ‹ While using the network functions, please do not download the files which have virus, do not install any photos and ring tones which have been damaged. If it results the phone abnormally, our company will not undertake any responsibility. ‹ Please dispose of batteries according to local regulations, please recycle when possible. Pleas e do not dispose as household w aste. STATEMENT : Our Company reserves the right to revise this manual content without prior notice . 2 Your Phone Thank you for choosing SMT1 Smart phone. You can read the manual to get a comprehensive understanding of the use of our Smart phones, enjoy its perfect fu nctions and simple operation. SMT1 Smart Phones are for GSM +WCDMA network environment and the design of a bar phone. Android 4.2 OS, 4.5 inch capacitive touch screen. It is a current mainstream configuration, powerful smart phones. This manual is used to help you to use the product properly, any description in this manual does not represent the software and hardware configuration . In any case, there are any data incorrect or income losses, or any special, incidental or consequential loss, no matter what lo ss will be the causer’s responsibility. This manual content comply with copyright laws and regulations, you may not, by any means, copy this manual, or use this manual in any form for transmission in any cable or wireless network. 2.1 The Names and Explanation of Each Part 2.2 Touch & type Use your fingers to manipulate icons, buttons, menus, the onscreen keyboard, and other items on the touch screen. You can also change the screen's orientation. To select or activate something, touch it. To type something, such as a name, password, or search terms, just touch where you want to type. A keyboard pops up that lets y ou type into the field. Other common gestures include: „ Touch & hold: Touch & hold an item on the screen by touching it and not lifting your finger until an action occurs. „ Drag: Touch & hold an item for a moment and then, without lifting your finger, move your finger on the screen until you reach the tar get position. For example, you can drag to reposition shortcuts on the Home screen. „ Swipe or slide: Quickly move your finger across the surface of the screen, without pausing when you first touch (so you don't drag something in stead). For example, you can slide a Home screen left or right to view the other Home screens. „ Double-tap: Tap quickly twice on a webpage, map, or other screen to zoom. For example, double-tap a webpage in Browser to zoom in, and doub le-tap again to zoom out. „ Pinch: In some apps (such as Maps, Browser, and Gallery), you can zoom in and out by placing two fingers on the screen at once and pin ching them together (to zoom out) or spreading them apart (to zoom in). „ Rotate the screen: On most screens, the orientation of the screen rotates with your device as you turn it. You can change this Display setting. 2.3 Battery 2.3.1 Remove and install of the Battery. „ When removing the battery follow the following steps: ① Push the battery cover towards bottom; ② Raise the battery bottom, break out the battery from the Smart-phone. „ When installing the battery follow the following steps: ① Make the battery metal contact completely contact with the battery compartment metal contact, and then push the battery to ins et the p…

Text truncated - open the document above for the full version.

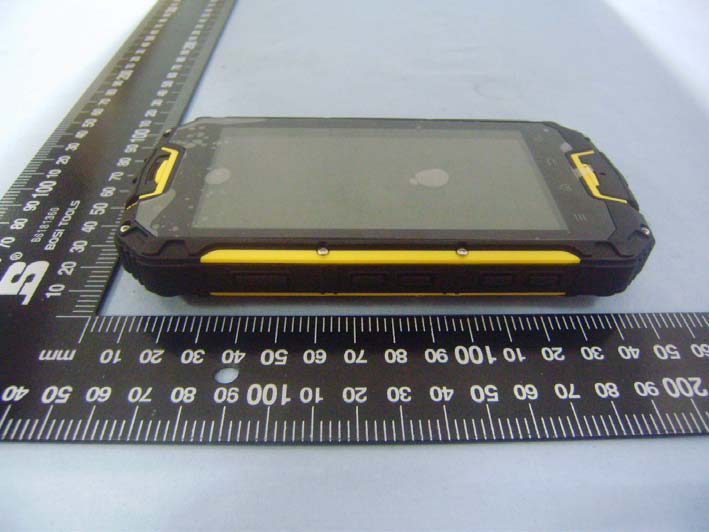

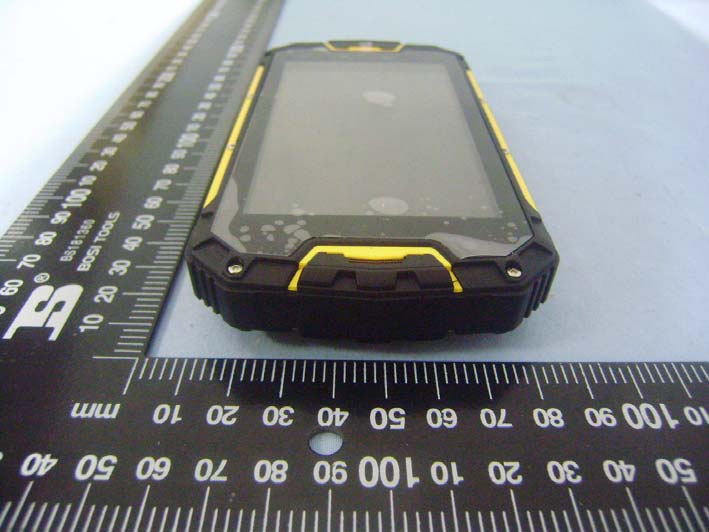

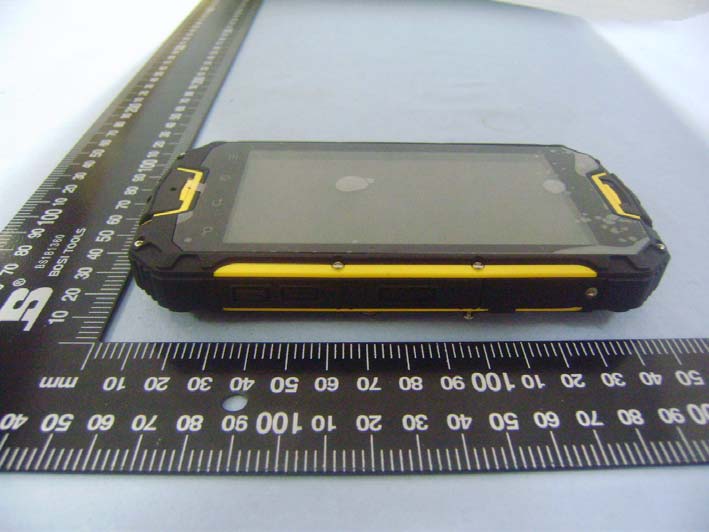

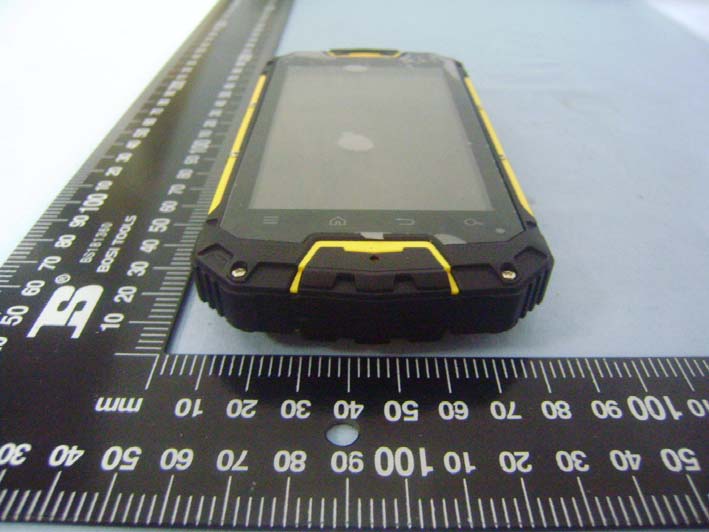

Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E EUT View 3 EUT View 4 Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E EUT View 5 EUT View 6 Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E EUT View 7 EUT View 8

Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ADMI-SMT1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E EUT Housing and Board View 3 EUT Housing and Board View 4 GSM/WCDMA Ant. WIFI/BT Ant. Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E Solder Board-Component View 1 Solder Board-Component View 2 Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E Solder Board-Component View 3

Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage (3.4 ~ 4.2V DC) to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator ( CMU 200) measures the Waterproof rugged phone device specific RF characteristics. 3. The maximum gains of each individual device are adjusted until the target value met. Tune‐up Power Mode Frequency Bands Tune‐up Power GSM GSM850 32.0dBm±1dB GSM1900 28.0dBm±1dB GPRS GPRS850(1 slots) 32.0dBm±1dB GPRS850(2 slots) 31.0dBm±1dB GPRS850(3 slots) 29.5dBm±1dB GPRS850(4 slots) 29.0dBm±1dB GPRS1900(1 slots) 28.0dBm±1dB GPRS1900(2 slots) 27.5dBm±1dB GPRS1900(3 slots) 26.0dBm±1dB GPRS1900(4 slots) 25.5dBm±1dB WCDMA Band V RMC 21.5dBm±1dB HSDPA 20.5dBm±1dB HSUPA 20.5dBm±1dB WIFI 2.4GHz 8.5dBm±1dB BT 2.4GHz 5.5dBm±1dB Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a CMU 200 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

Insane Enterprises. Inc. Model: SMT1 Report No.: STR14118070H Page 1 of 129 SAR Report FCC SAR Measurement and Test Report For Insane Enterprises. Inc. 22631 Pcific Coast HWY, Suite 469, Malibu, CA 90265 USA FCC ID: 2ADMI-SMT1 FCC Rules: FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 KDB 865664 D01 v01r03 KDB 865664 D02 v01r01 Product Description: Waterproof rugged phone Tested Model: SMT1 Report No.: STR14118070H Tested Date: 2014-12-03 to 2014-12-05 Issued Date: 2014-12-08 Tested By: Silin Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. Insane Enterprises. Inc. Model: SMT1 Report No.: STR14118070H Page 2 of 129 SAR Report TABLE OF CONTENTS 1. General Information ................................................................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ......................................................................................... 3 1.2 Test Standards .................................................................................................................................................... 5 1.3 Test Methodology ................................................................................................................................................ 5 1.4 Test Facility ......................................................................................................................................................... 5 2. Summary of Test Results .......................................................................................................................................... 6 3. Specific Absorption Rate (SAR) ................................................................................................................................ 7 3.1 Introduction .......................................................................................................................................................... 7 3.2 SAR Definition ..................................................................................................................................................... 7 4. SAR Measurement System ........................................................................................................................................ 8 4.1 The Measurement System .................................................................................................................................. 8 4.2 Probe ................................................................................................................................................................... 8 4.3 Probe Calibration Process ................................................................................................................................. 10 4.4 Phantom ............................................................................................................................................................ 11 4.5 Device Holder .................................................................................................................................................... 11 4.6 Test Equipment List ........................................................................................................................................... 12 5. Tissue Simulating Liquids ....................................................................................................................................... 13 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 13 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 14 5.3 Tissue Calibration Result ................................................................................................................................... 15 6. SAR Measurement Evaluation ................................................................................................................................ 16 6.1 Purpose of System Performance Check ............................................................................................................ 16 6.2 System Setup .................................................................................................................................................... 16 6.3 Validation Results .............................................................................................................................................. 17 7. EUT Testing Position ............................................................................................................................................... 18 7.1 Define Two Imaginary Lines on The Handset .................................................................................................... 18 7.2 Cheek Position .................................................................................................................................................. 19 7.3 Tilted Position .................................................................................................................................................... 19 7.4 Body Position .................................................................................................................................................... 20 7.5 EUT Antenna Position .................................................…

Text truncated - open the document above for the full version.

Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 PAGE 1 OF 95 FCC PART 22H&24E FCC Part 22H & 24E Measurement and Test Report For Insane Enterprises. Inc. 22631 Pcific Coast HWY, Suite 469, Malibu, CA 90265 USA FCC ID: 2ADMI-SMT1 FCC Rules: FCC Part 22H, FCC Part 24E Product Description: Waterproof rugged phone Tested Model: SMT1 Report No.: STR14118070I-1 Tested Date: 2014-11-12 to 2014-12-06 Issued Date: 2014-12-08 Tested By: Silin Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 PAGE 2 OF 95 FCC PART 22H&24E TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 7 3. RF EXPOSURE ......................................................................................................................................................... 8 3.1 STANDARD APPLICABLE ......................................................................................................................................... 8 3.2 TEST RESULT.......................................................................................................................................................... 8 4. RF OUTPUT POWER .............................................................................................................................................. 9 4.1 STANDARD APPLICABLE ......................................................................................................................................... 9 4.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 4.3 TEST PROCEDURE ................................................................................................................................................... 9 4.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 10 4.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 5. PEAK-TO-AVERAGE RADIO (PAR) OF TRANSMITTER ............................................................................. 17 5.1 STANDARD APPLICABLE ....................................................................................................................................... 17 5.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 5.3 TEST PROCEDURE ................................................................................................................................................. 17 5.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 5.5 SUMMARY OF TEST RESULTS ............................................................................................................................... 18 6. EMISSION BANDWIDTH ..................................................................................................................................... 20 6.1 STANDARD APPLICABLE ....................................................................................................................................... 20 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 20 6.3 TEST PROCEDURE ................................................................................................................................................. 20 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 20 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 21 7. OUT OF BAND EMISSIONS AT ANTENNA TERMINAL ............................................................................... 35 7.1 STANDARD APPLICABLE ....................................................................................................................................... 35 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 35 7.3 TEST…

Text truncated - open the document above for the full version.

Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Spurious Radiation Test Setup (9kHz to 30MHz) Spurious Radiation Test Setup (30MHz to 1G) Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E Spurious Radiation Test Setup (Above1G) Extreme Condition Test Setup Insane Enterprises. Inc. Model: SMT1 REPORT NO.: STR14118070I-1 FCC PART 22H&24E Mobile Communication Test Setup
