2ADMZ-IDIM-RF-RXTXThis system is a RF Controlled Lighting Control System that can be controlled automatically using motion sensors or manually using remote controls.

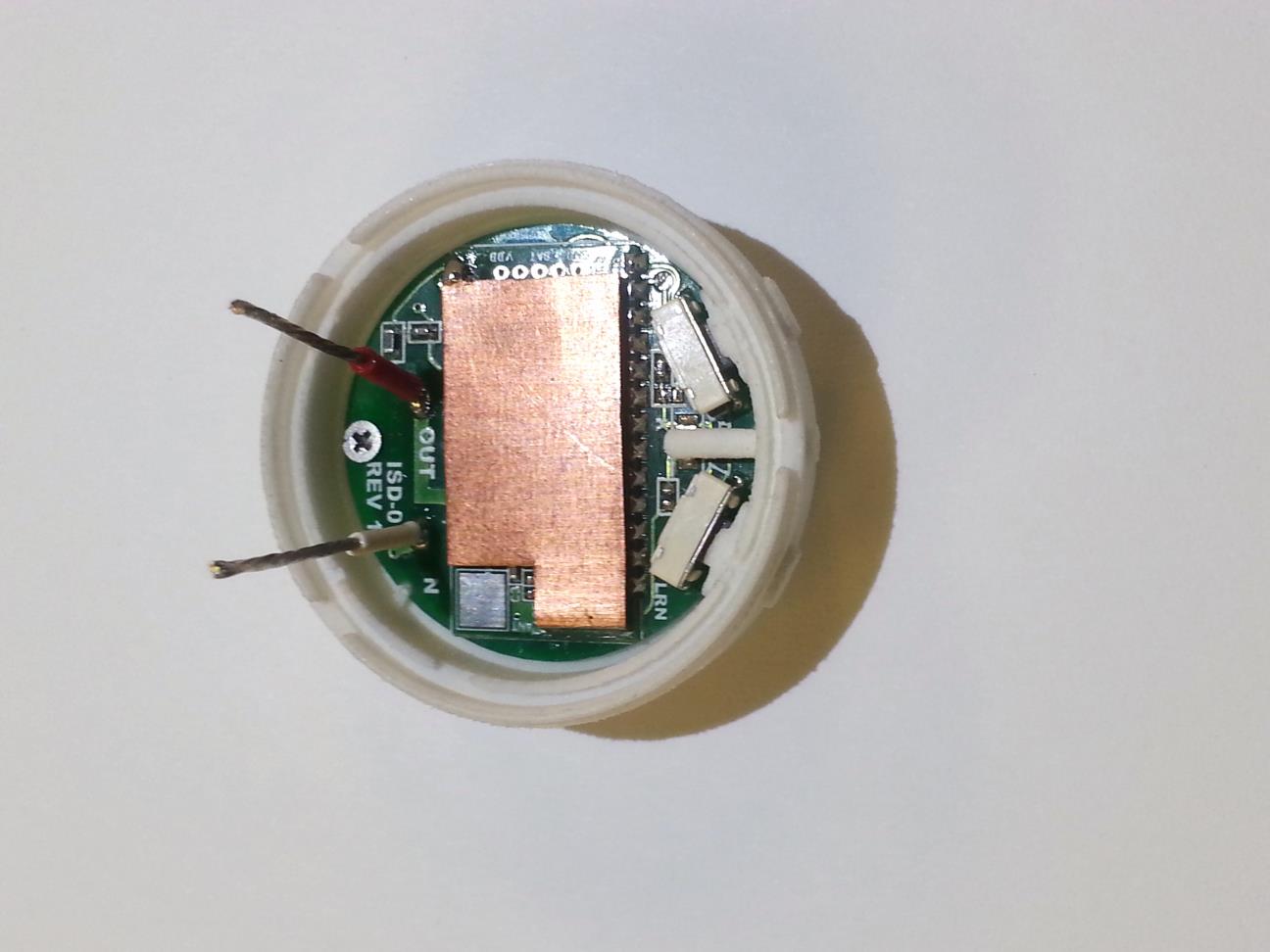

105 E. Jarrettsville Rd. Forest Hill, MD 21050 (410)420-1470 Phone, (410)638-5193 Fax [email protected] Operation Manual for the iDim Automatic Lighting Control The system consists of the following devices:  Cordless Mounted Motion Sensor (CMMS)  RF Remote Control  In-Socket Dimmer/Switch  RF Dimmer/Switch All devices use a bidirectional RF Simplex ( Simplex means that the device uses a two way radio that can only transmit and receive, but simultaneously) to communicate. The RF Remote Controls and CMMSs, each have a unique ID Code and will only communicate with receivers that have been paired to them. Each of the controller devices can be paired with up to 16 receivers, and in the case of the CMMS, unless it receives an acknowledgement from the receivers it is paired to, it will retransmit the command. Retransmitting the command will ensure that the receivers (switches, dimmers, sockets) respond to the command properly, especially when the lights are part of a large system. When there are many units in a system, this could create data collisions, resending the commands will ensure that even with interference or data collisions, the system will do the intended tasks. Instructions Manual for Cordless Mounted Motion Sensor (CMMS) The CMMS is a device powered by 2 AAA Lithium Batteries, with battery life estimate of two years or more. The CMMS communicates using two way radio signals only with units that is has been paired to, any signals transmitted from the CMMS may be seen by other devices, but will be ignored if it has not been paired to such devices. The CMMS has three push buttons: 1. SET1: This is used to pair and erase receiving units 2. SET2: This sets the Time-Out Period 3. SEND: This button used to Send the ON or OFF Command The SET1 button It is used to pair or un-pair all devices from the CMMS. To pair a receiver, press SET1 for 1 second, the LED will stay lit, then Press the Pair Button on the receiver, if pairing is successful, the LED will blink twice. Do this to pair all units that you want to pair with the CMMS. If pairing is not successful, both units will not blink, in which case, you can try again, if the pairing fails on the second trial, all the units need to be reset and the pairing must be re-started. 105 E. Jarrettsville Rd. Forest Hill, MD 21050 (410)420-1470 Phone, (410)638-5193 Fax [email protected] To erase all paired devices, press and hold SET1 for approximately 5 seconds until the LED blinks. Once the CMMS is reset, the devices that were paired with it will also need to be reset by pressing and holding the PAIR button for approximately 5 seconds until the LED blinks. Unless the transmitter and receiver units are reset, they will not be able to communicate. The SET2 button This button is used to set the time out period before the CMMS will turn all lights that it controls automatically OFF. The time outs are indicated by the number of blinks of the LED. The time outs are the following: 1, 5, 10, 20, 30 and 60 minutes. By defaults it is set to 5 minutes, to change it, just press the SET2 button, until the desired time out is activated. Table for SET2 Time Out Durations LED Blinks Time Out Duration 1 1 2 5 3 10 4 15 5 30 6 60 The SEND button The Send button is used to manually send the ON/OFF commands to the units that are paired and it is mainly used to setup and test the system. To send the OFF signal, press the SEND button momentarily, the LED will blink once. To send the ON signal, press and hold the SEND button until it blinks twice. The commands will be sent to all paired units. Once the system is setup, this button and the others will no longer need to be used. Battery Life The CMMS is designed to use 2 AAA batteries, we recommend using Lithium Batteries. Note:  Non Lithium batteries may leak chemicals that could cause communication issues or damage to the CMMS>>>>>>  Also, Lithium batteries have very low self-discharge rates that extends battery life to the CMMS. If lithium batteries are not available, then only use name brand alkaline batteries, which usually don’t leak, however, battery life may be significantly shorter than that of Lithium batteries 105 E. Jarrettsville Rd. Forest Hill, MD 21050 (410)420-1470 Phone, (410)638-5193 Fax [email protected] Battery life for the CMMS will depend mainly on the usage and how many units are paired with it. Based on the battery type and capacity, it is estimated that the CMMS has a battery life of 2 years. iDim does not warrant the battery life. Heavy use may shorten the battery estimated life, as well as light use of the device will extend the estimated two years. Low Battery: When the battery begins to be too low for proper functioning, the LED will begin to blink continuously. At this point, the batteries should be replaced as quickly as possible. The CMMS will keep its settings when its batteries are replaced. Once the batteries have a low charge, the system may not perform properly because the RF strength is in direct proportion to the battery voltage. Installation The CMMS can be mounted on the ceiling and on the wall, and should be mounted centrally located to all the units that it controls. Do not install on any metal surface as this will limits its range and thus negatively affect it communication with devices that it controls. The CMMS is only meant to be used indoors, away from the elements and extreme temperatures since it is not a sealed device. Installing this device other than indoors will limit its performance and may actually cause permanent damage to it. Pairing to Receivers Pairing: Press “SET 1” switch on the motion sensor for about 1 second the LED lights up and stays lit, now press PAIR switch on the RF Switch. If pairing is successful, both devices blink twice. Neither device retries sending data during pairing, it either happens or it does not. Once successfully paired, you can start using the system, or if you have additional units to control, you can pair the next device. To test the…
