FCC Home | Search | RSS | Updates | E-Filing | Initiatives | Consumers | Find People From:Chan, Joe-L (Shenzhen) To:Chen, Foray (Shenzhen) Subject:Fwd: Response to Inquiry to FCC (Tracking Number 684109) Date:2015年4月6日 22:01:19 发自我的 iPhone 以下是转发的邮件: 发件人: "[email protected] " <[email protected]> 日期: 2015年4月6日 GMT+820:59:18 收件人: "Chan, Joe-L (Shenzhen)" <[email protected] > 主题: Response to Inquiry to FCC (Tracking Number 684109) Office of Engineering and Technology Inquiry on 04/01/2015 : Inquiry: Dear Sir/Madam We have a wireless charge base need to apply for FCC ID via TCB. Below is the information of the wireless charge base, can we apply for FCC ID for this product? Please help to confirm it . Thanks. 1.The product is a QI wireless charger, the including coil diameters is 43.0±1mm, and the number of turns is 8±1Ts, the output current is 2A max. 2.The product will operate in the rule PART 18 for the charge function. 3. We planned to be approved under FCC DoC. 4.The drawings and illustrations refer to the attachment please. 5.Frequencies: 110-205kHz. 6.Max power is 5W. 7.Operating configuration: 1). Plug the adaptor into the wall (120V/60Hz). Connect the adaptor output to the DC input jacket of the wireless charger plate. The blue LED of the charger plate will be turned on for a second and then slow flash. At the same time, the red LED turned on. The charger plate is now ready for charging (“waiting mode”). 2). Put the Qi-compatible cell phone or other Qi-compatible mobile devices on top of the central induction area where the QI logo is marked. The blue LED will be turned on when the charger starts charging the cell phone or mobile devices. The blue LED will be kept on during the charging process, the red LED turn off at the same time. 3). When the battery of the mobile device is fully charged, the charger will stop charging and turn the blue LED off. During the charging process, whenever the mobile device is removed from the charging plate, the charging process will be terminated automatically; the charger will be back in waiting mode and the blue LED will be off. 8. The human exposure report refer to the attachment please. FCC response on 04/06/2015 The supplied document titled “RF Exposure Report” meets the criteria set out in Section 3(3) KDB Publication 680106 D01. Accordingly, this EUT may be processed according to normal procedures by a TCB if certification is required; or a recognized laboratory, if Declaration of Conformity is appropriate. Please be advised that, consistent 47 CFR 15.205, devices authorized under Part 15 may not transmit in the 90 – 110 kHz band. Attachment Details: Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

Less than 5Watts 10.59 cm2

2ADO2-MHQITX

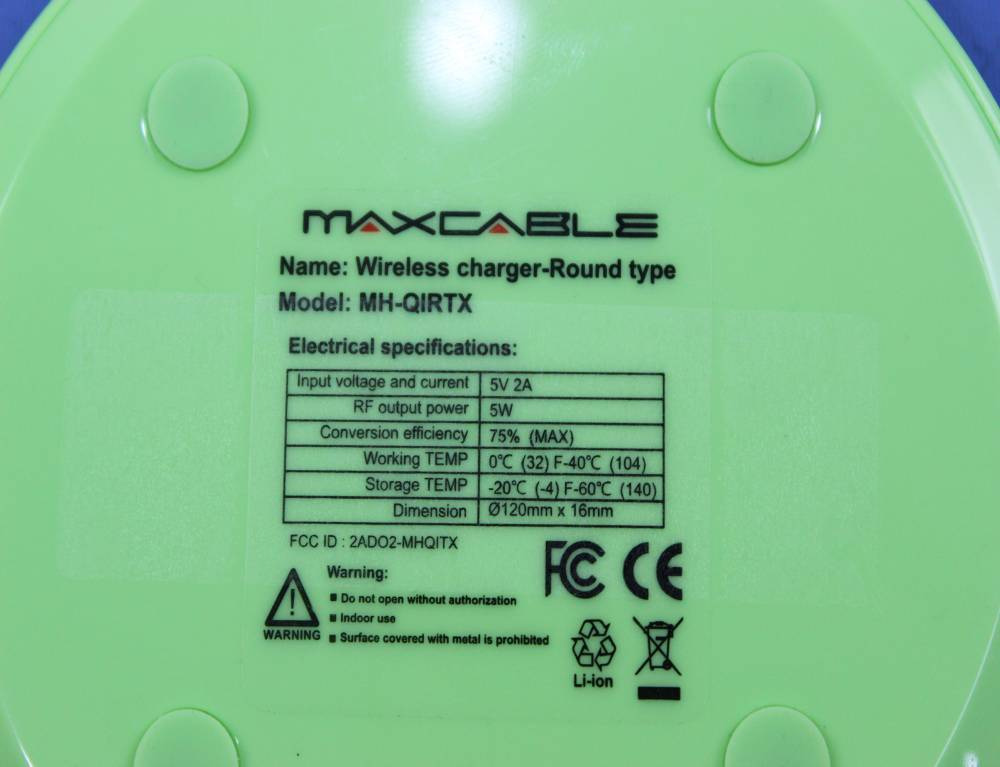

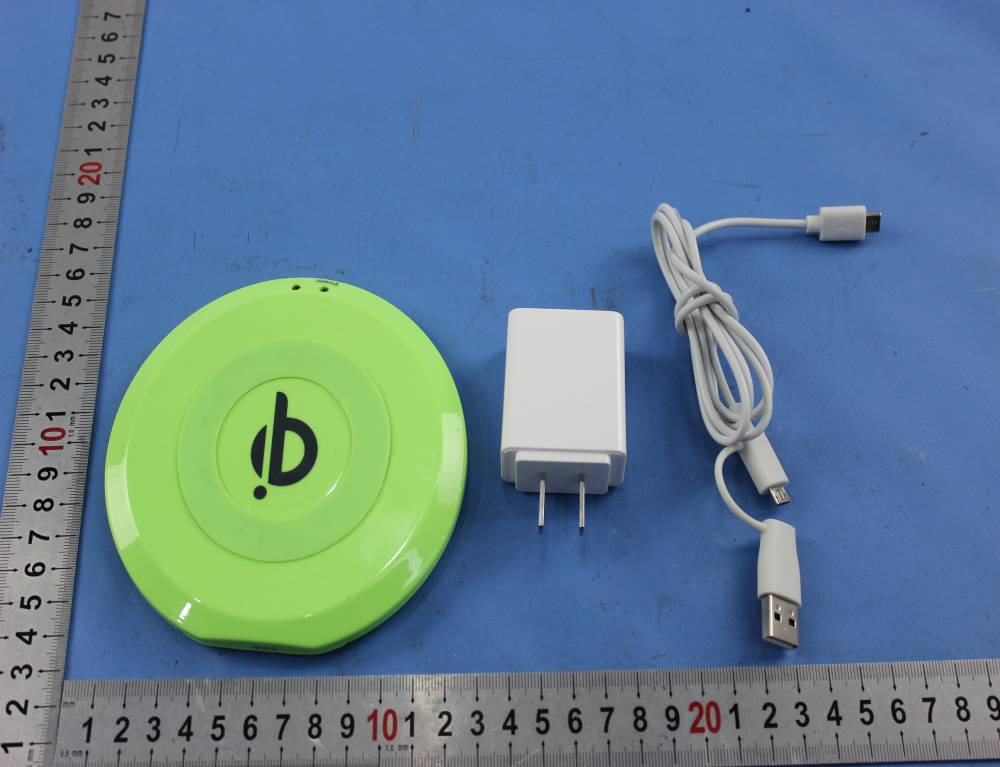

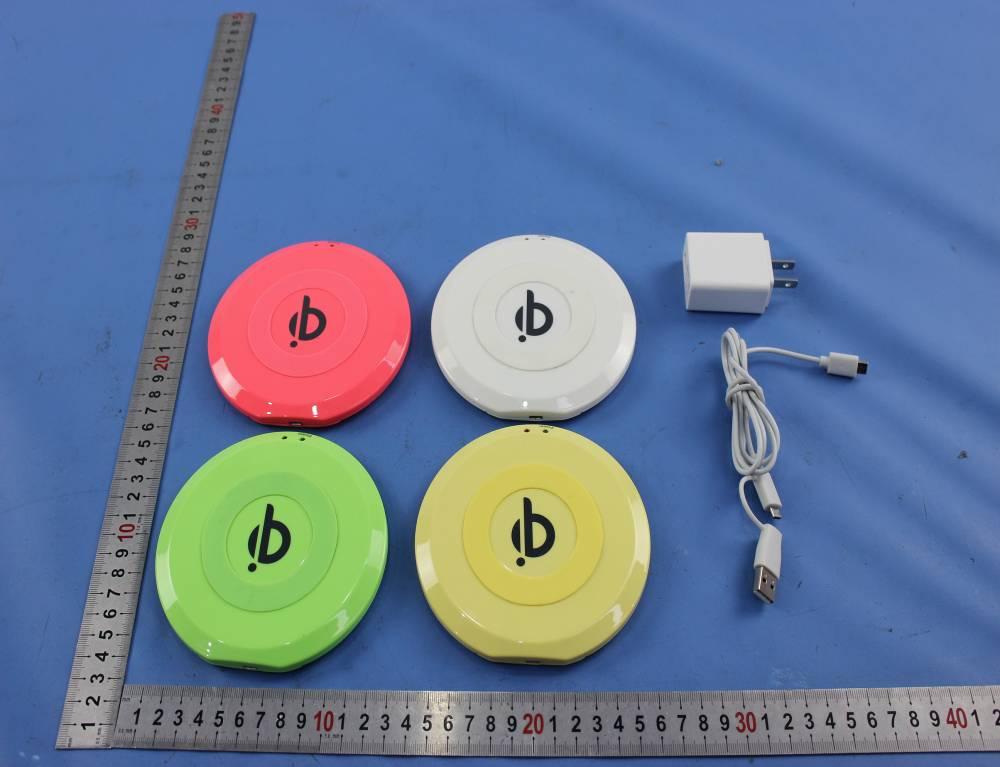

1 Photographs - EUT Constructional Details Test Model No.: MH-QIRTX

1 Photographs - EUT Constructional Details Test Model No.: MH-QIRTX “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.”

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, District Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM140900543804 Page: 1 of 16 Authorized Signature: Starry Li EMC Laboratory Project Engineer This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Human Exposure Report Application No.: SZEM1409005438IT Applicant: Master Hill Electric Wire & Cable Co., Ltd. Address of Applicant: Unit 505, 5/F., Sunbeam Centre, 27 Shing Yip Street, Kwun Tong, Kowloon Hong Kong SAR China Manufacturer/Factory: Shen Zhen Master Hill Technology Co., Ltd. Address of Manufacturer/ Factory: Laowei Industry Zone, Longhua Street Longhua District, Shenzhen, China Equipment Under Test (EUT): EUT Name: Wireless charger-Round type Model No.: MH-QIRTX Trade mark: MAXCABLE Standards: 47 CFR PART 1, Subpart I, Section 1.1310 Date of Receipt: 2014-10-23 Date of Test: 2015-01-19 to 2015-01-29 Date of Issue: 2015-02-10 Test Result : Pass* * This report is just a test result base on the test method and limit requirement shown in the form on the second page. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government.. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM140900543804 Page: 2 of 21 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 2 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION .................................................................................................................................... 3 3.1 DETAILS OF E.U.T. ................................................................................................................................................. 3 3.2 DESCRIPTION OF SUPPORT UNITS ............................................................................................................................ 3 3.3 TEST LOCATION ...................................................................................................................................................... 3 3.4 TEST FACILITY ........................................................................................................................................................ 4 3.5 DEVIATION FROM STANDARDS ................................................................................................................................ 4 3.6 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 4 4 EQUIPMENTS USED DURING TEST .................................................................................................................. 4 5 TEST RESULTS ...................................................................................................................................................... 5 5.1 RF EXPOSURE TEST ................................................................................................................................................ 5 5.1.1 E.U.T. Operation ........................................................................................................................................ 5 Operating Environment: ...........…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM140900543801 Page: 1 of 17 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only FCC Test Report Application No.: SZEM1409005438IT Applicant: Master Hill Electric Wire & Cable Co., Ltd. Manufacturer/Factory: Shen Zhen Master Hill Technology Co., Ltd. Equipment Under Test (EUT): EUT Name: Wireless charger-Round type Model No.: MH-QIRTX Trade mark: MAXCABLE FCC ID: 2ADO2-MHQITX Standards: 47 CFR PART 18: 2014 Date of Receipt: 2014-10-23 Date of Test: 2015-01-19 to 2015-01-29 Date of Issue: 2015-02-10 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM140900543801 Page: 2 of 17 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 2 Test Summary Test Test Requirement Test Method Class / Severity Result Conducted Emission (150 kHz to 30 MHz) 47 CFR PART 18: 2014 FCC OST/ MP-5:1986 18.307(a) Pass Radiated Emission (9 kHz to 1GHz) 47 CFR PART 18: 2014 FCC OST/ MP-5:1986 18.305(b) Pass Model No.: MH-QIRTX The model MH-QIRTX has 4 kinds of color including yellow, white, pink and green, only the green one was tested, since the electrical circuit design, layout, components used and internal wiring were identical for all samples just different on appearance color. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM140900543801 Page: 3 of 17 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results show…

Text truncated - open the document above for the full version.

1 Photographs Test Model No.: Wireless charger-Round type 1.1 Conducted Emission Test Setup 1.2 Radiated Emission Test Setup
