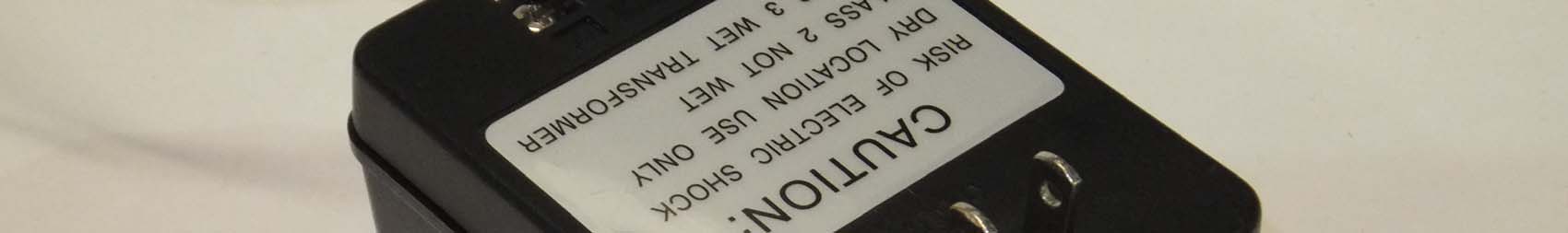

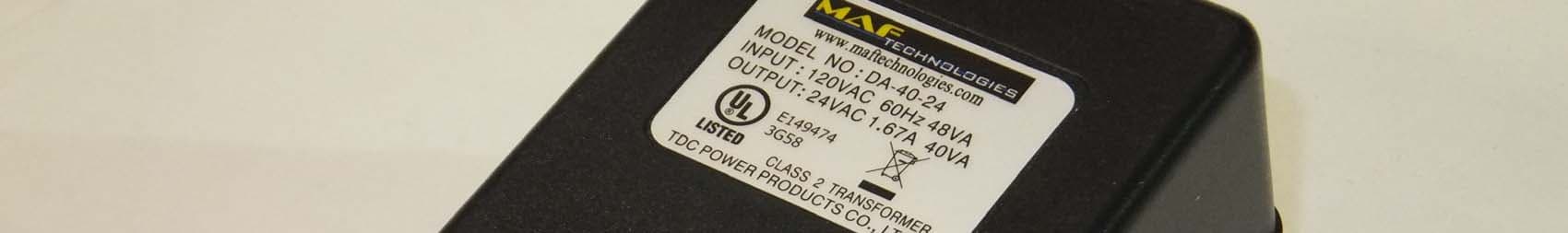

2ADO701721UV Ballast Control

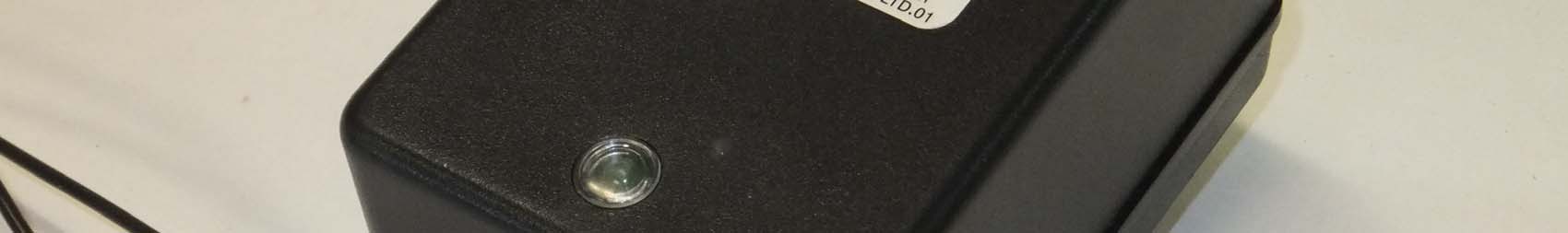

Use only specified replacement Lamps with your Purifier. Use of an incorrect Lamp can result in damage to the Purifier and/or Lamp. Antenna: Wireless signal Battery: Battery needs replacing Sterilizing ʻONʼ animation Ballast Out: Possible Ballast failure. A ‟Contactˮ message will appear at the top of the screen. An ‟EC3ˮ Error Code message will also appear on the screen. UV Lamp Out: Possible UV Lamp failure, or UV Lamp is not plugged in. A ‟Contactˮ message will appear at the bottom of the screen. An ‟EC2ˮ Error Code message will also appear on the screen. Days Left: A Feature that will monitor UV usage and notify after 1 year when it is time to replace the UV lamp. A ‟Contactˮ message will appear at the top of the screen. The 24V ballast is equipped with an LED status notifying the user of various system conditions. The LED notifications work as follows: System OK LED Solid Lamp > 8,700 hrs. (time to replace UV Lamp) LED FLASH 1 sec. / OFF 1 sec. Repeat. Lamp Fail (EC2) LED FLASH 2X / pause 1 sec. Repeat. Ballast Fail (EC3) LED FLASH 3X / pause 1 sec. Repeat. Low Voltage (under 18V)* (EC4) LED FLASH 4X / pause 1 sec. Repeat. High Voltage (over 30V)* (EC5) LED FLASH 5X / pause 1 sec. Repeat. *Connect w/ step-down transformer. Sold separately. UNDERSTANDING REMOTE LCD DISPLAY SABER PRO WIRELESS 24V UV LAMP SYSTEM INSTALLATION INSTRUCTIONS Part# SABERPW16/24-GM2 Model# SABER PRO SANUVOX SABER PRO WIRELESS UV LAMP SYSTEM INSTALLATION INSTRUCTIONS RESET BUTTON: To reset an Error Code, press RESET button shorter than 3 sec. Following a lamp replacement, press RESET Button for 3 seconds to reset the 1 year timing function. Maintenance Disconnect all power before performing any maintenance or service. The Ultraviolet lamp should be cleaned every two to three months. To clean, disconnect white socket from lamp. Loosen the 2 screws on the retainer ring. Turn retainer ring left. Pull out retainer ring and pull lamp out. Wipe lamp with a soft tissue and alcohol based solution. Reverse the above procedure to reinstall the lamp. Lamps need periodic replacement to maintain design specifications. Replace lamps after 1 year of operation. Follow instructions for Ballast Operation (above) on how to reset the timer feature. Contact a local dealer for replacement lamps. FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Information to user Caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Notice This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. IC Insert the included two (2) AA batteries. The LCD Screen will show NOT PAIRED‟ˮ 1. 1. 2. 3. 4. 2. 3. 4. 5. The range between the ballast and display can be up to 60 feet. Layout of the home such as walls, floors and various materials such as concrete, wood, etc. may reduce the range of the signal. The ballast transmit data periodically. Before mounting the LCD Display to a wall, first make sure there is a connection between the ballast and display at desired location before mounting on wall. If the distance is too much the LDC will display ‟NO SIGNALˮ. To confirm the communication, press the pairing button on the LCD Display again. It shows Pairing on the screen and if communication is re-established, it will show real time status (Figure D). Once there is a confirmed connection, the LCD Display can be mounted to any wall in the home using the included screws. ‟ˮ The LCD Display and ballast communicate wirelessly Disconnect power to the HVAC unit. Remove the ballast, brackets, UV lamp retaining ring, view port and UV lamp from the package. Locate the ballast so that there is sufficient cable to attach to the UV lamp when it is installed. The two piece lamp bracket is used to hold the lamp. Depending on the type of coil and the location of the UV light on the coil will determine if one or both pieces of the bracket are used. The UV lamp will be installed either with the lamp on top of the coil or the lamp inside the coil. The Main Bracket can be mounted to the side of the coil allowing the UV lamp to be inserted in-between or over the coil. Drill a 1" diameter hole in the sheet metal to allow the UV lamp to pass and mount the Main Bracket to the side of the coil using the two included sheet metal screws. Once installed use the round metal lamp retaining ring to lock the lamp in place and tighten the two screws. Use of …
