2ADOBHLTE237E

Hisense International Co.,Ltd

Mobile Phone (LTE/WCDMA/GSM/WiFi/BT)

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Mar 22, 2022
Application Purpose: Original Equipment
Date of Application: Mar 21, 2022
Equipment Note: Mobile Phone (LTE/WCDMA/GSM/WiFi/BT)
Frequency Range: 814.70000000 - 823.30000000
Company: Hisense International Co.,Ltd
Country: China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

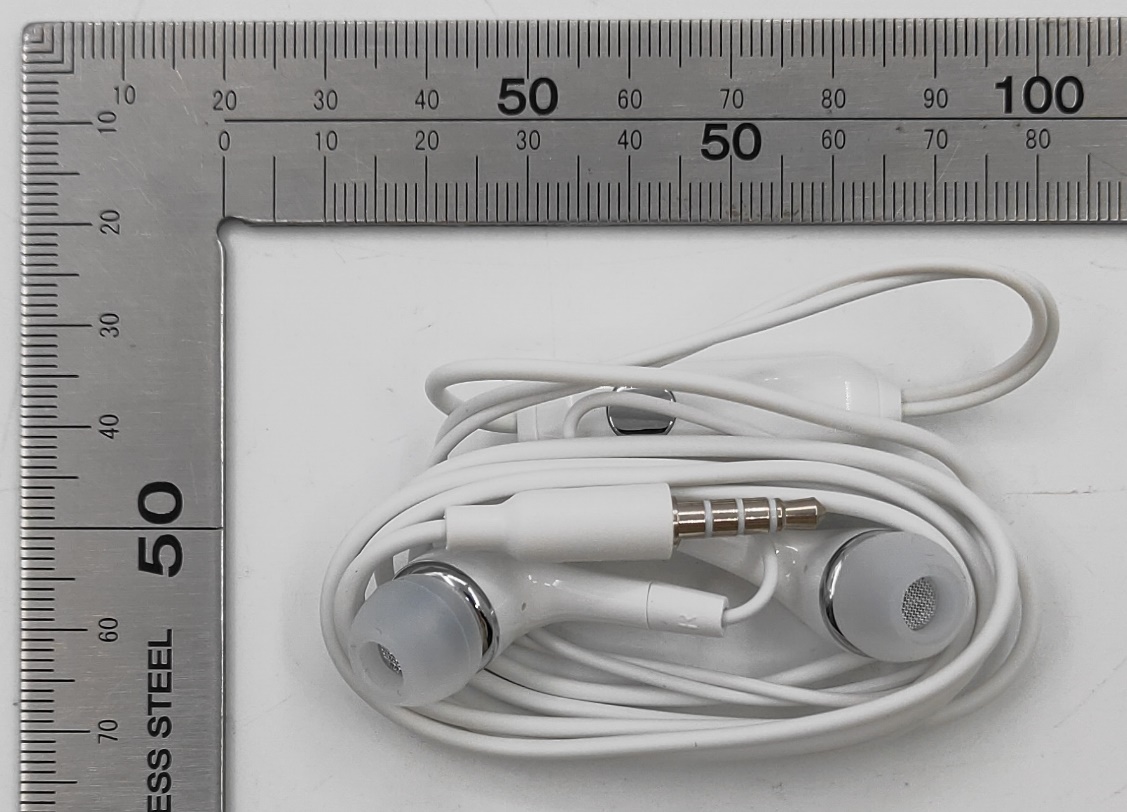

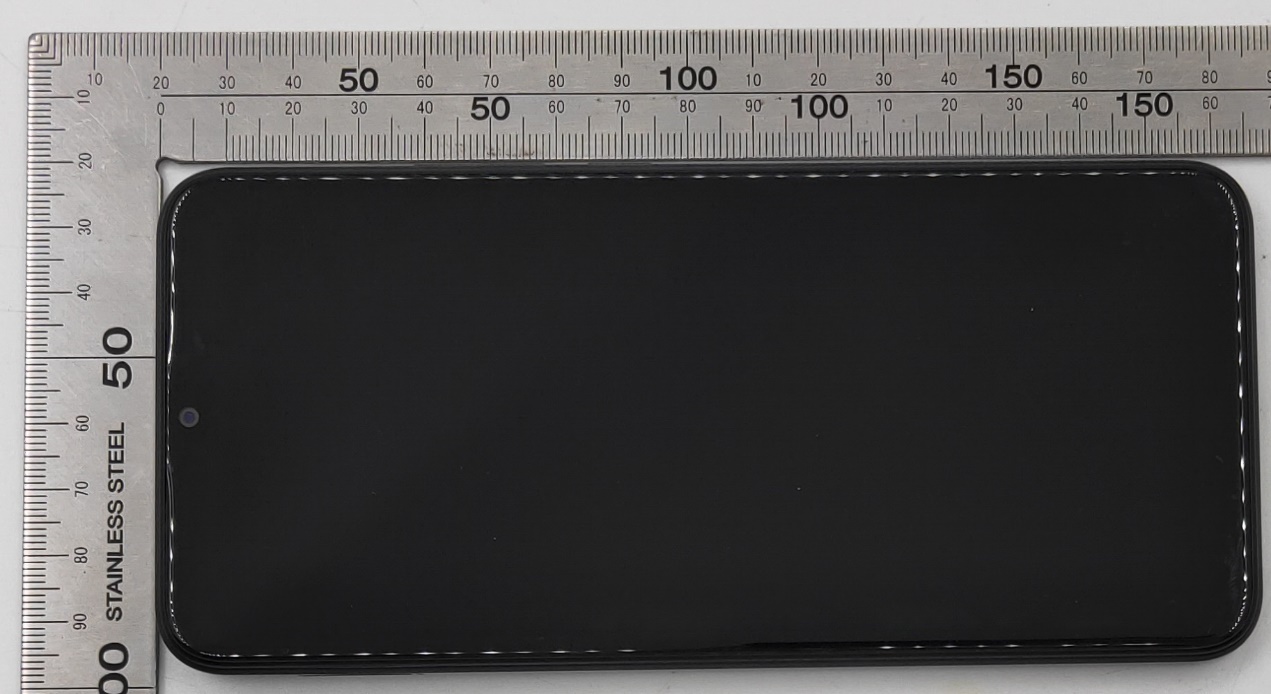

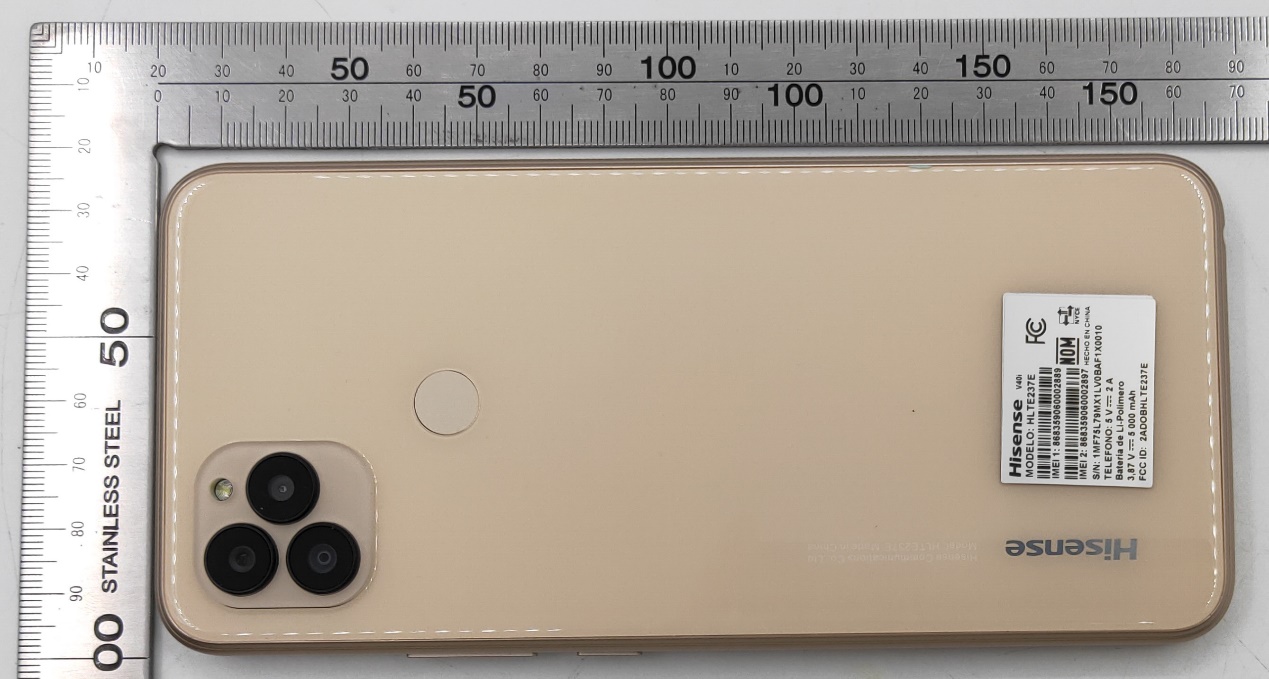

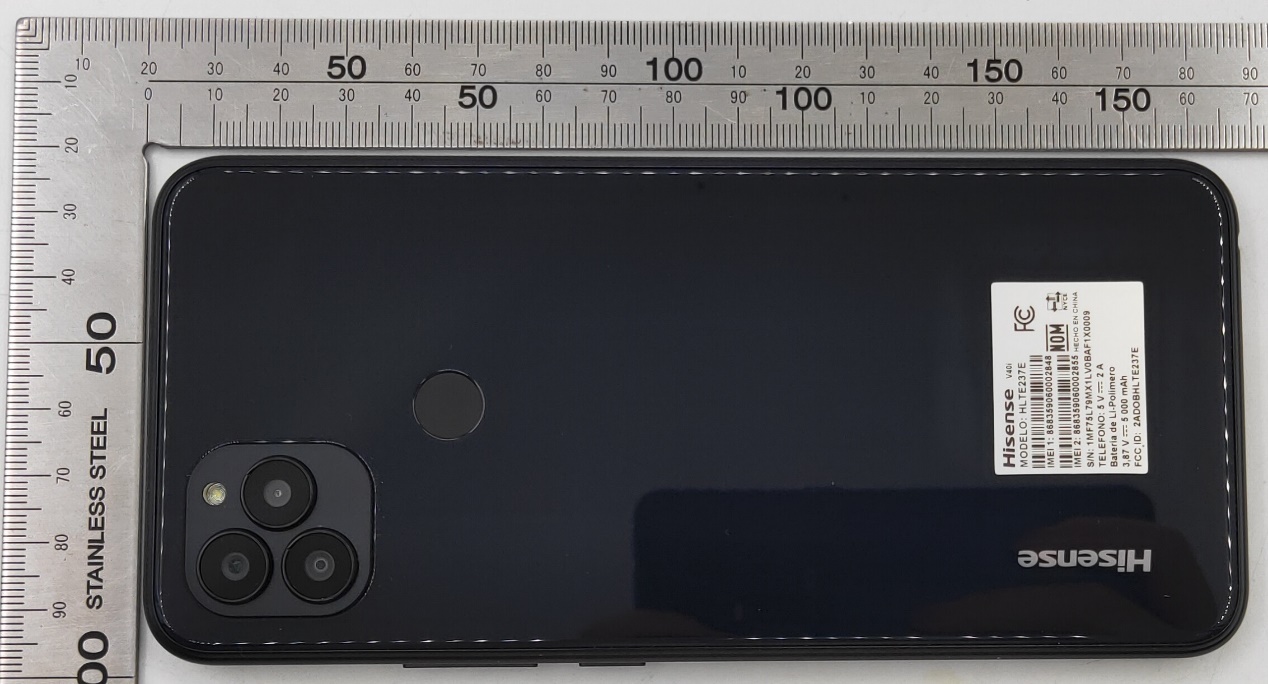

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
23	9	814.7 MHz - 823.3 MHz	87.00 mW	8M94W7D	0.075 ppm

Confidentiality

Long Term

Grant Notes

Output power listed for GSM850, WCDMA Band 5, LTE Band 5/12/26 are maximum ERP. Output power listed for PCS1900, WCDMA Band 2/4, LTE Band 2/4/7/66 are maximum EIRP. It supports GSM, WCDMA, LTE (QPSK, 16QAM, 64QAM) LTE B2, B4, B5, B7, B12, B26, B66 Channel Bandwidth (1.4/3/5/10 MHz) for LTE B5, B12 Channel Bandwidth (1.4/3/5/10/15 MHz) for LTE B26 Channel Bandwidth (1.4/3/5/10/15/20 MHz) for LTE B2, B4, B66 Channel Bandwidth (5/10/15/20 MHz) for LTE B7 This device contains functions that are not operational in U.S. Territories; this filing is only applicable for U.S. operations. This device has integrated DTS, DSS, NII and PCE transmitters certified under the same FCC ID. SAR compliance for body-worn operating configurations is limited to the belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values for Head, body-worn accessory, hotspot and simultaneous transmission use conditions are 0.40 W/kg, 1.03 W/kg, 1.18 W/kg, and 1.22 W/kg, respectively.
