2ADOH-ALPSUMDZ1EVB1LTE Data Module

Confidential 1 UMDZ1 Evaluation Board SIM Card Slot Diversity RX Antenna Connector USB2.0 Connector Main TX / RX Antenna Connector Power Sullpy Connector Power Switch ON OFF Other connectors and switches are for debug use. 記載以外のコネクタ・スイッチはデバッグ用です。 Confidential UMDZ1 Evaluation Board 2 Main TX / RX Antenna Cable Power Supply Cable 12V 2A USB2.0 Cable to Host PC SIM Card Diversity RX Antenna Cable Cable Connection SIM Card Insertion direction ↑ ON Power Switch ↓OFF Turn ON the Power Switch. Then the UMDZ1 module will start booting automatically. After about ten seconds, the UMDZ1 module will be ready to connect to the cellular network. 電源スイッチをＯＮにするとモジュールは自動的に起動を開始します。 およそ１０秒後にセルラーネットワークへの接続待機状態となります。 Confidential Information / Warning (1) Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. 3 Confidential Information / Warning (2) End Product Labeling When the module is installed in the host device, the FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily re-moved. If not, a second label must be placed on the outside of the final device that contains the following text: “Contains FCC ID: 2ADOH-ALPSUMDZ1EVB1” The grantee's FCC ID can be used only when all FCC compliance requirements are met. This device is intended only for OEM integrators under the following conditions: (1) The antenna must be installed such that 20 cm is maintained between the antenna and users, (2) The transmitter module may not be co-located with any other transmitter or antenna. (3) To comply with FCC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a mobile exposure condition must not exceed: Standalone Condition: 。 7.5 dBi in Cellular band 。 3.0 dBi in PCS band 。 6.0 dBi in AWS band 。 10.5 dBi in 700 MHz Band Assuming collocated with an ordinary WLAN/WiMax/Bluetooth transmitter with 5 dBi antenna gain 。 6.0 dBi in Cellular band 。 3.0 dBi in PCS band 。 6.0 dBi in AWS band 。 7.5 dBi in 700 MHz Band In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. 4

ALPS Electric Co., Ltd. Date: April 16, 2015 Module Approval Checklist FCC ID: 2ADOH‐ALPSUMDZ1EVB1 Item Requirements EUT 1. The modular transmitter must have its own RF shielding. The module is equipped with its own shielding case. 2. The modular transmitter must have buffered modulation / data inputs. The module has buffer modulation / data inputs. 3. The modular transmitter must have its own power supply regulation. The module has its own power supply regulation. 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), Not applicable to licensed modules. 5. The modular transmitter must be tested in a stand‐alone configuration. The module was tested on evaluation board, and it’s not inside of another device during testing. 6. The modular transmitter must be labeled with its own FCC ID number. The module transmitter will be labeled with its own FCC ID, and for OEM integration the integration manual contains labeling instructions for the host device per Part 15.212 (vi) 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The module approved transmitter complies with all applicable rules and the integration manual contains any specific requirements addressed to the integrator and/or to the end‐user of the final end‐product. 8. The modular transmitter must comply with any applicable RF exposure requirement. The module complies with the FCC RF exposure requirements for fixed and mobile applications.

Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 1 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 2 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510 Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 3 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 Specification of Accessory Antenna Brand Name N/A Model Name N/A Signal Line 0.9 meter non-shielded cable without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 4 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510

Front of the device

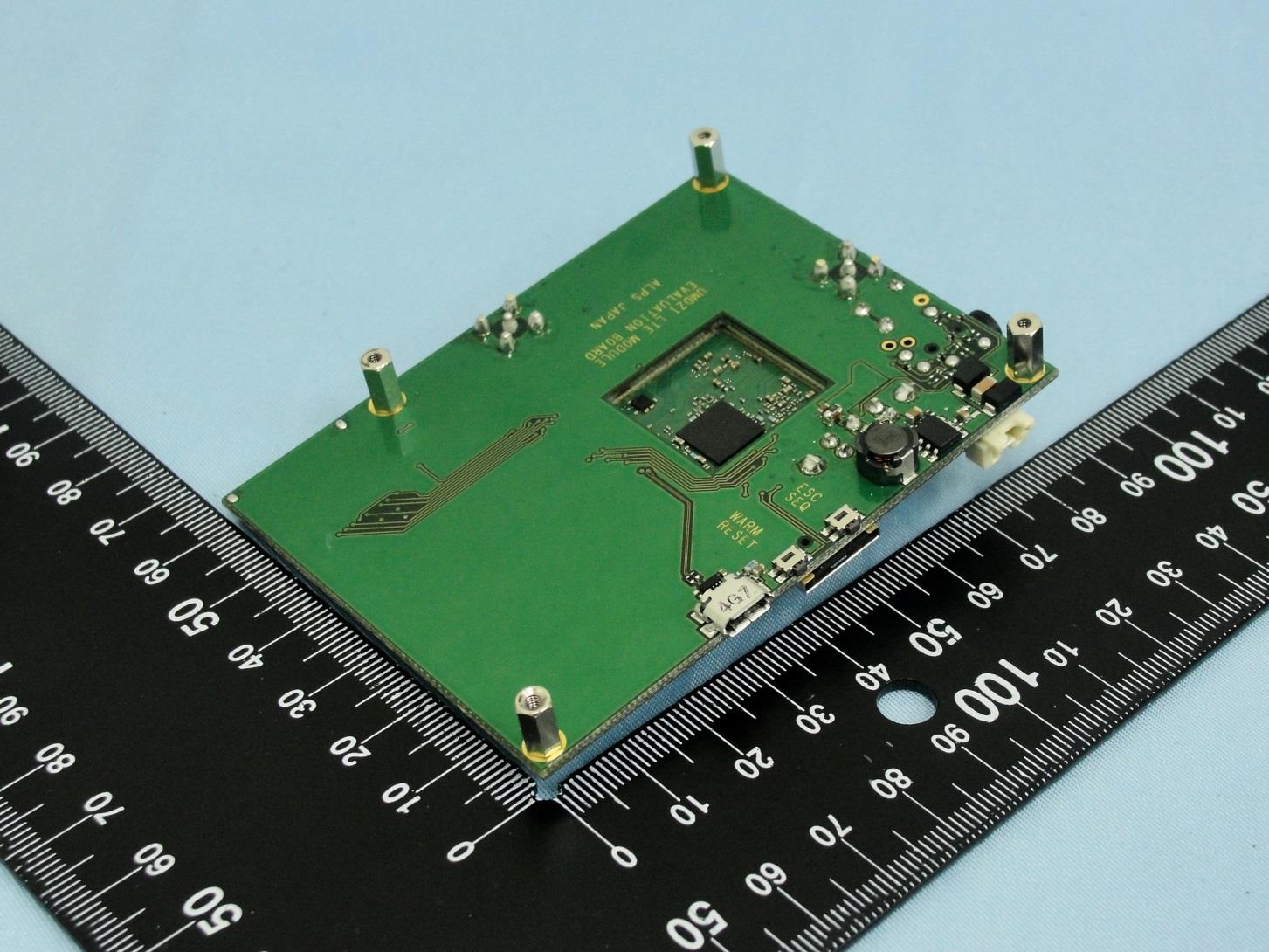

Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 5 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 6 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510 Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 7 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510 Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 8 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510 Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 9 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510 Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 10 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510 Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 11 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510 Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 12 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510 Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 13 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510 LTE Antenna Photographs of EUT Report No.: EP531022 Brand Name: ALPS / Model Name: UMDZ1 / Marketing Name: UMDZ1 SPORTON INTERNATIONAL INC. Page Number : 14 of 14 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 720510

SPORTON INTERNATIONAL INC. Page Number : 1 of 10 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 RF Exposure Evaluation Report Report No. : FA531022 RF Exposure Evaluation Report APPLICANT : ALPS ELECTRIC CO., LTD. EQUIPMENT : LTE Data Module BRAND NAME : ALPS MODEL NAME : UMDZ1 MARKETING NAME : UMDZ1 FCC ID : 2ADOH-ALPSUMDZ1EVB1 STANDARD : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091, and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 10 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 RF Exposure Evaluation Report Report No. : FA531022 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 6 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculation ............................................................................................. 8 5.2. Collocated Power Density Calculation ............................................................................................... 9 SPORTON INTERNATIONAL INC. Page Number : 3 of 10 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 RF Exposure Evaluation Report Report No. : FA531022 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA531022 Rev. 01 Initial issue of report Apr. 15, 2015 SPORTON INTERNATIONAL INC. Page Number : 4 of 10 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 RF Exposure Evaluation Report Report No. : FA531022 1. Administration Data 1.1. Testing Laboratory Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) TEL: +886-3-327-3456 FAX: +886-3-328-4978 Applicant Company Name ALPS ELECTRIC CO., LTD. Address 6-3-36, Furukawanakazato, Osaki City, Miyagi Prefecture 989-6181 Manufacturer Company Name ALPS ELECTRIC CO., LTD. Address 6-3-36, Furukawanakazato, Osaki City, Miyagi Prefecture 989-6181 SPORTON INTERNATIONAL INC. Page Number : 5 of 10 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 RF Exposure Evaluation Report Report No. : FA531022 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type LTE Data Module Brand Name ALPS Model Name UMDZ1 FCC ID 2ADOH-ALPSUMDZ1EVB1 Wireless Technology and Frequency Range GSM850: 824.2 MHz ~ 848.8 MHz GSM1900: 1850.2 MHz ~ 1909.8 MHz WCDMA Band V: 826.4 MHz ~ 846.6 MHz WCDMA Band IV: 1712.4 MHz ~ 1752.6 MHz WCDMA Band II: 1852.4 MHz ~ 1907.6 MHz LTE Band 17: 706.5 MHz ~ 713.5 MHz LTE Band 5: 824.7 MHz ~ 848.3 MHz LTE Band 4: 1710.7 MHz ~ 1754.3 MHz LTE Band 2: 1850.7 MHz ~ 1909.3 MHz Mode •GPRS/EGPRS •RMC 12.2Kbps •HSDPA •HSUPA •DC-HSDPA •LTE: QPSK, 16QAM Antenna Type Fixed External Antenna HW Version ES2.0 SW Version V15.2 EUT Stage Identical Prototype Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. SPORTON INTERNATIONAL INC. Page Number : 6 of 10 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 RF Exposure Evaluation Report Report No. : FA531022 3. Maximum RF average output power among production units Mode Burst average power(dBm) GSM 850 GSM 1900 GPRS/EDGE (GMSK, 1 Tx slot) 33.00 30.00 GPRS/EDGE (GMSK, 2 Tx slots) 31.00 29.00 GPRS/EDGE (GMSK, 3 Tx slots) 29.00 27.00 GPRS/EDGE (GMSK, 4 Tx slots) 28.00 26.00 EDGE (8PSK, 1 Tx slot) 27.00 27.00 EDGE (8PSK, 2 Tx slots) 25.00 27.00 EDGE (8PSK, 3 Tx slots) 23.00 27.00 EDGE (8PSK, 4 Tx slots) 22.00 26.00 Mode Average Power (dBm) WCDMA Band V 24.00 Band IV 24.00 Band II 24.00 LTE Band 17 23.00 Band 5 23.00 Band 4 23.00 Band 2 23.00 SPORTON INTERNATIONAL INC. Page Number : 7 of 10 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 RF Exposure Evaluation Report Report No. : FA531022 4. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1310. The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: 퐒= 퐏퐆 ퟒ훑퐑 ퟐ Where: S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna SPORTON INTERNATIONAL INC. Page Number : 8 of 10 TEL : 886-3-327-3456 Report Issued Date : Apr. 15,…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 23 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 Report Template No.: BU5-FGLTE Version 1.3 FCC RF Test Report Report No. : FG531022B RF Test Report APPLICANT : ALPS ELECTRIC CO., LTD. EQUIPMENT : LTE Data Module BRAND NAME : ALPS MODEL NAME : UMDZ1 FCC ID : 2ADOH-ALPSUMDZ1EVB1 STANDARD : 47 CFR Part 2, 22(H), 24(E), 27 CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Mar. 10, 2015 and completely tested on Apr. 01, 2015. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures given in ANSI / TIA / EIA-603-C-2004 and the testing has shown the tested sample to be in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan District, Tao Yuan City, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 23 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 Report Template No.: BU5-FGLTE Version 1.3 FCC RF Test Report Report No. : FG531022B TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 6 1.1 Applicant ............................................................................................................................................ 6 1.2 Manufacturer ...................................................................................................................................... 6 1.3 Product Feature of Equipment Under Test ........................................................................................ 6 1.4 Product Specification subjective to this standard .............................................................................. 6 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Emission Designator .......................................................................................................................... 7 1.7 Testing Location ................................................................................................................................ 8 1.8 Applicable Standards ......................................................................................................................... 8 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 9 2.1 Test Mode .......................................................................................................................................... 9 2.2 Connection Diagram of Test System ............................................................................................... 10 2.3 Support Unit used in test configuration and system ........................................................................ 11 2.4 Measurement Results Explanation Example ................................................................................... 11 3 CONDUCTED TEST ITEMS ...................................................................................................................... 12 3.1 Measuring Instruments .................................................................................................................... 12 3.2 Test Setup ....................................................................................................................................... 12 3.3 Test Result of Conducted Test ........................................................................................................ 12 3.4 Conducted Output Power ................................................................................................................ 13 3.5 Peak-to-Average Ratio .................................................................................................................... 14 3.6 Occupied Bandwidth ........................................................................................................................ 15 3.7 Conducted Band Edge .................................................................................................................... 16 3.8 Conducted Spurious Emission ........................................................................................................ 18 3.9 Frequency Stability .......................................................................................................................... 19 4 RADIATED TEST ITEMS .......................................................................................................................... 20 4.1 Measuring Instruments .................................................................................................................... 20 4.2 Test Setup ....................................................................................................................................... 20 4.3 Test Result of Radiated Test ........................................................................................................... 20 4.4 Radiated Spurious Emission .................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : A19 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B 26dB Bandwidth Mode LTE Band 2 : 26dB BW(MHz) BW 1.4MHz 3MHz 5MHz 10MHz 15MHz 20MHz Mod. QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM Lowest CH 1.52 1.5 3.29 3.3 5.44 5.38 10.77 10.77 14.75 14.6 20.38 20.18 Middle CH 1.53 1.5 3.28 3.29 5.44 5.4 10.57 10.41 14.75 14.84 20.3 20.3 Highest CH 1.49 1.53 3.16 3.28 5.42 5.41 10.89 11.05 14.72 15.02 20.34 20.46 Mode LTE Band 4 : 26dB BW(MHz) BW 1.4MHz 3MHz 5MHz 10MHz 15MHz 20MHz Mod. QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM Lowest CH 1.92 1.91 3.31 3.27 5.36 5.32 10.09 10.13 14.75 14.87 20.34 20.30 Middle CH 1.92 1.91 3.31 3.30 5.35 5.34 10.13 10.19 14.66 14.96 20.22 20.14 Highest CH 1.93 1.91 3.32 3.31 5.39 5.34 10.33 10.19 14.66 14.75 20.42 20.22 Mode LTE Band 5 : 26dB BW(MHz) BW 1.4MHz 3MHz 5MHz 10MHz 15MHz 20MHz Mod. QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM Lowest CH 1.48 1.47 3.25 3.27 5.30 5.25 10.03 10.07 - - - - Middle CH 1.49 1.47 3.28 3.28 5.36 5.31 10.25 10.09 - - - - Highest CH 1.49 1.47 3.28 3.26 5.30 5.24 9.99 10.11 - - - - Mode LTE Band 17 : 26dB BW(MHz) BW 1.4MHz 3MHz 5MHz 10MHz 15MHz 20MHz Mod. QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM QPSK 16QAM Lowest CH - - - - 5.51 5.43 11.33 11.19 - - - - Middle CH - - - - 5.44 5.38 10.95 10.45 - - - - Highest CH - - - - 5.32 5.32 10.59 10.31 - - - - SPORTON INTERNATIONAL INC. Page Number : A20 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 2 Lowest Channel / 1.4MHz / QPSK Lowest Channel / 1.4MHz / 16QAM Middle Channel / 1.4MHz / QPSK Middle Channel / 1.4MHz / 16QAM Highest Channel / 1.4MHz / QPSK Highest Channel / 1.4MHz / 16QAM SPORTON INTERNATIONAL INC. Page Number : A21 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 2 Lowest Channel / 3MHz / QPSK Lowest Channel / 3MHz / 16QAM Middle Channel / 3MHz / QPSK Middle Channel /3MHz / 16QAM Highest Channel /3MHz / QPSK Highest Channel /3MHz / 16QAM SPORTON INTERNATIONAL INC. Page Number : A22 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 2 Lowest Channel / 5MHz / QPSK Lowest Channel / 5MHz / 16QAM Middle Channel / 5MHz / QPSK Middle Channel / 5MHz / 16QAM Highest Channel / 5MHz / QPSK Highest Channel / 5MHz / 16QAM SPORTON INTERNATIONAL INC. Page Number : A23 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 2 Lowest Channel / 10MHz / QPSK Lowest Channel / 10MHz / 16QAM Middle Channel / 10MHz / QPSK Middle Channel / 10MHz / 16QAM Highest Channel / 10MHz / QPSK Highest Channel / 10MHz / 16QAM SPORTON INTERNATIONAL INC. Page Number : A24 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 2 Lowest Channel / 15MHz / QPSK Lowest Channel / 15MHz / 16QAM Middle Channel / 15MHz / QPSK Middle Channel / 15MHz / 16QAM Highest Channel / 15MHz / QPSK Highest Channel / 15MHz / 16QAM SPORTON INTERNATIONAL INC. Page Number : A25 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 2 Lowest Channel / 20MHz / QPSK Lowest Channel / 20MHz / 16QAM Middle Channel / 20MHz / QPSK Middle Channel / 20MHz / 16QAM Highest Channel / 20MHz / QPSK Highest Channel / 20MHz / 16QAM SPORTON INTERNATIONAL INC. Page Number : A26 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 4 Lowest Channel / 1.4MHz / QPSK Lowest Channel / 1.4MHz / 16QAM Middle Channel / 1.4MHz / QPSK Middle Channel / 1.4MHz / 16QAM Highest Channel / 1.4MHz / QPSK Highest Channel / 1.4MHz / 16QAM SPORTON INTERNATIONAL INC. Page Number : A27 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 4 Lowest Channel / 3MHz / QPSK Lowest Channel / 3MHz / 16QAM Middle Channel / 3MHz / QPSK Middle Channel /3MHz / 16QAM Highest Channel /3MHz / QPSK Highest Channel /3MHz / 16QAM SPORTON INTERNATIONAL INC. Page Number : A28 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 4 Lowest Channel / 5MHz / QPSK Lowest Channel / 5MHz / 16QAM Middle Channel / 5MHz / QPSK Middle Channel / 5MHz / 16QAM Highest Channel / 5MHz / QPSK Highest Channel / 5MHz / 16QAM SPORTON INTERNATIONAL INC. Page Number : A29 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 4 Lowest Channel / 10MHz / QPSK Lowest Channel / 10MHz / 16QAM Middle Channel / 10MHz / QPSK Middle Channel / 10MHz / 16QAM Highest Channel / 10MHz / QPSK Highest Channel / 10MHz / 16QAM SPORTON INTERNATIONAL INC. Page Number : A30 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG53…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : A57 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B Conducted Band Edge LTE Band 2 / 1.4MHz / QPSK Lowest Band Edge / 1RB Highest Band Edge / 1RB Lowest Band Edge / Full RB Highest Band Edge / Full RB SPORTON INTERNATIONAL INC. Page Number : A58 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 2 / 1.4MHz / 16QAM Lowest Band Edge / 1 RB Highest Band Edge / 1 RB Lowest Band Edge / Full RB Highest Band Edge / Full RB SPORTON INTERNATIONAL INC. Page Number : A59 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Report Report No. : FG531022B LTE Band 2 / 3MHz / QPSK Lowest Band Edge / 1RB Highest Band Edge / 1 RB Lowest Band Edge / Full RB Highest Band Edge / Full RB SPORTON INTERNATIONAL INC. Page Number : A60 of A130 TEL : 886-3-327-3456 Report Issued Date : Apr. 15, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2ADOH-ALPSUMDZ1EVB1 FCC RF Test Repor…

Text truncated - open the document above for the full version.
