2ADOZ-BT9926ANC Bluetooth headphones

ANC Headphone - Manual Product Specification : Bluetooth Version : V5.0 Bluetooth Range : 10meters Headphone Battery : 350mAh Standby Time : up to 200 hours Working Time : up to 6 hours Charging Time : Approx 2hours Input Voltage : 5V Microphone : Build-in Recgargable : USB cable Speaker Unit : 40mm Rated imput power : 20mW Max input power : 50mW Impedance : 32ohm Speaker Sensitivity : 123dB+/-3dB Frequency Response : 20Hz - 20KHz Noise reduction 24dB+/-2dB FUNCTION PICTURE Pairing Steps: Product Usage: 1. Press for 5 seconds to put into pairing mode (the indicator light will alternate between red and blue). 2. Go to your Bluetooth settings on your device and find the Bluetooth pairing name “ANC headphone ”. Pair your device, then it will be connected, when connected successfully, only blue light flash. Description of all parts : 1. ANC button 2. Volume up or Next song 3. Power on/off or Pause/Play or Calling/Answer 4. Volume down or Previous song 5. 3.5mm Aux Jack 6. LED light 7.USB charging port 8.MIC 1. Power on : Press and hold the for about 3 seconds, untill blue light flashes. 2. Power off : Press and hold for about 3 seconds, the indicator light will turn off . 3. Answer a call : when a call is coming in , Answer the call by pressing once. 4. Reject a call : Press and hold for about 2 seconds. 5. Redialing the last number : Double click button. 6. Volume”+” and next song : Press quickly for next song, the volume will be increased by pressing and holding for a long time. 7. Volume “-” and previous song : Press quickly for previous song, the volume will be decreased by pressing and holding for a long time . 8. Play / Pause music : when you listen to the music, you can play or pause the song by pressing button. 9. ANC mode: Push button to open / close the funtion. 10. Reconnected : when reopen the bluetooth mode , the headphone will reconnect to the nearest devices. 11. When insert the line in or USB cable , the headphone will power off rapidly , then switch to wired mode , and all bluetooth buttons are not workable. 12. Charging port with USB charging cable . The red light will show during charging, But turn off once the device is fully charged. Made in China (BT9926) 2 7 6 ANC 1 3 5 4 8 FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Hengxintai Electronics Co., Ltd. 2020.4.03 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR EUT NAME: ANC Bluetooth headphones Trademark: N/A FCC ID: 2ADOZ-BT9926 MODEL : BT9926, BT9935, BT9442, BT9438, BT9478, BT9429, BT9436,BT9410, BT9420, BT9930, BT9918, BT9441, BT9435, BT9472,BT9473, BT9373, BT9928, BT9924, BT9936, BT9937 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Ziyi Huang /Manager Contact information / address: Floor#4, Building#8, Xinghui lndustrial Zone, Yanchuan, Songgang Town, Shenzhen, China

Shenzhen Hengxintai Electronics Co., Ltd. 2020.4.03 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Ziyi Huang /Manager Contact information / address: Floor#4, Building#8, Xinghui lndustrial Zone, Yanchuan, Songgang Town, Shenzhen, China

Shenzhen Hengxintai Electronics Co., Ltd. Model Difference 2020-04-03 EUT NAME: ANC Bluetooth headphones Trademark: N/A FCC ID: 2ADOZ-BT9926 MODEL : BT9926, BT9935, BT9442, BT9438, BT9478, BT9429, BT9436,BT9410, BT9420, BT9930, BT9918, BT9441, BT9435, BT9472,BT9473, BT9373, BT9928, BT9924, BT9936, BT9937 All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Ziyi Huang /Manager Contact information / address: Floor#4, Building#8, Xinghui lndustrial Zone, Yanchuan, Songgang Town, Shenzhen, China

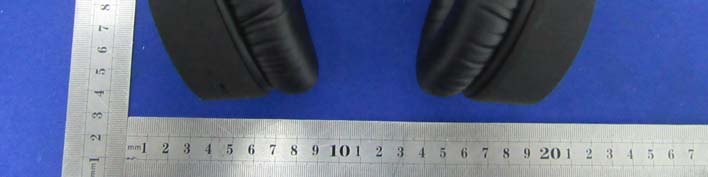

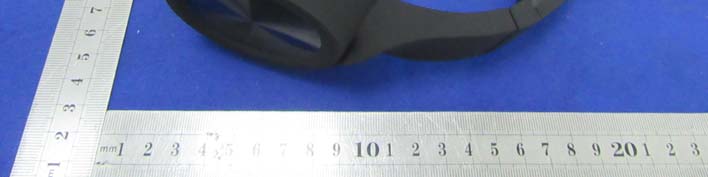

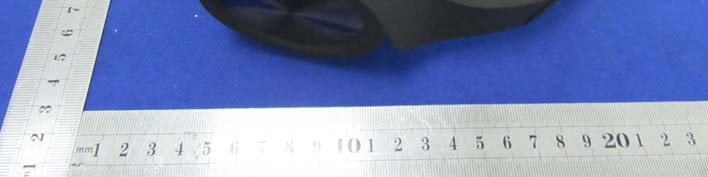

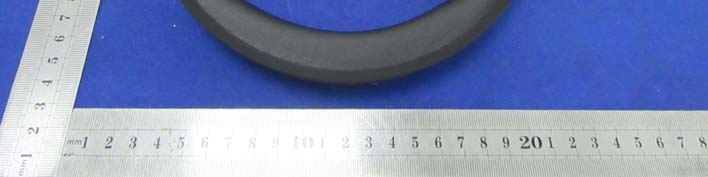

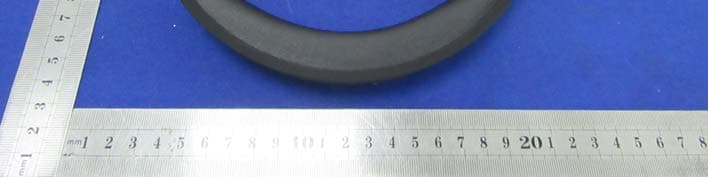

External Photos

40*20mm Label Location FCC ID: 2ADOZ-BT9926 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause und esired operation.

Internal Photos Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID: 2ADOZ-BT9926 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK2.480-2.790.53-2±1-1.000.79<50.250183.00YES Pi/4 DQPSK 2.441-2.610.55-2±1-1.000.79<50.248213.00YES Conclusion: For the max result : 0.25018W/Kg ≤ FCC Limit 3.0 for 1g SAR.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003001129E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 61 FCC Part 15C Test Report FCC ID: 2ADOZ-BT9926 Product Name: ANC Bluetooth headphones Trademark: N/A Model Name : BT9926 BT9935, BT9442, BT9438, BT9478, BT9429, BT9436,BT9410, BT9420, BT9930, BT9918, BT9441, BT9435, BT9472,BT9473, BT9373, BT9928, BT9924, BT9936, BT9937 Prepared For : Shenzhen Hengxintai Electronics Co., Ltd. Address : Floor#4, Building#8, Xinghui lndustrial Zone, Yanchuan, Songgang Town, Shenzhen, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Mar. 17, 2020 – Mar. 25, 2020 Date of Report : Mar. 25, 2020 Report No.: BCTC2003001129E Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003001129E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 61 TEST RESULT CERTIFICATION Applicant’s name ............. : Shenzhen Hengxintai Electronics Co., Ltd. Address .............................. : Floor#4, Building#8, Xinghui lndustrial Zone, Yanchuan, Songgang Town, Shenzhen, China Manufacture's Name ........ : Huizhou Haomuk Technology Co., Ltd Address .............................. : Haomuk Technology Park, GaoTou, Yuanzhou town, BoLuo, Huizhou, GuangDong, China Product description Product name..................... : ANC Bluetooth headphones Trademark ......................... : N/A Model and/or type reference BT9926 BT9935, BT9442, BT9438, BT9478, BT9429, BT9436,BT9410, BT9420, BT9930, BT9918, BT9441, BT9435, BT9472,BT9473, BT9373, BT9928, BT9924, BT9936, BT9937 Standards ......................... : FCC Part15.247 ANSI C63.10:2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Cai Fang Zhong Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003001129E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 61 Table of Contents Test Report Declaration Page 1. TEST SUMMARY ...................................................... 5 2. TEST FACILITY ....................................................... 6 3. MEASUREMENT UNCERTAINTY........................................ 6 4. GENERAL INFORMATION .............................................. 7 4.1 GENERAL DESCRIPTION OF EUT ...................................... 7 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 8 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................. 13 6.1 Block Diagram Of Test Setup ........................................... 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 Test Result ........................................................... 15 7. RADIATED EMISSIONS ............................................... 17 7.1 Block Diagram Of Test Setup ........................................... 17 7.2 Limit ................................................................. 18 7.3 Test procedure ........................................................ 18 7.4 Test Result ........................................................... 20 7.5 RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION ........................................................... 24 8. CONDUCTED EMISSION .............................................. 27 8.1 Block Diagram Of Test Setup ........................................... 27 8.2 Limit ................................................................. 27 8.3 Test procedure ........................................................ 27 8.4 Test Result ........................................................... 28 9. 20 DB BANDWIDTH .................................................. 34 9.1 Block Diagram Of Test Setup ........................................... 34 9.2 Limit ................................................................. 34 9.3 Test procedure ........................................................ 34 9.4 Test Result ........................................................... 35 10. MAXIMUM PEAK OUTPUT POWER .................................... 39 10.1 Block Diagram Of Test Setup .......................................... 39 10.2 Limit ................................................................ 39 10.3 Test procedure ....................................................... 39 10.4 Test Result .......................................................... 40 11. HOPPING CHANNEL SEPARATION .................................... 44 11.1 Block Diagram Of Test Setup .......................................... 44 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003001129E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 61 11.2 Limit ................................................................ 44 11.3 Test procedure ...................................…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Conducted Measurement Photos Shenzhen BCTC Testing Co., Ltd. Radiated Measurement Photos
