2ADPT-BT1CM2BLE CARD

Model:BT‐1‐X‐XX (X=0~9, A~Z or Blank) Onefill card operating instructions Introduction Onefill is a credit card issued by an issuing bank and supports all standard operations any other credit card performs. This is, users can utilize this card to perform transactions off‐line at any store or merchant utilizing the mag‐stripe or the EMV chip, it can also be used to extract money from a physical ATM or consult balances, etc. The unique functionality of the Onefill card centers in the possibility of connecting it with an application in the users mobile phone or tablet. With this in mind there are 2 basic functions that the user will need to understand for correct utilization of the Onefill card. These functions are: enrollment and card online purchases, which will be described in more detail in the next sections of this user manual. Enrollment The Issuing bank running the Onefill program will mail the Onefill card to the user along with a welcome letter that will contain an activation code. Once the user receives the Onefill card and downloads the Onefill application into his mobile phone, the user will need to press the on/off button in the card to turn it on. The card’s small LED in the back will blink once. Now is the time when the user needs to launch the application for the first time. The application will ask the user to tap the card. At this point the user will need to tap the card close to the phone. Once that operation is successful, the user will need to enter the activation code contained in the welcome letter received from the issuing bank. Model:BT‐1‐X‐XX (X=0~9, A~Z or Blank) The application will message the user via the app when the user has been fully enrolled to the Onefill Service. Online purchases Once the user is getting ready to checkout on an approved merchant site supported by the Onefill service, the application will prompt the user to tap the Onefill card close to the mobile device running the application. This will trigger the Onefill auto‐fill functions within the application. FCC ID: 2ADPT‐BT1CM2 FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

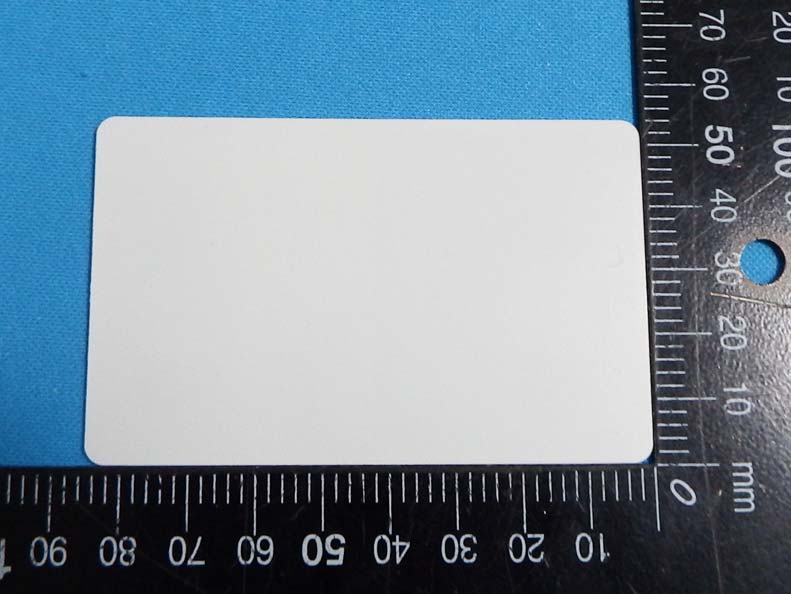

Report No. : EP4N2531 SPORTON International Inc. Page Number : B1 of B4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT

Report No. : EP4N2531 SPORTON International Inc. Page Number : B2 of B4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2531 SPORTON International Inc. Page Number : B3 of B4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4N2531 SPORTON International Inc. Page Number : B4 of B4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

RF Exposure Report Report No. : FA4N2531 SPORTON INTERNATIONAL INC. Page No. : 1 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 - - F/300 6 1,500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1,500 - - F/1500 30 1,500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FA4N2531 SPORTON INTERNATIONAL INC. Page No. : 2 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information 2400 MHz – 2483.5 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number RF Output Power (dBm) 2400-2483.5 LE-1Mbps 2402-2480 0-39 [40] -3.71 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 0.5 Condition RF Output Power (dBm) Modulation Mode RF Output Power (dBm) Gain (dBi) EIRP Power PD (S) (mW/cm²) LE-1Mbps -3.71 3.77 0.06 0.32274 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR4N2531 SPORTON INTERNATIONAL INC. Page No. : 1 of 36 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : BLE CARD Model No. : BT-1-X-XX (X=0-9,A-Z,or Blank) FCC ID : 2ADPT-BT1CM2 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant Manufacturer : : SmartDisplayer Technology Co., Ltd. No.2-1, Gongjian Rd., Qidu Dist., Keelung City 20647, Taiwan (R.O.C.) The product sample received on Nov. 26, 2014 and completely tested on Mar. 02, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC Test Report Report No. : FR4N2531 SPORTON INTERNATIONAL INC. Page No. : 2 of 36 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Transmitter Bandedge Emissions ........................................................................................................ 22 3.6 Transmitter Unwanted Emissions......................................................................................................... 25 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 36 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR4N2531 SPORTON INTERNATIONAL INC. Page No. : 3 of 36 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.152403 MHz 29.45 (Margin 26.42dB) - AV 52.50 (Margin 13.37dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth LE: 690.30kHz ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm] LE: -2.35 Power [dBm] LE:30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/100kHz] LE: -21.66 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(d) Transmitter Bandedge Emissions Restricted Bands [dBuV/m at 3m]: 2483.52MHz 60.64 (Margin 13.36dB) - PK 49.85 (Margin 4.15dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Transmitter Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 51.34MHz 35.77 (Margin 4.23dB) - QP Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR4N2531 SPORTON INTERNATIONAL INC. Page No. : 4 of 36 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR4N2531 Rev. 01 Initial issue of report Mar. 10, 2015 2500-2690 FCC Test Report Report No. : FR4N2531 SPORTON INTERNATIONAL INC. Page No. : 5 of 36 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Bluetooth Version Ch. Frequency (MHz) Channel Number RF Output Power (dBm) 2400-2483.5 v4.0 LE 2402-2480 0-39 [40] -2.35 Note 1: Bluetooth LE (Low Energy) using GFSK modulation for DTS digital modulation. Note 2: RF output power specifies that Maximum Peak Conducted Output Power. 1.1.2 Antenna Information Antenna Category Int…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR4N2531 SPORTON INTERNATIONAL INC. Page No. : A1 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR4N2531 SPORTON INTERNATIONAL INC. Page No. : A2 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR4N2531 SPORTON INTERNATIONAL INC. Page No. : A3 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR4N2531 SPORTON INTERNATIONAL INC. Page No. : A4 of A4 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
