2ADPULED-BBsmart music bulb

0
Bluetooth Music Bulb Make your lighting Green and Music 2 Introduction Think you for purchasing this LED-BB indoor LED light bulb Bluetooth speaker product. This product has been manufactured with the highest standards of safety and quality. Innovative 2 in 1 speaker and LED lighting combo, 5 watts stereo speaker and 7 watts high efficiency LED light bulb, you surly will enjoy using this speaker! Features Unique innovative design 2-in-1 wireless Bluetooth speaker and LED light bulb. Supports HSP,HFP,AVRCP Bluetooth wireless audio profile ,for use with phone ,iPod touch, pad and other Bluetooth enabled devices Bluetooth class 2,transmitting /receiving working distance up to 10m Support Bluetooth v 3.0+EDR,enhanced date transfer Pure digital technology ,DSP gives your music purity and clarity Full function remote control BQB approved and fully compatible with other Bluetooth enabled devices Bluetooth wireless technology Bluetooth is a standard of close range radio-communication technology that was drawn up by Ericsson, IBM, Intel, Nokia, and Toshiba. With Bluetooth technology, we can achieve the highest transmission rate among cell phones, computers, printers, PDAs and other devices. The max transmission rang of class II is 10 meters while the max transmission range of class I can reach up to 100 meters. FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. 4 Parts included in the box A. Smart music led bulb (x1)B. Remote control(x1)
Specifications Bluetooth versionV3.0+ EDR Bluetooth profileHSP, HFP, AVRCP Voltage Range90V~240V Power consume9W Lumens500 LED lightsWW/CW+RGB Frequency response80Hz - 20khz Operating Distance10 meters , class II Working temperature 0~50 Storage temperature -20~60 Dimensions
85MM x 138MM H Weight0.51 kg 5 NO.IconDescription 1 Turn on/off the machine 2 Mute 3 Turn on/off the LED light 4 Turn on/off the Color light 5 Turn on/off the Bluetooth model 6 EQ music model 7 Increase the LED lightness 8 Enter pairing mode 9 Skip to previous song / Long press to Lower the music volume 10 Play/pause when playing music 11 Skip to next song/ Long press to Increase the music volume 12
Turn the LED light on Radom shine 13
Decrease the LED lightness 14 Turn the LED light on Mixed color 15
Turn the LED light on Red 16
Turn the LED light on Green 17
Turn the LED light on Blue 6 Operation Instruction 1. Installing the LED-BB a) Make sure your wall light power switch is at off position before starting to install LED-BB. b) Check your connector type : LED-BB speaker is designed to fit into a standard E27 light socket connector c) With the light switch in OFF position, install LED-BB into the light socket and make sure it is snugly in place. d) Once the light bulb is installed securely, turn in the power switch and wait for few seconds for the bulb to light up. 2. Pairing LED-BB with Bluetooth devices A. Pairing with a Bluetooth cell phone Please make sure your cell phone is buletooth-enabled. Specific paring steps may vary with different cell phones. Please refer to the user manual of your cell phone for further information .the general pairing steps are as follows: a) Keep LED-BB and Bluetooth cell phone within 1 meter during paring. b) Switch on LED-BB, press the button to turn on the Bluetooth. It will search the last paired device for 1 minute, and then enters pairing mode automatically, you can hear beep sound after 1 minute, and the blue light flashes once per second when pairing. c) LED-BB will enter standby mode if there is no operation for 5 minutes after power on, Bluetooth LED indicator flashes blue light once per 5 seconds, please pressbutton for 3 seconds to enter the pairing mode again. d) Turn on your cell phones Bluetooth function to search for Bluetooth device .After the search completes, select LED-BB from the Bluetooth device list. e) After successful paring, select LED-BB from the Bluetooth device list and press connect. You will hear beep and blue light will flash once per 5 seconds. B. Paring with a Bluetooth stereo transmitter Different Bluetooth transmitters have different paring ways .please refer 7 to the user manual of your Bluetooth transmitter for further information. The general paring steps are as follows: a) Keep LED-BB and …

Text truncated - open the document above for the full version.

Creatlight Technology Co., Limited Block 3,Tongxing tech zone,Tongde road,Tongle,Longgang,Shenzhen,China Confidentiality Request Letter Page 1 of 1 Rev 2.0 December 1, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID: 2ADPULED-BB We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Philip Chen / Manager Contact information / address: Block 3,Tongxing tech zone,Tongde road, Tongle,Longgang,Shenzhen,China TEL: 0755-89822292 FAX: 0755-89822293 E-mail: [email protected]

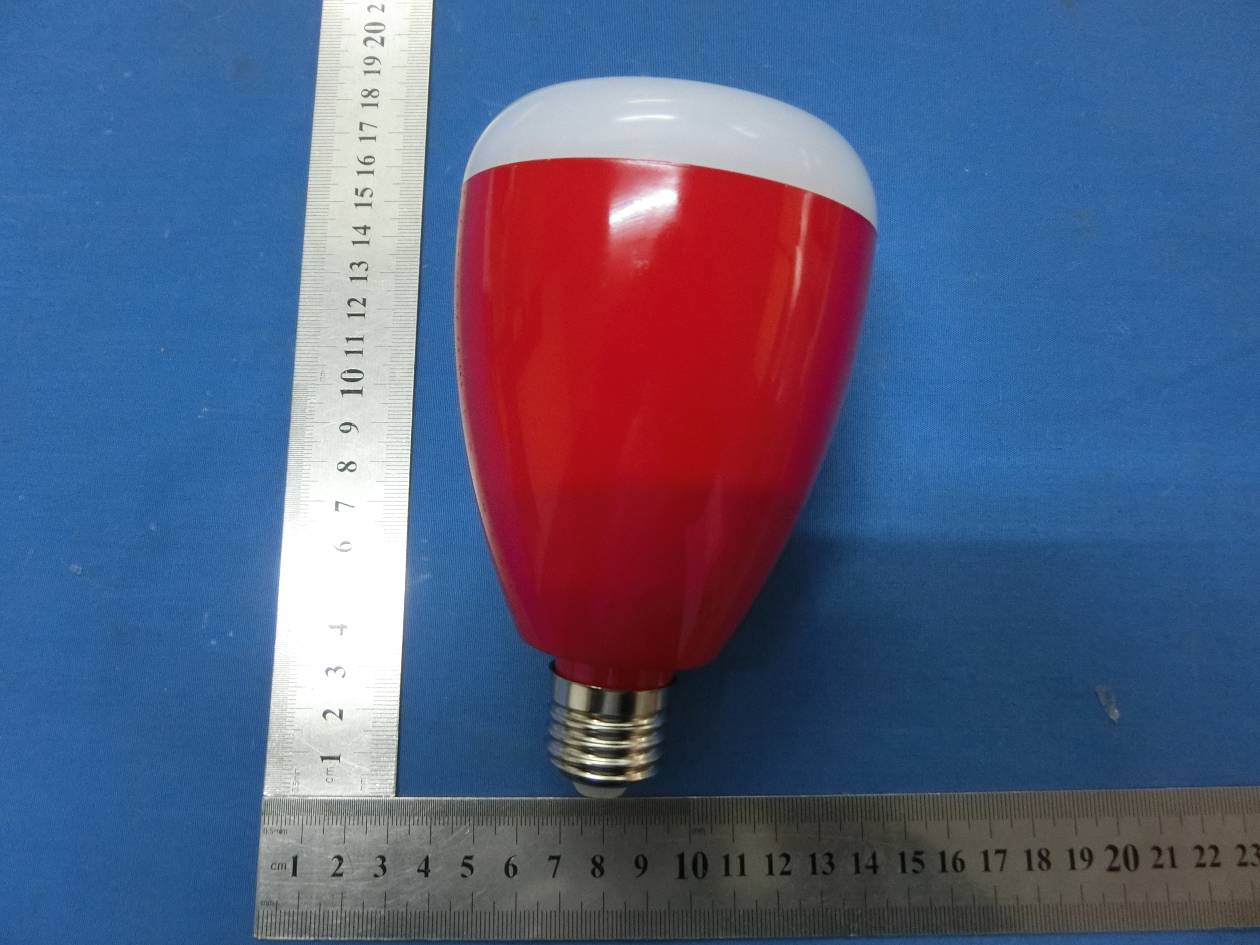

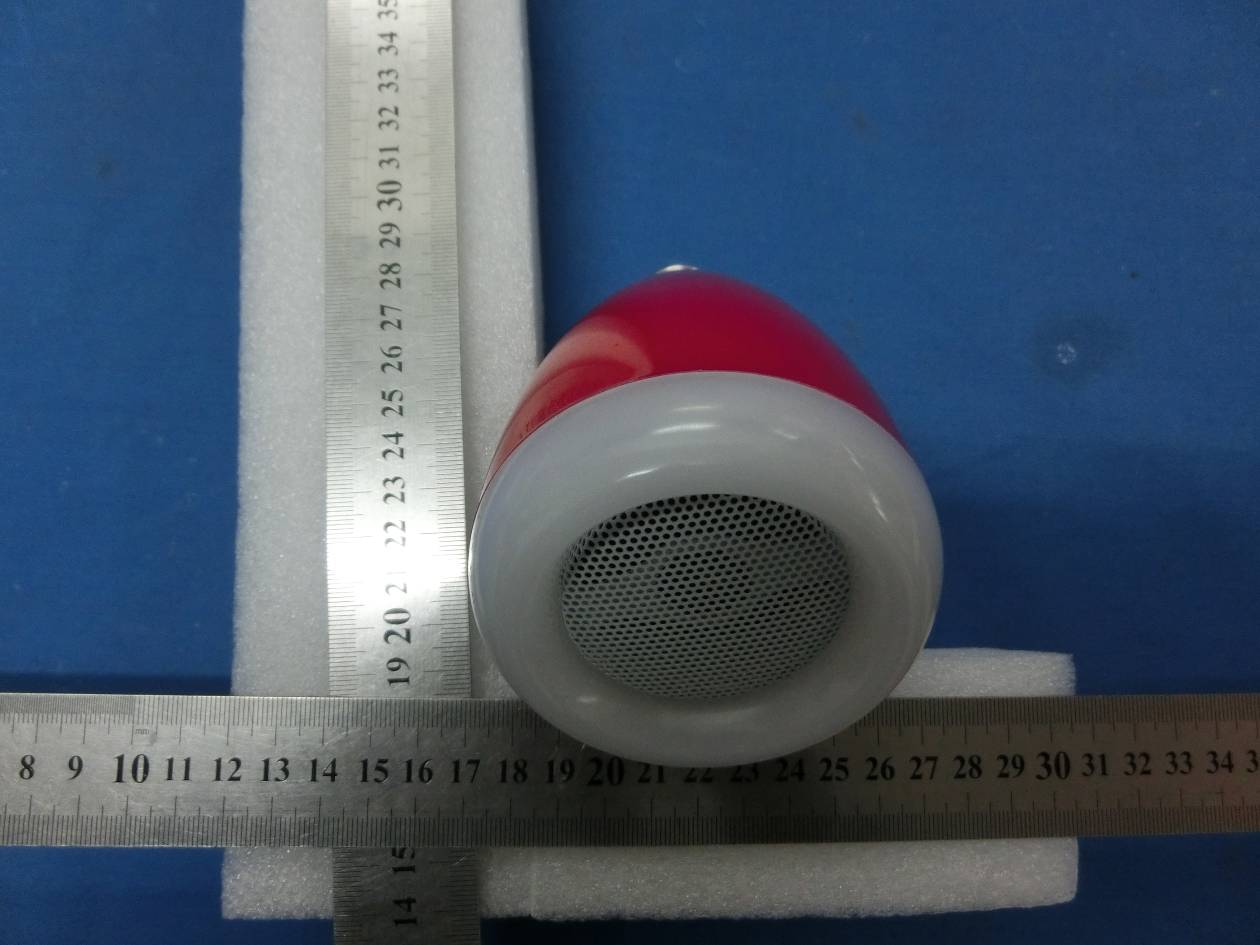

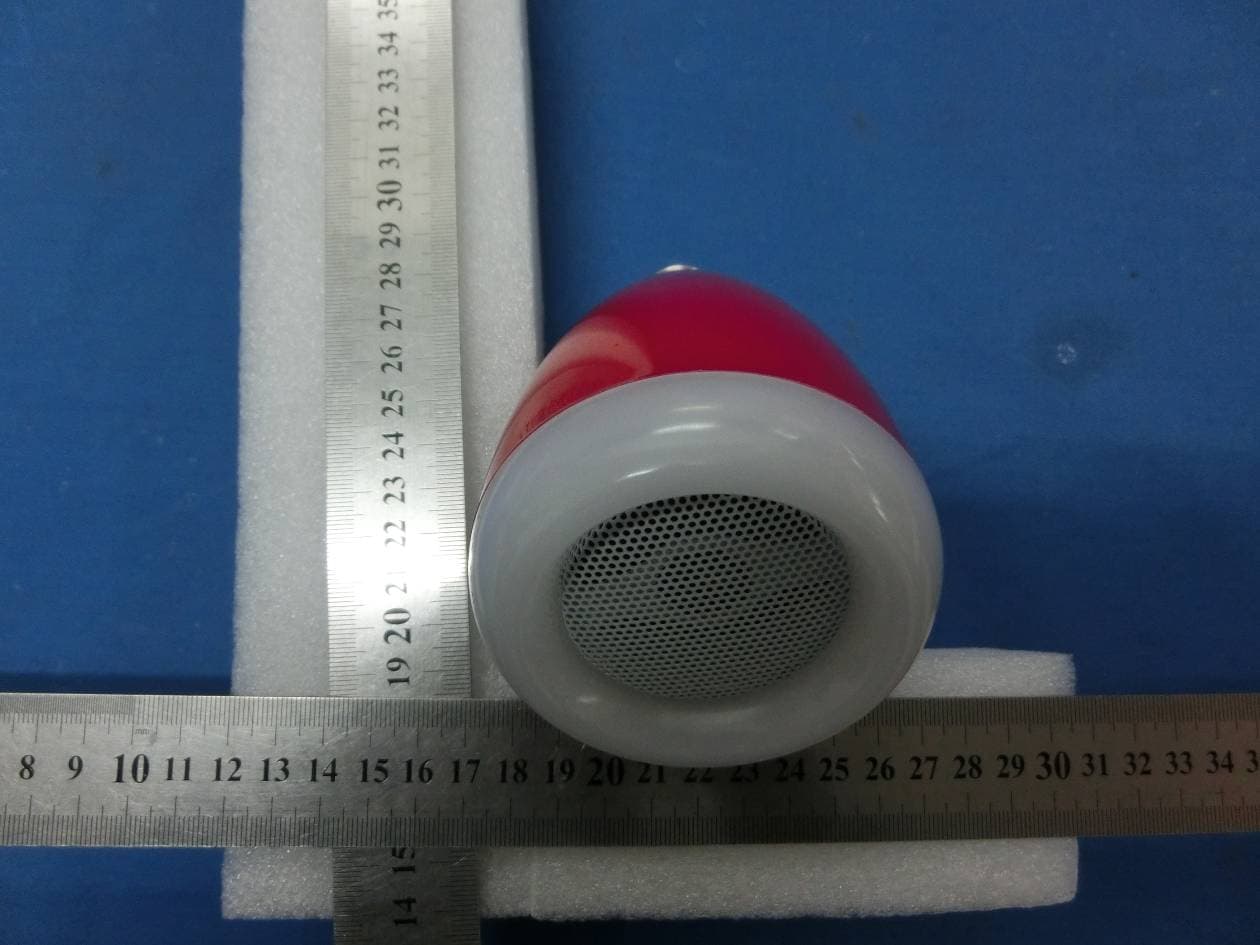

External Photo

FCC Certification Label FCC ID: 2ADPULED-BB Label Location on EUT EUT Bottom View/ FCC ID Label Location label size:high:1cm,Wide:2cm

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Creatlight Technology Co., Limited Block 3,Tongxing tech zone,Tongde road,Tongle,Longgang,Shenzhen,China FCC ID:2ADPULED-BB LED-BB This Report Concerns: Original Report Equipment Type: smart music bulb Test Engineer: Lisa Chen Report No.: BSL20141201-1 Receive EUT Date/Test Date: November 09,2014/ November 09-December 1,2014 Reviewed By: Mike moo Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID: 2ADPULED-BB Page 2/25 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................12 7.1. Test Equipment ...............................................................................................................12 7.2. Test Procedure ................................................................................................................12 7.3. Radiated Test Setup ........................................................................................................12 7.4. Radiated Emission Limit.................................................................................................14 7.5. Radiated Emission Test Result .......................................................................................15 8. BAND EDGE .............................................................................................................................20 8.1. Test Equipment ...............................................................................................................20 8.2. Test Procedure ................................................................................................................20 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................20 8.4. Band Edge Test Result ....................................................................................................21 9. 20-DB BANDWIDTH ...............................................................................................................22 9.1. Test Equipment ...............................................................................................................22 9.2. Test Procedure ................................................................................................................22 9.3. Limit................................................................................................................................22 9.4. Test Result /Plots ............................................................................................................22 FCC ID: 2ADPULED-BB Page 3/25 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate …

Text truncated - open the document above for the full version.

Conducted emissions test Radiated emissions test
