Hanma Company Limited HM-R01-RC Remote Controller Instruction This remote controller use EV1527 to control the 2 motors and 1 LED PCB of the searching light. There are 6 buttons as the picture below: 1. On/off button：press the button, the motor will be on standby,and other buttons are effective.Press the button one more time, the motor will be dormant,and other buttons are ineffective. 2. SOS international distress signal button：press the button，the light will flash as international distress signal. Press the button one more time, the light will stop flashing. 3. Button UP：press the button，the light will turn upward. Press the button and do not release, the light will turn upward and keep rotating around vertically. Release the button, the light will stop rotating and keep the direction as it is. SOS international distress signal button ON/OFF button UP DOWN LEFT RIGHT pilot light Hanma Company Limited 4. Button DOWN：press the button，the light will turn downward. Press the button and do not release, the light will turn downward and keep rotating around vertically .Release the button, the light will stop rotating and keep the direction as it is. 5.Button LEFT：press the button，the light will turn left. Press the button and do not release, the light will turn left and keep rotating around horizontally.Release the button, the light will stop rotating and keep the direction as it is. 6.Button RIGHT：press the button，the light will turn right. Press the button and do not release, the light will turn right and keep rotating around horizontally. Release the button, the light will stop rotating and keep the direction as it is. Remote Control Distance：30m Battery：1pc of battery with 23A 12V Coding：press the ON/OFF button for 3 seconds with power supply, it starts coding and all other memory will be eliminated. Battery Battery cover Battery box Hanma Company Limited FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

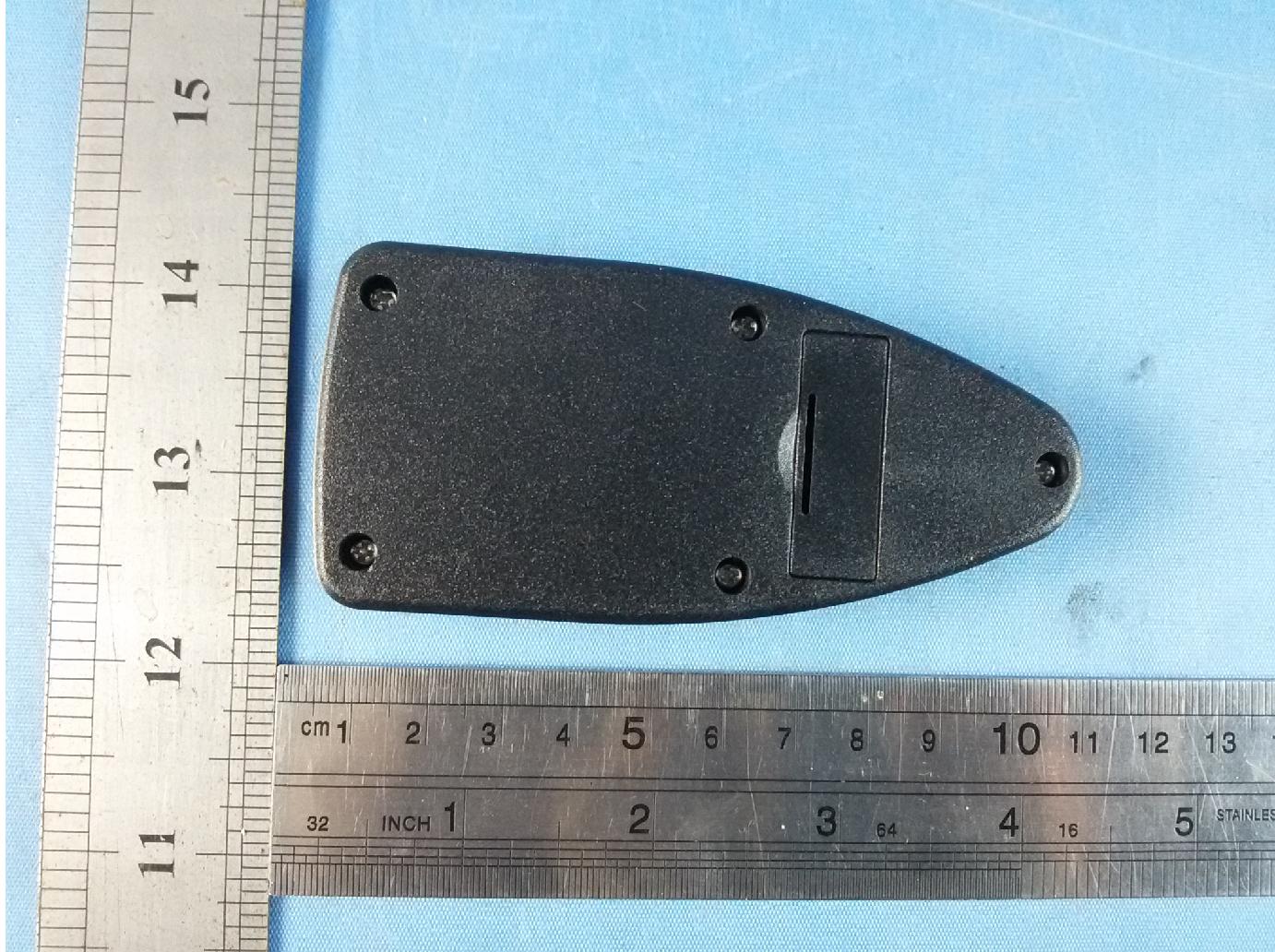

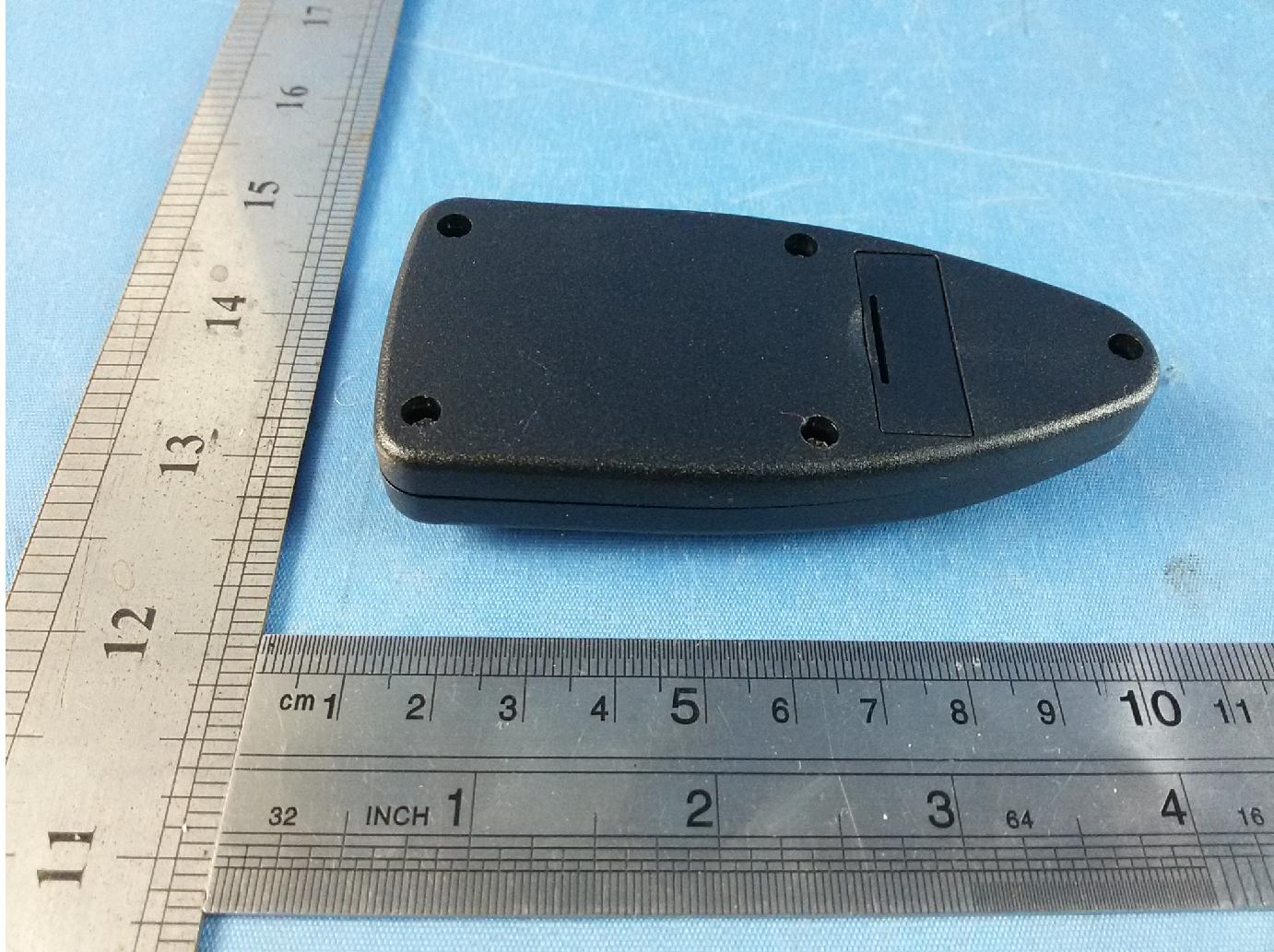

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5

FCC ID LABELING AND LOCATION FCC ID Label Remote Controller Model NO.: HM-R01-RC Input Rating: DC 12V FCC ID: 2ADPW-HM-R01RC Hanma Company Limited Made in China FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Photo 6 Photo 7 Photo 8 ANT

FCC RADIO TEST REPORT FCC ID: 2ADPW-HM-R01RC Product : Remote Controller Trade Name : N/A Model No : HM-R01-RC Serial Model : N/A Applicant’s name : Hanma Company Limited Address : No.8 Jianye Middle Road,Taihe Town, Baiyun District, Guangzhou, China Prepared By : Nowd Testing Services Co.,Ltd. No. 606, FuerYuanjian Business Centre, 25 Zone, Bao'an District, Shenzhen, Guandong Tel : (86) 755-27830065 Fax : (86) 755-27830095 Report No. : NTS141205017R Date of Test : Dec.05, 2014 Date of Rep. : Dec.19, 2014 Page 2 of 27 Report No.: NTS141205017R TEST REPORT DECLARATION This device described above has been tested by Nowd Testing Services Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Nowd Testing Services Co., Ltd., this document may be altered or revised by ShenZhen Nowd Testing Services Co., Ltd., personal only, and shall be noted in the revision of the document. Date of Test: Dec. 19, 2014 Prepared by: Jack Wu Testing Engineer Reviewed by: Andy Xie Technical Manager Approved by: somnus Authorized Signatory Applicant : Hanma Company Limited Address : No.8 Jianye Middle Road,Taihe Town, Baiyun District, Guangzhou, China Manufacturer : Hanma Company Limited Address : No.8 Jianye Middle Road,Taihe Town, Baiyun District, Guangzhou, China EUT Description : Remote Controller Trademark : N/A Model No. : HM-R01-RC Serial Model : N/A Power Supply : DC 12.0V Standards : FCC Part15.231 Test procedure : ANSI C63.4-2009 Page 3 of 27 Report No.: NTS141205017R Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 13 3.1.3 DEVIATION FROM TEST STANDARD 13 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 14 3.2 RADIATED EMISSION MEASUREMENT 15 3.2.1 RADIATED EMISSION LIMITS 15 3.2.2 TEST PROCEDURE 16 3.2.3 DEVIATION FROM TEST STANDARD 16 3.2.4 TEST SETUP 17 3.2.5 EUT OPERATING CONDITIONS 18 3.2.6 TEST RESULTS (BELOW 30 MHZ) 19 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 20 4 . BANDWIDTH TEST 23 4.1 TEST PROCEDURE 23 4.2 DEVIATION FROM STANDARD 23 4.3 TEST SETUP 23 4.4 TEST RESULTS 24 5 . TRANSMITTER TIMEOUT 25 5.1 REQUIREMENTS 25 6 . ANTENNA REQUIREMENT 26 6.1 STANDARD REQUIREMENT 26 6.2 EUT ANTENNA 26 Page 4 of 27 Report No.: NTS141205017R Table of Contents Page 7 . EUT TEST PHOTO 27 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 27 Report No.: NTS141205017R 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 27 Report No.: NTS141205017R 1.1 TEST FACILITY Nowd Testing Services Co.,Ltd. Add. : No. 606, FuerYuanjian Business Centre, 25 Zone, Bao'an District, Shenzhen, Guandong FCC Registration No.:230614; 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 27 Report No.: NTS141205017R 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Remote Controller Trade Name N/A Model Name HM-R01-RC Serial Model N/A Model Difference N/A Product Description The EUT is a Remote Controller Product Type Remote Control Operation Frequency: 433.92MHz Modulation Type: ASK Number Of Channel 1CH. Antenna Designation: Built-in antenna Antenna Gain(Peak) 0.5dBi Output Power: 76.83 dBuV/m Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an Short-range wireless transmission Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Adapter / Battery Rated Voltage: 12.0V Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A Integration antenna N/A 0.5 Antenna Page 8 of 27 Report No.: NTS141205017R 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description Mode 4 TX For Radiated Emission Final Test Mode Description Mode 1 TX Note: (1) The EUT use new battery. (2) The EUT work in TX mode, Long press the SOS button keep for emission (3) this EUT is a portable device, it will have three XYZ directions, which test results are the test results in the X direction. Page 9 of 27 Report No.: NTS141205017R 2.3 BLOCK DIGRAM SHOWING THE C…
