2ADQL-ISA004Vehicle GPS tracker and alarm system

M2M EVOLUTION LIMITED Rooms 05-15, 13A/F, South Tower, World Finance Centre, Harbour City, 17 Canton Road, Tsim Sha Tsui, Hong Kong DATE 12-03-2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADQL-ISA004 Product Name: Vehicle GPS tracker and alarm system Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description • BOM • Tune up Procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 12-03-2014 By: ALI ABDELHADY ALI Signature Printed Title: Manager On behalf of : M2M EVOLUTION LIMITED Telephone: +201001500899

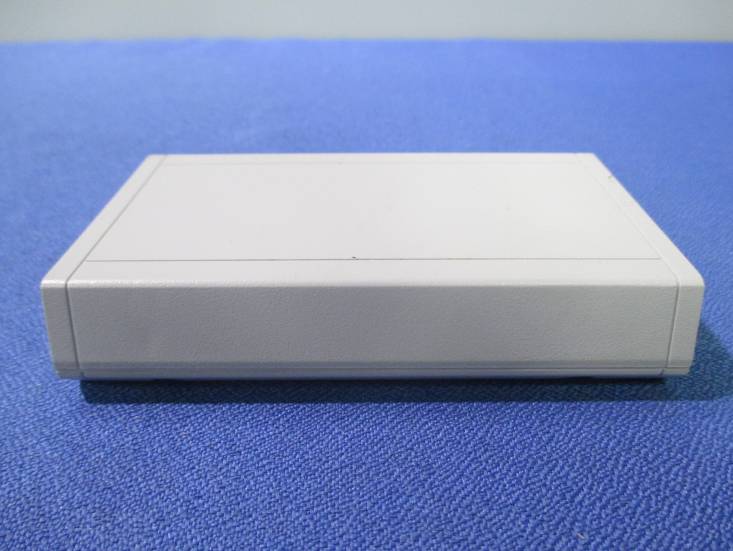

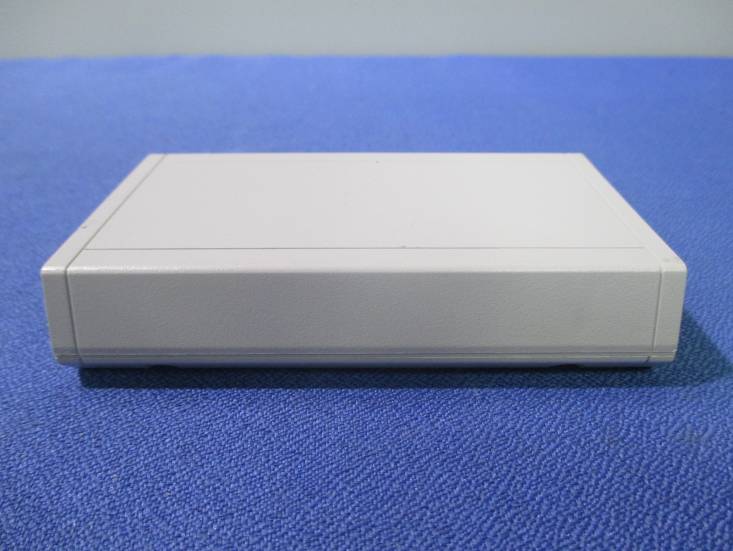

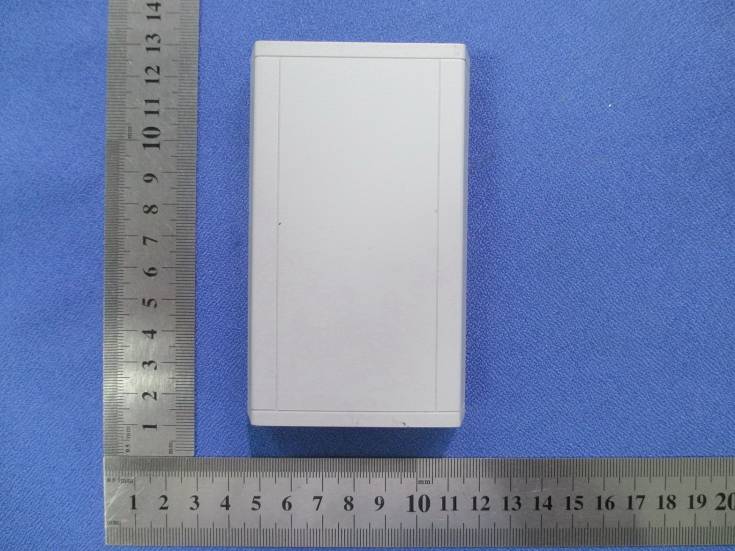

External photos of the EUT

FCC ID Label Information 1. Label location: 2. FCC ID Label: Vehicle GPS tracker and alarm system Model: ISA004 FCC ID: 2ADQL-ISA004

Internal photos of the EUT

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to isotropic R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:33.52(dBm) Maximum peak output power at antenna input terminal:2249.1(mW) Antenna gain(typical):2.15(dBi) Maximum antenna gain:1.641(numeric) Prediction distance:25(cm) Sourse Based Time Average Duty Cycle:100(%) Prediction frequency:824(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.549(mW/cm^2) Power density at prediction frequency:0.46980(mW/cm^2) Power density at prediction frequency:4.6980(W/m^2) Margin of Compliance:0.68(dB) 2 4R PG S p =

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to isotropic R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:30.56(dBm) Maximum peak output power at antenna input terminal:1137.6(mW) Antenna gain(typical):0(dBi) Maximum antenna gain:1.000(numeric) Prediction distance:25(cm) Sourse Based Time Average Duty Cycle:100(%) Prediction frequency:1850(MHz) MPE limit for uncontrolled exposure at prediction frequency:1.000(mW/cm^2) Power density at prediction frequency:0.14485(mW/cm^2) Power density at prediction frequency:1.4485(W/m^2) Margin of Compliance:8.39(dB) 2 4R PG S p =

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 TEST REPORT FCC Part 22 Subpart H / Part 24 Subpart E Report Reference No......................: CTL1410242576-WF Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Dec. 03, 2014 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name............................: M2M EVOLUTION LIMITED Address.............................................: Rooms 05-15, 13A/F, South Tower, World Finance Centre, Harbour City, 17 Canton Road, Tsim Sha Tsui, Hong Kong Test specification: Standard ...........................................: FCC CFR Title 47 Part 2, Part 22H and Part 24E EIA/TIA 603-C: 2004 Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.................... : Vehicle GPS tracker and alarm system FCC ID.......................................: 2ADQL-ISA004 Trade Mark .......................................: M2M Tracking Model/Type reference.......................: ISA004 GSM Transmit ...........................................: 850: 824.2- 848.8MHz, 1900: 1850.2-1909.8MHz Receive ............................................: 850: 869~894MHz, 1900: 1930~1990MHz Release Version .............................: R99 Type of modulation ...........................: GMSK for GSM/GPRS GPRS Type ......................................: Class B GPRS Class ...................................: Class 12 Antenna Gain ...................................: -1.0 dBi for GSM850 , -1.5 dBi for PCS1900 Antenna type ....................................: PCB Antenna Result................................................: Positive V1.0 Page 2 of 43 Report No.: CTL1410242576-WF T E S T R E P O R T Test Report No. : CTL1410242576-WF Dec. 03, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Vehicle GPS tracker and alarm system Model /Type : ISA004 Applicant : M2M EVOLUTION LIMITED Address : Rooms 05-15, 13A/F, South Tower, World Finance Centre, Harbour City, 17 Canton Road, Tsim Sha Tsui, Hong Kong Manufacturer : M2M EVOLUTION LIMITED Address : Rooms 05-15, 13A/F, South Tower, World Finance Centre, Harbour City, 17 Canton Road, Tsim Sha Tsui, Hong Kong Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 43 Report No.: CTL1410242576-WF Contents 1 . TEST STANDARDS.......................................................................4 2 . SUMMARY...................................................................................5 2.1. General Remarks .........................................................................................................................................5 2.2. Equipment Under Test ................................................................................................................................5 2.3. Short description of the Equipment under Test (EUT) ............................................................................5 2.4. EUT operation mode ...................................................................................................................................5 2.5. EUT configuration .......................................................................................................................................6 2.6. Related Submittal(s) / Grant (s)..................................................................................................................6 2.7. Modifications ...............................................................................................................................................6 3 . TEST ENVIRONMENT ....................................................................7 3.1. Address of the test laboratory ...................................................................................................................7 3.2. Test Facility ..................................................................................................................................................7 3.3. Environmental conditions ..........................................................................................................................7 3.4. Configuration of Tested System ................................................................................................................7 3.5. EUT Exercise Software ...............................................................................................................................8 3.6. Statement of the measurement uncertainty .............................................................................................8 3.7. Equipments Used during the Test .............................................................................................................9 3.8. Summary of Test Result ...............................................…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
