www.tuv.com Test Report No.: 14037544 001 Appendix 5 page 8 of 17 1.5 User Manual www.tuv.com Test Report No.: 14037544 001 Appendix 5 page 9 of 17 www.tuv.com Test Report No.: 14037544 001 Appendix 5 page 10 of 17 www.tuv.com Test Report No.: 14037544 001 Appendix 5 page 11 of 17 www.tuv.com Test Report No.: 14037544 001 Appendix 5 page 12 of 17 www.tuv.com Test Report No.: 14037544 001 Appendix 5 page 13 of 17 www.tuv.com Test Report No.: 14037544 001 Appendix 5 page 14 of 17 www.tuv.com Test Report No.: 14037544 001 Appendix 5 page 15 of 17 www.tuv.com Test Report No.: 14037544 001 Appendix 5 page 16 of 17 www.tuv.com Test Report No.: 14037544 001 Appendix 5 page 17 of 17

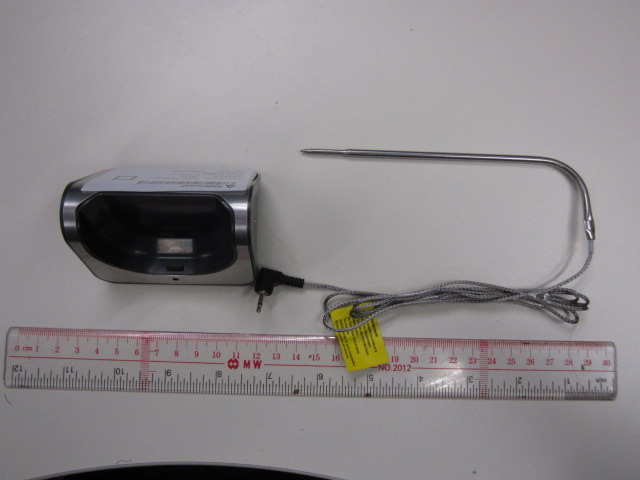

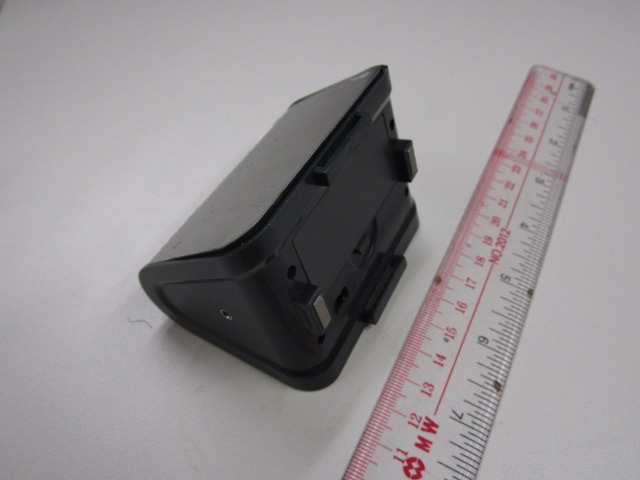

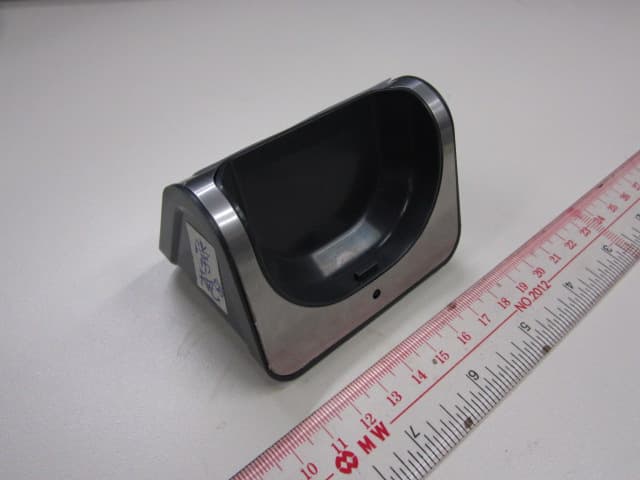

www.tuv.com Test Report No.: 14037544 001 Appendix 3 page 2 of 3 External View External View www.tuv.com Test Report No.: 14037544 001 Appendix 3 page 3 of 3 External View External View
www.tuv.com Test Report No.: 14037544 001 Appendix 5 page 2 of 17 1.1 FCCID Label Artwork
www.tuv.com Test Report No.: 14037544 001 Appendix 4 page 2 of 3 Internal View Internal View www.tuv.com Test Report No.: 14037544 001 Appendix 4 page 3 of 3 Internal View
www.tuv.com Test Report No.: 14037544 001 Date: 27.01.2015 page 2 of 11 Table of Content Page Cover Page ...................................................................................1 Table of Content ............................................................................2 Test Summary ................................................................................................................ 4 Product information....................................................................................................... 5 1. Manufacturers declarations .......................................................................................................... 5 2. Product function and intended use .............................................................................................. 5 3. Submitted documents.................................................................................................................... 5 4. Independent Operation Modes ..................................................................................................... 5 5. Related Submittal(s) Grants .......................................................................................................... 5 6. Remark ............................................................................................................................................ 5 Test Set-up and Operation Mode .................................................................................. 6 7. Principle of Configuration Selection ............................................................................................ 6 8. Test Operation and Test Software ................................................................................................ 6 9. Special Accessories and Auxiliary Equipment ............................................................................ 6 10. Countermeasures to achieve EMC Compliance .......................................................................... 6 Test Methodology .......................................................................................................... 7 11. Radiated Emission ......................................................................................................................... 7 12. Field Strength Calculation ............................................................................................................. 7 List of Test and Measurement Instruments ................................................................. 8 Results FCC Part 15 โ Subpart C ................................................................................. 9 Subclause 15.203 โ Antenna Information ....................................................................... Pass ................. 9 Subclause 15.207 โ Conducted Emission on AC Mains .................................................. N/A ................. 9 Subclause 15.231 (c) โ 20 dB Bandwidth ........................................................................ Pass ................. 9 Subclause 15.231 (e) โ Radiated Emission (Fundamental and Harmonics) ................ Pass ............... 10 Subclause 15.205 โ Spurious Radiated Emissions ....................................................... Pass ............... 11 Subclause 15.231 (e) โ Transmission Timing Requirement ......................................... Pass ............... 11 Appendix 1 โ Test Results 6 pages Appendix 2 โ Test Setup Photos 3 pages Appendix 3 โ EUT External Photos 3 pages Appendix 4 โ EUT Internal Photos 3 pages www.tuv.com Test Report No.: 14037544 001 Date: 27.01.2015 page 3 of 11 Appendix 5 โ Label, Operational Description, Block, Schematics and User Manual 17 pages Appendix 6 โ RF Exposure Information........................................................................... 2 pages www.tuv.com Test Report No.: 14037544 001 Date: 27.01.2015 page 4 of 11 Test Summary Conducted Emissions Result: N/A 20dB bandwidth Result: Pass Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Transmission duration and silent period Result: Pass www.tuv.com Test Report No.: 14037544 001 Date: 27.01.2015 page 5 of 11 Product information 1. Manufacturers declarations Transmitter Operating frequency range 433.92 MHz Type of modulation ASK Number of channels 1 Type of antenna Integral PCB Antenna Power level fix Connection to public utility power line No Nominal voltage V nor : 3.0Vdc (2 x 1.5V โAAAโ battery) 2. Product function and intended use The equipment under test (EUT) is a transmitter operating at 433.92MHz. And it is powered by 3.0Vdc (2 x 1.5V โAAAโ battery). FCC ID: 2ADQUFB6200 Models Product description FB6200-S BBQ thermometer 3. Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label 4. Independent Operation Modes The basic operation modes are: - Transmitting Bluetooth signal . For further information refer to User Manual 5. Related Submittal(s) Grants This is a single application for certification of the transmitter. 6. Remark - None. www.tuv.com Test Report No.: 14037544 001 Date: 27.01.2015 page 6 of 11 Test Set-up and Operation Mode 7. Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. 8. Test Operation and Test Software Test operation should refer to test methodology. - No testing software is provided by the applicant. 9. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none 10. Countermeasures to achieve EMC Compliance - none www.tuv.com Test Report No.: 14037544 001 Date: 27.01.2015 page 7 of 11 Test Methodology 11. Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2003. The equipment under test (EUT) was placed at tโฆ
Text truncated - open the document above for the full version.
www.tuv.com Test Report No.: 14037544 001 Appendix 1 page 1 of 6 Appendix 1 Test Results www.tuv.com Test Report No.: 14037544 001 Appendix 1 page 2 of 6 20dB Bandwidth Tx frequency: 433.92 MHz A 620 kHz 1 PK 620 kHz MAXH 620 kHz RBW 100 kHz 620 kHzVBW 300 kHz 620 kHz SWT 2.5 ms 620 kHz 620 kHz 620 kHz 620 kHz 620 kHz 620 kHz 620 kHz 620 kHz 620 kHz 620 kHz Att 0 dB 620 kHz * 620 kHz Ref -30 dBm 620 kHz Center 433.88 MHz 620 kHz Span 2 MHz 620 kHz 200 kHz/ 620 kHz -130 -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 620 kHz 1 Marker 1 [T1 ] -78.47 dB m 433.592000000 MHz 1 Delta 1 [T1 ] 0.90 dB 620.000000000 kHz DELTA MARKER 1 620 kHz Date: 13.AUG.2014 15:53:55 www.tuv.com Test Report No.: 14037544 001 Appendix 1 page 3 of 6 Radiated Emission Tx frequency: 433.92 MHz www.tuv.com Test Report No.: 14037544 001 Appendix 1 page 4 of 6 Radiated Emission Tx frequency: 433.92 MHz www.tuv.com Test Report No.: 14037544 001 Appendix 1 page 5 of 6 Radiated Emission Tx frequency: 433.92 MHz www.tuv.com Test Report No.: 14037544 001 Appendix 1 page 6 of 6 Transmission Timing Ref -20 dBm 12.88 s Att 10 dB 12.88 s A 12.88 s RBW 1 MHz 12.88 sVBW 3 MHz 12.88 s MAXH 12.88 s TRG 12.88 s Center 433.88 MHz 12.88 s 2 s/ 12.88 s SWT 20 s 12.88 s 1 PK 12.88 s 12.88 s 12.88 s 12.88 s 12.88 s 12.88 s 12.88 s 12.88 s 12.88 s 12.88 s SGL 12.88 s -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 12.88 s 1 Marker 1 [T1 ] -52.13 dBm 0.000000 s 1 Delta 1 [T1 ] 1.20 dB 12.880000 s TRG -56.4 dBm DELTA MARKER 1 12.88 s Date: 9.JAN.2015 15:13:13 Ref -20 dBm 161 ms Att 10 dB 161 ms A 161 ms RBW 1 MHz 161 msVBW 3 MHz 161 ms MAXH 161 ms TRG 161 ms 161 ms 161 ms 161 ms 161 ms 161 ms 161 ms 161 ms 161 ms 161 ms SGL 161 ms Center 433.88 MHz 161 ms 50 ms/ 161 ms SWT 500 ms 161 ms 1 PK 161 ms -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 161 ms 1 Marker 1 [T1 ] -55.73 dBm 161.000000 ms TRG -62.4 dBm MARKER 1 161 ms Date: 9.JAN.2015 15:16:54
www.tuv.com Test Report No.: 14037544 001 Appendix 6 page 1 of 2 Appendix 6 RF Exposure Information www.tuv.com Test Report No.: 14037544 001 Appendix 6 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power(mW) 433.92 -52.4 0.0000058 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances โค50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ยท [ โf(GHz)] โค3.0 for 1-g SAR and โค7.5 for 10-g extremity SAR,24 where โข f(GHz) is the RF channel transmit frequency in GHz โข Power and distance are rounded to the nearest mW and mm before calculation25 โข The result is rounded to one decimal place for comparison โข 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.0000058/5)* โ 0.43392 = 7.64e-07 <3.0 Conclusion: No SAR is required.
www.tuv.com Test Report No.: 14037544 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14037544 001 Appendix 2 page 3 of 3 Setup for radiated emission
8 - 10/F., Goldin Financial Global Square ยท Kowloon ยท Hong Kong
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231(e) | 433.92 MHz - 433.92 MHz | - |
