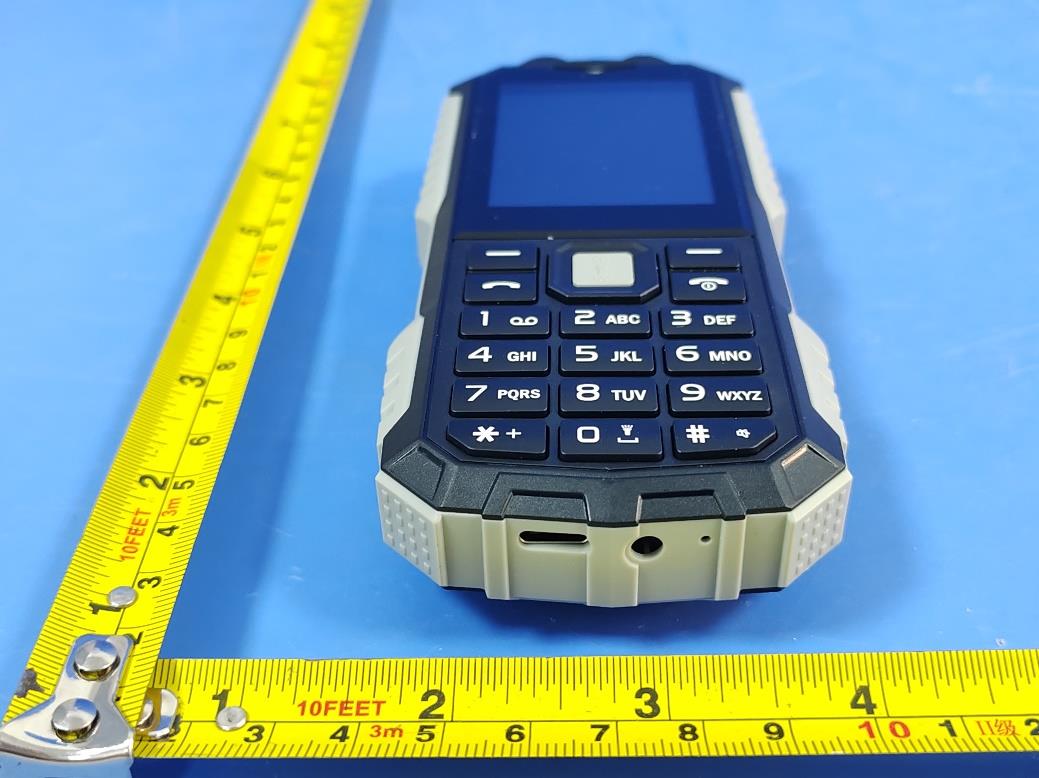

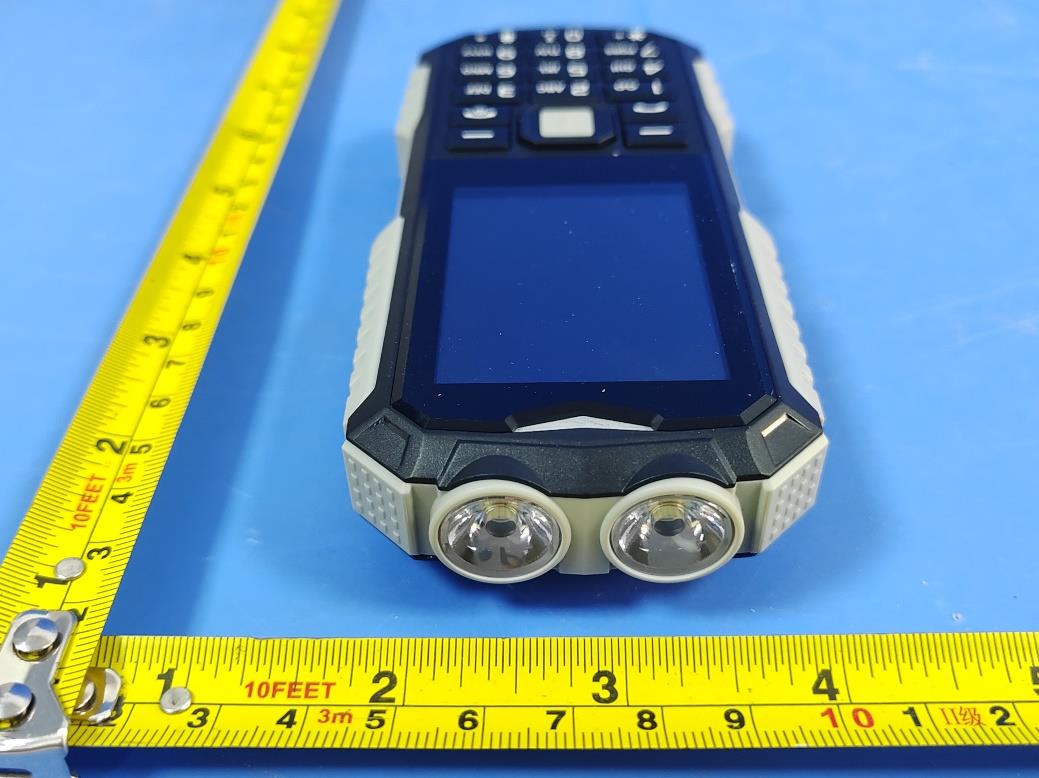

2ADR3UBF1RMobile Phone

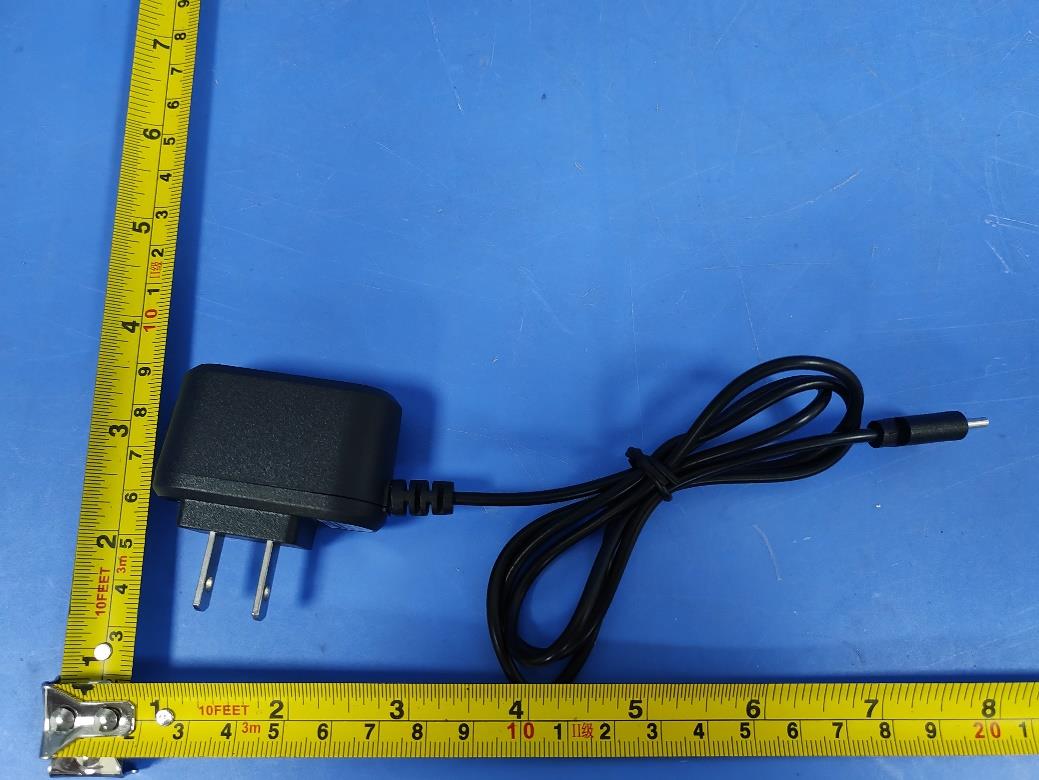

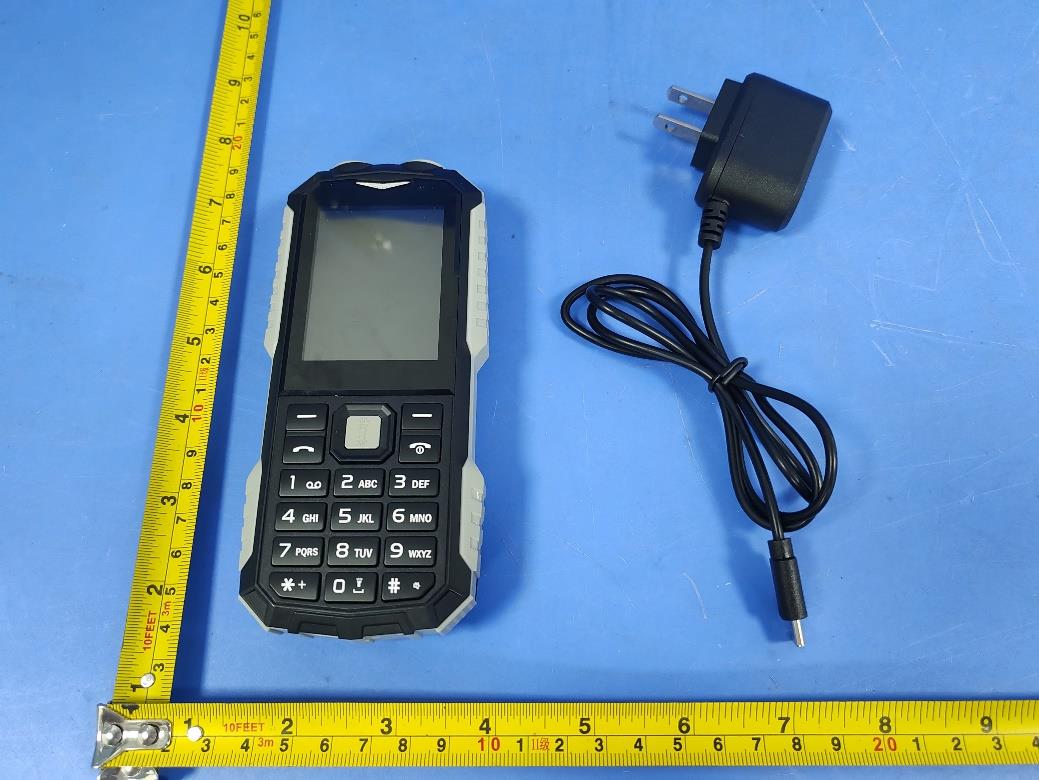

website website GUÍA RÁPIDA DE INICIO F1R Contenido Dentro de la caja...............................................3 Encendiendo y/o restaurando el telefono ........4 Componentes...................................................5 Instalando tus tarjetas SIM y MicroSD .............6 Cargando la Batería..........................................7 Para la información del producto .....................8 Información de seguridad y regulatoria............9 Declaración de Interferencia de la Comisión Fede ral de Comunicaciones .......................................13 Gracias por elegir Bolt F1R teléfono básico. Lea esta guía de inicio rápida para iniciar. Dentro de la caja * Los accesorios incluidos pueden variar según la región. 1.Bolt F1R Pequeño teléfono básico 2.Guía rápida de inicio 3.Batería removable F1R 4.Adaptador de Corriente con cable 123 Batería removible Cargador con cable 4 •Para encender su teléfono, presione y sostenga el botón de encendido por al menos 5 segundos hasta que la pantalla se encienda. •Cuando tu teléfono encienda por primera vez, siga las instrucciones en la pantalla para configurarlo. •Para restaurar el teléfono, mantenga presionado el Botón de encendido y toque Reiniciar. Encendiendo y/o restaurando el teléfono 1. Botón de marcación 2. Botón de bloquear/des- bloquear 3. Receptor 4. Linterna LED 5. 3.5mm orificio de auriculares 6. Butón OK 7. Butón regresar 8. Botón de encendido 9. Camera trasera 10. Orificio de Altavóz 11. Posición de la tapa de la Batería abierta 12. Puerto de cargador USB 13. Microfono Componentes Siga las ilustraciones arriba para insertar las dos tarjetas Nano SIM y una Micro tarjeta SD. No se debé quitar la bandeja. Instalando tu tarjeta SIM y microSD 1. Conecta el cargador a un tomacorriente CA. 2. Conecta el cargador a tu teléfono básico Bolt F1R. Cuando la carga esta completa, desconecta el cargador de tu pequeño teléfono básico Bolt F1R. Desconecta el cargador del teléfono y después desconecta el cargador del tomacorriente AC. Si la batería esta totalmente agotada, es posible que tu necesites esperar 5 minutos para que el indicador de carga se muestre en la pantalla. Consejo: el cable USB puede usarse cuando un tomacorriente AC no esté disponible. Los datos se pueden transferir mientras el teléfono se está cargando. La eficiencia de los suministros de energía de carga USB varía ampliamente, y puede tardar más en comenzar la carga y en que el dispositivo empiece a funcionar. Cargando la Batería Para la información del producto Sonido Ve a Configuración y presionar Sonido para ver y controlar el volumen y sonido, también activar/desacti- var el modo vibrar. Almacenamiento Ve a Ajustes y presione Almacenaje para ver el almacenamiento interno. Batería Ve a Ajustes y presionar Batería para verificar el porcentaje de la batería, configuración inteligente en espera y ahorro de batería. Programar encendido/apagado Ve a Ajustes y presiona Programar encendido&apa- gado para establecer horario de programación de encendido y apagado. Pantalla Ve a Ajustes y presiona Pantalla para ajustar el Brillo de la pantalla, fondo de pantalla, horario de dormir, Luz de teclado, fuente y tamaño de pantalla. Sistema Ve a Ajustes y presionar Sistema para ver lenguajes y ingresar, fecha, tiempo y reiniciar opciones. Información de seguridad y regulatoria Regulaciones de seguridad Antes de usar el teléfono, lea la Información de seguridad a continuación. •No inserte o remueva la tarjeta SIM cuando el teléfono este encendido. •No utilice, tarjetas SIM cortadas, dañadas o modificadas en su teléfono ya que es probable que no sean reconocidas y podrían dañar la bandeja de la tarjeta (ranura). •No utilice el teléfono No utilice el dispositivo en lugares o locales donde no se recomiende o esté prohibido el uso de teléfonos móviles y equipos de radio. •No utilice el teléfono cerca de dispositivos eléctricos o médicos, ya que la interferencia puede afectar la funcionali- dad del teléfono. •No utilice o almacene el teléfono en lugares polvorientos. •El polvo puede causar fallos en el dispositivo. •No utilice el teléfono con carcasas o accesorios dañados. •Mantenga el teléfono lejos de los niños o mascotas, pequeñas partes del teléfono pueden causar asfixia si se ingieren. •Tenga Cuidado de no rayar o lastimarse al usar la herramienta de expulsión •No utilice el teléfono al aire libre durante tormenta eléctrica. •No almacene el dispositivo en altas temperaturas (cerca de un calentador, microondas, horno, etc.) Una batería recargable sobrecalentada, puede causar incendios y explosiones. •Siguiendo todas las precauciones de seguridad y reglas locales para el uso del teléfono mientras conduce. •Utilice solo cargadores, baterías recargables y otros accesorios aprobados por el fabricante. •No permita que la batería entre en contacto con objetos conductores (objetos de metal, líquidos, etc.). •No utilice el teléfono en lugares con alta humedad (albercas, baños, etc.), y evite utilizar el teléfono con las manos mojadas. •Si tu tarjeta SIM no es compatible con tu teléfono, por favor contacte a su operador telefónico. •Para evitar dañar tu oido, no use el manos libres en su máximo volumén cuando escuche música por un largo tiempo. Alta presión sonora. Riesgo de daño auditivo. No escuchar a niveles de volumen altos durante largos períodos. Condiciones de transportación y almacenamiento •El dispositivo empaquetado puede transportarse en cualquier tipo de vehículos cerrados a temperaturas de +5°C a +40°C, protegido de la exposición directa a la precipitación, radiación solar y daños mecánicos. Reglas de eliminación •Tenga en cuenta que el producto o accesorios electrónicos (memoria, cable, etc.) no pueden ser desechados con otros residuos domésticos. Es necesario utilizar botes especiales o puntos para la eliminación de dispositivos electrónicos. Advertencia Use el producto en entornos con temperaturas entre -20°C and 40°C y una temperatura de carga máxima de 35°C. de lo contrario podr…

Text truncated - open the document above for the full version.

Report Page 135 of 423 Band66 16QAM BW=3MHz Channel=131987 RB Size=15 Position=#0 Band66 QPSK BW=3MHz Channel=132322 RB Size=15 Position=#0 Band66 16QAM BW=3MHz Channel=132322 RB Size=15 Position=#0 Report Page 136 of 423 Band66 QPSK BW=3MHz Channel=132657 RB Size=15 Position=#0 Band66 16QAM BW=3MHz Channel=132657 RB Size=15 Position=#0 Band66 QPSK BW=5MHz Channel=131997 RB Size=25 Position=#0 Report Page 137 of 423 Band66 16QAM BW=5MHz Channel=131997 RB Size=25 Position=#0 Band66 QPSK BW=5MHz Channel=132322 RB Size=25 Position=#0 Band66 16QAM BW=5MHz Channel=132322 RB Size=25 Position=#0 Report Page 138 of 423 Band66 QPSK BW=5MHz Channel=132647 RB Size=25 Position=#0 Band66 16QAM BW=5MHz Channel=132647 RB Size=25 Position=#0 Band66 QPSK BW=10MHz Channel=132022 RB Size=50 Position=#0 Report Page 139 of 423 Band66 16QAM BW=10MHz Channel=132022 RB Size=27 Position=#0 Band66 QPSK BW=10MHz Channel=132322 RB Size=50 Position=#0 Band66 16QAM BW=10MHz Channel=132322 RB Size=27 Position=#0 Report Page 140 of 423 Band66 QPSK BW=10MHz Channel=132622 RB Size=50 Position=#0 Band66 16QAM BW=10MHz Channel=132622 RB Size=27 Position=#0 Band66 QPSK BW=15MHz Channel=132047 RB Size=75 Position=#0 Report Page 141 of 423 Band66 16QAM BW=15MHz Channel=132047 RB Size=27 Position=#0 Band66 QPSK BW=15MHz Channel=132322 RB Size=75 Position=#0 Band66 16QAM BW=15MHz Channel=132322 RB Size=27 Position=#0 Report Page 142 of 423 Band66 QPSK BW=15MHz Channel=132597 RB Size=75 Position=#0 Band66 16QAM BW=15MHz Channel=132597 RB Size=27 Position=#0 Band66 QPSK BW=20MHz Channel=132072 RB Size=100 Position=#0 Report Page 143 of 423 Band66 16QAM BW=20MHz Channel=132072 RB Size=27 Position=#0 Band66 QPSK BW=20MHz Channel=132322 RB Size=100 Position=#0 Band66 16QAM BW=20MHz Channel=132322 RB Size=27 Position=#0 Report Page 144 of 423 Band66 QPSK BW=20MHz Channel=132572 RB Size=100 Position=#0 Band66 16QAM BW=20MHz Channel=132572 RB Size=27 Position=#0 Report Page 145 of 423 Band edge Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict Band2 1.4 18607 1 #0 QPSK 1850.00 -32.55 -13 PASS Band2 1.4 18607 1 #0 QPSK 1849.00 -24.11 -13 PASS Band2 1.4 18607 1 #Max QPSK 1850.00 -49.74 -13 PASS Band2 1.4 18607 1 #Max QPSK 1849.00 -38.61 -13 PASS Band2 1.4 18607 6 #0 QPSK 1850.00 -30.67 -13 PASS Band2 1.4 18607 6 #0 QPSK 1849.00 -26.36 -13 PASS Band2 1.4 18607 1 #0 16QAM 1850.00 -30.69 -13 PASS Band2 1.4 18607 1 #0 16QAM 1849.00 -23.49 -13 PASS Band2 1.4 18607 1 #Max 16QAM 1849.99 -49.20 -13 PASS Band2 1.4 18607 1 #Max 16QAM 1849.00 -37.52 -13 PASS Band2 1.4 18607 6 #0 16QAM 1850.00 -32.21 -13 PASS Band2 1.4 18607 6 #0 16QAM 1849.00 -27.71 -13 PASS Band2 1.4 19193 1 #0 QPSK 1910.58 -48.52 -13 PASS Band2 1.4 19193 1 #0 QPSK 1911.00 -36.11 -13 PASS Band2 1.4 19193 1 #Max QPSK 1910.00 -31.18 -13 PASS Band2 1.4 19193 1 #Max QPSK 1911.00 -23.90 -13 PASS Band2 1.4 19193 6 #0 QPSK 1910.00 -29.77 -13 PASS Band2 1.4 19193 6 #0 QPSK 1911.00 -24.25 -13 PASS Band2 1.4 19193 1 #0 16QAM 1910.69 -47.11 -13 PASS Band2 1.4 19193 1 #0 16QAM 1911.00 -35.04 -13 PASS Band2 1.4 19193 1 #Max 16QAM 1910.00 -29.87 -13 PASS Band2 1.4 19193 1 #Max 16QAM 1911.00 -23.20 -13 PASS Band2 1.4 19193 6 #0 16QAM 1910.00 -30.96 -13 PASS Band2 1.4 19193 6 #0 16QAM 1911.00 -25.84 -13 PASS Band2 3 18615 1 #0 QPSK 1850.00 -17.23 -13 PASS Band2 3 18615 1 #0 QPSK 1849.00 -35.60 -13 PASS Band2 3 18615 1 #Max QPSK 1850.00 -30.36 -13 PASS Band2 3 18615 1 #Max QPSK 1849.00 -36.82 -13 PASS Band2 3 18615 15 #0 QPSK 1849.99 -25.59 -13 PASS Band2 3 18615 15 #0 QPSK 1849.00 -22.71 -13 PASS Band2 3 18615 1 #0 16QAM 1850.00 -17.76 -13 PASS Band2 3 18615 1 #0 16QAM 1849.00 -36.20 -13 PASS Band2 3 18615 1 #Max 16QAM 1850.00 -30.47 -13 PASS Band2 3 18615 1 #Max 16QAM 1849.00 -37.08 -13 PASS Band2 3 18615 15 #0 16QAM 1850.00 -26.83 -13 PASS Band2 3 18615 15 #0 16QAM 1849.00 -23.63 -13 PASS Band2 3 19185 1 #0 QPSK 1910.00 -30.72 -13 PASS Band2 3 19185 1 #0 QPSK 1911.00 -36.59 -13 PASS Band2 3 19185 1 #Max QPSK 1910.00 -16.45 -13 PASS Band2 3 19185 1 #Max QPSK 1911.00 -36.22 -13 PASS Band2 3 19185 15 #0 QPSK 1910.00 -25.88 -13 PASS Band2 3 19185 15 #0 QPSK 1911.00 -21.53 -13 PASS Report Page 146 of 423 Band2 3 19185 1 #0 16QAM 1910.00 -30.28 -13 PASS Band2 3 19185 1 #0 16QAM 1911.00 -36.23 -13 PASS Band2 3 19185 1 #Max 16QAM 1910.00 -16.25 -13 PASS Band2 3 19185 1 #Max 16QAM 1911.00 -35.03 -13 PASS Band2 3 19185 15 #0 16QAM 1910.00 -26.13 -13 PASS Band2 3 19185 15 #0 16QAM 1911.00 -21.91 -13 PASS Band2 5 18625 1 #0 QPSK 1850.00 -21.81 -13 PASS Band2 5 18625 1 #0 QPSK 1849.00 -37.56 -13 PASS Band2 5 18625 1 #Max QPSK 1850.00 -39.66 -13 PASS Band2 5 18625 1 #Max QPSK 1849.00 -42.69 -13 PASS Band2 5 18625 25 #0 QPSK 1850.00 -30.44 -13 PASS Band2 5 18625 25 #0 QPSK 1849.00 -23.00 -13 PASS Band2 5 18625 1 #0 16QAM 1850.00 -22.82 -13 PASS Band2 5 18625 1 #0 16QAM 1849.00 -38.37 -13 PASS Band2 5 18625 1 #Max 16QAM 1850.00 -40.99 -13 PASS Band2 5 18625 1 #Max 16QAM 1849.00 -43.12 -13 PASS Band2 5 18625 25 #0 16QAM 1850.00 -32.02 -13 PASS Band2 5 18625 25 #0 16QAM 1849.00 -24.25 -13 PASS Band2 5 19175 1 #0 QPSK 1910.00 -40.48 -13 PASS Band2 5 19175 1 #0 QPSK 1911.00 -42.78 -13 PASS Band2 5 19175 1 #Max QPSK 1910.00 -22.14 -13 PASS Band2 5 19175 1 #Max QPSK 1911.00 -37.36 -13 PASS Band2 5 19175 25 #0 QPSK 1910.00 -30.11 -13 PASS Band2 5 19175 25 #0 QPSK 1911.00 -22.69 -13 PASS Band2 5 19175 1 #0 16QAM 1910.00 -40.56 -13 PASS Band2 5 19175 1 #0 16QAM 1911.00 -42.22 -13 PASS Band2 5 19175 1 #Max 16QAM 1910.00 -21.06 -13 PASS Band2 5 19175 1 #Max 16QAM 1911.00 -37.09 -13 PASS Band2 5 19175 25 #0 16QAM 1910.00 -30.97 -13 PASS Band2 5 19175 25 #0 16QAM 1911.00 -23.36 -13 PASS Band2 10 18650 1 #0 QPSK 1850.00 -24.28 -13 PASS Band2 10 18650 1 #0 QPSK 1849.00 -38.66 -13 PASS Band2 10 18650 1 #Max QPSK 1850.00 -43.61 -13 PASS Band2 10 18650 1 #Max QPSK 1849.00 -42.22 -13 PASS Band2 10 18650 50 #0 QPSK 1850.00 -30.66 -13 PASS Band2 10 18650 50 #0 QPSK …

Text truncated - open the document above for the full version.

FCC ID_SAR Setup photos Right Touch Right Tilt Left Touch Left Tilt Body Front side (separation distance is 10mm) Body Back side (separation distance10mm) Body Left side (separation distance is 10mm) Body Right side (separation distance is 10mm) Body Top side (separation distance is 10mm) Body Bottom side (separation distance is 10mm)

Page 1 of 2 Report No.: LGT25I033 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz Page 2 of 2 Report No.: LGT25I033 Set-up for Conducted Emission

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 22 RF TEST REPORT Product Name: Mobile Phone Model Number: Bolt F1R FCC ID: 2ADR3UBF1R Issued For : UNNECTO HOLDING LIMITED 13/F HARBOUR COMMERCIAL BUILDING 122-124 CONNAUGHT ROAD CENTRAL SHEUNG WAN HK Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT25I033RF03 Sample Received Date: Sep. 03, 2025 Date of Test: Sep. 03, 2025 ~ Sep. 19, 2025 Date of Issue: Sep. 19, 2025 Report No.: LGT25I033RF03 Page 2 of 22 TEST REPORT CERTIFICATION Applicant: UNNECTO HOLDING LIMITED Address: 13/F HARBOUR COMMERCIAL BUILDING 122-124 CONNAUGHT ROAD CENTRAL SHEUNG WAN HK Manufacturer: Shenzhen Water World Information Co., LTD Address: Waterworld,Floor 12,Building B,Tsinghua Information Port,Nanshan District,Shenzhen. Product Name: Mobile Phone Trademark: unnecto ™ Model Number: Bolt F1R Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 22H and 24E, 27 KDB 971168 D01 v03r01, ANSI C63.26(2015) PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT25I033RF03 Page 3 of 22 Table of Contents Page 1. TEST FACTORY & MEASUREMENT UNCERTAINTY 4 2. GENERAL INFORMATION 5 3. CONDUCTED OUTPUT POWER 11 4. RADIATED POWER AND EFFECTIVE ISOTROPIC RADIATED POWER 12 5. RADIATED SPURIOUS EMISSION 14 6. FREQUENCY STABILITY 16 APPENDIX I-TEST DATA 17 RADIATED SPURIOUS EMISSION 17 APPENDIX II-PHOTOS OF TEST SETUP 22 Revision History Rev. Issue Date Contents 00 Sep. 19, 2025 Initial Issue Report No.: LGT25I033RF03 Page 4 of 22 1. TEST FACTORY & MEASUREMENT UNCERTAINTY 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 Temperature ±0.5°C 10 Humidity ±2% 11 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT25I033RF03 Page 5 of 22 2. GENERAL INFORMATION 2.1 TECHNICAL SPECIFICATIONS AND REGULATIONS 2.1.1 PRODUCT DESCRIPTION A major technical description of EUT is described as following: Product Name: Mobile Phone Test Model Number: Bolt F1R Series Number: N/A Model Difference: N/A Frequency Bands: Band 2/4/5/7/66 SIM Card: SIM 1 and SIM 2 is a chipset unit and tested as single chipset, SIM 1 is used to tested. Antenna Type: FPC Antenna Antenna gain: Band 2: 0.16dBi, Band 4: 0.22dBi, Band 5: -2.26dBi, Band 7: 0.35dBi, Band 66: 0.23dBi Adapter: Input: AC 100-240V 50/60Hz 0.2A Output: DC 5V 1A Battery: Capacity: 5000mAh Rated Voltage: 3.7V Extreme Vol. Limits: 3.4V to 4.2V (Nominal 3.7V) Extreme Temp. Tolerance: 0°C to +40°C Hardware Version: FF615-MB-V3.6 Software Version: N/A Note: The antenna information refer the manufacturer provide report, applicable only to the tested sa- mple identified in the report. Report No.: LGT25I033RF03 Page 6 of 22 2.1.2 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD Product Specification Subjective To This Standard Tx Frequency LTE Band 2:1850~1910MHz LTE Band 4:1710~1755MHz LTE Band 5: 824~849MHz LTE Band 7:2500~2570MHz LTE Band 66: 1710-1780MHz Rx Frequency LTE Band 2: 1930-1990MHz LTE Band 4: 2110-2155MHz LTE Band 5: 869-894MHz LTE Band 7: 2620-2690MHz LTE Band 66: 2110-2200MHz Bandwidth LTE Band 2: 1.4MHz / 3MHz / 5MHz / 10MHz / 15MHz / 20MHz LTE Band 4: 1.4MHz / 3MHz / 5MHz / 10MHz / 15MHz /20MHz LTE Band 5: 1.4MHz / 3MHz / 5MHz / 10MHz LTE Band 7: 5MHz / 10MHz / 15MHz /20MHz LTE Band 66: 1.4MHz / 3MHz / 5MHz / 10MHz / 15MHz /20MHz Type of Modulation QPSK/16QAM Report No.: LGT25I033RF03 Page 7 of 22 2.1.3 TEST CONFIGURATION OF EQUIPMENT UNDER TEST Antenna port conducted and radiated test items listed below are performed according to KDB 971168 D01 v03r01 and ANSI C63.26 2015 Power Meas. License Digital Systems with maximum output power. Radiated measurements are performed by rotating the EUT in three different orthogonal test planes tofind the maximum emission. Remark: 1. The mark ‘v’means that this configuration is chosen for testing 2. The mark ‘-’means that this bandwidth is not supported. 3. The device is investigated from 30MHz to 10 times of fundamental signal for radiated. ITEMS Band Bandwidth (MHz) Modulation RB # Test Channel 1.4 3 5 10 15 20 QPSK 16QAM 1 Half Full L M H E.R.P.& E.I.R.P. 2 v v v v v v v v v v v v v v 4 v v v v v v v v v v v v v v 5 v v v v v v v v v v v v 7 v v v v v v v v v v v v 66 v v v v v v v v v v v v v v Peak&Avera Ratio 2 v v v v v v v v v v v v 4 v v v v v v v v v v v v 5 v v v v v v v v v v 7 v v v v v v v v v v 66 v v v v v v v v v v v v 26dB&99% Bandwidth 2 v v v v v v v v v v v v 4 v v v v v v v v v v v v 5 v v v v v v v v v v 7 v v v v v v v v v v 66 v v v v v v v v v v v v…

Text truncated - open the document above for the full version.

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 33 RF TEST REPORT Product Name: Mobile Phone Model Number: Bolt F1R FCC ID: 2ADR3UBF1R Issued For : UNNECTO HOLDING LIMITED 13/F HARBOUR COMMERCIAL BUILDING 122-124 CONNAUGHT ROAD CENTRAL SHEUNG WAN HK Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT25I033RF02 Sample Received Date: Sep. 03, 2025 Date of Test: Sep. 03, 2025 ~ Sep. 19, 2025 Date of Issue: Sep. 19, 2025 Report No.: LGT25I033RF02 Page 2 of 33 TEST REPORT CERTIFICATION Applicant: UNNECTO HOLDING LIMITED Address: 13/F HARBOUR COMMERCIAL BUILDING 122-124 CONNAUGHT ROAD CENTRAL SHEUNG WAN HK Manufacturer: Shenzhen Water World Information Co., LTD Address: Waterworld,Floor 12,Building B,Tsinghua Information Port,Nanshan District,Shenzhen. Product Name: Mobile Phone Trademark: unnecto ™ Model Number: Bolt F1R Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 22H and 24E, 27 KDB 971168 D01 v03r01, ANSI C63.26( 2015) PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT25I033RF02 Page 3 of 33 Table of Contents Page 1 SUMMARY OF TEST RESULTS 4 2 INTRODUCTION 5 2.1 TEST FACTORY 5 2.2 MEASUREMENT UNCERTAINTY 5 3. PRODUCT INFORMATION 6 4 TEST CONFIGURATION OF EQUIPMENT UNDER TEST 7 5 MEASUREMENT INSTRUMENTS 8 6 TEST ITEMS 9 6.1 CONDUCTED OUTPUT POWER 9 6.2 PEAK TO AVERAGE RATIO 10 6.3 TRANSMITTER RADIATED POWER (EIRP/ERP) 11 6.4 OCCUPIED BANDWIDTH 12 6.5 FREQUENCY STABILITY 13 6.6 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 14 6.7 BAND EDGE 15 6.8 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT 16 APPENDIX I. TEST DATA 18 RADIATED SPURIOUS EMISSION 18 APPENDIX II- PHOTOS OF TEST SETUP 33 Revision History Rev. Issue Date Contents 00 Sep. 19, 2025 Initial Issue Report No.: LGT25I033RF02 Page 4 of 33 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards: The radiated emission testing was performed according to the procedures of KDB 971168 D01 v03r01 and ANSI C63.26-2015 FCC Rules Test Description Test Limit Test Result Reference 2.1046 Conducted Output Power Reporting Only PASS 22.913d 24.232d Peak-to-Average Ratio < 13 dB PASS 2.1046 22.913 24.232 27.50 Effective Radiated Power/Equivalent Isotropic Radiated Power < 7 Watts max. ERP(Part 22) < 2 Watts max. EIRP(Part 24) <1 Watts max. EIRP(Part 27) PASS 2.1049 22.917 24.238 27.53 Occupied Bandwidth Reporting Only PASS 2.1055 22.355 24.235 27.54 Frequency Stability < 2.5 ppm (Part 22) Emission must remain in band (Part 24) Emission must remain in band (Part 27) PASS 2.1051 22.917 24.238 27.53 Spurious Emission at Antenna Terminals < 43+10log10(P[Watts]) PASS 2.1053 22.917 24.238 27.53 Field Strength of Spurious Radiation < 43+10log10(P[Watts]) PASS 2.1051 22.917 24.238 27.53 Band Edge < 43+10log10(P[Watts]) PASS Report No.: LGT25I033RF02 Page 5 of 33 2 INTRODUCTION 2.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 2.2 MEASUREMENT UNCERTAINTY The measurement uncertainties shown below were calculated in accordance with the requirements of ANSI C63.26. All measurement uncertainty values are shown with a coverage factor of k = 2 toindicate a 95% level of confidence. The measurement data shown herein meets or exceeds the UCISPRmeasurement uncertainty values specified in CISPR 16-4-2 and, thus, can be compared directly tospecified limits to determine compliance. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 Temperature ±0.5°C 10 Humidity ±2% 11 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT25I033RF02 Page 6 of 33 3. PRODUCT INFORMATION Product Name: Mobile Phone Test Model Number: Bolt F1R Series Number: N/A Model Difference: N/A Tx Frequency: GSM/GPRS/EGPRS: 850: 824 MHz ~ 849MHz 1900: 1850 MHz ~ 1910MHz WCDMA: Band V: 824 MHz ~ 849 MHz Band II: 1850 MHz ~ 1910 MHz Band IV: 1710 MHz ~ 1755 MHz Rx Frequency: GSM/GPRS/EGPRS: 850: 869 MHz ~ 894 MHz 1900: 1930 MHz ~ 1990MHz WCDMA: Band V: 869 MHz ~ 894 MHz Band II: 1930 MHz ~ 1990 MHz Band IV: 2110 MHz ~ 2155 MHz Modulation Characteristics: GMSK for GSM/GPRS; GMSK and 8PSK for EDGE WCDMA: QPSK; HSDPA: QPSK/16QAM; HSUPA: BPSK SIM Card: SIM 1 and SIM 2 is a chipset unit and tested as single chipset, SIM 1 is used to tested. Antenna Type: FPC Antenna Antenna gain: GSM 850: -2.3dBi GSM 1900: 0.16dBi WCDMA B2: 0.16dBi WCDMA B4: 0.21dBi WCDMA B5: -2.3dBi Adapter: Input: AC 100-240V 50/60Hz 0.2A Output: DC 5V 1A Battery: Capacity: 5000mAh Rated Voltage: 3.7V GPRS Class: Multi-Class12 Extreme Vol. Limits: 3.4V to 4.2V (Nominal 3.7V) Extreme Temp. Tolerance: 0°C to +40°C Hardware version: FF615-MB-V3.6 Software version: N/A ** Note: The High Voltage 4.2V and Low Voltage 3.4V was declared by manufacturer, The EUT couldn’t be operate normally with higher or lower voltage, the antenna information refer the manufacturer pro…

Text truncated - open the document above for the full version.

Report Page 1 of 21 Contents Conducted output power ........................................................................................................................................................................... 2 Frequency stability ..................................................................................................................................................................................... 5 Peak-to-Average Ratio ................................................................................................................................................................................ 7 Occupied bandwidth ................................................................................................................................................................................. 11 Band edge .................................................................................................................................................................................................. 15 Out-of-band emissions ............................................................................................................................................................................. 18 Report Page 2 of 21 Conducted output power Band Channel Frequency (MHz) Power (dBm) Gain (dB) EIRP (dBm) EIRP Limit (dBm) Verdict WCDMA Band2 9262 1852.4 23.99 0.16 24.15 33.01 PASS WCDMA Band2 9400 1880 23.97 0.16 24.13 33.01 PASS WCDMA Band2 9538 1907.6 23.94 0.16 24.10 33.01 PASS HSDPA Band2 Subtest1 9262 1852.4 24.01 0.16 24.17 33.01 PASS HSDPA Band2 Subtest2 9262 1852.4 23.70 0.16 23.86 33.01 PASS HSDPA Band2 Subtest3 9262 1852.4 23.34 0.16 23.50 33.01 PASS HSDPA Band2 Subtest4 9262 1852.4 23.25 0.16 23.41 33.01 PASS HSDPA Band2 Subtest1 9400 1880 24.26 0.16 24.42 33.01 PASS HSDPA Band2 Subtest2 9400 1880 23.81 0.16 23.97 33.01 PASS HSDPA Band2 Subtest3 9400 1880 23.72 0.16 23.88 33.01 PASS HSDPA Band2 Subtest4 9400 1880 23.63 0.16 23.79 33.01 PASS HSDPA Band2 Subtest1 9538 1907.6 23.97 0.16 24.13 33.01 PASS HSDPA Band2 Subtest2 9538 1907.6 23.66 0.16 23.82 33.01 PASS HSDPA Band2 Subtest3 9538 1907.6 23.40 0.16 23.56 33.01 PASS HSDPA Band2 Subtest4 9538 1907.6 23.31 0.16 23.47 33.01 PASS HSUPA Band2 Subtest1 9262 1852.4 23.71 0.16 23.87 33.01 PASS HSUPA Band2 Subtest2 9262 1852.4 23.92 0.16 24.08 33.01 PASS HSUPA Band2 Subtest3 9262 1852.4 23.45 0.16 23.61 33.01 PASS HSUPA Band2 Subtest4 9262 1852.4 23.97 0.16 24.13 33.01 PASS HSUPA Band2 Subtest5 9262 1852.4 23.67 0.16 23.83 33.01 PASS HSUPA Band2 Subtest1 9400 1880 24.16 0.16 24.32 33.01 PASS HSUPA Band2 Subtest2 9400 1880 24.18 0.16 24.34 33.01 PASS HSUPA Band2 Subtest3 9400 1880 23.70 0.16 23.86 33.01 PASS HSUPA Band2 Subtest4 9400 1880 23.96 0.16 24.12 33.01 PASS HSUPA Band2 Subtest5 9400 1880 24.12 0.16 24.28 33.01 PASS HSUPA Band2 Subtest1 9538 1907.6 23.79 0.16 23.95 33.01 PASS HSUPA Band2 Subtest2 9538 1907.6 23.93 0.16 24.09 33.01 PASS HSUPA Band2 Subtest3 9538 1907.6 23.61 0.16 23.77 33.01 PASS HSUPA Band2 Subtest4 9538 1907.6 23.93 0.16 24.09 33.01 PASS HSUPA Band2 Subtest5 9538 1907.6 23.70 0.16 23.86 33.01 PASS Report Page 3 of 21 Band Channel Frequency (MHz) Power (dBm) Gain (dB) EIRP (dBm) EIRP Limit (dBm) Verdict WCDMA Band4 1312 1712.4 23.68 0.21 23.89 30 PASS WCDMA Band4 1450 1740 23.83 0.21 24.04 30 PASS WCDMA Band4 1513 1752.6 23.85 0.21 24.06 30 PASS HSDPA Band4 Subtest1 1312 1712.4 23.83 0.21 24.04 30 PASS HSDPA Band4 Subtest2 1312 1712.4 23.51 0.21 23.72 30 PASS HSDPA Band4 Subtest3 1312 1712.4 23.14 0.21 23.35 30 PASS HSDPA Band4 Subtest4 1312 1712.4 23.04 0.21 23.25 30 PASS HSDPA Band4 Subtest1 1450 1740 23.57 0.21 23.78 30 PASS HSDPA Band4 Subtest2 1450 1740 23.33 0.21 23.54 30 PASS HSDPA Band4 Subtest3 1450 1740 23.10 0.21 23.31 30 PASS HSDPA Band4 Subtest4 1450 1740 22.91 0.21 23.12 30 PASS HSDPA Band4 Subtest1 1513 1752.6 23.55 0.21 23.76 30 PASS HSDPA Band4 Subtest2 1513 1752.6 23.31 0.21 23.52 30 PASS HSDPA Band4 Subtest3 1513 1752.6 22.87 0.21 23.08 30 PASS HSDPA Band4 Subtest4 1513 1752.6 23.02 0.21 23.23 30 PASS HSUPA Band4 Subtest1 1312 1712.4 23.97 0.21 24.18 30 PASS HSUPA Band4 Subtest2 1312 1712.4 23.91 0.21 24.12 30 PASS HSUPA Band4 Subtest3 1312 1712.4 23.58 0.21 23.79 30 PASS HSUPA Band4 Subtest4 1312 1712.4 23.87 0.21 24.08 30 PASS HSUPA Band4 Subtest5 1312 1712.4 23.68 0.21 23.89 30 PASS HSUPA Band4 Subtest1 1450 1740 23.51 0.21 23.72 30 PASS HSUPA Band4 Subtest2 1450 1740 23.59 0.21 23.80 30 PASS HSUPA Band4 Subtest3 1450 1740 23.23 0.21 23.44 30 PASS HSUPA Band4 Subtest4 1450 1740 23.55 0.21 23.76 30 PASS HSUPA Band4 Subtest5 1450 1740 23.22 0.21 23.43 30 PASS HSUPA Band4 Subtest1 1513 1752.6 23.56 0.21 23.77 30 PASS HSUPA Band4 Subtest2 1513 1752.6 23.62 0.21 23.83 30 PASS HSUPA Band4 Subtest3 1513 1752.6 23.24 0.21 23.45 30 PASS HSUPA Band4 Subtest4 1513 1752.6 23.64 0.21 23.85 30 PASS HSUPA Band4 Subtest5 1513 1752.6 23.36 0.21 23.57 30 PASS Report Page 4 of 21 Band Channel Frequency (MHz) Power (dBm) Gain (dB) ERP (dBm) ERP Limit (dBm) Verdict WCDMA Band5 4132 826.4 23.88 -2.3 19.43 38.45 PASS WCDMA Band5 4182 836.4 23.95 -2.3 19.50 38.45 PASS WCDMA Band5 4233 846.6 23.78 -2.3 19.33 38.45 PASS HSDPA Band5 Subtest1 4132 826.4 23.54 -2.3 19.09 38.45 PASS HSDPA Band5 Subtest2 4132 826.4 23.02 -2.3 18.57 38.45 PASS HSDPA Band5 Subtest3 4132 826.4 22.85 -2.3 18.40 38.45 PASS HSDPA Band5 Subtest4 4132 826.4 22.80 -2.3 18.35 …
