2ADRZHQ6006AV37GPS Terminal

page 1, total 34 pages GPS Terminal Installation Instructions (V37) page 2, total 34 pages Outline 1.1 Technical Specifications 1.1.1 The conditions of use: 1、A supply voltage: DC 9 ~ 32V (suitable for 12V or 24V battery, motor vehicle) 2、ambient temperature: -10 °C ~ +55 °C 3、Relative humidity: ≤ 90% 4、Atmospheric pressure: 86 ~ 106Kpa 1.1.2 The appearance of Host: 157mm * 90 mm * 40 mm 1.2 wiring diagram 1.2.1 GPS terminal line wiring diagram page 3, total 34 pages 【Terminal connection diagram】 1.2.2 GPS terminal external wiring and accessories Figure page 4, total 34 pages Serial number Name Line color The wiring instructions (pick up at one end) 1 6-cell power bus Red and black and line the red line (thick) Vehicle positive power supply Black line in the red and black and the line (thick) Automotive power supply negative (Ground) Orange line in the orange and blue and the line ACC line Orange and blue line blue line Lock your car line Yellow and black line yellow line Then the alarm button (wire connected) Yellow and black line black line 2 2 core speed sensor long-term Green Line Then the sensor (in the car-side) Obscured ground 3 GPS antenna, long-term Coaxial PVC cable Antenna attached to the body on 4 3 core hands-free microphone long-term 3-core PVC wire Microphone component loading 5 2-core oil enter the long-term Brown lines in dark brown and line Fuel input signal Dark brown and black lines in the line Ground 6 5 core handles voice short-term Yellow line MIC- Brown Line MIC+ Orange Line SPK- page 5, total 34 pages Red line SPK+ Black line Ground 7 Five core non-control data short-term Purple Line Ground Brown Line Power supply Blue Line CTC Green Line RXD Red line TXD 8 Controlled five core data short-term Yellow line Power supply Brown Line Ground Blue Line CTC Green Line RXD Red line TXD 9 4-pin camera head and the short-term Orange Line Power+ Yellow line Power- Brown Line Perturbation of the head line A Red line Perturbation of the head line B 10 2 core hands-free speaker short-term The red line in the red and black and wire SPK+ Black line in the red and black and wire SPK- 11 2 cores empty weight of the car detect long-term Dark brown and brown line line Signal input The dark brown and the black line Ground 12 2-core signal to enter long-term Dark brown and brown line line Signal input The dark brown and the Ground page 6, total 34 pages 2、the installation 2.1 Installation Steps black line 13 2-core signal output long-term Dark brown and brown line line Signal input The dark brown and the black line Ground 14 GSM antenna long-term Coaxial PVC cable Antenna attached to the body on Received a loading notice and do preparatory work before the installation Fill to install the registration form, the two sides confirm the installation before the vehicle situation Both sides confirmed the location and function of the product installation GPS product installation Note: The installation does not damage the vehicle, or peril! Pre-test the product features and the wiring is properly Product testing is normal, hidden in the vehicle body and fixed Contact with the center attendant with the user to test all the features of the product Owner acceptance and signature confirmation Clean vehicle health, and clean up tools, will be installed returned the center archive page 7, total 34 pages 【Global positioning (GPS) system specification installation flow chart】 2.2 Installation of the preparatory work 2.2.1 installation preparation: Tools: different models, the tools used to have a greater difference in the installation of GPS vehicle terminal, sufficient preparation, do not miss, so as not to affect the installation of speed and quality of the installation. Installation documents and related procedures: no specific basis for each vehicle before installation to do the vehicle inspection, in order to avoid problems after installation, the cause is not clear responsibility of vehicle breakdown, so be sure to prepare to install the table in front of documents; communication of GPS products rely mainly on China Mobile or China Unicom, will need to get ready the user SIM card and SIM card account is opened, so as not to affect the normal opening of use. Note: For special circumstances and not opening the SIM card of vehicles, the installation staff must use their own test card all the functional tests. 2.2.2 The product pre-installation check Product installation engineering staff prior to installation to do a basic check (such as lights, brakes, ignition, anti-theft devices such as "GPS" install a variety of connections) were detected, do not have the conditions of inspection equipment is working properly , but at least to ensure that the installation of the model is entirely correct, but not missing any parts. 2.2.3 GPS users Before installation to a clear understanding of the user loaded the model, product model and special requirements in order to do the appropriate pre-installation preparation, installation engineers to confirm fully capable of the installation tasks; while preparing for a good user's contact and the installation site. 2.2.3.1 complete the installation registration form, the two sides confirm the installation before the vehicle condition 2.2.3.1 installation to communicate with the user To reach the installation site, do not hurry to install the vehicle, in addition to the recommendations to maintain communication with the user to understand the user requirements for the installation of GPS, the main requirements of the GPS function, but also to understand the user's vehicle usage, as well as the company mentioned. (Note: During the installation on the corresponding record should be ready) 2.2.3.2 installation before the vehicle inspection Began to prepare to install the vehicle, first a basic check of the vehicle, the first to confirm the vehicle the appearance of injuries or damage to, and will need to be marked, followed by the basic application of the vehicle's audio…

Text truncated - open the document above for the full version.

GPS Terminal User Manual (HQ6006A-V37) - 2 - CAUTION 1、 Please read the manual carefully before install the equipment. 2、 Please insert the SIM card before install the equipment, otherwise it does not work normally. 3、 Please connect the equipment and all other cables correctly and then connect the power line. Do not install or remove in case of power-on condition. Turn off the power if there are missing line or incorrect connections, otherwise the equipment will be damaged easily. 4、It is suggested to install the equipment in the designated installation position. If abnormal conditions occur, please go to repair in the designated repair service immediately. If the product is installed or repaired in the non-designated position, it is not in the scope of warranty. 5、The product is a wireless communication equipment, it is possible to communicate abnormally because the signal problem. 6、The product is a wireless communication equipment, please turn off the power when the equipment enters the gas station or other places of dangerous goods. 7、The device operating voltage is between 9V to 32V, please operate within this voltage range. 8、In order to avoid electromagnetic interference, please stop using the equipment where the notice is posted. 9、Please be sure to focus on normal operating status of the device. Technical Specifications 1 Scope to use Apply to vehicle or vessel positioning and dispatch management 2 Conditions of Use ambient temperature -20°C～+70°C Relative humidity ≤90% Atmospheric pressure 86～106KPa Power supply 9—32Vdc 3 Mechanical properties Size host 157mm×90mm×40mm Weight host About 1.0kg - 3 - Main functions Item Function Description 1. Service center number settings Set service center munber through the center’s command or handle 2. ID setting Set ID munber through the center’s command or handle 3. Communication number settings Set SOS number and SMS service centernumber through the center’s command 4. Login password settings Set login password through the center’s command or handle. 5. Into or out of range prompt Set the status prompt for into or out of the range through the center’s command, include: into the range prompt, out of the range prompt, into and out of the range prompt, no prompt. 6. Modify LCD menu Modify the display content of LCD menu through the center’s command, the content length of each fixed menu information is up to 12 characters 7. Network operator settings Modify network operator through the center’s command 8. Call restrictions Set call restrictions, include: dialing limit, answering limit, dialing prohibit, answering prohibit 9. Special parameter settings Set the parameter such as maximum speed, entering the power-saving time  If the vehicle’s speed is greater than the maximum speed, the terminal will send speeding message to the center.  When ACC is off, the terminal will enter power-saving status after 30min later, this time can be modified by setting the parameter of entering the power-saving time. When this parameter is setting to zero, the terminal will never enter power-saving status. 10. Function switch settings Set the switch of some functions, such as login message upload, offline message upload, DTMF message upload. 11. Control terminal’s work status Control the terminal’s work status through the center’s command: A. Unconditionally restart, cancel all non-normal prompt and vehicle status. B. Restore factory settings and restart. C. When ACC is off, turn off the communication module, the GPS module and the bus power 12. Cancel non-normal status prompt Cancel the non-normal status prompt and the terminal will return to normal working status 13. Single position function Request one position information from the terminal 14. Monitor Set the terminal into the listening state through the center’s command. At this time LCD panel will display character ’M’, indicating that terminal is in a listening state. - 4 - 15. Check the vehicle's battery voltage Request the vehicle's battery voltage from the terminal through the center’s command 16. Ckeck the vehicle’s mileage Request the vehicle’s mileage through the center’s command 17. Real-time satellite positioning Set the time interval and the number of positioning information through the center’s command 18. Text message scheduling Receive text scheduling information from the center, including: public information/company information, responder information, scheduling information, digital return information, etc. 19. TCP wireless data transmission Set TCP/IP parameter through the center’s command: A. server IP address, local port number, server port number. B. Username, password, dialing number. C. Whether to enter / Release TCP working status and time to get into this state. 20. Non-normal tips  Emergency tips: the terminal will upload emergency information for help when user presses the emergency button for three seconds or more.  Non-normal use tips: the terminal will upload non-normal use information when the user enter the wrong password three times or no password is entered within 90 seconds if password is needed. 21. Power outage tips The terminal will upload power outage tips to center when the power line is cut off if backup battery is connected 22. Compensation for the dead zone of mobile communication To avoid losing necessary messages, the terminal will save the messages when it enters the dead zone of mobile communication. The terminal will upload these messages to the center while the mobile communication is normal. 23. Remote wireless software upgrade Software can be upgraded remotely through the center’s command. When the terminal receives upgrade-command from the center, it will judge whether or not the version match the upgrade condition automatically. * Special Note：These features can be selected or changed according to the needs of customers, and ultimate function of customer agreement shall prevail! FCC Regulations: This device complies with part 15 of the FCC Rules. Opera…

Text truncated - open the document above for the full version.

Shenzhen huaqiang information industry co.ltd West 2F, 3 BLD.#1 miexiu Rd, futian, shezhen, China Tel: +86-755-82892990 ; Fax: +86-755-82892901 Date: December 9, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: 2ADRZHQ6006AV37 To Whom It May Concern: We, Shenzhen huaqiang information industry co.ltd, declare that V37 I/O connect can only support charging. It can’t support USB with PC for data transfer. Sincerely yours, Contact Person: Jin Wei Company: Shenzhen huaqiang information industry co.ltd TEL: +86-755-82892990 FAX: +86-755-82892901 E-mail: [email protected]

Rev. 1/1/03 Shenzhen huaqiang information industry co.ltd West 2F, 3 BLD.#1 miexiu Rd, futian, shezhen, China Date: December 9, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ADRZHQ6006AV37 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Contact Person: Jin Wei Company: Shenzhen huaqiang information industry co.ltd TEL: +86-755-82892990 FAX: +86-755-82892901 E-mail: [email protected]

Shenzhen huaqiang information industry co.ltd West 2F, 3 BLD.#1 miexiu Rd, futian, shezhen, China Tel: +86-755-82892990 ; Fax: +86-755-82892901 Date: December 9, 2014 Power of Attorney To whom it may concern, Please be notified that I, Jin Wei, have designated Michael Lin in Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: 2ADRZHQ6006AV37 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Jin Wei Company: Shenzhen huaqiang information industry co.ltd TEL: +86-755-82892990 FAX: +86-755-82892901 E-mail: [email protected]

1/1 Shenzhen huaqiang information industry co.ltd Date: December 9, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : 2ADRZHQ6006AV37 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which Shenzhen huaqiang information industry co.ltd, deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Jin Wei Company: Shenzhen huaqiang information industry co.ltd TEL: +86-755-82892990 FAX: +86-755-82892901 E-mail: [email protected]

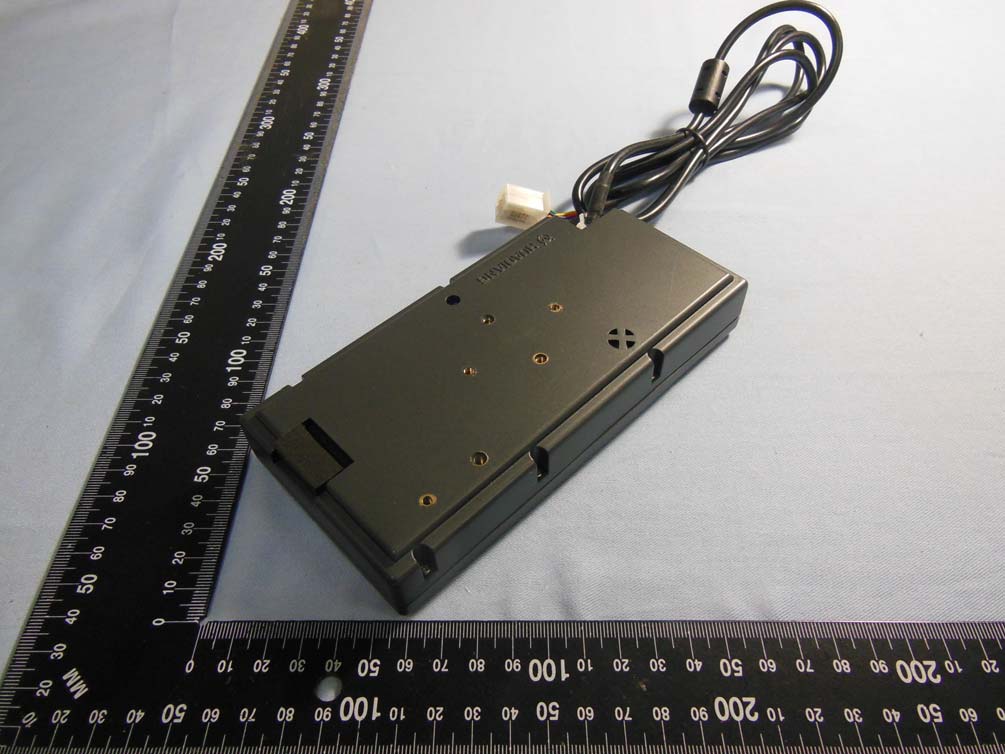

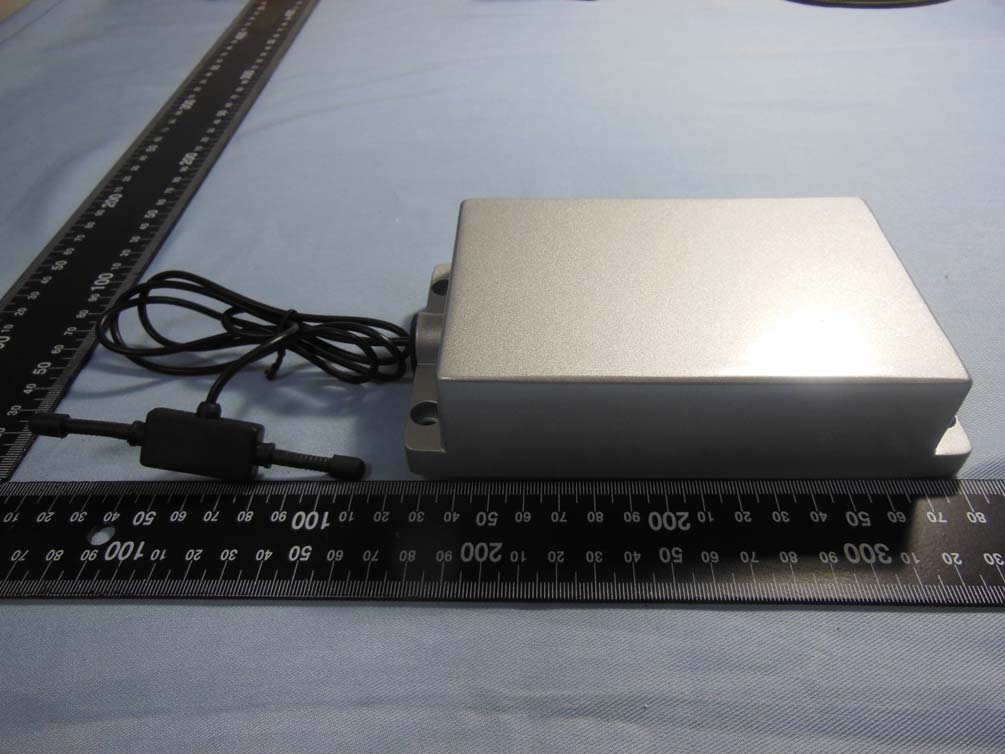

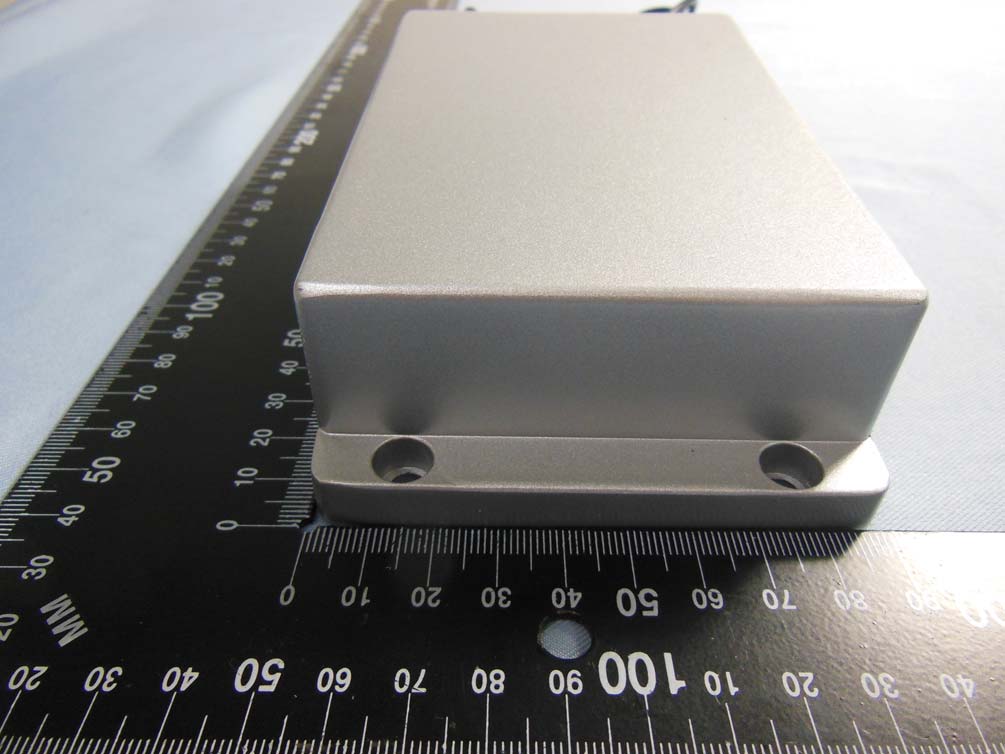

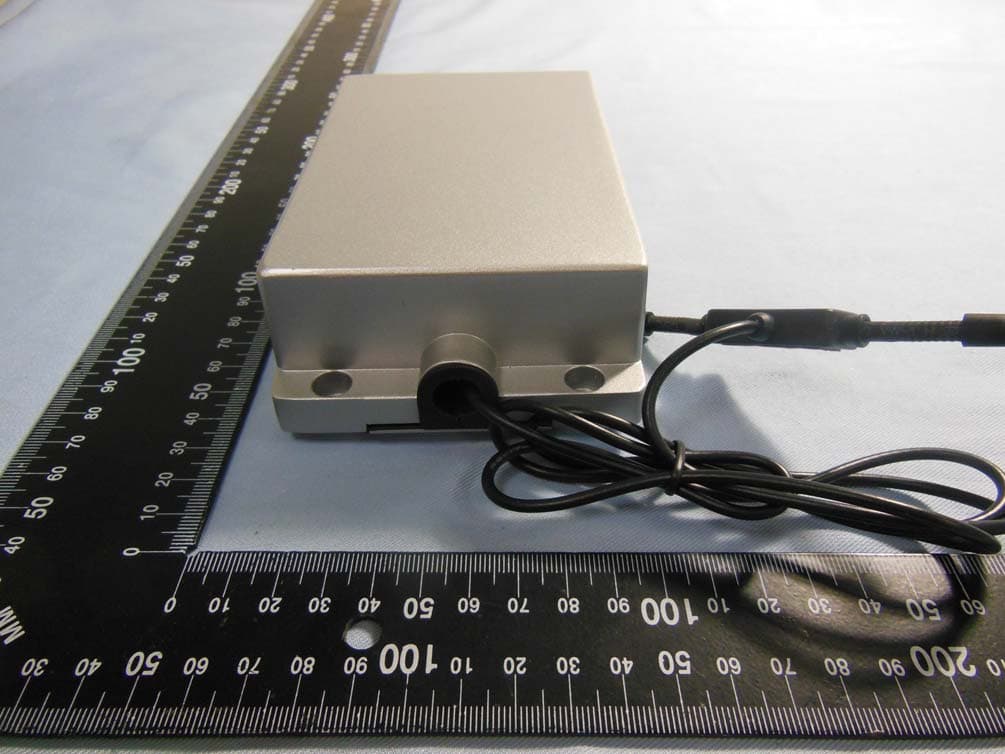

Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 1. External Photograph of EUT Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 List of Accessory: Specification of Accessory 5 cores short-term controlled data cable Signal Line Type0.19meter，non-shielded cable, without ferrite core 6 cores short-term controlled data cable Signal Line Type2meter，non-shielded cable, without ferrite core GPS Antenna Signal Line Type2meter，non-shielded cable, without ferrite core Fuse Wire Signal Line Type0.31meter, non-shielded cable, without ferrite core Microphone Signal Line Type2meter, non-shielded cable, without ferrite core Power cable Signal Line Type2.08meter, non-shielded cable, without ferrite core hands-free speaker Signal Line Type3.1meter, non-shielded cable, without ferrite core Remote Brand name huaqiang Viewing Screen Brand name huaqiang Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Viewing Screen Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Remote control Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37



Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 3. Internal Photograph of EUT WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 28 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 29 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 30 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 31 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 GPS Antenna <Rx> Photographs of EUT Report No.: EP492307 Brand Name: huaqiang; Model Name: V37 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 32 of 32 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2ADRZHQ6006AV37 WWAN Antenna <Tx/Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 7 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ADRZHQ6006AV37 RF Exposure Evaluation Report Report No. : FA492307 RF Exposure Evaluation Report APPLICANT : shenzhen huaqiang information industry co. ltd. EQUIPMENT : GPS Terminal BRAND NAME : huaqiang MODEL NAME : V37 FCC ID : 2ADRZHQ6006AV37 STANDARD : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091, and pass the limit. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (SHENZHEN) INC. 1F & 2F,Building A, Morning Business Center, No. 4003 ShiGu Rd., Xili Town, Nanshan District, Shenzhen, Guangdong, P. R. China Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 7 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ADRZHQ6006AV37 RF Exposure Evaluation Report Report No. : FA492307 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 6 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 6 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 7 5.1. Standalone Power Density Calculation ............................................................................................. 7 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 7 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ADRZHQ6006AV37 RF Exposure Evaluation Report Report No. : FA492307 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA492307 Rev. 01 Initial issue of report Dec. 09, 2014 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 7 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ADRZHQ6006AV37 RF Exposure Evaluation Report Report No. : FA492307 1. Administration Data 1.1. Testing Laboratory Testing Laboratory Test Site SPORTON INTERNATIONAL (SHENZHEN) INC. Test Site Location 1F & 2F, Building A, Morning Business Center, No. 4003 ShiGu Rd., Xili Town, Nanshan District, Shenzhen, Guangdong, P. R. China TEL: +86-755-8637-9589 FAX: +86-755-8637-9595 Applicant Company Name shenzhen huaqiang information industry co. ltd. Address west 2F, 3 BLD. #1 miexiu Rd., futian, shezhen, china Manufacturer Company Name shenzhen huaqiang information industry co. ltd. Address west 2F, 3 BLD. #1 miexiu Rd., futian, shezhen, china SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 7 TEL : 86-755-8637-9589 Report Issued Date : Dec. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2ADRZHQ6006AV37 RF Exposure Evaluation Report Report No. : FA492307 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type GPS Terminal Brand Name huaqiang Model Name V37 FCC ID 2ADRZHQ6006AV37 Wireless Technology and Frequency Range GSM850: 824.2 MHz ~ 848.8 MHz GSM1900: 1850.2 MHz ~ 1909.8 MHz Mode GSM/GPRS Antenna Type External Quad-band Antenna HW Version V37_MB_P21 SW Version V37-7.4.106.4 EUT Stage Product…

Text truncated - open the document above for the full version.
