2ADSZ-12122014SR2000 Self Rescuer

CSE Corporation 1001 Corporate Lane Export, PA 15632 1-800-245-2224 SR2000 Escape Breathing Device User Guide UMSR2000FCC1A CSE SR2000 User Guide 2 Approved March 5, 2015 DO NOT REMOVE OR DISCARD THIS PAGE CSE Corporation Committed to Safety Excellence When you need training or safety information, contact us at: • 1‐800‐245‐2224 • www.csecorporation.com ⚠ WARNING Read this guide. Failure to follow the instructions inside may result in death or serious bodily injury. © 2015 CSE Corporation Printed in U.S.A. March 5, 2015 3 CSE SR2000 User Guide Approved March 5, 2015 DO NOT REMOVE OR DISCARD THIS PAGE Contents Service Life Plan 4 Summary 5 How the SR2000 Works 5 Inspection 7 Battery Replacement 13 Disposal 15 Regulatory Information 15 Key ⚠ DANGER Indicates a hazardous situation that, if not avoided, will result in death or serious injury. ⚠ WARNING Indicates a hazardous situation that, if not avoided, could result in death or serious injury. ⚠CAUTION Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. TIP Indicates a helpful suggestion; not a hazardous situation. GUIDANCE Indicates detailed procedure steps. CSE SR2000 User Guide 4 Approved March 5, 2015 DO NOT REMOVE OR DISCARD THIS PAGE Service Life Plan The service life of any SR2000 unit is 10 years from its date of manufacture, as long as its owner carries out the recommended service life plan. The SR2000 plan specifies 2 requirements: • Inspection: Follow the instructions on Page 7. • Battery Replacement: Follow the instructions on Page 13. The plan applies to all SR2000 units, whether they are carried or cached. Service Life Plan Definitions Cached Stored for emergency use in a designated locker or space in a mine. Carried Worn by a miner on the job, or stored on mobile equipment in a mine. Date of Manufacture The date a unit was assembled. Stamped on the unit’s stainless‐steel security band (for example, “MFG 01/01/16”). Owner The mining company or operator responsible for purchasing, inspecting, and maintaining safety equipment. 5 CSE SR2000 User Guide Approved March 5, 2015 DO NOT REMOVE OR DISCARD THIS PAGE Summary ⚠ WARNING Miners must visually inspect their assigned SR2000 units at the beginning of every shift. ⚠ WARNING Only trained personnel may perform SR2000 90‐day inspections or approve SR2000 units for use. Miners need gear they can trust. But a mine is a harsh environment that can damage even the most rugged safety equipment. That’s why miners—and mine operators—must constantly make sure that every escape breathing device, like the SR2000, is in good condition. This guide shows you: • How the SR2000 works • How to inspect it so you can uncover problems before an emergency strikes, and • How to handle it responsibly from the time you purchase it until the end of its service life. How the SR2000 Works Unlike oxygen tanks or SCUBA‐type equipment, the SR2000 self‐rescuer is compact and simple to operate. It recycles the air you breathe, absorbing toxic carbon dioxide (CO 2 ) and generating the natural oxygen (O 2 ) you need. During start‐up, before your breath has activated this process, your SR200 supplies you with oxygen from a small onboard cylinder. When the SR2000 is operating, you breathe in a safe, closed, air‐tight loop: • As you exhale, air flows through your mouthpiece and breathing hose to the parts that absorb CO 2 and generate oxygen. • As you inhale, oxygen‐rich air flows back through the breathing hose and into your lungs. • Your mouthpiece and nose clamp seal the good air in and keep the smoke or toxic gases out. The SR2000’s onboard VitalCheck system monitors the unit’s condition constantly. On an unopened SR2000, a flash of light in the inspection window once every 6 to 10 seconds tells you that: • The onboard starter oxygen supply is OK. • The parts inside that remove CO 2 and generate oxygen are OK. • The unit has not outlived its service life. The system reports a problem (the case may have been opened, moisture or debris may have entered the case, or components may have been damaged or used up) by switching off the light. CSE SR2000 User Guide 6 Approved March 5, 2015 DO NOT REMOVE OR DISCARD THIS PAGE A slow‐flashing light (about once every 60 seconds) tells you the VitalCheck system batteries are low and should be replaced as soon as possible. The unit is still usable in slow‐flashing mode. Safety Personnel ⚠ WARNING If an SR2000 fails a daily or 90‐day inspection (see Page 7), take it out of service right away. Miners ⚠ WARNING If you carry an SR2000, you must inspect it as shown on Page 7 before every shift. ⚠ WARNING Never carry or try to use an SR2000 that shows no flashing VitalCheck light. ⚠ WARNING Never use an SR2000 that has been opened, that has failed inspection, or that has been taken out of service. ⚠ WARNING Once an SR2000 is unsealed or opened in any way, think of it as used up. Follow your workplace procedure for handling units that are used up or do not pass inspection. ⚠ WARNING Keep your SR2000 and its pouch clean enough for easy inspection, but: • Never clean it by immersing it in water • Never pressure‐wash it or clean it with petroleum‐based solvents. Trainers ⚠ WARNING In training classes and exercises, never use an SR2000 that has been unsealed or opened, that has failed inspection, or that has been taken out of service. Train Realistically, Train Safely Never use an SR2000 that has been opened, that has failed inspection, or that has been taken out of service, as a training device. For safe, realistic training, CSE has developed a family of devices that simulate the SR2000 experience. Find out more about our training devices by calling 800‐245 ‐2224, or visiting csecorporation.com. TIP The buddy system helps keep every miner safe. If you see a problem with another miner’s gear, tell him about it right away. 7 CSE SR2000 User Guide Approved March 5, 2015 DO NOT REMOVE OR DISCARD THIS PAGE Inspection By law, inspecting an escape brea…

Text truncated - open the document above for the full version.

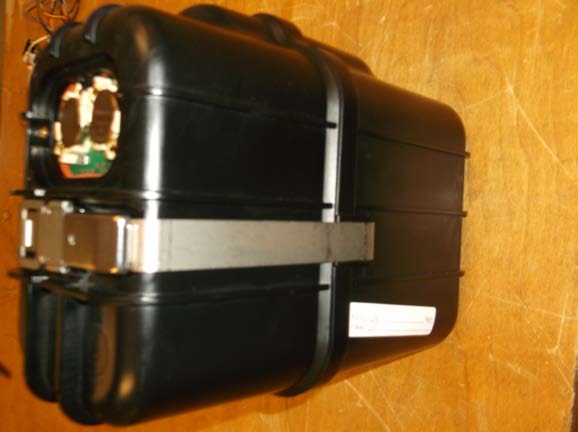

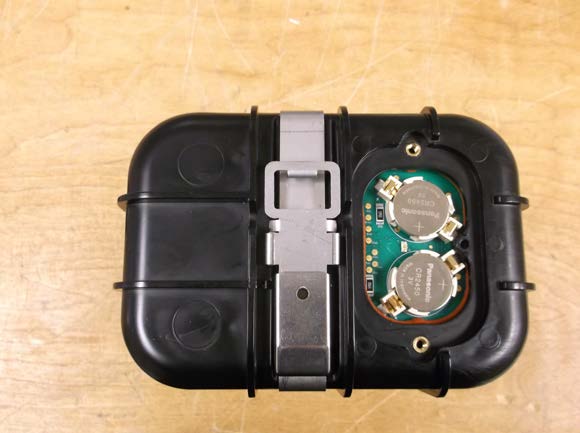

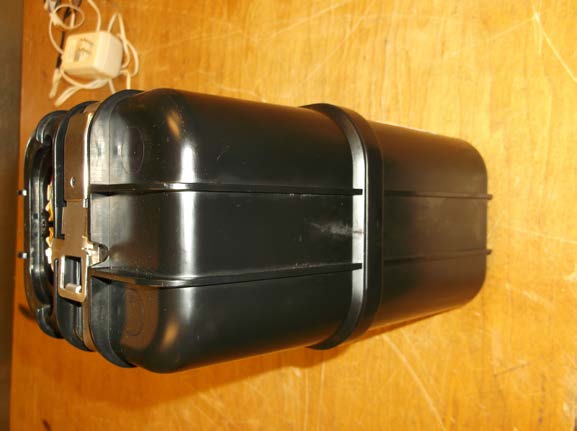

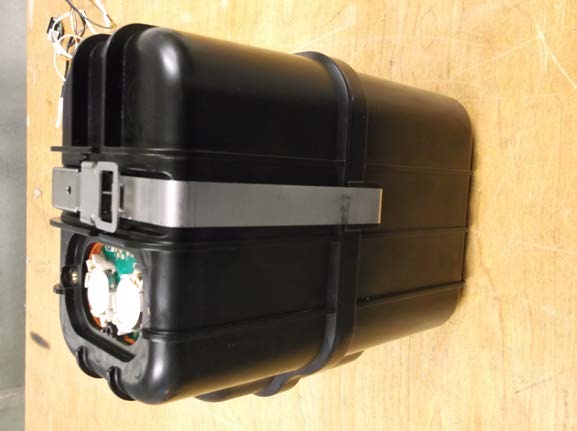

INTERNAL PHOTOGRAPHS CSE International SR2000 Page 1 of 3 INTERNAL PHOTOGRAPHS CSE International SR2000 Page 2 of 3 INTERNAL PHOTOGRAPHS CSE International SR2000 Page 3 of 3

3 3 4 A B 1 A 2 BC D 4 D 2 C 1 3.25 1.20 DRAWING NUMBER LABEL, FCC APPROVAL, SR2000 0.00 FINISH U\M MATERIAL SEE NOTES ECN: CEM 4/6/2015 1 4/6/2015 APPR. CHEC. 1. B SIZE DRAW. C OF REV N / A SHEET DESCRIPTION PERMISSION FROM CSE CORPORATION. 4/6/2015 MKS P/N Q153003001053 Weight: g DJR 1463 FILE NAME Monroeville, PA USA English .XX ± .02 .XX ± .3 MATERIAL: POLYESTER STOCK WITH ADHESIVE BACK WEIGHT Angles: Decimals IN NOTES: .XXX ± .005 MM 217265100910_C.sldddrw Angles: ±1° .X ± .1 Weight: lbs Decimals 1 ±1° TOLERANCING .XXX ± .10 .X ± 1.0 CONFIDENTIAL: THESE DRAWINGS AND SPECIFICATIONS ARE THE SOLE PROPERTY OF CSE CORPORATION AND SHALL NOT BE COPIED, REPRODUCED, OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS OR DEVICES WITHOUT WRITTEN 217265100910 FCC ID: 2ADSZ-12122014 undesired operation. IC: 12437A-12122014 CSE CORPORATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause MODEL: SR2000

INTERNAL PHOTOGRAPHS CSE International SR2000 Page 1 of 4 INTERNAL PHOTOGRAPHS CSE International SR2000 Page 2 of 4 INTERNAL PHOTOGRAPHS CSE International SR2000 Page 3 of 4 INTERNAL PHOTOGRAPHS CSE International SR2000 Page 4 of 4

021414 Report Number: F2LQ6381-01E Rev. 1 Page 1 of 35 Issue Date: Apr. 20, 2015 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturer: CSE Corporation 800 Seco Road Monroeville, Pennsylvania 15146 United States of America Applicant: Same As Above Product: Mine Safety Tag Model: SR2000 FCC ID: 2ADSZ-12122014 Testing Commenced: Dec. 10, 2014 Testing Ended: Dec. 10, 2014 Summary of Test Results: Page 5 Standards:  FCC Part 15 Subpart C, Section 15.249  FCC Part 15 Subpart C, Section 15.215(c) – Additional provisions to the general radiated emission limitations  FCC Part 15 Subpart A, Section 15.31(e) – Measurement Standards Order Number: F2LQ6381 Client: CSE International Model: SR2000 021414 Report Number: F2LQ6381-01E Rev. 1 Page 2 of 35 Issue Date: Apr. 20, 2015 Evaluation Conducted by: Joe Knepper, EMC Proj. Eng. Report Reviewed by: Ken Littell, EMC Tech. Mgr. F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road Damascus, MD 20872 Middlefield, OH 44062 Ph 301.253.4500 Ph 440.632.5541 Fax 301.253.5179 Fax 440.632.5542 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order Number: F2LQ6381 Client: CSE International Model: SR2000 021414 Report Number: F2LQ6381-01E Rev. 1 Page 3 of 35 Issue Date: Apr. 20, 2015 TABLE OF CONTENTS Section Title Page 1 ADMINISTRATIVE INFORMATION 4 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 4 3 TABLE OF MEASURED RESULTS 5 4 ENGINEERING STATEMENT 6 5 LIST OF MEASUREMENT INSTRUMENTATION 7 6 EUT INFORMATION AND DATA 8 7 FCC Part 15.215(c) – 20dB OCCUPIED BANDWIDTH 10 8 FCC Part 15.249(a)(d) – FIELD STRENGTH OF EMISSIONS 14 9 PHOTOS/EXHIBITS – PRODUCT PHOTOS, TEST SETUPS 35 Order Number: F2LQ6381 Client: CSE International Model: SR2000 021414 Report Number: F2LQ6381-01E Rev. 1 Page 4 of 35 Issue Date: Apr. 20, 2015 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to the 2009 version of ANSI C63.4 and recommended FCC procedure of measurement of DTS operating under Section 15.249. A list of the measurement equipment can be found in Section 6. 1.3 Uncertainty Budget: Radiated Emission • Combined Uncertainty (+ or -) 2.67 dB • Expanded Uncertainty (+ or -) 5.35 dB Conducted Emissions • Combined Uncertainty (+ or -) 1.88 dB • Expanded Uncertainty (+ or -) 3.75 dB This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 1.4 Document History: Document Number Description Issue Date Approved By F2LQ6381-01E First Issue Dec. 22, 2014 K. Littell F2LQ6381-01E Rev. 1 Modification of Correction Factors Apr. 20, 2015 K. Littell Order Number: F2LQ6381 Client: CSE International Model: SR2000 021414 Report Number: F2LQ6381-01E Rev. 1 Page 5 of 35 Issue Date: Apr. 20, 2015 2 SUMMARY OF TEST RESULTS Test Name Standard(s) Results -20dB Occupied Bandwidth CFR 47 Part 15.215(c) Complies Field Strength of Emissions CFR 47 Part 15.249(a)(d) Complies Modifications Made to the Equipment None Order Number: F2LQ6381 Client: CSE International Model: SR2000 021414 Report Number: F2LQ6381-01E Rev. 1 Page 6 of 35 Issue Date: Apr. 20, 2015 3 TABLE OF MEASURED RESULTS Test High Channel 926 MHz Mid Channel 914 MHz Low Channel 904 MHz Quasi-Peak Field Strength of Fundamental 92.5 dBμV/m 90.5 dBμV/m 91.5 dBμV/m Quasi-Peak Limit for Fundamental (94dBuV/m) (94dBuV/m) (94dBuV/m) -20dB Occupied Bandwidth 512.9 510.95 519.448 The 20 dB bandwidth of the emission shall be contained within the frequency band designated in the rule section under which the equipment is operated. Order Number: F2LQ6381 Client: CSE International Model: SR2000 021414 Report Number: F2LQ6381-01E Rev. 1 Page 7 of 35 Issue Date: Apr. 20, 2015 4 ENGINEERING STATEMENT This report has been prepared on behalf of CSE International to provide documentation for the testing described herein. This equipment has been tested and found to comply with part 15.249 of the FCC Rules using ANSI C63.4 2009 standard. The test results found in this test report relate only to the items tested. Order Number: F2LQ6381 Client: CSE International Model: SR2000 021414 Report Number: F2LQ6381-01E Rev. 1 Page 8 of 35 Issue Date: Apr. 20, 2015 5 EUT INFORMATION AND DATA 5.1 Equipment Under Test: Product: Safety Mine Tag Model: SR2000 Serial No.: None Specified FCC ID: 2ADSZ-12122014 5.2 Trade Name: CSE International 5.3 Power Supply: Battery-operated 5.4 Applicable Rules: CFR 47, Part 15.249 5.5 Equipment Category: Radio Transmitter-DTS 5.6 Antenna: Integral Antenna 5.7 Accessories: N/A 5.8 Test Item Condition: The equipment to be tested was received in good condition. 5.9 Testing Algorithm: EUT was set up in a normal testing manner, powered by a new battery. EUT transmitted at high, mid and low frequencies. Order Number: F2LQ6381 Client: CSE International Model: SR2000 021414 Report Number: F2LQ6381-01E Rev. 1 Page 9 of 35 Issue Date: Apr. 20, 2015 6 LIST OF MEASUREMENT INSTRUMENTATION Equipment Type Asset Number Manufacturer Model Serial Number Calibration Due Date Shield Room 0175 Ray Proof N/A 11645 Verified Temp/Hum. Recorder CL137 Extech RH520 CH16992 May 5, 2015 OATS-3m CL017 Compliance Labs N/A 001 Dec. 13, 2014 Spectrum Analyzer CL138 Agilent Technologies E4407B US41192779 Nov. 17, 2015 Receiver CL151 Rohde & Schwarz ESU40 100319 Nov. 12, 2015 Antenna 1-Chamber 0142 ETS/EMCO 3142B 9811-1330 Verified Antenna 2-OATS 0105 Sunol Sciences JB1 A101101 May 7, 2015 Pre-Amplifier CL045 Hewlett-Packard 8447D 2944A08445 Nov. 15, 2015 Horn Antenna CL098 Emco 3115 9809-5580 Dec. 3, 2015 Pre-Amplifier CL045 Hewlett-Packard 8447D 2944A08445 Nov. 15, 2015…

Text truncated - open the document above for the full version.

F2LQ6381 Page 1 of 1 Dec. 22, 2014 PHOTOGRAPHS: TEST SETUP CSE International SR2000 Radiated Spurious Emissions, Occupied Bandwidth Pre-scan
