2ADTHHTTPHL001HUB LIGHT

Button UPS009001DC5V Remote Control Instruction Manual Product Overview This product is a radio device that enables remote control by switching the product's light source on/off and adjusting its brightness via wireless signals. 1.Product Parameters Size: φ46.8*18.15 Frequency: 433.91MHz Battery: CR2016 3V*2 Operating T emperature: -10°C-40°C 2.Product Operation Instructions °C Press the button to switch the product's light on or off. °C Press the button continuously to adjust the product's light to three levels of brightness. °C Press the button finally to turn off the product's light. 3.Instructions for Replacing the Battery ①Twist the upper casing of the remote control until it comes off. ②Find the battery installation position inside the half-shell of the product, and remove and replace the battery. 4.Product Safety Precautions Keep the device dry. Do not knock, drop or shake the device; rough handling may damage the internal circuit board. Do not swallow the battery, as there is a risk of chemical burns. This product contains a button battery. If a button battery is swallowed, it can cause severe internal burns in as little as two hours and may even lead to death. Keep both new and old batteries out of the reach of children. If the product box is not tightly closed, stop using this product. Replacing with a battery of incorrect model may cause damage to the product. Throwing the battery into fire or a high-temperature furnace, or crushing or cutting the battery by mechanical means, may cause an explosion. Storing the battery in an extremely high-temperature environment may cause an explosion or leakage of flammable liquid (gas).（Withstand temperature --20°C-60°C） Batteries under extremely low air pressure may cause an explosion or leakage of flammable liquid (gas).（Withstand temperature --20°C-60°C） FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF exposure statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Déclaration de conformité FCC Le présent appareil est conforme à la partie 15 des règles de la FCC (Federal Communications Commission). Son fonctionnement est soumis à deux conditions suivantes : (1) l’appareil ne doit pas provoquer de perturbations nuisibles ; (2) l’appareil doit accepter toute perturbation reçue, y compris celles susceptibles de entraîner un fonctionnement non souhaité. Cet équipement a été testé et s’est avéré conforme aux limites applicables aux appareils numériques de Classe B, conformément à la partie 15 des règles de la FCC. Ces limites sont conçues pour offrir une protection raisonnable contre les perturbations nuisibles dans un environnement résidentiel. Cet équipement génère, utilise et peut é mettre de l’énergie radiofréquence ; s’il n’est pas installé et utilisé conformément aux instructions, il peut causer des perturbations nuisibles aux communications radio. Toutefois, il n’existe aucune garantie qu’aucune perturbation ne se produira dans une installation particulière. Si cet équipement cause effectivement des perturbations nuisibles à la réception radio ou télévision (ce qui peut être vérifié en l’éteignant puis en le rallumant), l’utilisateur est invité à tenter de corriger la perturbation au moyen d’une ou plusieurs des mesures suivantes : Réorienter ou déplacer l’antenne de réception ; Augmenter la distance entre l’équipement et le récepteur ; Brancher l’équipement sur une prise de courant appartenant à un circuit différent de celui du récepteur ; Consulter le revendeur ou un technicien radio/télévision expérimenté pour obtenir de l’ aide. Avertissement FCC : Toute modification ou altération non expressément approuvée par la partie responsable de la conformité peut annuler le droit de l’utilisateur à exploiter l’équipement. Déclaration d’exposition aux radiofréquences FCC : L’appareil a été évalué et satisfait aux exigences générales en matière d’exposition aux radiofréquences. Il peut être utilisé en mode portable sans aucune restriction. Innovation, Science and Economic Development (ISED) Canada Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’…

Text truncated - open the document above for the full version.

Company: PHAETON MANUFACTURING LLC. Add.: 69 South Jinshajiang Road, Economic Development District, Nantong City, Jiangsu Province, China Tel: 86-513-84262999 Fax: 86-513-84262999 E-mail: [email protected] Attestation Letter Date: 2025-09-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911 ((d)(5)(i)(ii) Filing FCC ID: 2ADTHHTTPHL001 PHAETON MANUFACTURING LLC. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. PHAETON MANUFACTURING LLC. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. PHAETON MANUFACTURING LLC. (“the applicant”) certifies that the equipment does not use Kaspersky's software information. Sincerely, Signature: Contact Person: gui guangcai Title: Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2025-11-19 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2ADTHHTTPHL001 PHAETON MANUFACTURING LLC. certifies that, as of the date of the filing of the application, Iconsigh is our designated U.S. agent for service of process for the above referenced FCC ID. PHAETON MANUFACTURING LLC. accepts to maintain an agent f or no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process f or the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Address: 2310 Homestead Road, Suite C1, Los Altos, CA 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: PHAETON MANUFACTURING LLC. Address: 69 South Jinshajiang Road, Economic Development District, Nantong City, Jiangsu Province, China FRN: 0024149965 Tel: 86-513-84262999 Email: [email protected] Signed by (printed name): g ui guangcai Signature:

Company: PHAETON MANUFACTURING LLC. Add.: 69 South Jinshajiang Road, Economic Development District, Nantong City, Jiangsu Province, China Tel: 86-513-84262999 Fax: 86-513-84262999 E-mail: [email protected] FCC Authorization Date: 2025-09-19 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, PHAETON MANUFACTURING LLC., hereby authorizes Bay Area Compliance Laboratories Corp. (Kunshan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Kunshan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature: Print Name: gui guangcai Title: Manager QA-FR-17 0-B

Company: PHAETON MANUFACTURING LLC. Add.: 69 South Jinshajiang Road, Economic Development District, Nantong City, Jiangsu Province, China Tel: 86-513-84262999 Fax: 86-513-84262999 E-mail: [email protected] FCC Confidential Authorization Date: 2025-09-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ADTHHTTPHL001 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, PHAETON MANUFACTURING LLC. hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printer Name: gui guangcai Title: Manager QA-FR-171-A

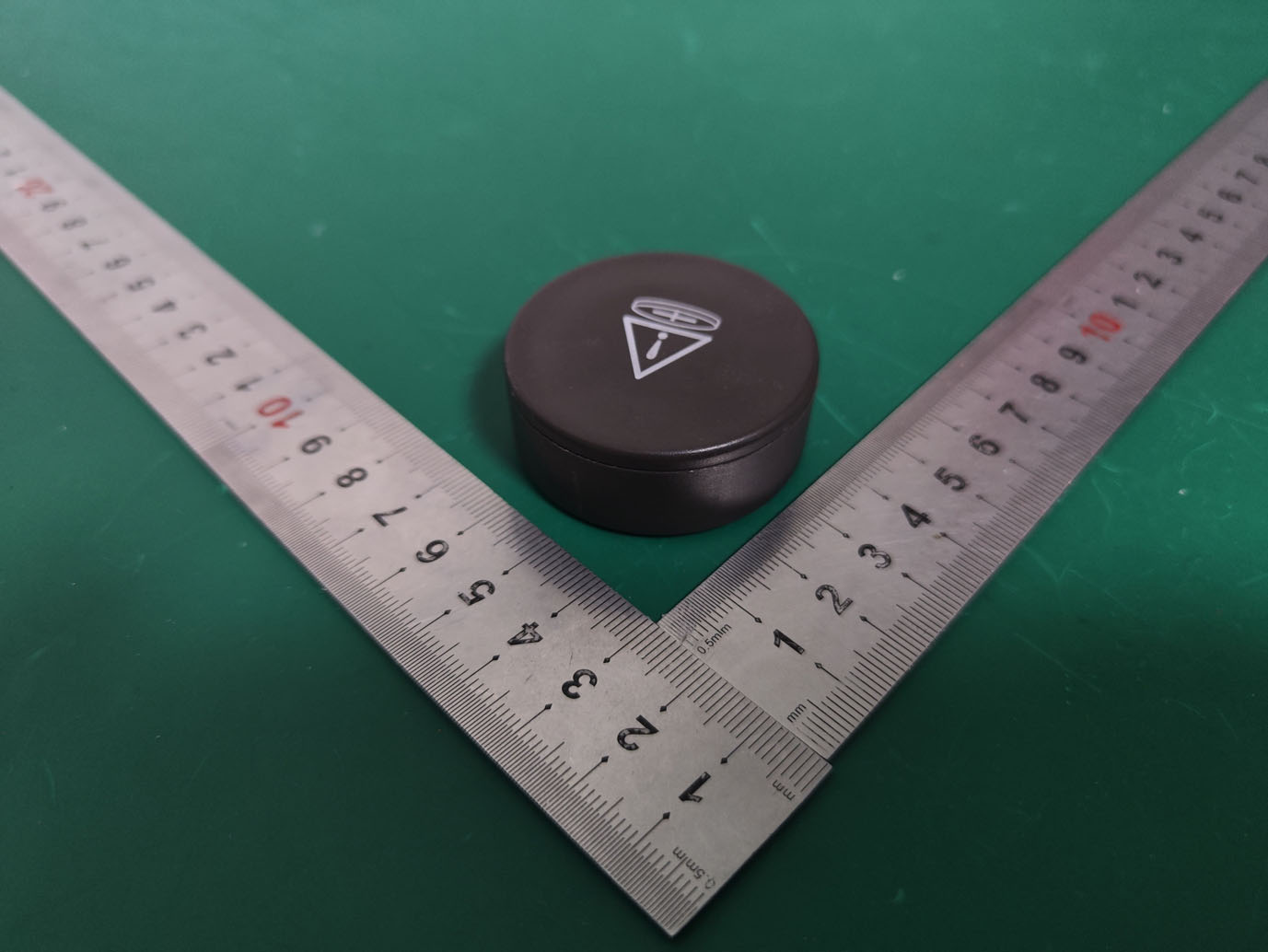

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB250919001 1 / 1 EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS

Model:UPS009001DC5V FCC ID : 2ADTHHTTPHL001 38mm 11mm

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB250919001 1 / 3 EXHIBIT B - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB250919001 2 / 3 Antenna Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB250919001 3 / 3

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250919001-00B Page 17 of 26 RF EXPOSURE EVALUATION Applicable Standard §1.1307(b)(3)(i) For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A). Frequency (MHz) Maximum EIRP (dBm) Maximum EIRP mW 1-mW Test Exemption 433.91 -20.33 0.009 Compliant Note: 1. Chose the maximum power to do RF exposure evaluation analysis. 2. This device maximum E-Field level is 74.87 dBμV/m at 3m, so the EIRP power is -20.33 dBm. 3. P out EIRP (dBm) = Field Strength of Fundamental (dBμV/m)-95.2 for d=3m. Result: Compliant. RF Exposure is exemption.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, or any agency of the U.S.Government. FCC PART 15.231 TEST REPORT For PHAETON MANUFACTURING LLC. 69 South Jinshajiang Road, Economic Development District, Nantong City, Jiangsu Province, China FCC ID: 2ADTHHTTPHL001 Report Type: Original Report Product Name: HUB LIGHT Report Number: RKSB250919001-00B Report Date: 2025-10-28 Reviewed By: Bard Liu Approved By: Kyle Xu Test Laboratory: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu province, China Tel: +86-512-86175000 Fax: +86-512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250919001-00B Page 2 of 26 TABLE OF CONTENTS REPORT REVISION HISTORY................................................................................................................................. 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 JUSTIFICATION ............................................................................................................................................................. 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE.................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.203 - ANTENNA REQUIREMENT............................................................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTED CONSTRUCTION .................................................................................................................... 10 FCC §15.205, §15.209, §15.231 (B) - RADIATED EMISSIONS ............................................................................. 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST SYSTEM SETUP .................................................................................................................................................. 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST RESULTS SUMMARY .......................................................................................................................................... 14 TEST DATA: SEE APPENDIX ....................................................................................................................................... 14 FCC §15.231(A) (2) - DEACTIVATION TESTING................................................................................................. 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST SYSTEM SETUP .................................................................................................................................................. 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST DATA: SEE APPENDIX ....................................................................................................................................... 15 FCC §15.231(C) - 20DB EMISSION BAND…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB250919001 1 / 3 EXHIBIT C - TEST SETUP PHOTOGRAPHS Radiated Emissions-Ground-parallel View (Below 30 MHz) Radiated Emissions-Perpendicular View (Below 30 MHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB250919001 2 / 3 Radiated Emissions-Parallel View (Below 30 MHz) Radiated Emissions (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB250919001 3 / 3 Radiated Emissions (Above 1 GHz)
