2ADTV-A801-47Bluetooth Headset

Bluetooth Headset Quick Start Guide Let's Get Started!On/O & Pairing Get to Know Your Wireless Earbuds Charge Your EarphonesCarlcare provides service Take a Clear Phone Call Enjoy Your Music 1. Earphones x1 pair 2. Charging case x1 3. Eartips x3 pairs, M size installed 4. Micro-USB charging cable x1 5. Quick Start Guide What’s in the Box? Check to make sure you have everything below 04 05 0302 01 12 345 1)Model : A801-12 2)Speaker Diameter : 5.8mm 3)Speaker Impedance : 32±15% 4)Sensitivity MEMS Mic : -38dB 5)Speaker Driver Rating Power: 2mW 6)Charging Cable : 23cm 7)12 hours of total playtime (with charging case) 8)IPX5 waterproof rating applies to the earphones, not to the charging case. Take them out Power On automatically & connect to last paired device Android users can further increase volume by pressing right side earphone two times even if your device is at maximum volume. Drop them back and close the charging case, Power O automatically & disconnect to paired device x1 Press Each Side Play / Pause x3 Press Each Side Siri / Google Assistant Press & Hold Previous Track x2 Press Decrease Volume x2 Press Increase Volume x2 Press Decrease Volume x2 Press Increase Volume Press & Hold Each Side Reject Incoming Call x1 Press Each Side Answer x1 Press Each Side Hangup Earphones charging Case charging About 2.5 hours 5V 0.5A For the first time use, open the charging case cover, earphones will go to pairing mode automati- cally, connect your device by searching for "Keenpuds2" If you want to pair with another device, please turn Bluetooth o on your last paired device if it is nearby, then open the charging case cover for pairing. Press & Hold Each Side for Power On/O (If you are carrying the earphones without charging case) 4s Press & Hold Next Track 2s 2s 2s WARRANTY CERTIFICATE Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 380±2mm 95±1mm 108±1mm When the charging case is fully charged, 3 LED lights will be on. L earphone charging : Left side LED light is blinking white R earphone charging : Right side LED light is blinking white L or R earphone fully charged : The white blinking LED light will be o

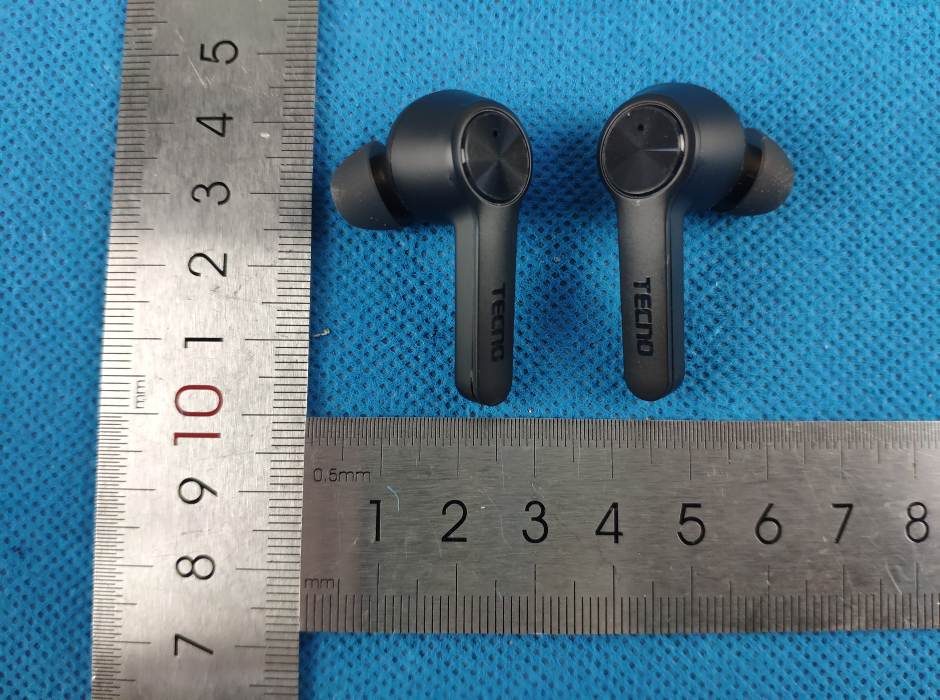

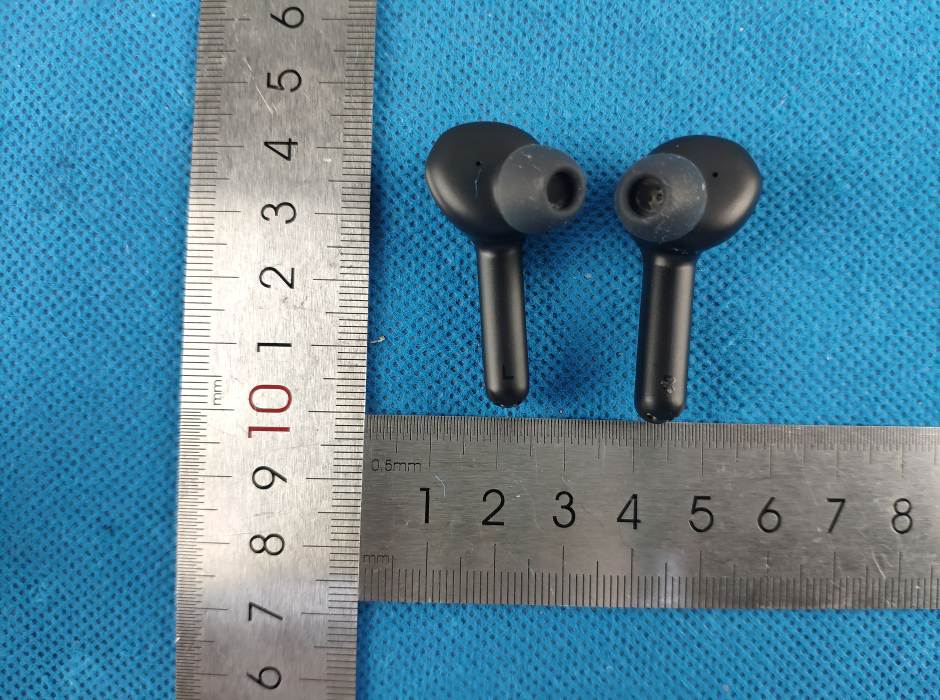

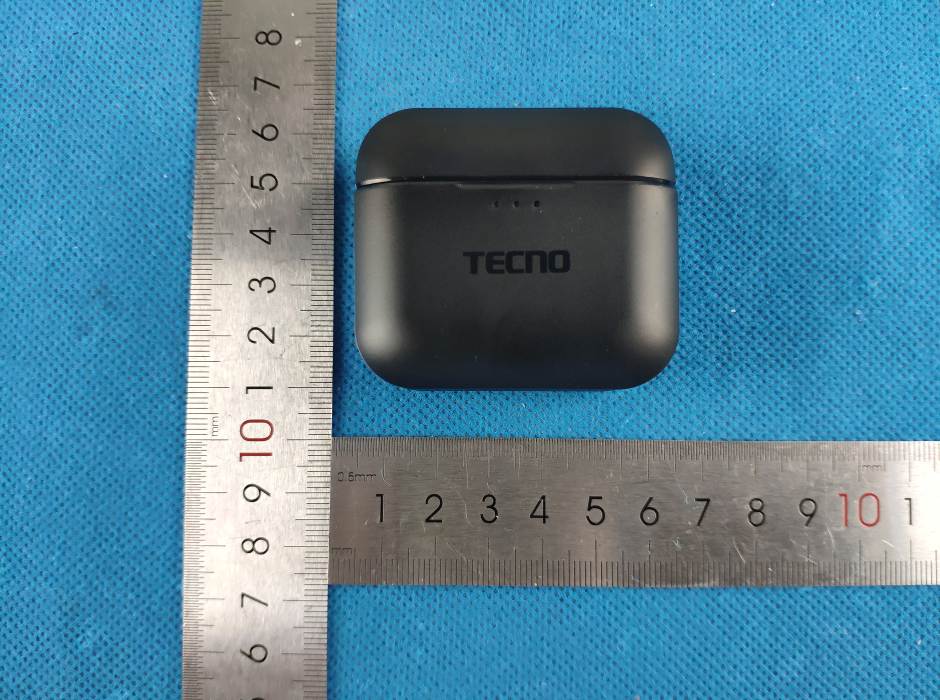

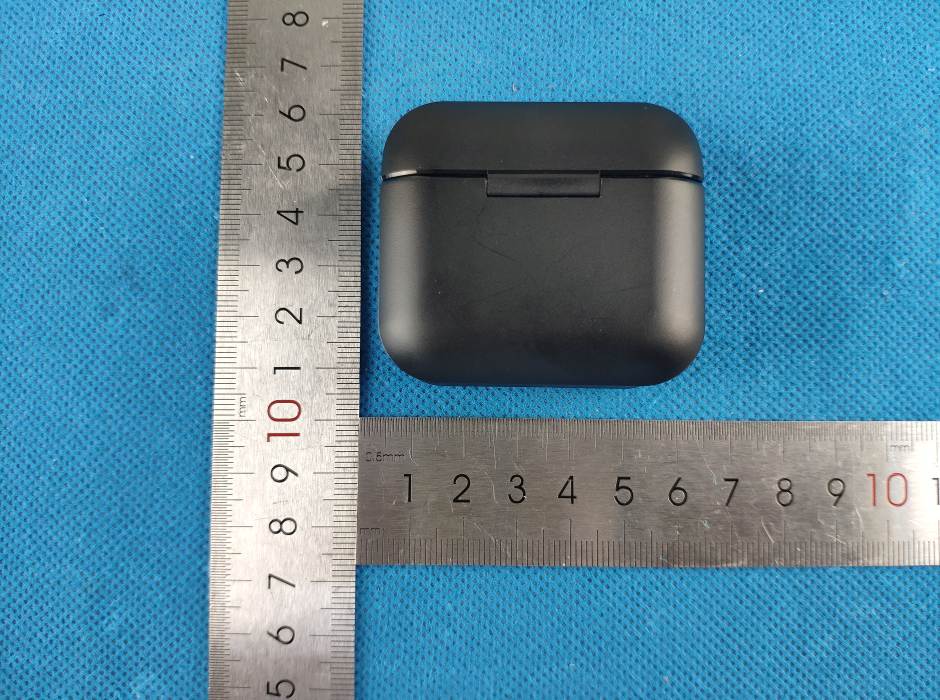

- Page 1 of 8 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China APPENDIX 1: EUT PHOTO Photo 1 (For model A801-12) Photo 2 - Page 2 of 8 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 - Page 3 of 8 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 5 Photo 6 - Page 4 of 8 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 7 Photo 8 - Page 5 of 8 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 9 Photo 10 - Page 6 of 8 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 11 Photo 12 - Page 7 of 8 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 13 Photo 14 - Page 8 of 8 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 15 ----END OF REPORT----

Shenzhen Cannice Technology Co., Ltd. version02 5/26/2020 Dear Sirs: We hereby declare that because the earphone size is too small, the FCC ID number is printed on the charging box, hereby declare. FCC ID: 2ADTV-A801-47 Sincerely, Signature: Name: Ankey Wu Title: / Company: Shenzhen Cannice Technology Co., Ltd.

- Page 1 of 5 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China APPENDIX 1: EUT PHOTO Photo 1 (For model A801-12) Photo 2 - Page 2 of 5 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 - Page 3 of 5 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 5 Photo 6 BT Antenna - Page 4 of 5 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 7 Photo 8 - Page 5 of 5 - Report No.: MTi20022716-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 9 ----END OF REPORT----

version01 Shenzhen Cannice Technology Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: A801-12 FCC ID: 2ADTV-A801-47 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Internal Antenna antenna type(s) described below: Model No. of antenna: N/A Type of antenna: FPC Antenna Gain of the antenna: -1.46 dBi Frequency range: 2402~2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Cannice Technology Co., Ltd. Address: 20/F, Tower A, Building 7, Baoneng Science and Technology Park, Qingxiang Road #1, Longhua New District, City: Shenzhen ZIP / Postal code: N/A Country: China Contact: Ankey Wu Date: 4/29/2020 Signature:

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China RF EXPOSURE REPORT FCC ID:2ADTV-A801-47 Date of issue: Apr. 15, 2020 Report Number: MTi20022716-7E2 Sample Description: Bluetooth Headset Model(s): A801-12 Applicant: ShenZhen Cannice Technology Co., Ltd. Address: 20/F, Tower A, Building 7,Baoneng Science and Technology Park, Qingxiang Road #1,Longhua New District, Shenzhen, China Date of Test: Apr. 03, 2020 to Apr. 15, 2020 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 4- Report No.: MTi20022716-7E2 TEST RESULT CERTIFICATION Applicant’s name: ShenZhen Cannice Technology Co., Ltd. Address: 20/F, Tower A, Building 7, Baoneng Science and Technology Park, Qingxiang Road #1, Longhua New District, Shenzhen, China Manufacture's name: ShenZhen Cannice Technology Co., Ltd. Address: 20/F, Tower A, Building 7, Baoneng Science and Technology Park, Qingxiang Road #1, Longhua New District, Shenzhen, China Product name: Bluetooth Headset Model and/or type reference: A801-12 Serial Model: N/A RF Exposure Procedures: KDB 447498 D01 v06 This device described above has been tested by Shenzhen Microtest Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Tested by: Danny Xu Apr. 15, 2020 Reviewed by: Leo Su Apr. 15, 2020 Approved by: Tom Xue Apr. 15, 2020 - Page 3 of 4- Report No.: MTi20022716-7E2 1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance defined in 4.1 f) is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified, typically in the SAR measurement or SAR analysis report, by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting are required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions. a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where  f (GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison  The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. b) For 100 MHz to 6 GHz and test separation distances > 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following (also illustrated in Appendix B): 1) {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·(f(MHz)/150)]} mW, for 100 MHz to 1500 MHz 2) {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·10]} mW, for > 1500 MHz and ≤ 6 GHz c) For frequencies below 100 MHz, the following may be considered for SAR test exclusion (also illustrated in Appendix C): 1) For test separation distances > 50 mm and < 200 mm, the power threshold at the corresponding test separation distance at 100 MHz in step b) is multiplied by [1 + log(100/f(MHz))] 2) For test separation distances ≤ 50 mm, the power threshold determined by the equation in c) 1) for 50 mm and 100 MHz is multiplied by ½ 3) SAR measurement procedures are not established below 100 MHz. - Page 4 of 4- Report No.: MTi20022716-7E2 When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any SAR test results below 100 MHz to be acceptable. 2. SAR Test Exclucsion Thresholds We use 5mm as separation distance to calculated. Bluetooth DSS: Transmit Frequenc y (GHz) Mode Measured Power (dBm) Tune-up power (dBm) Max tune- up Result 1g SAR power(dBm) calculation 2.402 GFSK 2.749 3±1 4 0.7786 3 2.441 3.284 3±1 4 0.7849 3 2.480 2.057 3±1 4 0.7911 3 2.402 π/4-DQPSK 3.852 3.5±1 4.5 0.8736 3 2.441 4.221 3.5±1 4.5 0.8807 3 2.480 2.967 3.5±1 4.5 0.8877 3 2.402 8DPSK 4.236 4±1 5 0.9802 3 2.441 4.518 4±1 5 0.9881 3 2.480 4.197 4±1…

Text truncated - open the document above for the full version.

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102 A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Test Report FCC ID:2ADTV -A801-47 Date of issue: Apr. 15, 2020 Report number: MTi20022716-7E1 Sample description: Bluetooth Headset Model(s):A801-12 Applicant: ShenZhen Cannice Technology Co., Ltd. Address: 20/F, Tower A, Building 7,Baoneng Science and Technology Park, Qingxiang Road #1, Longhua New District, Shenzhen, China Date of test: Apr. 03, 2020 to Apr. 15, 2020 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 63 - Report No.: MTi20022716-7E1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Table of Contents 1 GENERAL INFORMATION ....................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................... 5 1.2 OPERATION CHANNEL LIST .............................................................................................................................................. 5 1.3 TEST CHANNEL LIST ....................................................................................................................................................... 6 1.4 ANCILLARY EQUIPMENT LIST ........................................................................................................................................... 6 1.5 DESCRIPTION OF SUPPORT UNITS .................................................................................................................................... 6 2 SUMMARY OF TEST RESULTS ................................................................................................................................. 7 3 TEST FACILITIES AND ACCREDITATIONS .................................................................................................................. 8 3.1 TEST LABORATORY ........................................................................................................................................................ 8 3.2 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 3.3 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 8 3.4 TEST SOFTWARE ........................................................................................................................................................... 8 4 EQUIPMENT LIST .................................................................................................................................................. 9 5 TEST RESULT ....................................................................................................................................................... 10 5.1 ANTENNA REQUIREMENT ............................................................................................................................................. 10 5.1.1 Standard requirement ....................................................................................................................................... 10 5.1.2 EUT antenna ..................................................................................................................................................... 10 5.2 PEAK OUTPUT POWER ................................................................................................................................................. 11 5.2.1 Limit .................................................................................................................................................................. 11 5.2.2 Test setup .......................................................................................................................................................... 11 5.2.3 Test procedure ................................................................................................................................................... 11 5.2.4 Test results ........................................................................................................................................................ 11 5.3 CONDUCTED EMISSION ................................................................................................................................................ 18 5.3.1 Limits ................................................................................................................................................................. 18 5.3.2 Test setup .......................................................................................................................................................... 18 5.3.3 Test procedure ................................................................................................................................................... 19 5.3.4 Test results ........................................................................................................................................................ 19 5.4 RADIATED SPURIOUS EMISSION ...................................................................................................................................... 20 5.4.1 Limits ...............................................................................................................................…

Text truncated - open the document above for the full version.

Model: A801-12 Radiated emission
