2ADTV-S1Bluetooth Speaker

4
*/4536$5*0/ S1 S1 S1 N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In order to comply with RF exposure requirements, a minimum all persons distance of 5mm must be maintained between the antenna and

Shenzhen Cannice Technology Co., Ltd. 5F, B Building, Weiyulong Industrial Park,16# North Xuegang Rd., Bantian Town,Longgang District,Shenzhen,China TEL: 0755-82815261 FAX: 0755-82815261 Date (25/04/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2ADTV-S1 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Shenzhen Cannice Technology Co., Ltd. hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1.Schematics 2.Bill of Materials/Parts List 3.Block Diagrams 4.Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Daniel Zheng/Manager Telephone Number: 0755-82815261 Email: [email protected]

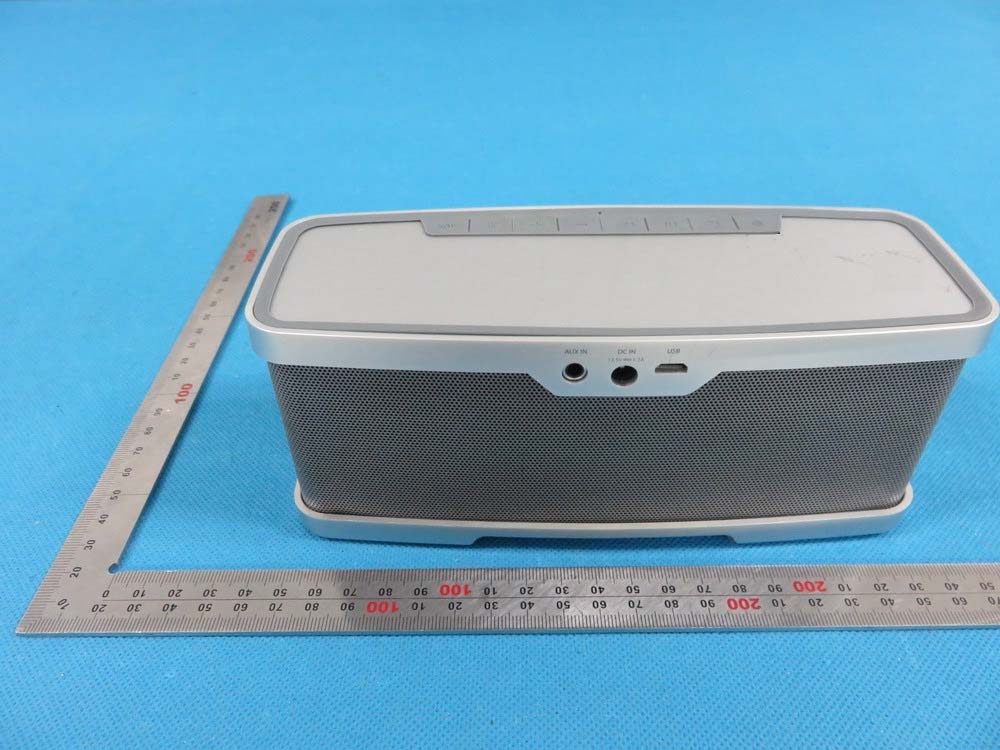

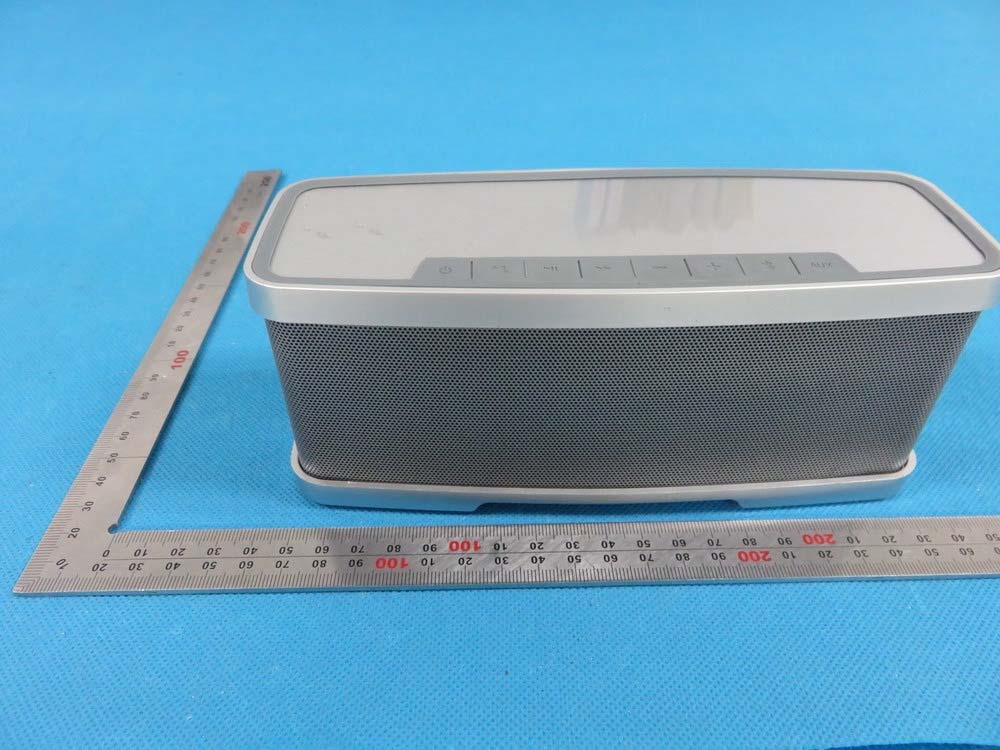

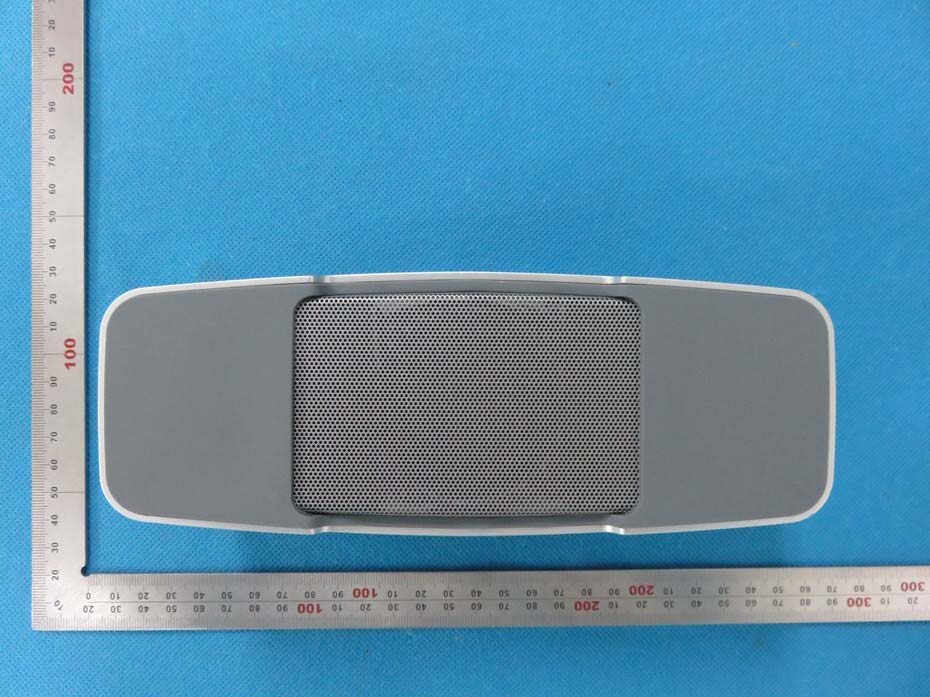

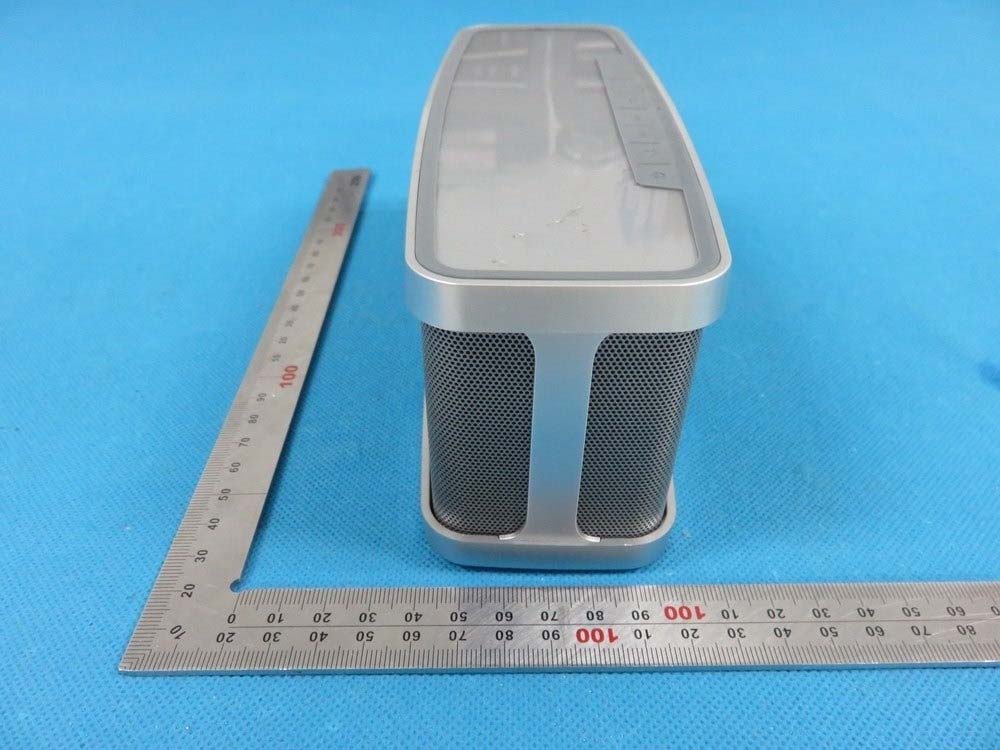

External Photos TOP VIEW BOTTOM VIEW FRONT VIEW BACK VIEW LEFT VIEW RIGHT VIEW Port VIEW

FCC ID Label Location FCC ID: 2ADTV-S1

Internal Photos OPEN VIEW INTERNAL VIEW ‐1 INTERNAL VIEW-2 Antenna INTERNAL VIEW‐3

RF Exposure evaluation Product Description: Bluetooth Speaker Model Number: S1 FCC ID: 2ADTV-S1 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -1.2mW output power] (1.2mW /5mm) .[√2.480(GHz)]= 0.38<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: The transmitter output power formula you can refer to Part15F (K). For the maximum power, you can refer FCC test report.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288FAX: +86-755 3688 6277E-mail:[email protected] FCC TEST REPORT Report No: STS1504064F02 Issued for Shenzhen Cannice Technology Co., Ltd. 5F, B Building, Weiyulong Industrial Park, 16# North Xuegang Rd., Bantian Town, Longgang District, Shenzhen, Guangdong, China Product Name: Bluetooth speaker Brand Name: cannice Model No.: S1 FCC ID: 2ADTV-S1 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 68 Report No.:STS1504064F02 TEST RESULT CERTIFICATION Applicant’s name ............ . Shenzhen Cannice Technology Co., Ltd. Address ............................ . 5F, B Building, Weiyulong Industrial Park, 16# North Xuegang Rd., Bantian Town, Longgang District, Shenzhen, Guangdong, China Manufacture's Name ....... . Shenzhen Cannice Technology Co., Ltd. Address ............................ . 5F, B Building, Weiyulong Industrial Park, 16# North Xuegang Rd., Bantian Town, Longgang District, Shenzhen, Guangdong, China Product description Product name ..................... Bluetooth speaker Band name .......................... cannice Model and/or type reference ......................... . S1 Ratings ............................. . DC 7.4V Standards ........................ . FCC Part15.247 Test procedure ....................ANSI C63.4-2009 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ................................ . Date (s) of performance of tests . . Apr.17,2015 to Apr.20,2015 Date of Issue ............................... . Apr.21,2015 Test Result ................................... . Pass Testing Engineer : (Tony Liu) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of 68 Report No.:STS1504064F02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.1 DESCRIPTION OF TEST MODES 9 2.2 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.3BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS 11 2.5EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3.EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 TEST SETUP 14 3.1.4EUT OPERATING CONDITIONS 14 3.1.5TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TESTSETUP 19 3.2.5EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS（WORST CASE : GFSK） 21 4. CONDUCTED SPURIOUS EMISSIONS 38 4.1 REQUIREMENT 38 4.2TEST PROCEDURE 38 4.3 TEST SETUP 38 4.4 EUT OPERATION CONDITIONS 38 4.5 TEST RESULTS 39 5. NUMBER OF HOPPING CHANNEL 42 5.1APPLIED PROCEDURES / LIMIT 42 5.2 TEST PROCEDURE 42 5.3 TEST SETUP 42 Page 4 of 68 Report No.:STS1504064F02 Table of Contents Page 5.4 EUT OPERATION CONDITIONS 42 5.5TEST RESULTS 43 6. AVERAGE TIME OF OCCUPANCY 44 6.1 APPLIED PROCEDURES / LIMIT 44 6.2 TEST PROCEDURE 44 6.3 TEST SETUP 44 6.4 EUT OPERATION CONDITIONS 44 6.5TEST RESULTS 45 7. HOPPING CHANNEL SEPARATION MEASUREMENT 47 7.1 APPLIED PROCEDURES / LIMIT 47 7.2 TEST PROCEDURE 47 7.3 TEST SETUP 47 7.4 EUT OPERATION CONDITIONS 47 7.5TEST RESULTS 48 8. BANDWIDTH TEST 49 8.1APPLIED PROCEDURES / LIMIT 49 8.2 TEST PROCEDURE 49 8.3 TEST SETUP 49 8.4 EUT OPERATION CONDITIONS 49 8.5TEST RESULTS 50 9. OUTPUT POWER TEST 53 9.1 APPLIED PROCEDURES / LIMIT 53 9.2 TEST PROCEDURE 53 9.3 TEST SETUP 53 9.4 EUT OPERATION CONDITIONS 53 9.5TEST RESULTS 54 10. ANTENNA REQUIREMENT 60 10.1 STANDARD REQUIREMENT 60 10.2 EUT ANTENNA 60 APPENDIX-PHOTOS OF TEST SETUP 61 APPENDIX-PHOTOS OF EUT 63 Page 5 of 68 Report No.:STS1504064F02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(d) Conducted Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS Page 6 of 68 Report No.:STS1504064F02 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China. FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±3.18dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.71dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 68 Report No.:STS1504064F02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluetooth speaker Trade Name cannice Model Name S1 Channel List Please refer to the Note 2. Bluetooth Frequency:2402 –2480 MHz GFSK(1Mbps),π/4-DQPSK(2Mbps),8-DPSK(3Mbps) Battery Rated Voltage: 7.4V Charge Limit: 8.4V Hardware version number V0A Software versioningnumber V0…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP Radiated Measurement Photos Conducted Measurement Photos
