2ADU2-H50317wifi adapter

Windows 10, 8.1 and 8 has built-in driver. Driver will automatically installed and there is no need for driver installation, pls proceed to Step 5 directly to configure Wireless Network. Ex. Windows 7 Please do as the following steps to setup driver: 1. Once the wireless USB adapter is plugged into an USB port, put in the CD and find the file Setup.exe. (If you do not have CD-ROM. please download on www.hiroinc.com) 2. Double click Setup.exe file, choose ”I accept the terms of the license agreement” and click “Next”. 3. Choose “Install driver only”, Click “Next” and then “Install”. 4. Click “finish” to finish the driver installation. 5. Click Icon in the Windows system tray which located at the bottom-right corner of your computer desktop and then double click the SSID you would like to connect and click “connect” 6. Open the wireless networking page and enter the security key, Click “OK” button. 7. Repeat step 1 and 2, choose “Install driver and Mediatek WLAN Utility”, Click ”Next” and then ”install”. HiRO USB 3.0 802.11ac Dual Band Wireless Adapter Quick Installation Guide Install Driver and Mediatek WLAN Utility Quick Installation Guide Manual Information in this docutment is subject to change without prior notice. For more information, please go to www.hiroinc.com Copyrights 2015 by HIRO All rights reserved. Website: http://www.hiroinc.com 8. Click “finish” to finish the driver and utility installation. Enter the wireless password (figure5) and click ” Next “ to connect Note: If there is no icon , please find it at the right bottom corner of your desktop, it might be hide as following pictures shows:. 9. Double click icon in the Windows system tray which located at the bottom-right corner of your computer desktop and click ”Available Networks“ (Figure1) button. Double click the desired SSID to connect. Click “Next “(figure 4) at the left bottom of the page. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Radiation Exposure Statement This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: For more information, please go to www.hiroinc.com

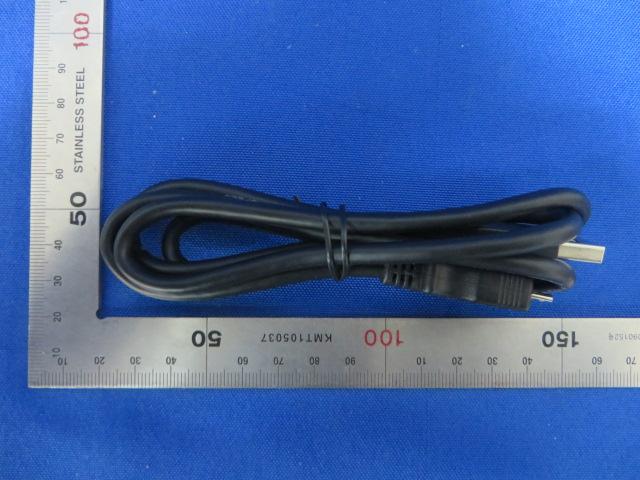

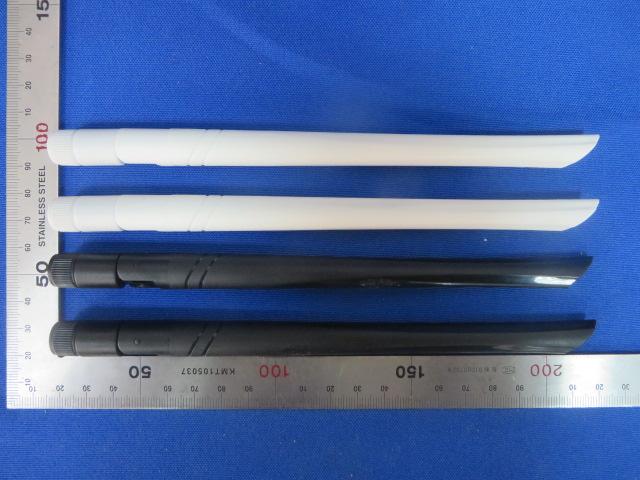

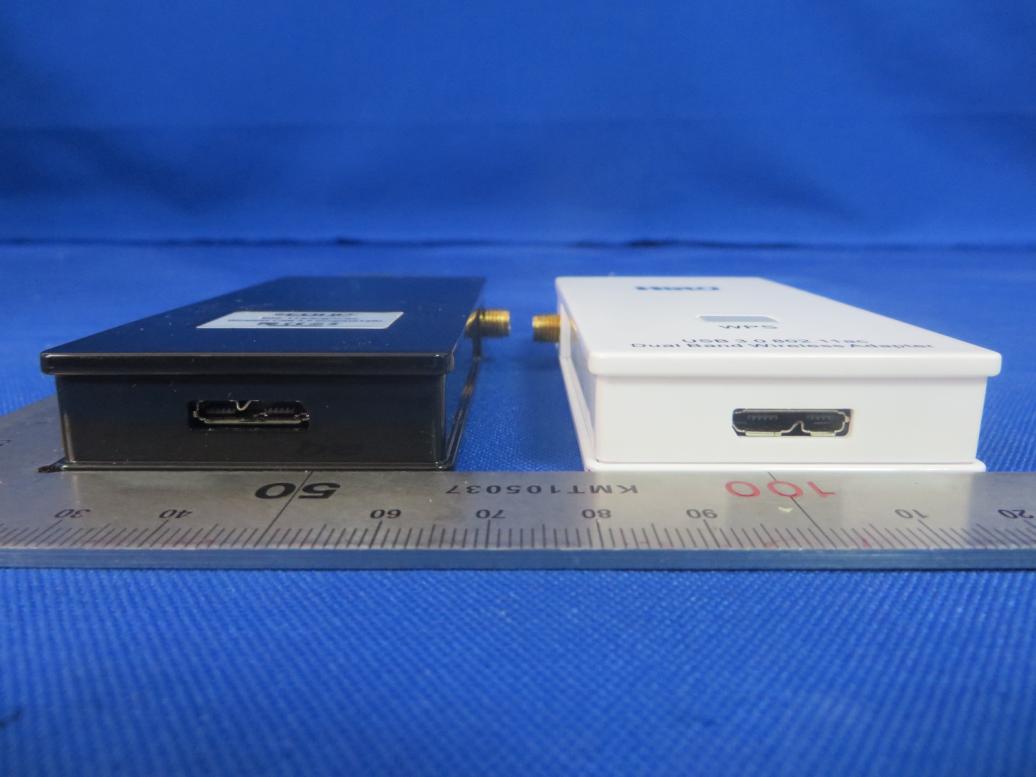

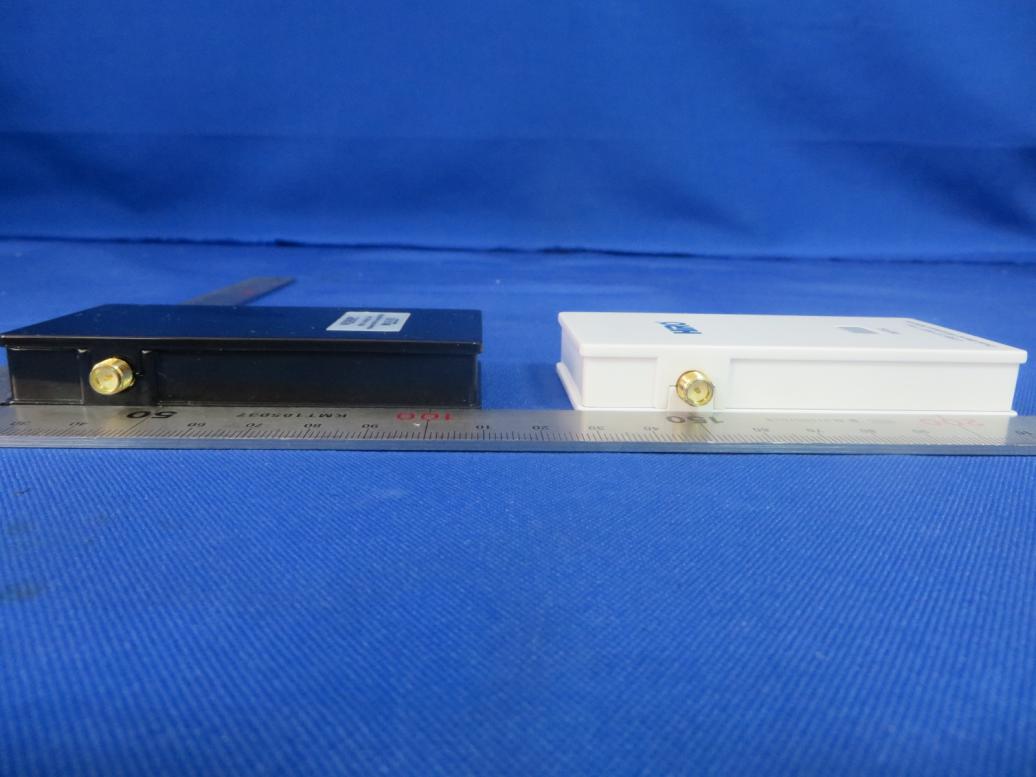

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo

Label Label Location

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1510RSU01103 Phone: +86-512-66308358 Report Version: V02 Fax: +86-512-66308368 Issue Date: 11-05-2015 Web: www.mrt-cert.com FCC ID: 2ADU2-H50317 Page Number: 1 of 6 RF Exposure Evaluation Declaration FCC ID: 2ADU2-H50317 APPLICANT: Hiro Inc. Application Type: Certification Product: wifi adapter Model No.: H50317, H50316, H50318 Brand Name: HiRO FCC Classification: Unlicensed National Information Infrastructure (UNII) Digital Transmission System (DTS) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1510RSU01103 FCC ID: 2ADU2-H50317 Page Number: 2 of 6 Revision History Report No. Version Description Issue Date 1510RSU01103 Rev. 01 Initial report 10-30-2015 1510RSU01103 Rev. 02 Corrected test separation distance 11-05-2015 Report No.: 1510RSU01103 FCC ID: 2ADU2-H50317 Page Number: 3 of 6 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Operation Frequency / Channel list For 2.4GHz band: 802.11b/g/n-HT20 Channel Frequency Channel Frequency Channel Frequency 01 2412 MHz 02 2417 MHz 03 2422 MHz 04 2427 MHz 05 2432 MHz 06 2437 MHz 07 2442 MHz 08 2447 MHz 09 2452 MHz 10 2457 MHz 11 2462 MHz N/A N/A 802.11n-HT40 Channel Frequency Channel Frequency Channel Frequency 03 2422 MHz 04 2427 MHz 05 2432 MHz 06 2437 MHz 07 2442 MHz 08 2447 MHz 09 2452 MHz N/A N/A N/A N/A Product Name wifi adapter Model No. H50317, H50316, H50318 Brand Name HiRO Frequency Range For 2.4GHz: 2412~2462MHz; For 5.8GHz: 5745~5825MHz Report No.: 1510RSU01103 FCC ID: 2ADU2-H50317 Page Number: 4 of 6 For 5GHz band: 802.11a/n-HT20/ac-VHT20 Channel Frequency Channel Frequency Channel Frequency 149 5745 MHz 153 5765 MHz 157 5785 MHz 161 5805 MHz 165 5825 MHz -- -- 802.11n-HT40/ac-VHT40 Channel Frequency Channel Frequency Channel Frequency 151 5755 MHz 159 5795 MHz -- -- 802.11ac-VHT80 Channel Frequency Channel Frequency Channel Frequency 155 5775 MHz -- -- -- -- 1.3. Antenna Description Antenna Type Frequency Band (GHz) Max Peak Gain (dBi) Directional Gain (dBi) Dipole Antenna 2.4 1 4.01 5.8 2 5.01 Report No.: 1510RSU01103 FCC ID: 2ADU2-H50317 Page Number: 5 of 6 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1510RSU01103 FCC ID: 2ADU2-H50317 Page Number: 6 of 6 2.2. Test Result of RF Exposure Evaluation Product wifi adapter Test Item RF Exposure Evaluation Antenna Gain: Refer to Clause 1.3 of antenna description. CONCULISON: The Max Power Density at R (20 cm) = 0.0176mW/cm 2 < 1mW/cm 2 . So the EUT complies with the requirement. The End Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) 802.11b/g/n 2412 ~ 2462 15.47 0.0176 1 802.11a/n/ac 5745 ~ 5825 10.49 0.0071 1

Report No.: 1510RSU01101 FCC ID: 2ADU2-H50317 Page Number: 41 of 117 Channel 165 (5825MHz) 802.11ac-VHT40 Power Spectral Density - Ant 1 / Ant 0 + 1 Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ac-VHT80 Power Spectral Density - Ant 1 / Ant 0 + 1 Channel 155 (5775MHz) Report No.: 1510RSU01101 FCC ID: 2ADU2-H50317 Page Number: 42 of 117 7.6. Frequency Stability Measurement 7.6.1. Test Limit Manufactures of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the user’s manual. 7.6.2. Test Procedure Used Frequency Stability Under Temperature Variations: The equipment under test was connected to an external AC or DC power supply and input rated voltage. RF output was connected to a frequency counter or spectrum analyzer via feed through attenuators. The EUT was placed inside the temperature chamber. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and measure EUT 20°C operating frequency as reference frequency. Turn EUT off and set the chamber temperature to highest. After the temperature stabilized for approximately 30 minutes recorded the frequency. Repeat step measure with 10°C decreased per stage until the lowest temperature reached. Frequency Stability Under Voltage Variations: Set chamber temperature to 20°C. Use a variable AC power supply / DC power source to power the EUT and set the voltage to rated voltage. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and recorded the frequency. Reduce the input voltage to specify extreme voltage variation (±15%) and endpoint, record the maximum frequency change. 7.6.3. Test Setup Report No.: 1510RSU01101 FCC ID: 2ADU2-H50317 Page Number: 43 of 117 7.6.4. Test Result Test Engineer Milo Li Temperature -20 ~ 50°C Test Time 10-21-2015 Relative Humidity 52%RH Voltage (%) Power (VAC) Temp (°C) Frequency Tolerance (ppm) 0 minutes 2 minutes 5 minutes 10 minutes 100% 120 - 20 -2.28 -3.31 -3.67 0.75 - 10 -2.59 -1.73 1.23 0.79 0 -0.34 -1.96 -1.49 -0.94 + 10 2.28 -2.29 1.98 2.13 + 20 (Ref) 1.74 1.62 -0.04 3.30 + 30 -1.36 -2.94 -3.69 -0.18 + 40 -1.95 -2.30 -2.22 -3.11 + 50 1.09 -2.11 -0.09 0.64 115% 138 + 20 -1.38 0.00 -1.52 -0.64 85% 102 + 20 0.25 0.62 -2.86 2.29 Note: Frequency Tolerance (ppm) = {[Measured Frequency (Hz) – Declared Frequency (Hz)] / Declared Frequency (Hz)} *10 6 . Report No.: 1510RSU01101 FCC ID: 2ADU2-H50317 Page Number: 44 of 117 7.7. Radiated Spurious Emission Measurement 7.7.1. Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [V/m] Measured Distance [Meters] 0.009 – 0.490 2400/F (kHz) 300 0.490 – 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.7.2. Test Procedure Used KDB 789033 D02v01 – Section G 7.7.3. Test Setting Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Report No.: 1510RSU01101 FCC ID: 2ADU2-H50317 Page Number: 45 of 117 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = 120 kHz 4. Detector = CISPR quasi-peak 5. Sweep time = auto couple 6. Trace was allowed to stabilize Average Measurements above 1GHz (Method AD) 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = power average (RMS) 5. Number of measurement points = 1001 (Number of points must be > 2 x span/RBW) 6. Sweep time = auto 7. Trace was averaged over at 100 sweeps 7.7.4. Test Setup 9kHz ~ 30MHz Test Setup: Report No.: 1510RSU01101 FCC ID: 2ADU2-H50317 Page Number: 46 of 117 30MHz ~ 1GHz Test Setup: 1GHz ~18GHz Test Setup: 18GHz ~40GHz Test Setup: Report No.: 1510RSU01101 FCC ID: 2ADU2-H50317 Page Number: 47 of 117 7.7.5. Test Result Test Mode: 802.11a Test Site: AC1 Test Channel: 149 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 7774.5 36.2 8.2 44.4 68.2 -23.8 Peak Horizontal * 8777.5 35.1 8.9 44.0 68.2 -24.2 Peak Horizontal 9330.0 34.6 10.4 45.0 74.0 -29.0 Peak Horizontal 11217.0 34.7 12.4 47.1 74.0 -26.9 Peak Horizontal * 7961.5 35.1 8.6 43.7 68.2 -24.5 Peak Vertical * 8709.5 35.2 9.0 44.2 68.2 -24.0 Peak Vertical 9313.0 35.1 10.4 45.5 74.0 -28.5 Peak Vertical 10877.0 34.5 12.9 47.4 74.0 -26.6 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27dBm/MHz or -17dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2dB to the EIRP limit of -27dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB) Report No.: 1510RSU01101 FCC ID: 2ADU2-H50317 Page Number: 48 of 117 Test Mode: 802.11a Test Site: AC1 Test Channel: 157 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 7842.5 36.5 8.…
