2ADUK-BM450710Combi-microwave Oven

Gaggenau Use and care manual BM 450/451 710 BM 484/485 710 Combi-microwave oven 2 Table of ContentsUse and care manual Safety Definitions 3 IMPORTANT SAFETY INSTRUCTIONS 4 9 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 4 GROUNDING INSTRUCTIONS 5 TV / Radio Interference 5 Intended Use 5 Child Safety 5 Cleaning Safety 6 Cooking Safety 6 In Case of Fire 6 Liquids 6 Cooking Items 7 Cooking Utensils 8 Thermometers 8 Pacemakers 8 State of California Proposition 65 Warnings 8 Fan Motor Operation 8 Causes of damage 9 Protecting the environment 9 Tips for saving energy 9 Getting to know the appliance 10 Displays and controls 10 Function selector positions 10 Symbols 11 Colors and display 11 Automatic door opening 11 Additional information ( 11 Cooling fan 12 Accessories 12 Special accessories 12 Before first use 13 Setting the language 13 Setting the time format 13 Setting the time 13 Setting the date format 13 Setting the date 14 Setting the temperature format 14 Completing initial set-up 14 Heating up the oven 14 Cleaning accessories 14 Activating the appliance 15 Standby 15 Activate appliance 15 Microwave 15 Notes regarding cookware 15 Microwave output 15 Setting the microwave 16 Oven 16 Setting the type of heating and temperature 16 Quick heat 17 Safety lock 17 Full surface grill 18 Setting the grill mode 18 Combination mode 18 Setting the combination mode 18 Sequential operation 19 Setting a series of operations 19 End of cooking time 20 Automatic programs 21 Setting a program 21 Adjust individually 22 Tips for automatic programs 22 Program table 23 Personal recipes 25 Recording a recipe 25 Programming a recipe 25 Entering a name 26 Starting a recipe 26 Change recipe 26 Deleting a recipe 27 Timer functions 27 Launching the timer menu 27 Timer 28 Stopwatch 28 Sabbath mode 29 Child lock 30 Activating the child lock 30 Deactivating the child lock 30 Basic Settings 31 Cleaning 33 Cleaning agent 33 3 Troubleshooting 35 Power cut 35 Demo mode 35 Replacing the oven light bulb 36 Technical specifications 37 Customer service 37 Tables and tips 38 Defrosting 38 Defrosting, heating up or cooking frozen food 39 Heating food 40 Cooking food 41 Microwave tips 41 Cakes and pastries 42 Baking tips 43 Roasting and grilling 43 Tips for roasting and grilling 45 Casseroles, gratins 46 Frozen convenience products 46 Test dishes 46 Acrylamide in foodstuffs 47 Additional information on products, accessories, replacement parts and services can be found at www.gaggenau.com and in the online shop www.gaggenau-eshop.com Safety Definitions 9WARNING This indicates that death or serious injuries may occur as a result of non-observance of this warning. 9CAUTION This indicates that minor or moderate injuries may occur as a result of non-observance of this warning. NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory. Note: This alerts you to important information and/or tips. 9IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE 4 IMPORTANT SAFETY INSTRUCTIONREAD ALL INSTRUCTIONS BEFORE USING THE APPLIANCE 9 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (1) Do not attempt to operate this oven with the door open, since open-door operation can result in harmful exposure to microwave evergy. It is important not to defeat or tamper with the safety interlocks. (2) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (3) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: ▯door (bent) ▯hinges and latches (broken or loosened) ▯door seals and sealing surfaces. (4) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. Improper installation, service or maintenance can cause injury or property damage. Refer to this manual for guidance. Refer all servicing to a factory authorized service center. WARNING To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy, read all instructions before using the appliance. WARNING If the information in this manual is not followed exactly, fire or shock may result causing property damage or personal injury. When using electrical appliances basic safety precautions should be followed, including the following: Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found in the Safety Instructions chapter. This appliance must be grounded. Connect only to properly grounded outlet (see GROUNDING INSTRUCTIONS). Install or locate this appliance only in accordance with the provided installation instructions. Some products such as whole eggs and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. As with any appliance, close supervision is necessary when used by children (see CHILD SAFETY). This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment. Do not cover or block any vents or openings on the appliance. Do not store this appliance outdoors. Do not use this product near water – for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. Suitable for plug-connected only: (1) Do not immerse cord or plug in water. (2) Keep cord away from heated surfaces. (3) Do not let cord hang over edge of table or counter. (4) Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it h…

Text truncated - open the document above for the full version.

GOM Model Labels (30” and 60cm)GOM Model Labels (30” and 60cm) Requirements: Description Location Identification Label[ 21 CFR 1010.3 ] Viewed when the product is fully assembled for use.(e.g. Hinge side of Door or Frontplate) Label measures 20mm x 250mm

Operational Description When the food is places in the microwave and the door is closed, a) the contacts of the safety switch open. (This switch creates a short circuit to blow a line fuse and stops microwave oscillation when the door is open during operation) b) The contacts of interlocks switches (primary and secondary) close the circuit by means of door key(s) action(s). When the timer is set a) The contact of the micro switch closes the circuit. b) Oven lamp turns on. c) Fan motor starts rotating and cools the magnetron by blowing the air coming from the air intake beneath the oven over the magnetron fins. The fan motor also cools components inside the oven chassis to minimise the components temperature rise. d) The primary power supply voltage is applied to the high voltage transformer and generates approximately 3300 volts in the secondary winding and 3.3 volts in the filament winding. Microwave energy is distributed in the cavity by a rotating stirrer antenna. When cooking time is elapsed a) The contacts of time switch open the circuit and an audible signal indicates that cooking has been completed. b) The oven lamp turns off and fan motor stops rotating after approximately 1 minute. c) Magnetron stops oscillating. The above functions are the basic operations of a microwave oven. Microwave leakage is prevented by a fully welded cavity and a door with a ¼ wave trap system incorporated into the viewing window.

Test report No. 1413872STO-001, Ed. 2 Page 2 (25) Revision History EditionDateDescription 12015-04-02First release 22015-04-16Addition of Test equipment list Test report No. 1413872STO-001, Ed. 2 Page 3 (25) CONTENTS Page 1.Client information................................................................................................................ 4 2.Equipment under test (EUT)............................................................................................... 4 2.1Identification of the EUT........................................................................................... 4 2.2Additional information about the EUT ...................................................................... 4 2.3Opinions and interpretations .................................................................................... 4 3.Test specifications .............................................................................................................. 5 3.1Standards ................................................................................................................. 5 3.2Additions, deviations and exclusions from standards .............................................. 5 3.3Mode of operation during the test ............................................................................ 5 3.4Compliance .............................................................................................................. 6 4.Test summary..................................................................................................................... 8 5.Tables and diagrams ........................................................................................................ 10 6.Photos .............................................................................................................................. 22 7.Test equipment................................................................................................................. 24 8.Intertek Semko EMC Center measurement uncertainties................................................ 25 Test report No. 1413872STO-001, Ed. 2 Page 4 (25) 1.CLIENT INFORMATION The EUT has been tested by request of Company:Panasonic Manufacturing UK Ltd. Home Appliance Division, Wyncliffe Road, Pentwyn Industrial Estate, Cardiff, South Glamorgan. CF23 7XB, United Kingdom Name of contact:David Hadley 2.EQUIPMENT UNDER TEST (EUT) 2.1Identification of the EUT Equipment:Combination Microwave oven Tested type / model :BM450710 Additional type / model :BM451710 Brand name:Gaggenau Serial number:- Manufacturer:Panasonic Manufacturing UK Ltd Rating:208/240 V, 60 Hz, 3300 W Class:I 2.2Additional information about the EUT The EUT was tested in a table top configuration. The EUT was tested with the following cables: CableTypeLength Mains powerFive-core1.5 m 2.3Opinions and interpretations The following type is also included as additional type in this test report:BM451710 The difference as compared to the tested type is (according to the manufacturer): The 24 inch BM450710 & BM451710 model variants differ in that the cavity door is of either a RH or LH opening respectively. The difference is considered not to imply different EMC-characteristics when compared to the tested type. Therefore, this type is not tested, but considered to have the same EMC-characteristics as the tested type. Test report No. 1413872STO-001, Ed. 2 Page 5 (25) 3.TEST SPECIFICATIONS 3.1Standards Requirements: ICES-001: (2006), Spectrum Management and Telecommunications Interference-Causing Equipment Standard Test methods: CAN/CSA CISPR 11: (2004) + A1 (2010) + A2 (2010), Industrial, scientific and medical equipment - radio-frequency disturbance characteristics -limits and methods of measurement 47 CFR: (2013), Telecommunication, Chapter I – FCC Part 18 – Industrial, Scientific and Medical equipment Test methods: ANSI C.63.4-2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 MHz FCC/OST MP-5 (1986): FCC methods of measurements of radio noise emissions from industrial, scientific, and medical equipment The standards above refer to basic standards. These are found in section 4, Test Summary, by name and edition. 3.2Additions, deviations and exclusions from standards No additions, deviations or exclusions have been made from standards. 3.3Mode of operation during the test The EUT was supplied with 208 V, 60 Hz. The EUT was tested with the program 1000 W, Microwave. The EUT was operating with a non-conductive glass beaker in the middle of the heating area. Test report No. 1413872STO-001, Ed. 2 Page 6 (25) 3.4Compliance EMC limit requirements of FCC part 18 Conducted emission FCC part 18: Frequency rangeQuasi-PeakAverage (MHz)(dBμV)(dBμV) 0.009 – 0.050110- 0.05 – 0.1590-80- 0.15 – 0.5066-5656-46 0.50 – 5.005646 5.00 – 30.06050 Radiated emission: P=661.7 W, see clause 6.1, FCC/OST MP-5 (1986) Limit= Frequency range300 m distance300 m distance3 m distance Quasi-PeakQuasi-PeakQuasi-Peak MHzμV/mdBμV/mdBμV/m 30 – 240028.829.269.2 2500 – 2650028.829.269.2 In the frequency range of 30-26500 MHz the values for 300 m distance are re-calculated to 3 m by adding 40 dB to the limit. EMC limit requirements of CISPR 11 Conducted emission Class B: Frequency rangeQuasi-PeakAverage MHzdBμVdBμV 0.15 – 0.5066 Decreasing linearly with logarithm of frequency to 56 56 Decreasing linearly with logarithm of frequency to 46 0.50 – 55646 5 – 306050 Radiated emission 0.15 – 30 MHz at 3 m distance Group 2 Class B: Frequency rangeQuasi-Peak MHzdBμA/m 0.15 – 3039 Decreasing linearly with logarithm of frequency to 3 mdBμVmμV p /2.29/8.28 500 *25 Test report No. 1413872STO-001, Ed. 2 Page 7 (25) Radiated emission 30 – 1000 MHz at 3 m distance Group 2 Class B Frequency rangeQuasi-PeakAverage MHzdBμV/mdBμV/m 30.000 – 80.8723025 80.872 – 81.8485045 81.848 – 134.7863025 134.786 – 136.4145045 136.414 – 230.03025…

Text truncated - open the document above for the full version.

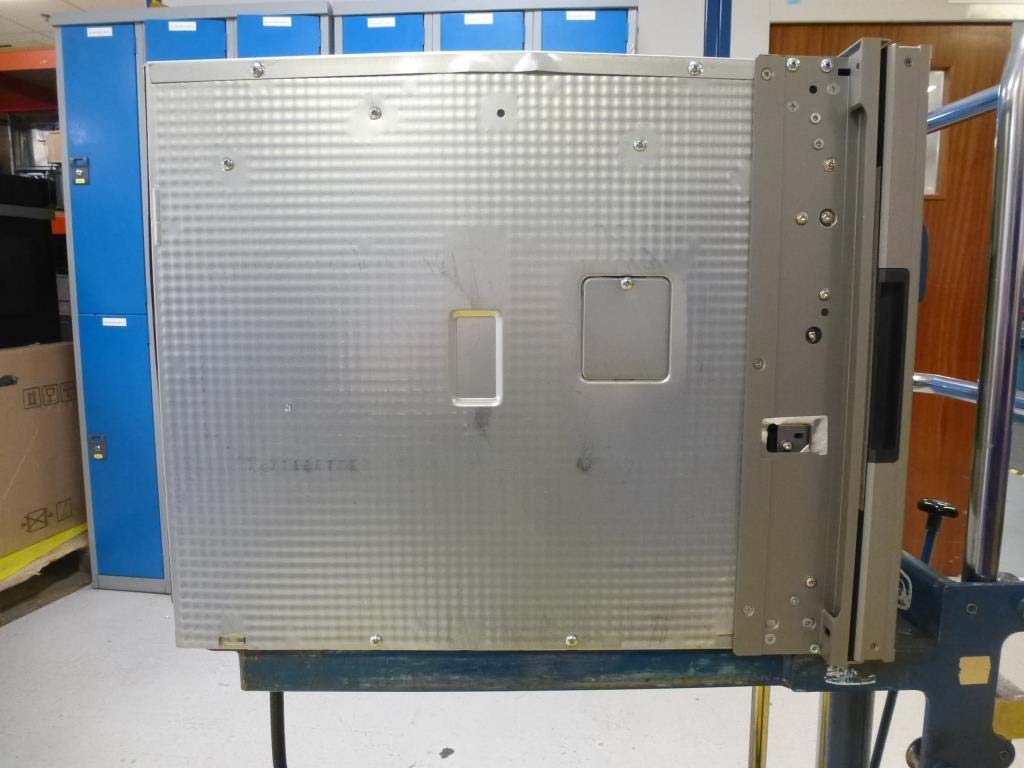

1 Test setup photos 2ADUK-BM450710 Photo of the EUT during conducted emission test Photo of the EUT during radiated emission test below 30 MHz 2 Photo of the EUT during Radiated emission test 30 MHz – 1000 MHz Photo of the EUT during radiated emission test above 1 GHz
