2ADUTLGPAU0GWiFi 6E USB Adapter

        !  "#    " $ $"  "# $  " $  "  $     !  # %&  '(         !  "#    " $ $"  "# $   " $  "  $     !  # %&  '(

Report No.: BTL-FCC SAR-1-2505C215_Appendix A. Test Laboratory: BTL Inc. (Dongguan) Date: 2025/8/28 System Check_H2450_0828 DUT: Dipole 2450 MHz D2450V2;SN:919; Communication System: UID 0, CW (0); Frequency: 2450 MHz; Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.874 S/m; ε r = 38.301; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.2 °C DASY Configuration: • Probe:EX3DV4-SN7544; ConvF(7.63, 7.63, 7.63) @ 2450 MHz; Calibrated: 2025/6/19 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1390; Calibrated: 2024/11/14 • Phantom: SAM Mid v5.0; Type: QD000P40CD; Serial: S/N:1896 • DASY52 52.10.4(1535); SEMCAD X 14.6.14(7501) Area Scan (8x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.74 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 69.87 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 11.0 W/kg SAR(1 g) = 5.33 W/kg; SAR(10 g) = 2.46 W/kg Smallest distance from peaks to all points 3 dB below = 9.6 mm Ratio of SAR at M2 to SAR at M1 = 49.2% Maximum value of SAR (measured) = 8.77 W/kg Report No.: BTL-FCC SAR-1-2505C215_Appendix A. Test Laboratory: BTL Inc. (Dongguan) Date: 2025/8/15 System Check_H5250_815 DUT: Dipole D5GHzV2;SN:1160; Communication System: UID 0, CW (0); Frequency: 5250 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5250 MHz; σ = 4.781 S/m; ε r = 37.107; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.5 °C DASY Configuration: • Probe:EX3DV4 -SN3809;ConvF(5.51, 5.06, 4.93)@5745MHz; Calibrated: 2025/1/24 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2024/11/14 • Phantom: SAM Mid v5.0; Type: QD000P40CD; Serial: S/N:1896 DASY52 52.10.4(1535); SEMCAD X 14.6.14(7501) Area Scan (6x6x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 17.0 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 70.83 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 39.2 W/kg SAR(1 g) = 8.19 W/kg; SAR(10 g) = 2.29 W/kg Smallest distance from peaks to all points 3 dB below = 6.6 mm Ratio of SAR at M2 to SAR at M1 = 19.8% Maximum value of SAR (measured) = 21.5 W/kg Report No.: BTL-FCC SAR-1-2505C215_Appendix A. Test Laboratory: BTL Inc. (Dongguan) Date: 2025/8/15 System Check_H5600_0815 DUT: Dipole D5GHzV2;SN:1160; Communication System: UID 0, CW (0); Frequency: 5600 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5600 MHz; σ = 5.109 S/m; ε r = 35.349; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.5 °C DASY Configuration: • Probe:EX3DV4 -SN3809;ConvF(5.51, 5.06, 4.93)@5745MHz; Calibrated: 2025/1/24 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2024/11/14 • Phantom: SAM Mid v5.0; Type: QD000P40CD; Serial: S/N:1896 DASY52 52.10.4(1535); SEMCAD X 14.6.14(7501) Area Scan (6x6x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 16.5 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 63.09 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 34.3 W/kg SAR(1 g) = 8.21 W/kg; SAR(10 g) = 2.34 W/kg Smallest distance from peaks to all points 3 dB below = 7.5 mm Ratio of SAR at M2 to SAR at M1 = 52.8% Maximum value of SAR (measured) = 21.2 W/kg Report No.: BTL-FCC SAR-1-2505C215_Appendix A. Test Laboratory: BTL Inc. (Dongguan) Date: 2025/8/15 System Check_H5750_0815 DUT: Dipole D5GHzV2;SN;1160; Communication System: UID 0, CW (0); Frequency: 5750 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5750 MHz; σ = 5.302 S/m; ε r = 34.978; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.5 °C DASY Configuration: • Probe:EX3DV4 -SN3809;ConvF(5.51, 5.06, 4.93)@5745MHz; Calibrated: 2025/1/24 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2024/11/14 • Phantom: SAM Mid v5.0; Type: QD000P40CD; Serial: S/N:1896 DASY52 52.10.4(1535); SEMCAD X 14.6.14(7501) Area Scan (6x6x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 17.7 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 60.64 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 31.1 W/kg SAR(1 g) = 7.62 W/kg; SAR(10 g) = 2.18 W/kg Smallest distance from peaks to all points 3 dB below = 7.5 mm Ratio of SAR at M2 to SAR at M1 = 53% Maximum value of SAR (measured) = 19.4 W/kg Report No.: BTL-FCC SAR-1-2505C215_Appendix A. Page 5 of 6 Measurement Report for System Check (6500.000MHz) Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type Device, 50.0 x 10.0 x 8.0 Dipole 6.5G Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, Head Simulating Liquid , CW, 0- - 6500.000, 0 5.6 5.87 33.6 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Tw i n-SAM V8.0 (30deg probe tilt) - 2081 HBBL-695-10000 EX3DV4 - SN7693, 2024-11-20 DAE4 Sn1717, 2025-06-19 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 51.0 x 85.0 22.0 x 22.0 x 22.0 Grid Steps [mm] 8.5 x 8.5 3.4 x 3.4 x 1.4 Sensor Surface [mm] 3.0 1.4 Graded Grid N/A Ye s Grading Ratio N/A 1.4 MAIA N/A N/A Surface Detection All points All points Scan Method Measured Measured Measurement Results Area Scan Zoom Scan Date 2025-09-01 2025-09-01 psSAR1g [W/kg] 24.3 27.9 psSAR10g [W/kg] 5.22 5.35 Power Drift [dB] 0.01 0.03 Power Scaling Disabled Disabled Scaling Factor [dB] TSL Correction No correction No correction M2/M1 [%] 51.8 Dist 3dB Peak [mm] 5.2 Report No.: BTL-FCC SAR-1-2505C215_Appendix A. Page 6 of 6 Measurement Report for Device, FRONT, Validation band, UID 0 -, Channel 10000 (10000.0MHz) Device under Test Properties Model, Manufacturer Dimensions [mm] IMEI DUT Type , Dev…

Text truncated - open the document above for the full version.

TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-FPC343BX ProductName:Antenna Page1 SpecificationForApproval Date:2025.6.7 Version:1.0 客户名称 Customer：智路器 客户料号 CustomerP/N： 腾祥料号 TXP/N：AN2450-FPC343BX 规格描述 Description:2.4G/5G/6GFPC天线0.81mm黑色线L=45mm+IPEX（4代） TengxiangCheckedBy: 腾祥审核 CustomerApprovedBy: 客户审核 DRAWN 制作 路婷 TESTEDBY 检测 CHECKEDBY 审核 胡超 CHECKEDBY 审核 Q.C.DEPT. 品管 周志红 Q.C.DEPT. 品管 APPROVEDBY 核准 韦佳 APPROVEDBY 核准 NO.53ShatouShaChongRoad,ChangAnTown,Guangdongprovince,China 中国广东省东莞市长安镇沙头区沙涌路53号 TEL:86-769-81873082FAX:86-769-82663788 http://www.tenxiang.cn TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-FPC343BX ProductName:Antenna Page 2 Index: 1. Specification(规格) 2. Characteristicsand ReliabilityTest (产品特性和可靠性测试标准) 3. Antenna- S ParameterTest Data(样品测试数据) 4. Antenna- RadiationPatternTest Data(辐射模式测试数据) 5. Mechanicaland PackingDrawing(图纸包装规范) RevisionHistory（变更履历） RevisionDateChangeNotificationDescription 1.02025.6.7 初版 TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-FPC343BX ProductName:Antenna Page3 1.Specification SamplePhoto A.ElectricalCharacteristics Frequency频率2400-2500MHz/5150-5850MHz/6000-7125MHz S.W.R.驻波比参考波形 AntennaGain增益2.95dBi/3.50dBi/3.30dBi Polarization 极化方式Linear Impedance 阻抗50Ohm B.Material&MechanicalCharacteristics CableType线材规格 OD0.81mm，BIack ConnectorType连接器规格I-PEX C.Environmental StorageTemperature 存储温度 -40 ̊C~+80 ̊C OperationTemperature 工作温度 -40 ̊C~+80 ̊C TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-FPC343BX ProductName:Antenna Page4 2.CharacteristicsandReliabilityTest TestItems 测试 项目 TestConditionandProcedure 测试方法 Requirements 要求Result 结果 1V.S.W.R. 电压驻波比 SetDUTonNetworkAnalyzer;makeindividual calibrationtotest设置网络分析仪参数进行测试 DirectiveDUTspecification 符合待测物规范 PASS 2Insertion Loss插入损 失 SetDUTonNetworkAnalyzer;makeindividual calibrationtotest设置网络分析仪参数进行测试 DirectiveDUTspecification 符合待测物规范 PASS 3Antenna Gain 天线增益 SetDUTonAntennaChamber;makeindividual calibrationtotest设置天线暗室参数进行测试 DirectiveDUTspecification 符合待测物规范 PASS 4Solderability 可焊性 GB/T2423.28-2005 Temp:260±5°C;Duration:5seconds温度260± 5°C;持续5秒 Tinevenlyonfull 上锡均匀饱满 PASS 5PullTest 拉力 Holdingwithindividualspecification;force appliedtoaxisofterminal.单独定义产品端子拉力 1.DirectiveDUTspecification 2.FrequencyTol.≤5% 符合待测物规范;频率偏移≤5% PASS 6Dimension 尺寸 Inspectionofdimension,color,material,package, surfaceprocess.检查尺寸,颜色,材料,包装,表面处理 DirectiveDUTspecification 符合待测物规范 PASS 7RoHSWithReferencetoIEC62321:2008withflowchart 参考IEC62321测试流程 DirectiveRoHS2015/863/EU 符合RoHS2015/863/EU标准 PASS TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-FPC343BX ProductName:Antenna Page5 3.Antenna-SParameterTestData 4.Antenna-RadiationPatternTestData TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-FPC343BX ProductName:Antenna Page6 XZYZXY 2400MHz 2450MHz 2500MHz TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-FPC343BX ProductName:Antenna Page7 5150MHz 5550MHz 5850MHz 6000MHz TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-FPC343BX ProductName:Antenna Page8 7125MHz 5.MechanicalDrawingSeeattachedfiles B C D AN2450-FPC343BX / Antenna 1/1 ±0.5±0.2±1 OD0.81 Part Number Name CABLE-081-45BX-201508 Coaxial Cable 1 No. 2 1 Q'ty 1 Material Finish A SYY 2025.04.08 DES BY Note: 1. Mark is important dimension;"Cpk "Identify for pr ocess control(CpK 1.33). 2.To lerance:Unmarked tolerance refer to the standa rd tol erance please. 3.Pay atte ntion to the direction of the connector. APPROVER DATE SIGN DESCRIPTION SCALE: APP BY Tolerance X.XX X.X X° TITLE: PART NO.: CUSTOMER P/N: CHK BY RF BY UNITS: mm REVISION: HFREACHRoHS2.0 CONFIDENTIAL FPC Black Black ；四代端子 1 2 端子朝向如图所示 WJ 2025.04.08 HC 2025.04.08 YCX 2025.04.08 100pcs/ PE bag Revision : A Customer : ALL APPROVED BY CHECKED BY DESIGNED BY Name: Page: 1 of 1 Date: Part Number : 产品包装规范 PACKING CRITERION 8000pcs/Carton 3. SEALI NG 。 MEAS G W: KGS N W: KGS QTY: PCS ITEM NO: C/NO MADE IN CHINA SIDE FRONT 2.PACKING 1 . Enter PE bag。 2025.04.08 AN2450-FPC343BX Antenna

Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 175 of 195 Test Mode UNII-2C_TX A Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 6.35 0.39 6.74 9.87 Pass 116 5580 5.06 0.39 5.45 9.87 Pass 140 5700 7.46 0.39 7.84 9.87 Pass CH100 CH116 CH140 Test Mode UNII-2C_TX A Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 6.04 0.39 6.42 9.87 Pass 116 5580 6.56 0.39 6.95 9.87 Pass 140 5700 5.05 0.39 5.43 9.87 Pass CH100 CH116 CH140 Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 176 of 195 Test Mode UNII-2C_TX A Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 9.60 9.87 Pass 116 5580 9.28 9.87 Pass 140 5700 9.81 9.87 Pass Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 177 of 195 Test Mode UNII-2C_TX AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 5.92 0.45 6.37 9.87 Pass 116 5580 5.67 0.45 6.13 9.87 Pass 140 5700 6.03 0.45 6.48 9.87 Pass CH100 CH116 CH140 Test Mode UNII-2C_TX AX(HE20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 5.68 0.45 6.14 9.87 Pass 116 5580 6.01 0.45 6.46 9.87 Pass 140 5700 4.80 0.45 5.25 9.87 Pass CH100 CH116 CH140 Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 178 of 195 Test Mode UNII-2C_TX AX(HE20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 100 5500 9.27 9.87 Pass 116 5580 9.31 9.87 Pass 140 5700 8.92 9.87 Pass Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 179 of 195 Test Mode UNII-2C_TX AX(HE40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 102 5510 4.71 0.99 5.70 9.87 Pass 110 5550 5.32 0.99 6.31 9.87 Pass 134 5670 5.94 0.99 6.93 9.87 Pass CH102 CH110 CH134 Test Mode UNII-2C_TX AX(HE40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 102 5510 6.42 0.99 7.41 9.87 Pass 110 5550 5.78 0.99 6.77 9.87 Pass 134 5670 4.78 0.99 5.77 9.87 Pass CH102 CH110 CH134 Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 180 of 195 Test Mode UNII-2C_TX AX(HE40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 102 5510 9.65 9.87 Pass 110 5550 9.56 9.87 Pass 134 5670 9.40 9.87 Pass Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 181 of 195 Test Mode UNII-2C_TX AX(HE80) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 106 5530 3.27 1.28 4.55 9.87 Pass 122 5610 1.93 1.28 3.22 9.87 Pass CH106 CH122 Test Mode UNII-2C_TX AX(HE80) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 106 5530 3.22 1.28 4.50 9.87 Pass 122 5610 1.73 1.28 3.02 9.87 Pass CH106 CH122 Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 182 of 195 Test Mode UNII-2C_TX AX(HE80) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 106 5530 7.53 9.87 Pass 122 5610 6.13 9.87 Pass Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 183 of 195 Test Mode UNII-3_TX A Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/100 kHz) Power Spectral Density (dBm/500 kHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/500 kHz) Result 149 5745 1.80 8.79 0.39 9.18 28.87 Pass 157 5785 1.75 8.74 0.39 9.12 28.87 Pass 165 5825 1.83 8.82 0.39 9.21 28.87 Pass NOTE: PSD dBm/500 kHz = PSD dBm/100 kHz + 10 x log(500 kHz / 100 kHz) = PSD dBm/100 kHz + 6.99 dB CH149 CH157 CH165 Test Mode UNII-3_TX A Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/100 kHz) Power Spectral Density (dBm/500 kHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/500 kHz) Result 149 5745 -1.21 5.78 0.39 6.16 28.87 Pass 157 5785 0.11 7.10 0.39 7.48 28.87 Pass 165 5825 1.72 8.70 0.39 9.09 28.87 Pass NOTE: PSD dBm/500 kHz = PSD dBm/100 kHz + 10 x log(500 kHz / 100 kHz) = PSD dBm/100 kHz + 6.99 dB CH149 CH157 CH165 Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 184 of 195 Test Mode UNII-3_TX A Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 149 5745 10.94 28.87 Pass 157 5785 11.39 28.87 Pass 165 5825 12.16 28.87 Pass Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 185 of 195 Test Mode UNII-3_TX AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/100 kHz) Power Spectral Density (dBm/500 kHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/500 kHz) Result 149 5745 -0.72 6.27 0.45 6.72 28.87 Pass 157 5785 -0.87 6.12 0.45 6.57 28.87 Pass 165 5825 -0.96 6.03 0.45 6.48 28.87 Pass NOTE: PSD dBm/500 kHz = PSD dBm/100 kHz + 10 x log(500 kHz / 100 kHz) = PSD dBm/100 kHz + 6.99 dB CH149 CH157 CH165 Test Mode UNII-3_TX AX(HE20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/100 kHz) Power Spectral Density (dBm/500 kHz) Duty Factor (dB) Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/500 kHz) Result 149 5745 -2.62 4.37 0.45 4.82 28.87 Pass 157 5785 -1.93 5.06 0.45 5.51 28.87 Pass 165 5825 -1.25 5.74 0.45 6.19 28.87 Pass NOTE: PSD dBm/500 kHz = PSD dBm/100 kHz + 10 x log(500 kHz / 100 kHz) = PSD dBm/100 kHz + 6.99 dB CH149 CH157 CH165 Report No.: BTL-…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 128 of 195 Test Mode UNII-1_TX AX(HE80) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 42 5210 100.200 77.202 CH42 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 129 of 195 Test Mode UNII-2A_TX A Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 52 5260 25.980 17.226 60 5300 26.880 17.265 64 5320 25.200 17.255 CH52 CH60 CH64 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 130 of 195 Test Mode UNII-2A_TX AX(HE20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 52 5260 22.440 19.126 60 5300 22.380 19.182 64 5320 26.340 19.169 CH52 CH60 CH64 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 131 of 195 Test Mode UNII-2A_TX AX(HE40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 54 5270 41.600 37.869 62 5310 39.600 37.678 CH54 CH62 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 132 of 195 Test Mode UNII-2A_TX AX(HE80) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 58 5290 115.600 77.291 CH58 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 133 of 195 Test Mode UNII-2C_TX A Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 100 5500 26.700 17.273 116 5580 25.200 17.253 140 5700 27.360 17.181 CH100 CH116 CH140 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 134 of 195 Test Mode UNII-2C_TX AX(HE20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 100 5500 25.920 19.122 116 5580 22.140 19.156 140 5700 22.560 19.194 CH100 CH116 CH140 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 135 of 195 Te s t Mode UNII-2C_TX AX(HE40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 102 5510 39.500 37.702 110 5550 39.500 37.743 134 5670 39.400 37.746 CH102 CH110 CH134 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 136 of 195 Test Mode UNII-2C_TX AX(HE80) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 106 5530 84.200 77.042 122 5610 82.000 76.969 CH106 CH122 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 137 of 195 Test Mode UNII-3_TX A Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 16.320 17.233 0.5 Pass 157 5785 16.320 17.148 0.5 Pass 165 5825 16.320 17.233 0.5 Pass CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 138 of 195 Test Mode UNII-3_TX AX(HE20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 18.840 19.165 0.5 Pass 157 5785 18.420 19.188 0.5 Pass 165 5825 18.720 19.162 0.5 Pass CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 139 of 195 Test Mode UNII-3_TX AX(HE40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 151 5755 35.200 37.641 0.5 Pass 159 5795 35.200 37.673 0.5 Pass CH151 CH159 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 140 of 195 Test Mode UNII-3_TX AX(HE80) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 155 5775 75.200 76.962 0.5 Pass CH155 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 141 of 195 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 142 of 195 Test Mode UNII-1_TX A Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 10.25 0.39 10.64 23.98 0.2500 Pass 40 5200 10.28 0.39 10.67 23.98 0.2500 Pass 48 5240 10.76 0.39 11.15 23.98 0.2500 Pass Test Mode UNII-1_TX A Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 8.47 0.39 8.86 23.98 0.2500 Pass 40 5200 8.07 0.39 8.46 23.98 0.2500 Pass 48 5240 7.85 0.39 8.24 23.98 0.2500 Pass Test Mode UNII-1_TX A Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 12.85 23.98 0.2500 Pass 40 5200 12.71 23.98 0.2500 Pass 48 5240 12.94 23.98 0.2500 Pass Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 143 of 195 Test Mode UNII-1_TX AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 10.31 0.45 10.76 23.98 0.2500 Pass 40 5200 10.28 0.45 10.73 23.98 0.2500 Pass 48 5240 10.36 0.45 10.81 23.98 0.2500 Pass Test Mode UNII-1_TX AX(HE20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 8.11 0.45 8.56 23.98 0.2500 Pass 40 5200 8.18 0.45 8.63 23.98 0.2500 Pass 48 5240 7.61 0.45 8.06 23.98 0.2500 Pass Test Mode UNII-1_TX AX(HE20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 12.81 23.98 0.2500 Pass 40 5200 12.82 23.98 0.2500 Pass 48 5240 12.66 23.98 0.2500 Pass Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 144 of 195 Test Mode UNII-1_TX AX(HE40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor (dB) Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 519…

Text truncated - open the document above for the full version.

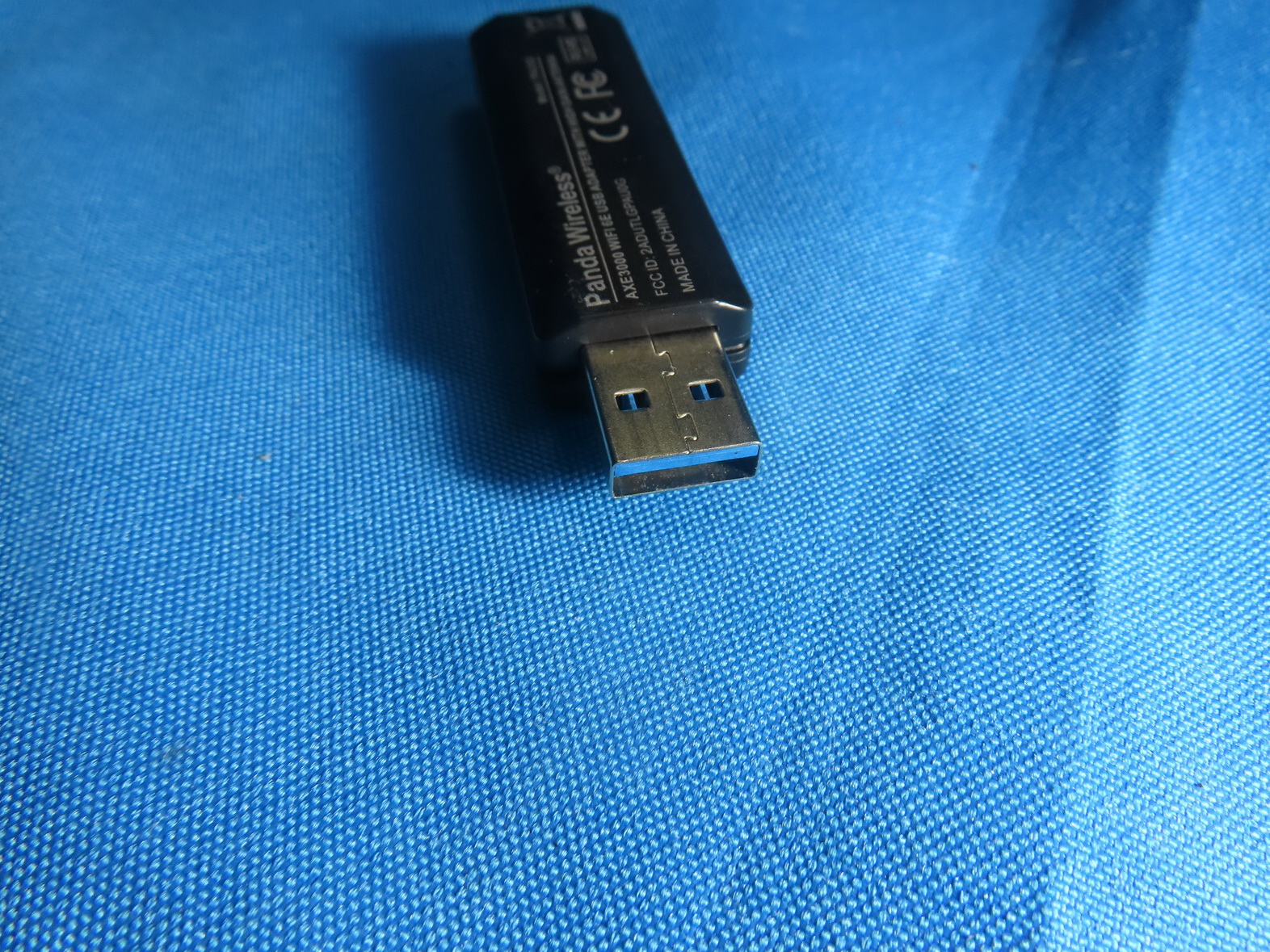

Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 1 of 195 FCC Radio Test Report FCC ID: 2ADUTLGPAU0G This report concerns: Original Grant Project No. : 2505C215 Equipment : WiFi 6E USB Adapter Brand Name : Panda Wireless Model Name : PAU0G, IGU0G Applicant : Panda Wireless, Inc. Address : 15559 Union Ave., Suite 300, Los Gatos , CA95032, USA Manufacturer : Panda Wireless, Inc. Address : 15559 Union Ave., Suite 300, Los Gatos , CA95032, USA Factory : Panda Wireless, Inc. Address : 15559 Union Ave., Suite 300, Los Gatos , CA95032, USA Date of Receipt : May 27, 2025 Date of Test : May 28, 2025 ~ Sep. 23, 2025 Issued Date : Nov. 11, 2025 Test Sample : Engineering Sample No.: DG2025052773 for AC power line conducted emissions and radiated emissions, DG2025052771 and DG2025052772 for others. Standard(s) : FCC CFR Title 47, Part 15, Subpart E The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. (Dongguan) Prepared by : Antony Liang Approved by : Chay Cai No.3, Jinshagang 1st Road, Dalang, Dongguan, Guangdong People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 2 of 195 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 3 of 195 Table of Contents Page REVISION HISTORY 6 1 . APPLICABLE STANDARDS 7 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 2.3 TEST ENVIRONMENT CONDITIONS 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 TEST MODES 13 3.3 PARAMETERS OF TEST SOFTWARE 16 3.4 DUTY CYCLE 18 3.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 20 3.6 SUPPORT UNITS 20 3.7 CUSTOMER INFORMATION DESCRIPTION 20 4 . AC POWER LINE CONDUCTED EMISSIONS 21 4.1 LIMIT 21 4.2 TEST PROCEDURE 21 4.3 DEVIATION FROM TEST STANDARD 21 4.4 TEST SETUP 22 4.5 EUT OPERATION CONDITIONS 22 4.6 TEST RESULTS 22 5 . RADIATED EMISSIONS 23 5.1 LIMIT 23 5.2 TEST PROCEDURE 24 5.3 DEVIATION FROM TEST STANDARD 25 5.4 TEST SETUP 25 5.5 EUT OPERATION CONDITIONS 27 5.6 TEST RESULTS - 9 KHZ TO 30 MHZ 27 5.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 27 5.8 TEST RESULTS - ABOVE 1000 MHZ 27 6 . BANDWIDTH 28 6.1 LIMIT 28 Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 4 of 195 Table of Contents Page 6.2 TEST PROCEDURE 28 6.3 DEVIATION FROM STANDARD 28 6.4 TEST SETUP 29 6.5 EUT OPERATION CONDITIONS 29 6.6 TEST RESULTS 29 7 . MAXIMUM OUTPUT POWER 30 7.1 LIMIT 30 7.2 TEST PROCEDURE 30 7.3 DEVIATION FROM STANDARD 30 7.4 TEST SETUP 30 7.5 EUT OPERATION CONDITIONS 30 7.6 TEST RESULTS 30 8 . POWER SPECTRAL DENSITY 31 8.1 LIMIT 31 8.2 TEST PROCEDURE 31 8.3 DEVIATION FROM STANDARD 31 8.4 TEST SETUP 32 8.5 EUT OPERATION CONDITIONS 32 8.6 TEST RESULTS 32 9 . FREQUENCY STABILITY 33 9.1 LIMIT 33 9.2 TEST PROCEDURE 33 9.3 DEVIATION FROM STANDARD 33 9.4 TEST SETUP 33 9.5 EUT OPERATION CONDITIONS 33 9.6 TEST RESULTS 33 10 . MEASUREMENT INSTRUMENTS LIST 34 11 . EUT TEST PHOTOS 37 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 43 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 46 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 51 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 54 Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 5 of 195 Table of Contents Page APPENDIX E - BANDWIDTH 124 APPENDIX F - MAXIMUM OUTPUT POWER 141 APPENDIX G - POWER SPECTRAL DENSITY 158 APPENDIX H - FREQUENCY STABILITY 191 Report No.: BTL-FCCP-2-2505C215 Report Version: R01 Page 6 of 195 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-2-2505C215 R00 Original Report. Oct. 23, 2025 Invalid BTL-FCCP-2-2505C215 R01 This report has below changes: a. Updated the description in section 2.3. b. Updated the calibrated until of radiated emissions 1-18GHz in section 10. It is a revision of the report with serial number BTL-FCCP-2-2505C215 R00. This is a newly released report, replacing the BTL-FCCP-2-2505C215 report. Nov. 11, 2025 Valid Report No.: BTL-FCCP-2-2505C215 Report…

Text truncated - open the document above for the full version.

TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2457-15BC01RS-B ProductName:Antenna Page1 SpecificationForApproval Version Date: 2025.6.5 :1.0 客户名称 Customer：智路由 客户料号 CustomerP/N： 腾祥料号 TXP/N：AN2457-15BC01RS-B 规格描述 Description:2.4G/5G/6G黑色天线SMA公头母针 TengxiangCheckedBy: 腾祥审核 CustomerApprovedBy: 客户审核 DRAWN 制作 路婷 TESTEDBY 检测 CHECKEDBY 审核 胡超 CHECKEDBY 审核 Q.C.DEPT. 品管 周志红 Q.C.DEPT. 品管 APPROVEDBY 核准 韦佳 APPROVEDBY 核准 NO.53ShatouShaChongRoad,ChangAnTown,Guangdongprovince,China 中国广东省东莞市长安镇沙头区沙涌路53号 TEL:86-769-81873082FAX:86-769-82663788 http://www.tenxiang.cn TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2457-15BC01RS-B ProductName:Antenna Page2 Index: 1.Specification(规格) 2.CharacteristicsandReliabilityTest(产品特性和可靠性测试标准) 3.Antenna-SParameterTestData(样品测试数据) 4.Antenna-RadiationPatternTestData(辐射模式测试数据) 5.MechanicalandPackingDrawing(图纸包装规范) RevisionHistory（变更履历） RevisionDateChangeNotificationDescription 1.02025.6.5 初版 TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2457-15BC01RS-B ProductName:Antenna Page3 1.Specification SamplePhoto A.ElectricalCharacteristics Frequency频率2400-2500MHz/5150-5850MHz/6000-7125MHz S.W.R.驻波比<=2.5/<=2.5 AntennaGain增益3.01dBi/4.12dBi/ 3.92dBi Polarization 极化方式 Linear Impedance 阻抗50Ohm B.Material&MechanicalCharacteristics MaterialofPlastic塑胶材质ABS/PC+PBT/POM CableType线材规格RG178 ConnectorType连接器规格RPSMAPIug C.Environmental StorageTemperature 存储温度 -30 ̊C~+65 ̊C OperationTemperature 工作温度 -30 ̊C~+65 ̊C TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2457-15BC01RS-B ProductName:Antenna Page4 2.CharacteristicsandReliabilityTest TestItems …
