2ADVR3300Push Button Engine Start System

Push Button Engine Start System AUTO3300SMS V03 9207003000001 Operation Guide of Engine Start Warning: 1.When you leave the car with Remote Control and lock the doors, please make sure there is no passenger especially child whose body is staying on the slide rail of the open window to avoid any injury. 2.The user shall take the Remote Control along with him/her and take good care of it. (Please do not leave the Remote Control in the car to avoid loss caused by Remote Control battery low or electromagnetic interference.) Tips For Trouble Shooting Digital Keypad 8 Index Index 1.Press button: arm and lock 2.Press button: disarm and unlock 3.Press and hold button for 3 sec.: trunk release 4.Press the Function button: car finding with sound and light 5.Press and hold the Function button for 3 sec. in armed mode: remote engine start 6.Press + buttons at the same time, the horn beeps twice to turn OFF the PKE function. 7.Press + buttons at the same time, the horn beeps 3 times to turn ON the PKE function. 8.Press the Function button while stepping on brake pedal: Start/Stop engine (Only 3300 series have this function.) (Only 3300 series have this function.) Function button of Remote Control: Remote engine start stop/Car finding Remote engine start stop/Car finding Remote engine star stop/Car finding Remote engine start stop/Car finding Remote trunk release The intelligent Remote Control is an intellisense electronic device. Please follow the following instructions to avoid damage. 1.Don't put the Remote Control in an environment with damp, sunshine or high temperature. 2.Don't dismantle the Remote Control. The unprofessional users cannot check the components inside. 3.To avoid strong strike or heavy crash. 4.Don't put the Remote Control together with the metal keys to avoid damage or signal shielding. If the PKE function of the Remote Control is not working or the LED indicator is dim or not lit, probably the battery is low. Please check the batteries of the Remote Control and replace them with new ones. Lock button Remote start/stop Unlock button 2 Operation Guide of Engine Start Installation position of ignition button 1. Step on the brake pedal while disarmed, press the ignition button then the engine will start, press the ignition button again the engine will stop. 2. Do not step on the brake pedal while disarmed, press the ignition button to turn on ACC-ON-OFF-ACC successively. 3. Step on the brake pedal while disarmed, press the Function button on the Remote Control the engine will start, press the Function button again the engine will stop. 4. Do not step on the brake pedal while disarmed, press and hold the ignition button for 15 seconds the engine will start. While the engine is running, press and hold the ignition button for 5 seconds the engine will stop. 5. Automatic Transmission Car: While armed, press and hold the Function button on the Remote Control, the engine will start. Press and hold the Function button again the engine will stop. 6. Manual Transmission Car: Do not turn off the engine with the ignition button, shift the gear selector in Neutral position, pull the hand brake on, open and close all the doors, press and hold the Function button on the Remote Control to turn off the engine. While the car is in armed state, press and hold the Function button of the Remote Control to start the engine, press and hold the Function button again to turn off the engine. (Note: For manual transmission car, if the engine is stopped by pressing the ignition button, then the engine cannot be started with the Remote Control. For safety purpose, please follow this instruction.) Important Notice: The factory setting of the remote engine start function is OFF for manual transmission car. If the user wants this function please apply for it from the dealer. 3 Push Button Engine Start SystemPush Button Engine Start System Operating Voltage: 5V Operating Current: 6mA Static Current: 10uA Control Module: Remote Control: Digital Keypad: Operating Voltage: 12V3V Operating Current: 35mA in average Static Current: 18mA Operating Frequency: 433.92MHz or 315MHz Operating Voltage: 3V Operating Current: <10uA Battery Specs: CR2032 Lithium Battery Operating Frequency: 433.92MHz or 315MHz Turn off the ignition, open and close all the doors, the system will arm and lock the doors when the user walks about 3 to 5 meters away from the car with the Remote Control. When the user approaches to the car within 1 to 2 meters with the Remote Control, the system will disarm and unlock the doors. Note: Only 3300 series have this function. When the user approaches to the car with the Remote Control, the system will disarm. Step on the brake pedal (the indication light on the push button will flash), press the push button then the engine will start. Step on the brake pedal, press the ignition button when the engine is running to turn off the ignition. If the user doesn't step on the brake pedal after getting in the car, the first press of the ignition button will turn on the ACC, the second press will turn the ignition ON and the third press will turn off the ignition. While the engine is running, if the user doesn't step on the brake pedal, the engine can be stopped by pressing and holding the ignition button for 3 seconds. Turn off the ignition, open and close the doors, the system will lock the doors and enter into armed state. The window closer will detect whether the windows are closed or not and roll up the unclosed windows in turn automatically (for some models of cars 4 windows will roll up at the same time). (Note: This is an optional function and some models of cars cannot achieve the automatic window closing. Please check it out before you install our product.) PKE (Passive Keyless Entry) Push Button Engine Start/Stop Automatic Window Closing (Optional) Warning: When you leave the car with Remote Control and lock the doors, please make sure there is no passenger especially child whose body is staying on the sli…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 5.0 Zhongshan Auto Electronics Technology Co., Ltd. 2014-12-31 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Zhongshan Auto Electronics Technology Co., Ltd. _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Push Button Engine Start System, 3300) FCC ID: 2ADVR3300 Sincerely, Client’s signature Client’s name / title Changsong Wu / Manager Contact information / address 4F Building A, No.22 Shagang West Road, Zhongshan City, Guangdong Province, China

Zhongshan Auto Electronics Technology Co., Ltd. SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Zhongshan Auto Electronics Technology Co., Ltd. SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2014-12-31 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADVR3300 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Changsong Wu / Manager Contact information / address 4F Building A, No.22 Shagang West Road, Zhongshan City, Guangdong Province, China

Model Declaration Letter We, the undersigning company Company Name: Zhongshan Auto Electronics Technology Co., Ltd. Address: 4F Building A, No.22 Shagang West Road, Zhongshan City, Guangdong Province, China Hereby confirm that the following products: Product description: Push Button Engine Start System Type designation: 3300, 3300C, 3300D, 3300K, 3300KF, 3300-21, 3300-20, 3300RS, 3300-40, 3300BT Tradename or Brand(s): AOD That All these models are identical in the same PCB, layout and electrical circuit, the only difference is model name for commercial. City and Country: Date: Name: Function: Signature: Zhongshan Guangdong 31/12/2014 Changsong Wu Manager

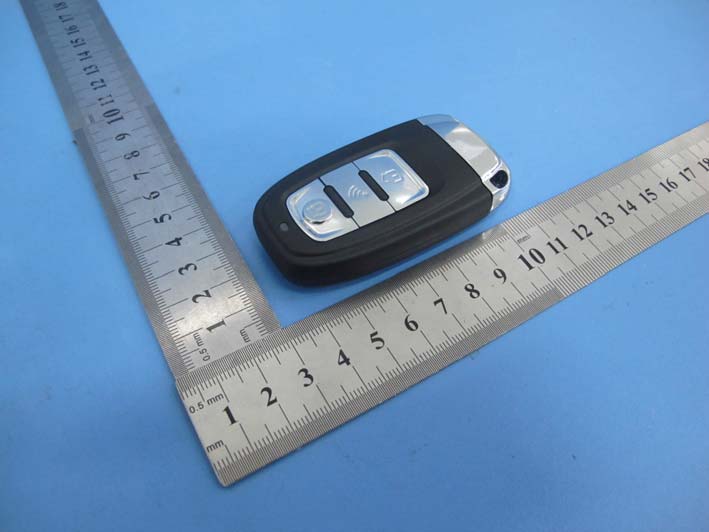

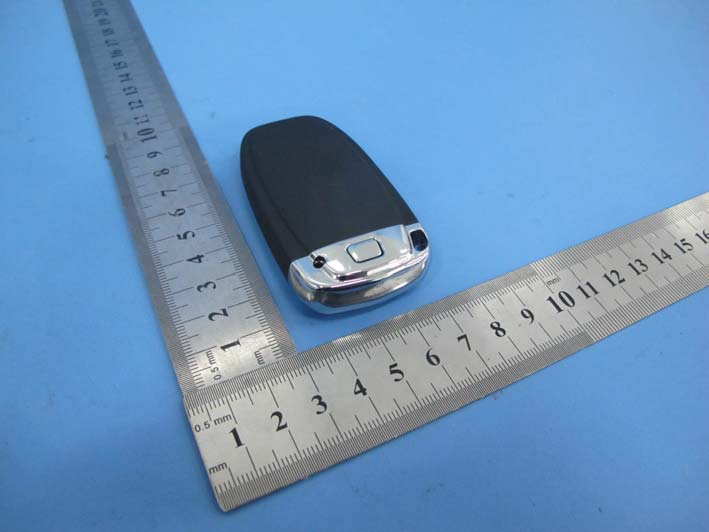

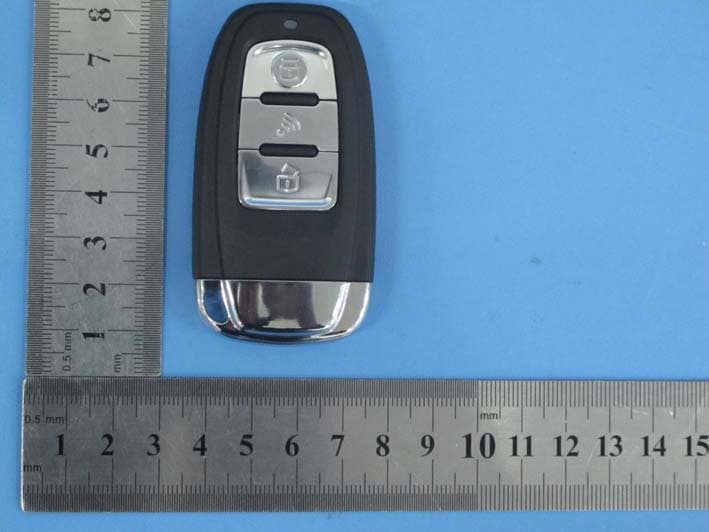

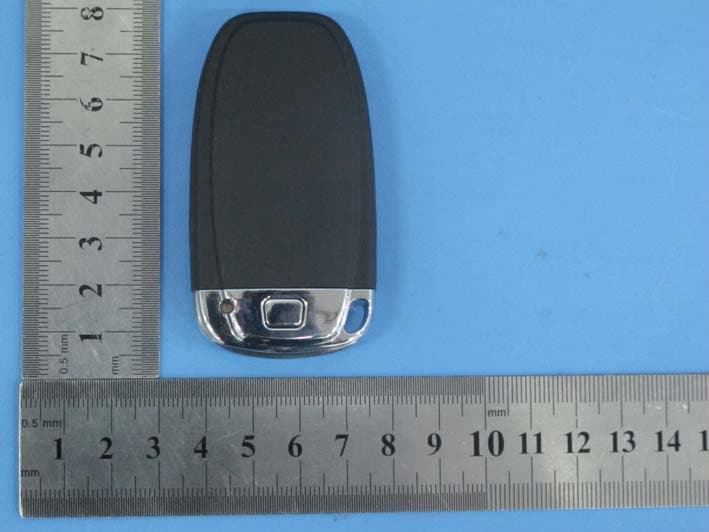

Report No.: TB-FCC142548 Page: 3 of 8 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC142548 Page: 4 of 8 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Report No.: TB-FCC142548 Page: 1 of 8 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2ADVR3300 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Zhongshan Auto Electronics Technology Co., Ltd. Model: 3300

Report No.: TB-FCC142548 Page: 2 of 8 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC142548 Page: 5 of 8 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT Report No.: TB-FCC142548 Page: 6 of 8 TB-RF-075-1.0 Photo 7 Appearance of PCB Photo 8 Appearance of PCB Antenna Report No.: TB-FCC142548 Page: 7 of 8 TB-RF-075-1.0 Photo 9 Appearance of Battery

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC142548 Page: 1 of 30 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ADVR3300 Report No. : TB-FCC142548 Applicant : Zhongshan Auto Electronics Technology Co., Ltd. Equipment Under Test (EUT) EUT Name : Push Button Engine Start System Model No. : 3300 Serial No. : Please see the page of 4 Brand Name : AOD Receipt Date : 2014-11-12 Test Date : 2014-11-12 to 2012-12-25 Issue Date : 2014-12-31 Standards : FCC Part 15, Subpart C (15.231:2014) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC142548 Page: 2 of 30 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 5 1.5 Description of Test Mode .................................................................................................... 5 1.6 Test Facility ........................................................................................................................ 6 2. TEST SUMMARY ....................................................................................................................... 7 3. CONDUCTED EMISSION TEST ............................................................................................. 8 3.1 Test Standard and Limit ...................................................................................................... 8 3.2 Test Setup ............................................................................................................................. 8 3.3 Test Procedure ..................................................................................................................... 8 3.4 Test Equipment Used .......................................................................................................... 9 3.5 Test Data ............................................................................................................................... 9 4. RADIATED EMISSION TEST ................................................................................................ 10 4.1 Test Standard and Limit .................................................................................................... 10 4.2 Test Setup ........................................................................................................................... 11 4.3 Test Procedure ................................................................................................................... 12 4.4 EUT Operating Condition ................................................................................................. 13 4.5 Test Equipment .................................................................................................................. 13 4.7 Test Data ............................................................................................................................. 14 Radiated Emission Bellow 1 GHz .......................................................................................... 14 5. BANDWIDTH ............................................................................................................................ 21 5.1 Test Standard and Limit .................................................................................................... 21 5.2 Test Setup ........................................................................................................................... 21 5.3 Test Procedure ................................................................................................................... 21 5.4 EUT Operating Condition ................................................................................................. 21 5.5 Test Equipment .................................................................................................................. 22 5.6 Test Condition .................................................................................................................... 22 5.7 Test Data ............................................................................................................................. 23 6. RELEASE TIME MEASUREMENT ....................................................................................... 24 6.1 Test Standard and Limit .................................................................................................... 24 6.2 Test Setup ........................................................................................................................... 24 6.3 Test Procedure ................................................................................................................... 24 6.4 EUT Operating Condition .............................................…

Text truncated - open the document above for the full version.

Report No.: TB-FCC142548 Page: 8 of 8 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz)
