2ADWGVISZDRemote Controller

FPC SECURITY CORP 8230 NW 14ST DORAL FL 33126 VIS-8004 (Trade): Remote Controller Manual Manufacturer:Hangzhou Zhengdian Technology Co., Ltd. M/N:VIS-8004,VIS-8005,ZD-R1CH,ZD-R2CH,ZD-R4CH,ZD-R6CH,ZD-R8CH,ZD-12CH, ZD-R15CH,ZD-RF08 Function 1. this 433M Remote Controller can use the software settings use Different 433M receiver. 2. this 433M Remote Controller and 433M receiver Don't together sell. 3. Open the battery compartment and install the included 3V battery. 4. this 433M Remote Controller Through the key control Different 433M receiver Opening and closing. Packing list 433M Remote Controller: Specification Working range:100m(open area) Working frequency: 433MHz Working voltage:3V battery Battery life: 1 year Working Temeprature:-10C~50C 433M Remote Controller key FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FPC SECURITY CORP 8230 NW 14ST DORAL FL 33126 Confidentiality Request Letter Page 1 of 1 Rev 2.0 December 27, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID:2ADWGVISZD We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________ Client’s name / title: YOVANY LOPE / MANAGER Contact information / address: 8230 NW 14ST DORAL FL 33126 Contact Email:[email protected] ContactPhone: 001-786-4421220 ContactFax: 001-786-703-1264

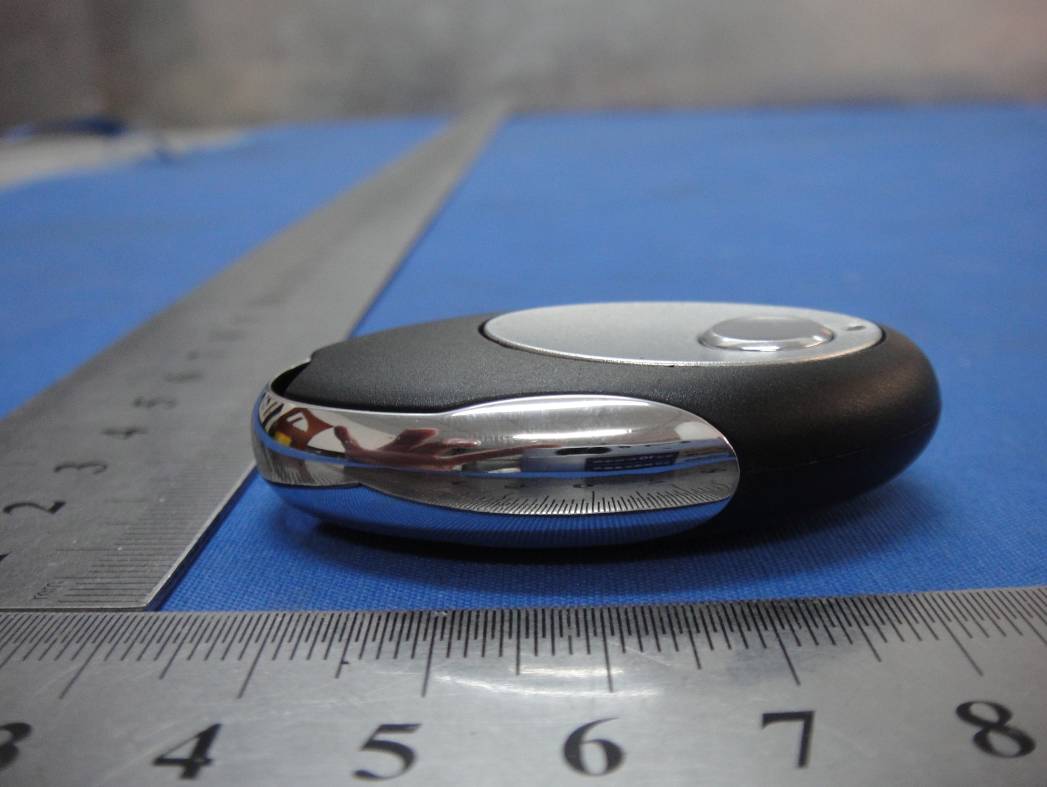

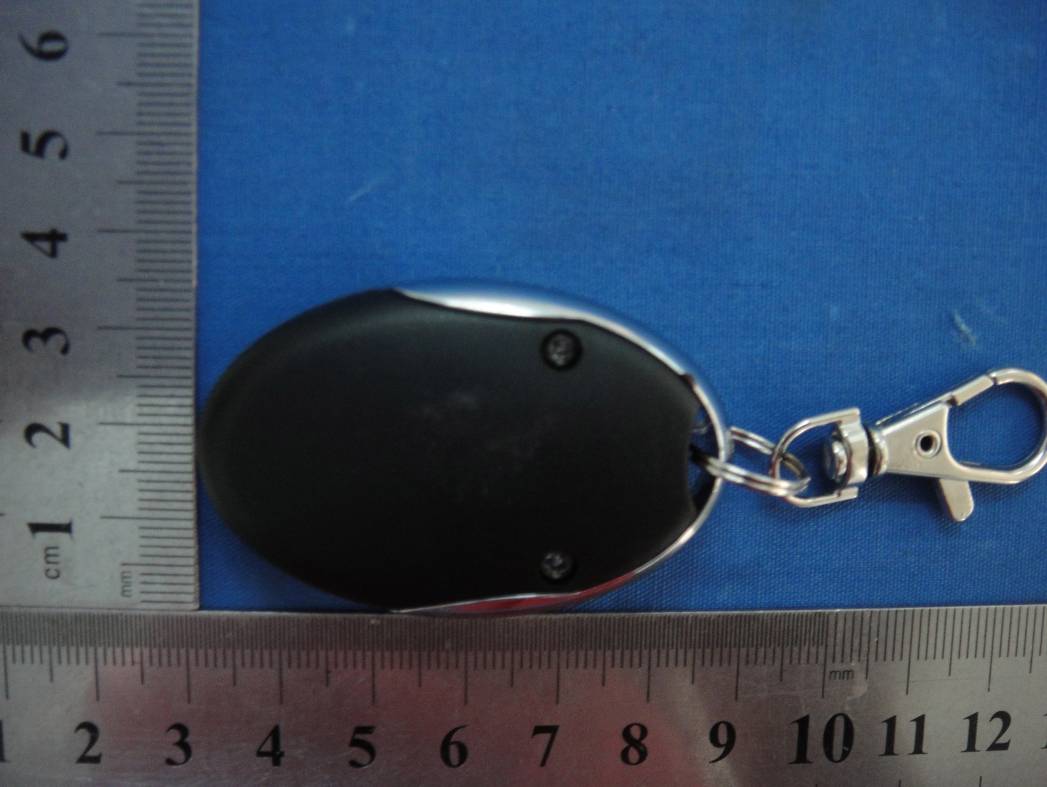

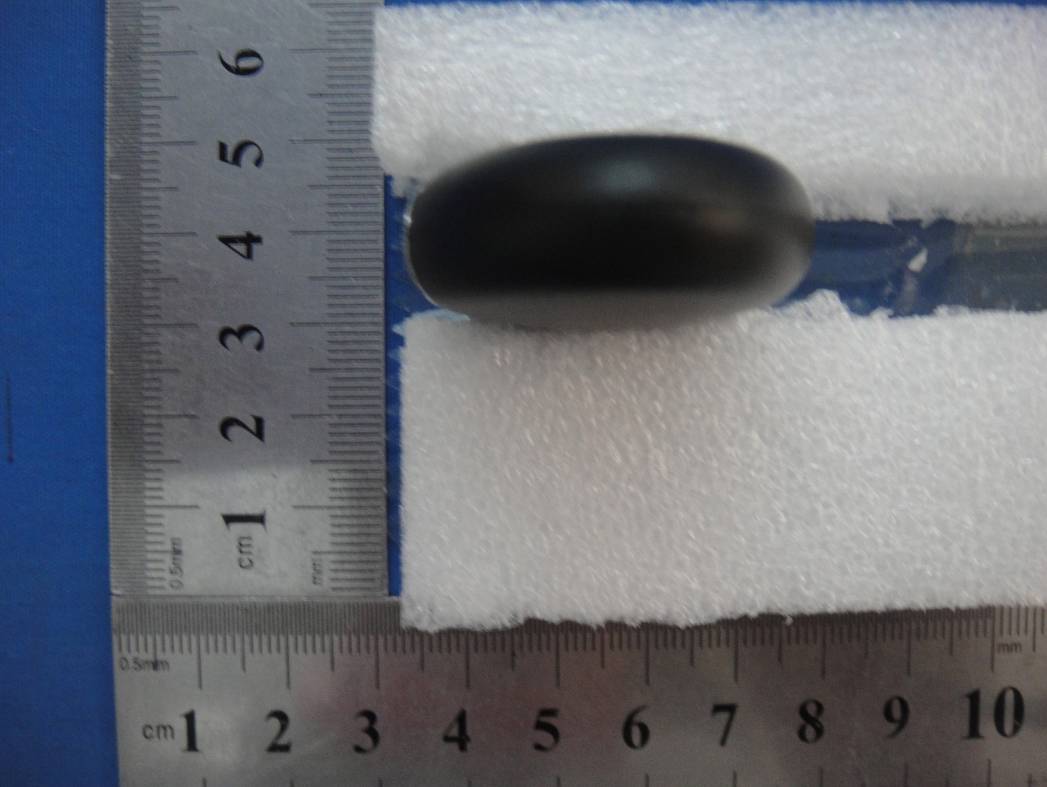

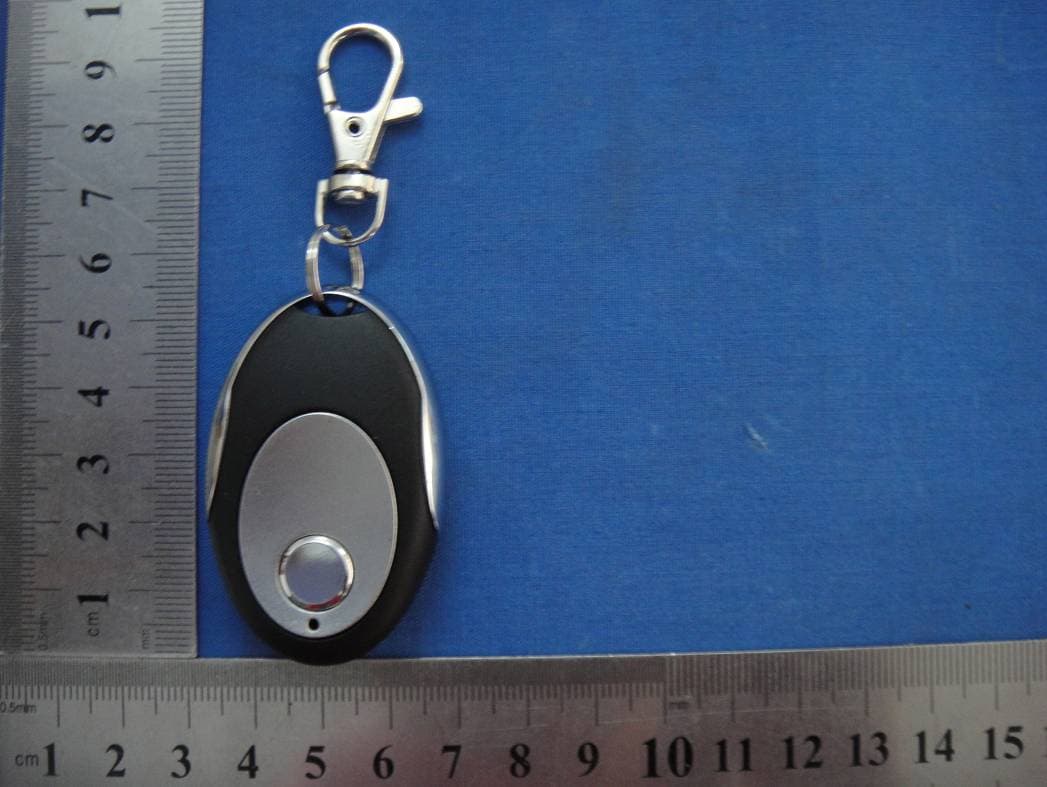

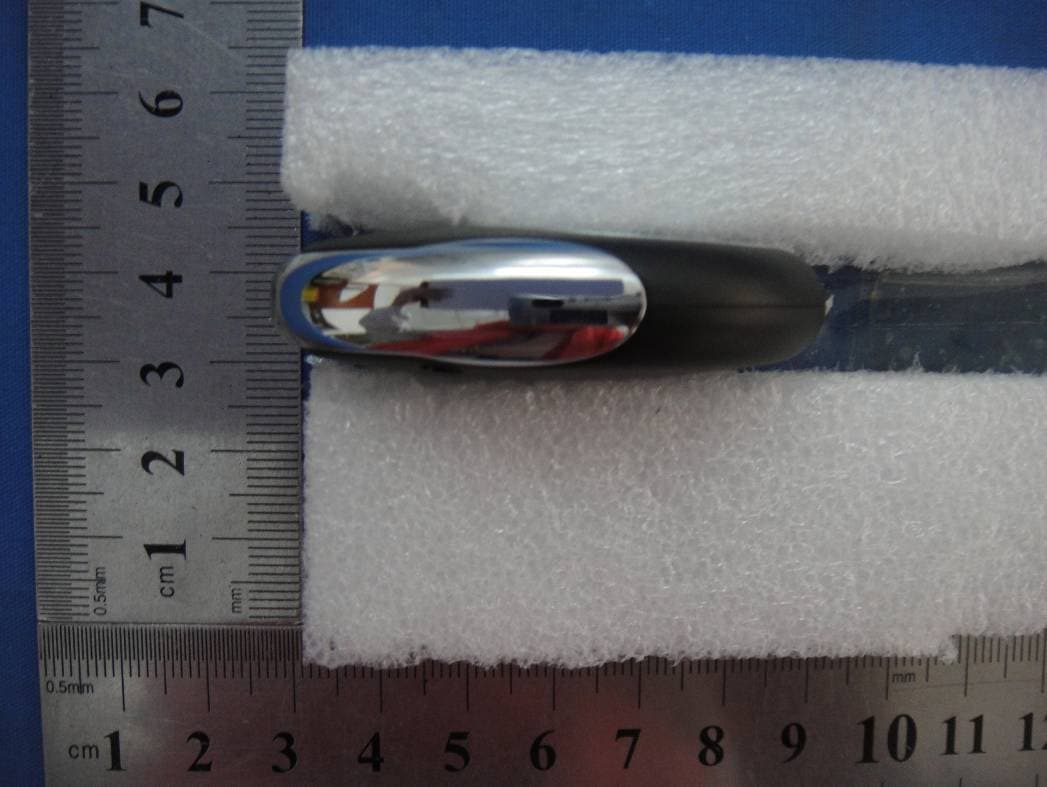

FCC Certification Label FCC ID:2ADWGVISZD Label Location on EUT label size:high 0.5cm, Wide:1.5 cm EUT View/ FCC ID Label Location

FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For FPC SECURITY CORP 8230 NW 14ST DORAL FL 33126 FCC ID:2ADWGVISZD December 27, 2014 This Report Concerns: Original Report Equipment Type: Remote Controller Test Engineer: Lisa Chen Report No.: BSL141227-1 Receive EUT Date/Test Date: December 20, 2014 / December 20 - December 27, 2014 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID:2ADWGVISZD Page 2/21 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................13 7.5. Radiated Emission Test Result .......................................................................................14 8. 20DB OCCUPIED BANDWIDTH ..........................................................................................18 8.1. Test Equipment ...............................................................................................................18 8.2. Test Procedure ................................................................................................................18 8.3. FCC 15.231(c) 20dB Bandwidth Limit...........................................................................18 8.4. Test Result ......................................................................................................................19 9. DEACTIVATION TESTING...................................................................................................20 9.1. Test Equipment ...............................................................................................................20 9.2. Test Procedure ................................................................................................................20 9.3. Deactivation Testing Requirement .................................................................................20 9.4. Test Result ......................................................................................................................21 FCC ID:2ADWGVISZD Page 3/21 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must n…
