2ADWNDSBT010Bluetooth Speaker

Instruction Manual 1. Specification: Product Size: 52 x 52 x 115 mm Weight: 280g Loudspeaker: 40mm / 4Ω Rated Power: 3W Interface: Micro USB DC in, ∅3.5mm audio in Bluetooth Parameter: Operation Frequency: 2.402GHz - 2.480GHz Power Output（Peak）: Class 2/3 dbm Receiving Sensitivity: -80db, @ 0.1% BER Operation Range: Around 10m Battery Parameter: Capacity: 400mA, 3.7V, Polymer Li-ion Battery Music Playback time: 4.5 Hours at 70% volume Charging Standard: DC 5V, 500mA Charging time: 1.5-2 hours Accessory: USB charging cable x 1pcs Audio in cable x 1pcs Instruction manual x 1pcs 2. Operation Instructions ① Power switch: on/off ② Audio Line-in button ③ Mic: Serve as microphone during hands-free call ④ Micro USB charging port ⑤ ∅3.5mm Audio in ⑥ LED Indicator: Built-in battery indicator *Red light on - In charging * Light off - Full charged * Blue light on - Play by audio in * Blue light flashing quickly - Bluetooth Paring * Blue light flashing slowly - Bluetooth paring successfully Play via Computer / Mobile phone in Bluetooth state: – Turn on the power of speaker – Activate Bluetooth in Phone or Computer – Search the speaker, name “DSBT010” – Pairing – Connect and Play Play via Computer / Mobile phone in audio line-in state: – Turn on the power of speaker – Connect speaker to Phone or Computer via the audio in cable and then play. 3. Application ‐ Be applicable to all Bluetooth devices. ‐ Be applicable to all ∅3.5mm audio out devices ‐ ‐ To twist the product and place phone on the speaker: ‐ 1.Face to speaker mesh, it is rotated clockwise 180 degrees only ‐ 2.Place your phone on the rubber pad 4. Troubleshooting 1. The phone call could be interfered with high frequency electromagnetism. Avoid use this product under high frequency environment. 2. Bluetooth is a bidirectional transmitting protocol; transmitting distance is highly related to the audio player. 3. When the speaker cannot be connected, please delete the rest Bluetooth devices name on the list of user’s computer / mobile phone. Then, follow the steps in operation instructions. 4. The sound performance could also be affected under poor signal environment, or product is low battery capacity. Please move the product to environment with strong signal or charging the product. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. When the device is used as mobile phone support ，The distance between user and products should be no less than 20cm

DATE : Jan 09, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADWNDSBT010 Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Jan 09, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Aaron Zhang Signature Printed Title: Manager On behalf of : Richen Industrial Co.,Ltd Telephone: 0755-83268139

DATE : Jan 09, 2015 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint _ Shenzhen Timeway Technology Consulting Co., Ltd/ 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA._, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Digiview Technology Limited / F3, Building B1,GaoXinJian Industrial Park,FuYuan 1st Road, HePing Vallage,FuYong Town,BaoAn District,ShenZhen,GuangDong, China Dated this Jan 09, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Aaron Zhang Signature Printed Title: Manager On behalf of : Richen Industrial Co.,Ltd Telephone: 0755-83268139

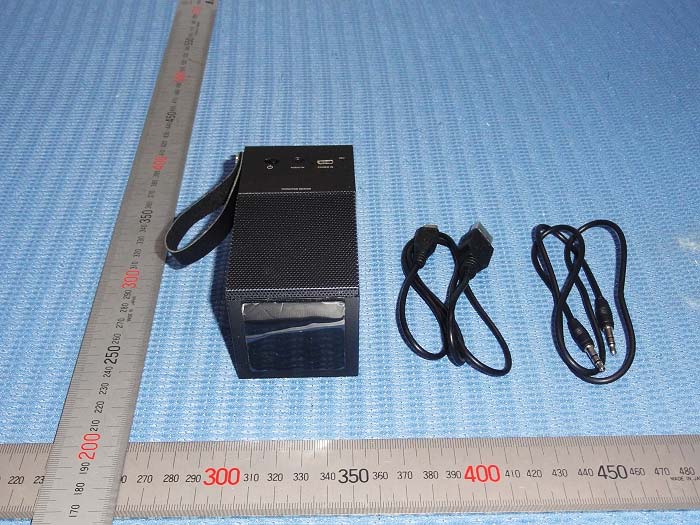

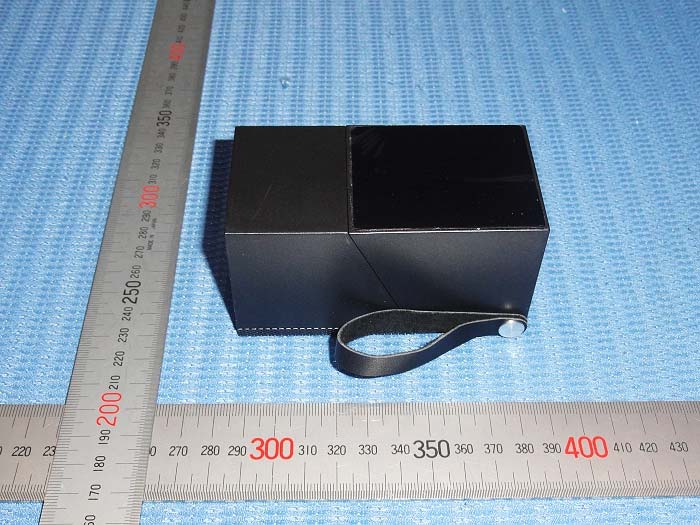

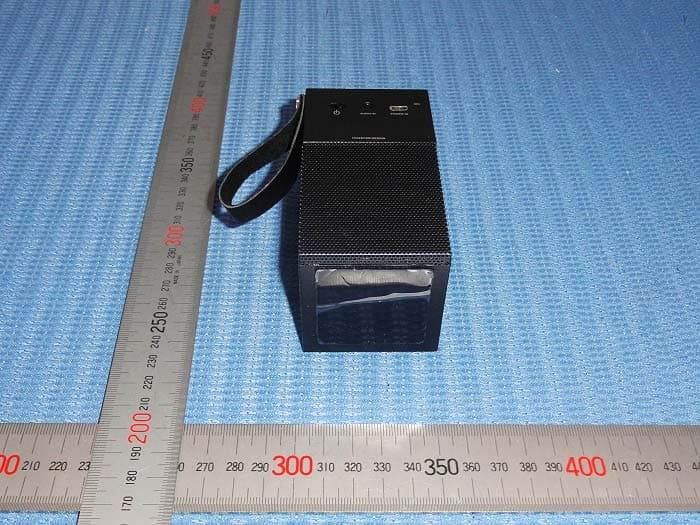

Photo for the EUT Photo for the EUT Photo for the EUT

Audio

FCC ID Label Location

Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse Case): [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =0.555/5 * 1.57= 0.17, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. The SAR measurement is not necessary.

ISO/IEC17025Accredited Lab. Report No: FCC 1412191 File reference No: 2015-01-09 Applicant: Digiview Technology Limited Product: Bluetooth speaker Model No: DSBT010 Trademark: N/A Test Standards: FCC Part 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4, ,FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: January 09, 2015 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No: FCC1412191 Page 2 of 81 Date: 2015-01-09 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No: FCC1412191 Page 3 of 81 Date: 2015-01-09 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition.......................................................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
