OT5518 Manual OPERATING INSTRUCTIONS Confirm transmitter base and remote receiver both have 2 good AAA batteries. Plug probe cable connector into right side of base. Select Power ON for base and remote. Insert tip of probe into the center of thickest part of meat, taking care to position probe tip near center of meat away from bone and fatty areas. Position probe and sensor wires so they do not touch heat source. Position wire so it is not pinched by grill cover or oven door. TEMPERATURE DISPLAY Temperature is displayed in °F or °C. To select Fahrenheit or Celsius briefly press “MODE” button to change temperature display. SELECT MEAT TYPE AND TASTE LEVEL Press “MEAT” button to navigate and select desired meat type. Each press will change the display in the following sequence: Press “TASTE” button to select the doneness level (Rare, Medium Rare, Medium, Medium Well or Well Done). Target temperature appears on the LCD screen. Press “TASTE” button more than 3 seconds (beeper sounds) to synchronize wireless receiver. On display CURRENT TEMP refreshes after several seconds. Wireless meat thermometer is ready for you to begin cooking. Remote thermometer will beep when meat has reached pre-set temperature. MANUALLY SET TARGET TEMPERATURE Insert probe into center of thickest part of meat. Press and hold down “MODE” button for 3 seconds (beeper sounds) to manually set target temperature. Press “MIN” and “SEC” to select desired temperature. MIN increases and SEC decreases temperature setting. Press “MODE” button to confirm your setting. Selected target temperature appears on the LCD display. Begin cooking. Remote thermometer beeps when meat has reached target temperature. Press any button to silence beep. AFTER COOKING Once cooking is finished, use an oven mitt to remove sensor probe. Do not touch hot probe or sensor wire with bare hands. Select power OFF for base and remote to save batteries. CLEANING WIRE AND TEMPERATURE PROBE After probe cools it can be wiped clean with cloth and hot soapy water. Avoid submerging wire and probe in water. COUNT UP/DOWN TIMER The count up and count down timer function operates independently of temperature sensor. To set Countdown Timer: Use MIN and SEC to set start time for countdown timer. Maximum setting is 99 min. 59 sec. Start Timer: Press S/S (start/stop) button to begin. Pause: To pause countdown press S/S button, then press S/S again to restart countdown. When countdown reaches 0:00 remote beeps. Press any button to silence beep. Count up Timer: Timer functions as a count up timer when no countdown time is pre-set. Count up timer can count to 99 min. 59 sec. Start Timer: Press S/S (start/stop) button to start count up timer. Clear Timer: Press CLEAR button to clear up/down timer. DISPLAY SCREEN BACKLIGHT When any key is pressed screen illuminates for 5 seconds. TECHNICAL DATA Grilling thermometer includes: - Transmitter Base - Receiver Remote with temperature indicator, up/down counter display and control buttons - Stainless steel meat probe and wire in protective shield (plugs into transmitter base) Batteries: Requires 4 AAA batteries not included. Pre-set meat and taste level (doneness) settings. Built in timer functions independently of temperature sensor. Temperature Range: 32°F- 500°F (Fahrenheit) / 0°C-260°C (Celsius) LCD display with backlight shows food, taste, temperature, and timer information. Beeper alarm indicates target temperature, timer and button selections. Transmitter Base To install batteries, slide off battery compartment cover. Place 2 fresh AAA batteries in compartment as indicated by the polarity symbols (+) and (-). Power ON/OFF switch is located on bottom of base. Connect probe to right side of base and turn on power. LED Indicator at front of base flashes red to indicate it is on and transmitting. When does base transmit? When temperature changes more than 1°F/°C transmitter sends an update to receiver. Transmitter updates every 30 seconds when temperature remains unchanged. Receiver Remote To install batteries slide off battery compartment cover. Place 2 fresh AAA batteries in compartment as indicated by polarity symbols (+) and (-). Power ON/OFF switch is located on back near belt clip. To use grilling thermometer turn on power. Display screen lights and beeper sounds. FCC statement NOTE: This equipment has been tested and found to comply with the Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This is equipment generates uses and can radiate radio frequency energy and ,if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver 3. Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Modifications to this product will void the user’s authority to operate this equipment.

Fuzhou Oeast Electronic Co.,Ltd Tower 1,No.13 Guanzhou Road Yixu Fuwan ,Cangshan District,Fuzhou,Fujian,China Tel:86-591-28058326 Fax:86-591-28058327 Letter of Authorization Company: Fuzhou Oeast Electronic Co.,Ltd Address: Tower 1,No.13 Guanzhou Road Yixu Fuwan Cangshan District,Fuzhou,Fujian,China Product Name:wireless meat thermometer Model Number: OT5518 ,OT5558 We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: • Testing • Approval applications (includes complete product documentation package, including Confidential information) and procedures • Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Jesse Date: December 30, 2014 Title: Sales Signature of applicant:

Fuzhou Oeast Electronic Co.,Ltd Tower 1,No.13 Guanzhou Road Yixu Fuwan ,Cangshan District,Fuzhou,Fujian,China Tel:86-591-28058326 Fax:86-591-28058327 12/30/2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: FUZHOU OEAST ELECTRONIC CO.,LTD FCC ID: 2ADXA-OT5518 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 Fuzhou Oeast Electronic Co.,Ltd hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Block Diagram Block Diagram Block Diagram Operational Description Operational Description Operational Description Schematics Schematics Schematics Parts / BOM Parts / BOM Parts / BOM Note: Any exhibit NOT granted Confidential status is viewable on the FCC website as soon as the Grant is issued. Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Fuzhou Oeast Electronic Co.,Ltd considers proprietary, confidential, and a custom design not otherwise available to the general public. State why the information is a “trade secret;” Since the design is a basis from which future products will evolve, Fuzhou Oeast Electronic Co.,Ltd considers that this information would be of significant benefit to its competitors and that disclosure would give competitors an unfair advantage in the marketplace. Trade secret” information is information which is not generally known or reasonably ascertainable, by which a business can obtain an economic advantage over competitors. The information is not normally released to any party or person outside the company. Sincerely, Signature: Name: Jesse Company: Fuzhou Oeast Electronic Co.,Ltd Title: Sales Date: 30,December,2014

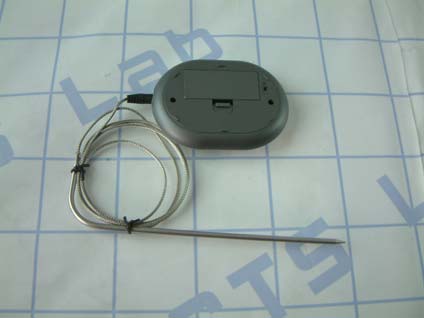

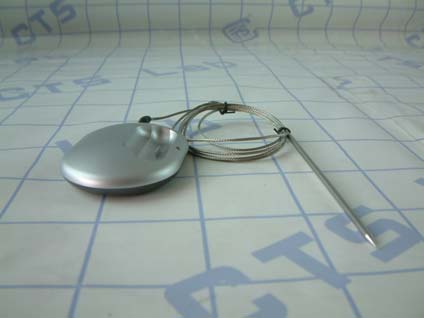

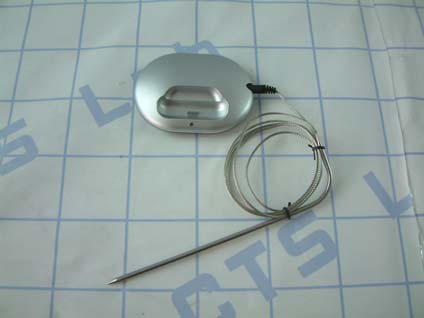

FCC ID:2ADXA-OT5518 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3141204-01344-EF Page 1 of 2 1. External Photos of the EUT External view-1 External view-2 External view-3 FCC ID:2ADXA-OT5518 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3141204-01344-EF Page 2 of 2 External view-4 External view-5 External view-6
