2ADXEWMD410U04SR6A0BlueTooth Multi Color Lamp

Shenzhen Sheng Run Technology Co., www.tuner168.com Tel:0755-88825569 Fax:0755-82970906 User Manual FCC ID 2ADXEWMD410U04SR6A0 Product Name BlueTooth Multi Color Lamp Soft Ware Number transparently Transmit V1.8_1119 MCU：71AS Checksum(91DB) Model Number Main Type： WMD410U04SR6A0 Series Models：WLA417117SR6A0 - 1 Version V1.0 Shenzhen Sheng Run Technology Co., www.tuner168.com Tel:0755-88825569 Fax:0755-82970906 Specification: (1). Configuration parameter Item Description Parameter Remark IC Type FM8PC71AS 12bits PWM Software checksum：91DB TI CC2541 SoftWare:transparently Transmit V1.8_1119 QFN40 SI 9926 Dual N-Channel MOSFET 2.5V(G-S)/ VDS max 20V/ ID (Steady State) 2.5A Others PCB No HY-254117 V1 + HY-254103 V2 PCB Material FR4 1.0mm X-Tal 32MHz and 32.768 KHz Antenna Style Wire Antenna Communication Protocol ■IIC ■UART □SPI □Optional Device Mode □Master ■Slave □Master-Slave Light Color R G B W Multicolor LED Lamp Display Mode (1).4 dynamic color light mode ; Dimming level： 12 bits PWM control to Adjustable color hue and brightness (2).According to customer needs using their own, such as red, blue, green white four-color LED lamp. (2).BlueTooth Multi Color Lamp Control PCBA Electrical characteristics: ( Measured on Ta=25°C, AC 100V~220V adapt to DC16V ) 1. Modulation mode: GFSK 2. Frequency range:2402-2480MHz (2.4G ISM band). 3. Transmit out put power with PCB antenna:-20～0 dBm（Programmable） 4. Operating ambient temperature range : -20°C ~ +65°C， Storage environment temperature range：-40°C〜+80°C 5.Power Supply Voltage：16VDC (The practical application of voltage / current value according to the capacity of the power supply board ) 6.Receiver sensitivity:：-94dBm typ. 7.White LED lights maximum constant working current: 2.5A 8.Red LED lights maximum constant working current: 2.5A. 9.Green LED lights maximum constant working current: 2.5A 10.Blue LED lights maximum constant working current: 2.5A Shenzhen Sheng Run Technology Co., www.tuner168.com Tel:0755-88825569 Fax:0755-82970906 11. Effective receiving distance: 10Meter min (With the i-pad in an free open space, no obstacle, Face to Face testing) (3).BlueTooth Multi Color Lamp Control PCBA Top and Bottom diagram and dimensions Control Board PCBA dimension: L 26* W 23 * H 3.2mm Shenzhen Sheng Run Technology Co., www.tuner168.com Tel:0755-88825569 Fax:0755-82970906 (4). BlueTooth Transceiver Module diagram and dimensions (5).User operation APP Explanation: Product descriptions and applications in the following: four-color ball lamp ( red , green ,blue and White) for example : APP support mobile phone system( Mainly adapted resolution):android 4.3 firmware over, And the display screen: 1280x720 to illustrate the application . (5-1).Product pictures (5-2).The main interface module: In this interface, the user can follow the illustration click into the corresponding function is operated, the software will perform relatively light exit feature set, Description: This interface is the main entrance. PCB SIZE： 9.2*14.0*1.0 mm PCBA Thickness：2.0mm Pin Quantity：7pin Shenzhen Sheng Run Technology Co., www.tuner168.com Tel:0755-88825569 Fax:0755-82970906 (5-3).Lamp connection mode (5-4). User Interface (5-5). Regarding the company, click the icon Shenzhen Sheng Run Technology Co., www.tuner168.com Tel:0755-88825569 Fax:0755-82970906 (5-6). Hue and brightness control mode user interface Manual control Lamp or select group(brightness ,color ), and can switch the Lamp Shenzhen Sheng Run Technology Co., www.tuner168.com Tel:0755-88825569 Fax:0755-82970906 (5-7).Timer setting mode Users turn on and off the set time of the lamp, in accordance with the set time to turn on and off the lamp (5-8).Month-Year-old Time mode : Adding a picture to control the color change of the lamp by 1-4 kinds main color pictures Shenzhen Sheng Run Technology Co., www.tuner168.com Tel:0755-88825569 Fax:0755-82970906 (5-9).Live interactive mode By the volue of the detected ambient sound controls the lamp, the lamp in accordance with the detected change show different colors. Shenzhen Sheng Run Technology Co., www.tuner168.com Tel:0755-88825569 Fax:0755-82970906 (5-10). Fantasy Rainbow Mode Load songs, songs by playing to control the lights change, according to the rhythm of the music , like the rainbow show. (5-11).Scene mode : The default setting several common patterns, just click pattern to control the lights, you can add self custom scene patterns . Shenzhen Sheng Run Technology Co., www.tuner168.com Tel:0755-88825569 Fax:0755-82970906 四.11 Android Supported Media Formats: Type Audio Image Video Format .3gp JPEG .3gp .mp4 GIF .mp4 .mp3 PNG .ogg BMP .wav N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operati…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/21/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ADXEWMD410U04SR6A0 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Shenzhen Sheng Run Technology Co., Ltd Contact person: Da-Qing Yang Title: Manager

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/21/2015 Request for Confidentiality Company name: Shenzhen Sheng Run Technology Co., Ltd FCC ID: 2ADXEWMD410U04SR6A0 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Shenzhen Sheng Run Technology Co., Ltd hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which Shenzhen Sheng Run Technology Co., Ltd considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Shenzhen Sheng Run Technology Co., Ltd considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Da-Qing Yang] [Manager] Shenzhen Sheng Run Technology Co., Ltd 6th floor,Gate No 3 of Huaqiang Logistics Building,3rd Road of Longzhu,Nanshan Dist. Shenzhen,China

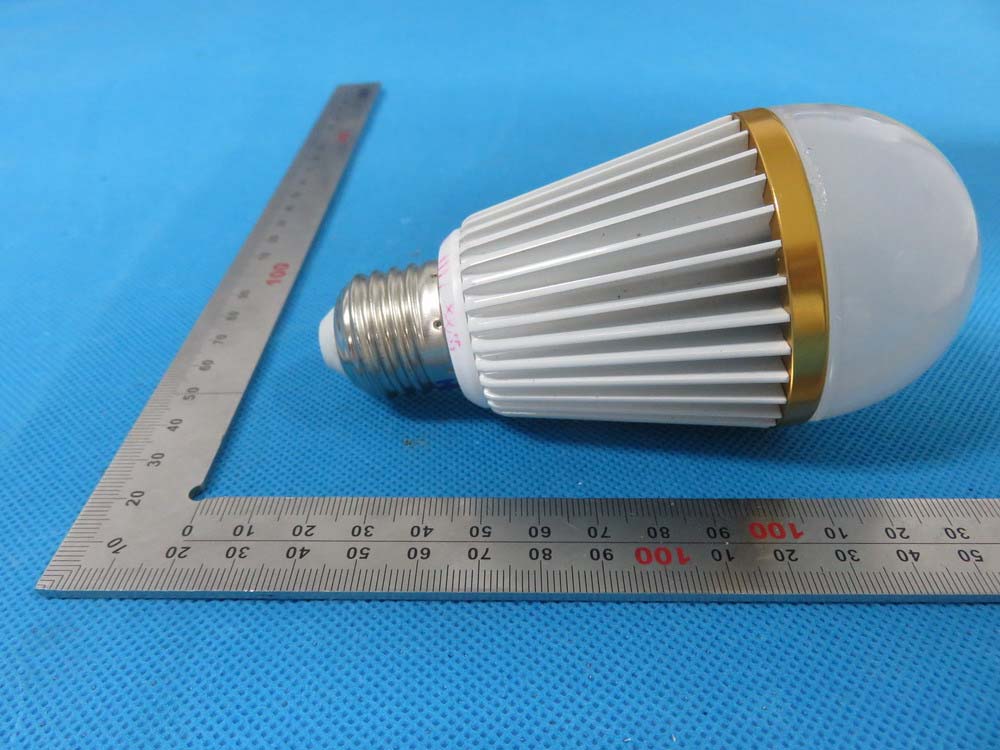

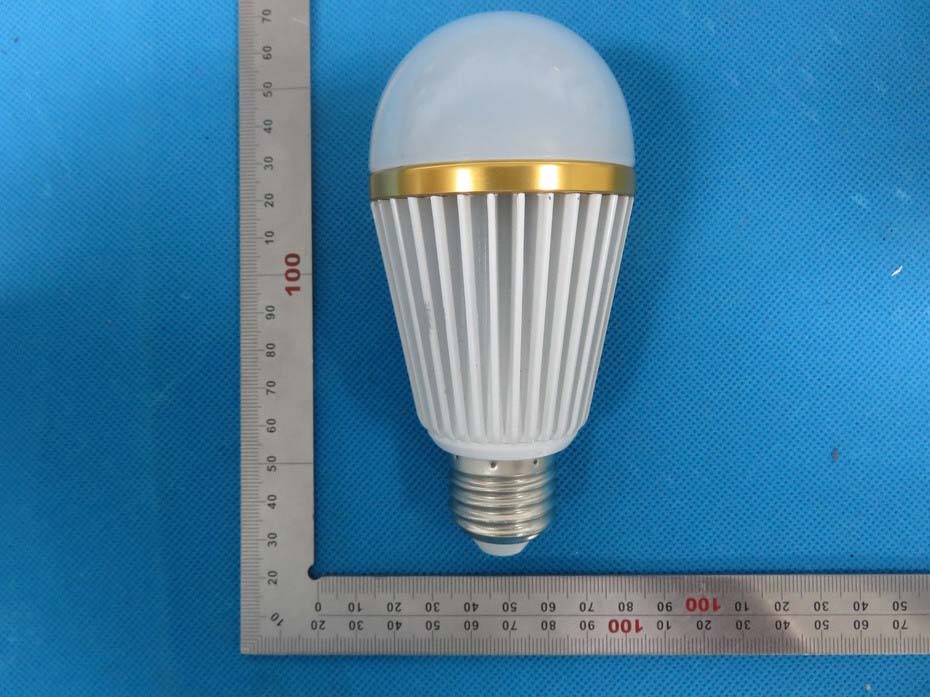

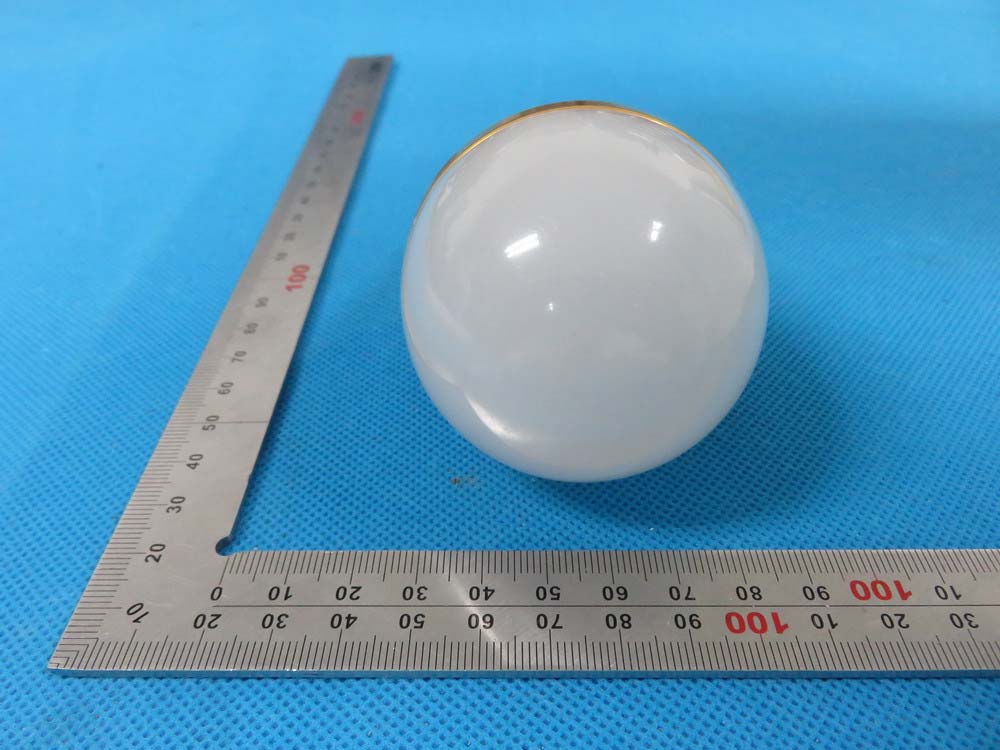

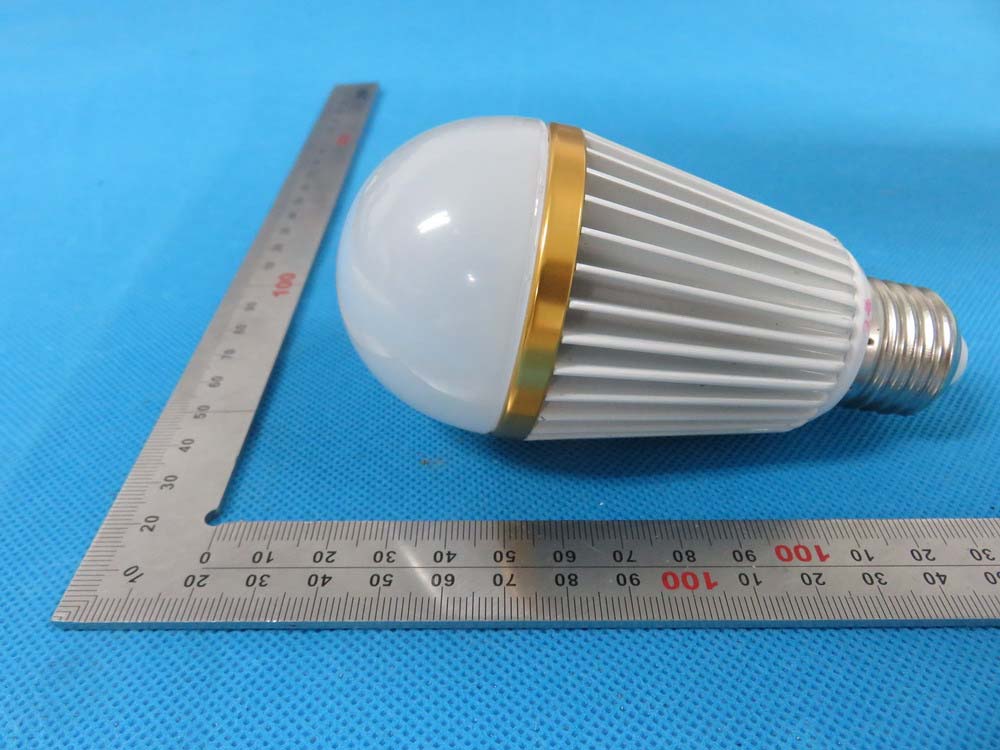

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID:2ADXEWMD410U04SR6A0

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 INTERNAL VIEW OF EUT-9 INTERNAL VIEW OF EUT-10 Series Model (Different Part) VIEW OF EUT-1 Antenna VIEW OF EUT-2 VIEW OF EUT-3

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: WMD410U04SR6A0 FCC ID: 2ADXEWMD410U04SR6A0 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: Wire antenna Gain of the antenna: 1.66 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Sheng Run Technology Co., Ltd Address: 6th floor,Gate No 3 of Huaqiang Logistics Building,3rd Road of Longzhu,Nanshan Dist. City: Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: Sep.21,2015 Signature:

RF Exposure evaluation Product Description:BlueTooth Multi Color Lamp Model Number: WMD410U04SR6A0 FCC ID: 2ADXEWMD410U04SR6A0 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=91.17dBuv/m=0.036V/m,d=3m,g t =1.47 P t =（E x d） 2 /（30 x g t ）=(0.036x3) 2 /(30x1.47)=0.000264W=0.26mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -0.26mW output power] (0.26mW /5mm) .[√2.480(GHz)]= 0.082<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 51 FCC Test Report Report No.: AGC01629150801FE03 FCC ID : 2ADXEWMD410U04SR6A0 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : BlueTooth Multi Color Lamp BRAND NAME : Tunercom MODEL NAME : WMD410U04SR6A0, WLA417117SR6A0‐1 CLIENT : Shenzhen Sheng Run Technology Co., Ltd DATE OF ISSUE : Sep.09,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01629150801FE03 Page 2 of 51 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Sep.09,2015 Valid Original Report Report No.: AGC01629150801FE03 Page 3 of 51 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 7 4. DESCRIPTION OF TEST MODES ................................................................................................................. 7 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ..................................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 8 6. TEST FACILITY ............................................................................................................................................. 9 7 ALL TEST EQUIPMENT LIST ........................................................................................................................ 9 8. RADIATED EMISSION ................................................................................................................................. 10 8.1TEST LIMIT ............................................................................................................................................. 10 8.2. MEASUREMENT PROCEDURE ............................................................................................................ 11 8.3. TEST SETUP ......................................................................................................................................... 13 8.4. TEST RESULT ....................................................................................................................................... 15 9. BAND EDGE EMISSION ............................................................................................................................. 28 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 28 9.2 TEST SETUP .......................................................................................................................................... 28 9.3 RADIATED TEST RESULT ..................................................................................................................... 29 10 20DB BANDWIDTH .................................................................................................................................... 33 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 33 10.2. TEST SET-UP ..................................................................................................................................... 33 10.3. LIMITS AND MEASUREMENT RESULTS ........................................................................................... 33 11. FCC LINE CONDUCTED EMISSION TEST ............................................................................................... 36 Report No.: AGC01629150801FE03 Page 4 of 51 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ............................................................................... 36 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ............................................................. 36 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................... 37 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ......................................................... 37 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ................................................................... 38 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................ 40 APPENDIX B: PHOTOGRAPHS OF EUT ....................................................................................................... 42 Report No.: AGC01629150801FE03 Page 5 of 51 1. VERIFICATION OF CONFORMITY Applicant Shenzhen Sheng Run Technology Co., Ltd Address 6th floor, Gate No 3 of Huaqiang Logistics Building, 3rd Road of Longzhu, Nanshan Dist. Shenzhen, PRC Manufacturer Shenzhen Sheng Run Technology Co., Ltd Address 6th floor, Gate No 3 of Huaqiang Logistics Building, 3rd Road of Longzhu, Nanshan Dist. Shenzhen, PRC Product Designation BlueTooth Multi Color Lamp Brand Name Tunercom Test …

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
