Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
2 I.Warm tips II.Warning notes Remote Speedlite Trigger 1.Please don't dismantle, repair and refit the equipment; unauthorized person can not repair himself, or else regard as giving up warranty service voluntarily. 2.Don't make the equipment work under the overheating, wet, inflammable, explosive environment,or some places with great powders and dust ,stop the metal and grains of sand going into equipment body. 3.Please don't touch the switch of speedlite and receiver with wet hands. 4.Please don't use this equipment under the environment with over-heating,wetness, flammability and dust. 5.Please don't let children play with this equipment ,should put it out of children's reach. 6.Please only use the batteries pointed by this manual, don't mix the old and new batteries together. 7.Please install the batteries well with right cathode and anode. 8.If don't use the equipment for long time, or the battery run out completely, please take out battery from the trigger set. parts 1.Make sure the channel setting switch of receiver and transmitter at same position. 2.If the battery of transmitter run out completely, the indicator of transmitter will be dim, now need to change a new battery in time. 3.If find the effective distance of remote trigger is too short,need to change battery of transmitter, as well as need to check if the channel switch of transmitter and receiver are at position. 4.Make sure the hot shoe of speedlite and receiver connect firmly. 4 III.Specialty IV.Main technical parameters Speedlite remote trigger, which cameras make use of to trigger speedlites, consists of the transmitter and receiver, works by means of the FM wireless remote control. Transmitter adopts advanced circuit and components ,as well as sends FM wireless signal. The circuit is designed with standby sleep model, so the power consumption is extremely low: with one battery ,if works in a standby way,it can be continuously trigger for 30,000 times,and standbyfor a year, and the trigger current is only 0.01 mA, never have bad affection on the hot shoe contact of camera, and can be used for any digital cameras with hot shoe or traditional cameras with PC jack . The receiver uses dry battery to supply electricity power, safe ,energy saving and convenient usage,the coding is controlled by microcomputer and the receiver has super anti-interference capability, it has sensitive reaction speed, and the highest synchronous speed can reaches 1/250 secs. 1.:23A-12V mini batter 2.Receiver power:AAA alkaline battery 3.Operation distance:30m 4.Frenquency:FM433MHz Transmitter battery PT Series PT-04N2 PT-04GY PT-04NE PT-04S1 6 1.Set up the speedlite with battery, power on and turn on the charging switch to let the speedlite full charged,then press on its test button to lead it flash; If can not flash,need to check if the speedlite is good or not(Pic.1) Turn on the power switch Distinguish the cathode and anode ,set up the dry battery. (Pic.1) As the product update continuously, there maybe some differences between different batch, all in kind prevail. Please note. 7 2.Set up the channel setting swiches of the transmitter and the receiver at same position(Pic.2) Channel setting switch⑧③ (Pic.2) 3.Open the barn door of the receiver, distinguish the cathode and anode of battery to set up well(Pic.3) Battery barn door 11 (Pic.3) (Pic.4)(Pic.5) 4. Turn on the power switch of receiver (Pic.4) ⑥ Power switch ⑥ 5.Fixed the receiver well on camera head of tripod or on flash holder.(Pic.5) 5 8 9.If the camera has not hot shoe holder, need to use the matched sync cable with Φ2.5 pin,plug one end of the sync cable into the transmitter jack(4), and plug the other end into the camera sync socket (pic.9) 6. Set up the speedlite tested well on hot shoe holder of the receiver, and tighten up the speedlite screw towards left to make the speedlite fixed well on the receiver.(Pic.6) Speedlite screw Hot shoe (Pic.6)(Pic.7) (Pic.9)(Pic.8) 7.Press the test button of the transmitter, now the indicators of the transmitter and the receiver light at the same time,the speedlite satrts to work.(Pic.7) Test button ① Transmitting indicator ② 8.Insert the hot shoe block of the transmitter into the hot shoe holder of camera, and tighten the screw clockwisely to make transmitter fixed well on the camera (Pic.8) the Sync socket(Φ2.5) ④ V.Main components ① ② Battery barn door ④ ⑤ ⑥ ⑧ ⑨ ③ ⑦ ⑩ ① ② ③ ④ ⑤ Test button Transmitting indicator Channel setting switch Sync socket (Φ2.5) Hot shoe block ⑥ ⑦ ⑧ ⑨ ⑩ Power switch Receiving indicator Channel setting switch Hot shoe holder PC socket 12 11 Umbrella hole 11 12 3 FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not Installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a c…
Text truncated - open the document above for the full version.
SCS-F19: Confidentiality Request LetterPage 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Adding CFR 2.459 (obsolete)1.02.0August – 11 - 2008 Updated company template & Added text box (current) 2.03.0Jan-31-2012 SCS-F19: Confidentiality Request LetterPage 2 of 2 Rev 3.0 (ShenZhen Nice Photographic Equipment Co., Ltd.) (2015-01-05) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject:Permanent Confidentiality Requestfor FCC ID:2ADXR-PT-04GY We hereby request confidential treatment of information accompanying this application as outlined below: -Block Diagram -Schematics -Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ting He / General Manager Assistant Company Name: ShenZhen Nice Photographic Equipment Co., Ltd. Address: Block2, Phoenix Industrial Area, Phoenix Rd.15, Pinghu, Longgang, Shenzhen, 518111, China Email: [email protected]
ShenZhen Nice Photographic Equipment Co., Ltd. Declaration on Model Differences We, ShenZhen Nice Photographic Equipment Co., Ltd. Block2, Phoenix Industrial Area, Phoenix Rd.15, Pinghu, Longgang, Shenzhen, 518111, China Declare that the following product(s): Product Name: Wireless flash trigger Model Number: PT-04GY, PT-04N2, PT-04NE, PT-04S1 FCC ID: 2ADXR-PT-04GY Utilize the identical circuit design, PCB layout, shielding and interface with (PT-04GY), only the color and model number are difference. Therefore this application can be regarded as identical in performance to the submitted test sample. The manufacturer would take all the responsibilities for the above product(s). For and on behalf of Shenzhen, China Authorized person Location Name: Ting He Position: General Manager Assistant Date of issue: 2015-01-05 *I hereby declare that I am entitled to sign on behalf of the applicant and that the information supplied is correct and complete.

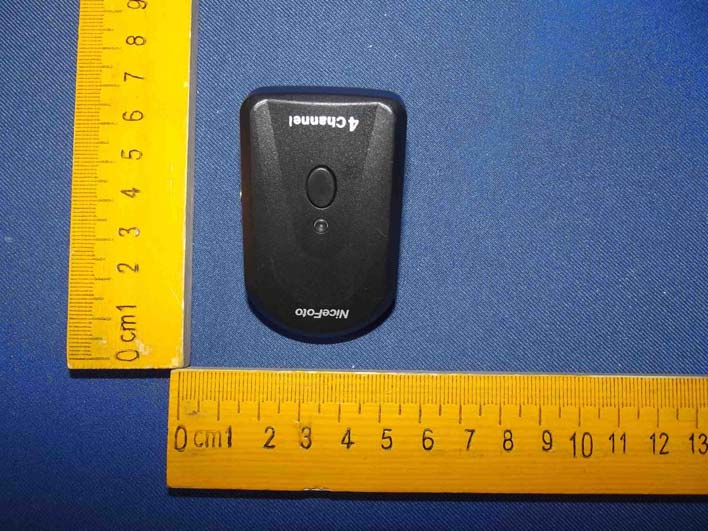

Figure 1 The EUT-Top View Figure 2 The EUT-Bottom View Figure 3 The EUT-Front View Figure 4 The EUT-Back View Figure 5 The EUT-Left View Figure 6 The EUT-Right View
Product Name:Wireless flash trigger Model No.:PT-04GY FCC ID:2ADXR-PT-04GY
Label Location On EUT
Figure 7 The EUT-Inside View Figure 8 The EUT-Inside View Figure 9 PCB of the EUT-Front View Figure 10 PCB of the EUT-Back View Antenna Figure 11 PCB of the EUT-Front View Figure 12 PCB of the EUT-Back View
Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ADXR-PT-04GY Page 1 of 24 Report No.: R011412615E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for ShenZhen Nice Photographic Equipment Co., Ltd. Wireless flash trigger Model No.: PT-04GY, PT-04N2, PT-04NE, PT-04S1 Report Number:R011412615E Date of Test:Dec. 20, 2014~Jan. 05, 2015 Date of Report:Jan. 06, 2015 Prepared fo r:ShenZhen Nice Photographic Equipment Co., Ltd. Address:Block2, Phoenix Industrial Area, Phoenix Rd.15, Pinghu, Longgang, Shenzhen, 518111, China Prepared By:Shenzhen Anbotek Compliance Laboratory Limited Address:1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ADXR-PT-04GY Page 2 of 24 Report No.: R011412615E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)................................................................................................................4 1.2. Description of Test Facility.................................................................................................................. 5 1.3. Description of Test Facility.................................................................................................................. 5 1.4. Measurement Uncertainty.....................................................................................................................5 1.5. Test Summary....................................................................................................................................... 6 2. MEASURING DEVICE AND TEST EQUIPMENT................................................................ 7 3. Test Procedure.............................................................................................................................. 8 4. Radiation Interference................................................................................................................. 9 4.1. Requirements (15.231):.........................................................................................................................9 4.2. Test Procedure...................................................................................................................................... 9 4.3. Test Results...........................................................................................................................................9 5. 20dB Bandwidth......................................................................................................................... 12 5.1. Requirements (15.231):.......................................................................................................................12 5.2. EUT Setup...........................................................................................................................................12 5.3. Test Results.........................................................................................................................................12 6. DUTY CYCLE............................................................................................................................14 6.1. EUT Setup...........................................................................................................................................14 6.2. Test Procedure.................................................................................................................................... 14 6.3. Requirements & Result.......................................................................................................................14 7. Antenna Application...................................................................................................................17 7.1. Antenna Requirement......................................................................................................................... 17 7.2. Result.................................................................................................................................................. 17 8. TEST PHOTO.............................................................................................................................18 8.1. Photo of Radiation Emission Test.......................................................................................................18 APPENDIX I (EXTERNAL PHOTOS)........................................................................................19 APPENDIXII(INTERNAL PHOTOS)...................................................................................... 22 APPENDIX I (External Photos) (3 pages) APPENDIX II (Internal Photos) (3 pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ADXR-PT-04GY Page 3 of 24 Report No.: R011412615E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: ShenZhen Nice Photographic Equipment Co., Ltd. Manufacturer: ShenZhen Nice Photographic Equipment Co., Ltd. EUT: Wireless flash trigger Model No.: PT-04GY, PT-04N2, PT-04NE, PT-04S1 Serial No.: N.A. Rating: DC 12V Trade Mark: NiceFoto Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.231 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emissionlevels emanating from the device and the severe levels of the device can endure and itsperformance criterion. The measurement results are contained in this test report andShenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completene…
Text truncated - open the document above for the full version.
1. Photo of Radiation Emission Test
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 433.6 MHz - 433.6 MHz | - |
