Page 1 of 1 RP-7XXXL 12 East Devonwood SOLVING A WAVE OF EMI COMPLIANCE PROBLEMS Romeoville, IL 60446 ENTER January 13, 2015 Tel: (815) 293-0772 Page 1 of 1 Fax: (815) 293-0820 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 Reference FCC ID: 2ADY3-8888 Organization: Sage Products, Inc. 2. Long Term Confidentiality Sage Products, Inc. requests that the following materials be withheld from public inspection permanently under 47 C.F.R. 0.457 & 0.459: (1) Detailed Circuit Schematics of the EUT (2) Block Diagrams (3) EUT Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. They are considered confidential trade secrets Authorized Signature Joseph Strzelecki Senior EMC Engineer Radiometrics Midwest Corporation Authorized Agent for Sage Products, Inc.

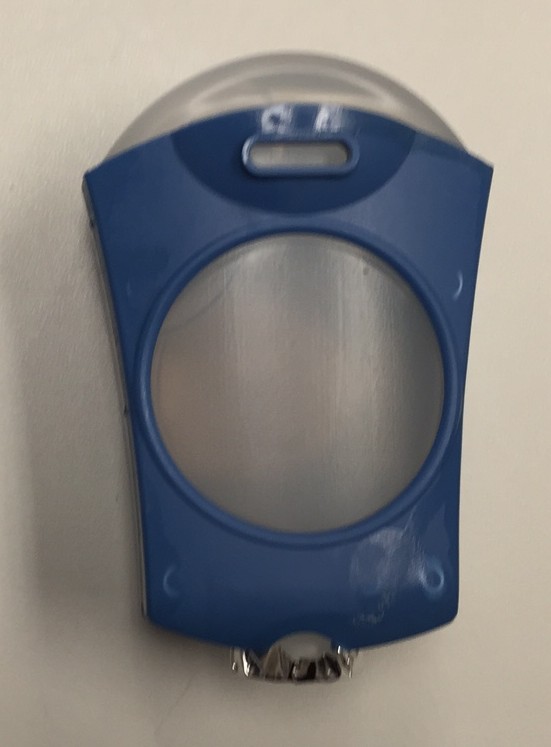

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 External EUT Photographs Front of EUT Rear of EUT Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Side of EUT

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 ID Label/Location Drawing/Photograph showing placement of Label: Drawing of label

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Internal EUT Photographs Photograph of EUT: Covers Removed Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Photograph of PC Board: Component Side Display removed Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Photograph of PC Board: Foil Side

Radiometrics Midwest Corporation - www.Radiomet.com Page 1 of 14 Electromagnetic Compatibility Test Report Tests Performed on a Sage Products, Inc.’ Bluetooth Hand Hygiene Dispenser, Model 8888 Radiometrics Document RP-8016 Product Detail: FCC ID: 2ADY3-8888 Equipment type: 2.4 GHz transmitter Test Standards: US CFR Title 47, Chapter I, FCC Part 15 Subpart C FCC Part 15 CFR Title 47: 2014 This report concerns: Original Grant for Certification FCC Part 15.249 Tests Performed For: Test Facility: Sage Products, Inc. 3909 Three Oaks Road Cary, IL 60013 Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 (815) 293-0772 Test Date(s): (Month-Day-Year) January 7-8, 2015 Document RP-8016 Revisions: Rev. Issue Date Affected Sections Revised By 0 January 21, 2015 1 January 28, 2015 3.1, 10.2, 10.1.3 Joseph Strzelecki Radiometrics Midwest Corporation www.radiomet.com Testing of the Sage Products, Inc., Model 8888, Bluetooth Hand Hygien Dispenser RP-8016 Rev. 0 Page 2 of 14 Table of Contents 1 ADMINISTRATIVE DATA ................................................................................................................... 3 2 TEST SUMMARY AND RESULTS ..................................................................................................... 3 2.1 RF Exposure Compliance Requirements ..................................................................................... 3 3 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................... 4 3.1 EUT Description ........................................................................................................................... 4 3.1.1 FCC Section 15.203 & RSS-GEN Antenna Requirements .................................................... 4 3.2 Related Submittals ....................................................................................................................... 4 4 TESTED SYSTEM DETAILS .............................................................................................................. 4 4.1 Tested System Configuration ....................................................................................................... 4 4.2 Special Accessories ..................................................................................................................... 4 4.3 Equipment Modifications .............................................................................................................. 4 5 TEST SPECIFICATIONS AND RELATED DOCUMENTS .................................................................. 5 6 RADIOMETRICS’ TEST FACILITIES ................................................................................................. 5 7 DEVIATIONS AND EXCLUSIONS FROM THE TEST SPECIFICATIONS ......................................... 5 8 CERTIFICATION ................................................................................................................................. 6 9 TEST EQUIPMENT TABLE ................................................................................................................ 6 10 TEST SECTIONS .............................................................................................................................. 6 10.1 Radiated RF Emissions .............................................................................................................. 6 10.1.1 Field Strength Calculation .................................................................................................... 7 10.1.2 Duty Cycle ............................................................................................................................ 7 10.1.3 Radiated Emissions Test Results ........................................................................................ 8 10.2 Occupied Bandwidth Data ........................................................................................................ 11 10.3 Band-edge Compliance of RF Conducted Emissions .............................................................. 13 Notice: This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. Radiometrics Midwest Corporation www.radiomet.com Testing of the Sage Products, Inc., Model 8888, Bluetooth Hand Hygien Dispenser RP-8016 Rev. 0 Page 3 of 14 1 ADMINISTRATIVE DATA Equipment Under Test: A Sage Products, Inc., Bluetooth Hand Hygiene Dispenser Model: 8888 Serial Number: none This will be referred to as the EUT in this Report Date EUT Received at Radiometrics: (Month-Day-Year) Test Date(s): (Month-Day-Year) January 6, 2015 January 7-8, 2015 Test Report Written By: Tests were not Witnessed by Personnel from: Joseph Strzelecki Senior EMC Engineer Sage Products, Inc. Radiometrics’ Personnel Responsible for Test: Test Report Approved By 01/21/2015 Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE 01/21/2015 Chris W. Carlson Director of Engineering NARTE EMC-000921-NE 2 TEST SUMMARY AND RESULTS The EUT (Equipment Under Test) is a Bluetooth Hand Hygiene Dispenser, Model 8888, manufactured by Sage Products, Inc. The detailed test results are presented in a separate section. The following is a summary of the test results. Emissions Tests Results Environmental Phenomena Frequency Range Basic Standard Test Result RF Radiated Emissions 30-25,000 MHz RSS-210 & FCC Part 15 Pass Occupied Bandwidth Test Fundamental Freq. RSS-210 & FCC Part 15 Pass Note: The RSS-210 specification is not currently covered in Radiometrics’ Scope of Accreditation. This is technically very similar to FCC, CFR 47 Part 15 which is on Radiometrics scope. 2.1 RF Exposure Compliance Requirements Since the power output is 1.4 mW, the EUT meets the FCC requirement for RF exposure and is exempt from RSS-102 SAR and RF exposure evaluations. There are no power level adjustments and the antenna is permanently attached. The detailed calculations for RF Exposure are presented in a separat…
