2ADY6WC18R2211WiFi Modular

User Manual WiFi Modular 1. General Description This document is to specify the product requirements for 802.11a/b/g/n/ac USB Module. This Card isbased on Realteak RTL8812AU chipset that complied with IEEE 802.11b/g/n/ac Draft 3.0 compatible WLAN ,and it is also backward complied with IEEE 802.11a standard from 5.15~5.825GHz wideband and IEEE 802.11b/g standard from 2.4~2.5GHz. It can be used to provide up to 54Mbps for IEEE 802.11a and IEEE 802.11g, 11Mbps for IEEE 802.11b and 150Mbps for IEEE 802.11n and 433.3Mbps for IEEE 802.11ac to connect your wireless LAN. With seamless roaming, fully interoperability and advanced security with WEP standard, 802.11 a/b/g/n/ac USB Module offers absolute interoperability with different vendors 802.11a/b/g/n/ac. Access Points through the wireless LAN. 2. Features Compatible with IEEE 802.11b standard to provide wireless 11Mbps date rate. Compatible with IEEE 802.11g standard to provide wireless 54Mbps date rate. Compatible with IEEE 802.11n standard to provide wireless 300Mbps date rate. Compatible with IEEE 802.11ac standard to provide wireless 866.3Mbps date rate. Operation at 2.4~2.5GHz and 5.15~5.825GHz frequency band to meet worldwide regulations Provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility. Supports infrastructure networks via Access Point and ad-hoc network via peer-to- peer communication Supports IEEE 802.11i (WPA and WPA2), WAPI, enhanced security Friendly user configuration and diagnostic utilities Drivers support Windows XP,Vista.Win7 High speed USB 2.0 interface RoHS compliant 3. Application Diagrams 3.1 Functional Block Diagram 3.2 General Requirements 3.2.1 IEEE 802.11b Section 3.2.2 IEEE 802.11g Section 3.2.3 IEEE 802.11a Section 3.2.4 IEEE 802.11n Section 3.2.5 IEEE 802.11ac Section 4. Electrical and Thermal Characteristics 4.1 Temperature Limit Ratings 4.2 General Section 4.3 Software 4.4 Mechanical Requirements 5. Guide for the User: This modular transmitter only has data inputs from the Digital Video Recorder assembly thus ensuring that the module will continue to comply with Part 15 requirements and no conditions of excessive data rates or over-modulation can occur. The modular that does not meet all eight requirements listed in Section 15.212(a) (1), and compliance can be demonstrated only for specific host and applicable operating conditions in which the transmitter will be used. The modular is granted as limited modular approval that is limited to that specific host or hosts. The transmitter inside the host device during testing. The specific host device is Digital Video Recorder (DVR). The responsible party must demonstrate how it will retain control over the final installation of the device, such that compliance of the product is ensured by limiting the installation to a specific host or hosts For user-installed limited module radios in a host (laptops, etc), a two-way certification authentication protocol or two-way BIOS lock implementation is required to ensure compliance. This ensures the module verifies that the proper DVR is used and the DVR verifies that the proper module is used. This device must use a BIOS lock mechanism which ensures that it only operates with the hosts as specified in the Certification filing." This ensures the module verifies that the proper host (DVR) is used, and the host verifies that the proper module is used. Other options to a BIOS lock mechanism may be considered, but must be FCC endorsed prior to an FCC approval. Per FCC Section 15.212: When the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2ADY6WC18R2211” or “Contains FCC ID: 2ADY6WC18R2211” and the information should be also contained in the devices’ user manual RF Exposure Considerations: This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body 6. Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

Shanghai Xunzhao Communication Technology Co., Ltd Declaration Letter WE (Shanghai Xunzhao Communication Technology Co., Ltd.) HEREBY DECLARED THAT: The host device (Digital Video Recorder) of WiFi modular (FCC ID: 2ADY6WC18R2211) is a mobile DVR for video data storage. The hardware cannot simply be purchased and installed by the average (technically inclined) person: 1) Marketing The device cannot be sold retail, to the general public or by mail order. It must be sold to dealers (Auto manufacturer or vehicles refitted). 2) Requires professional installation The DVR must be professionally installed and installation must be controlled. (EUT sold to dealer who hires installers with licensed professionals and special training) 3) Application The DVR intended using in the vehicular environment only and generally not for the general public. Thank you. Sincerely, Signature: Name : Jamili .

Shanghai Xunzhao Communication Technology Co., Ltd Authority to Act as Agent Date: 2015-5-25 _ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _Eddy Zong from SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd _______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: _____ __ Jamili _________ (Signature 1 ) (Print name) On behalf of: _Shanghai Xunzhao Communication Technology Co., Ltd (Company Name) 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Shanghai Xunzhao Communication Technology Co., Ltd Request for Confidentiality Date: 2015-5-25 _ Subject: Confidentiality Request for: _FCC ID:2ADY6WC18R2211 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _ Shanghai Xunzhao Communication Technology Co., Ltd has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _ _____ Jamili _____ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Shanghai Xunzhao Communication Technology Co., Ltd Modular Approval Request Letter Gentlemen: There’s an (WiFi module) that would like to have your authorization as a modular approval. Applicant: Shanghai Xunzhao Communication Technology Co., Ltd Product Name: WIFI Modular Model Number: WC18R2211 FCC ID: 2ADY6WC18R2211 Requirement of KDB996369 1. The modular transmitter must have its own RF shielding Yes, The module has its own RF shielding. Please see External Photo.pdf 2. The modular transmitter must have buffered modulation/data inputs. No, This modular transmitter only has data inputs from the basic printer and toner cartridge assembly thus ensuring that the module will continue to comply with Part 15 requirements and no conditions of excessive data rates or over-modulation can occur. 3. The modular transmitter must have its own power supply regulation. Yes, All power lines derived from the host device are regulated (chip G5728) before energizing other circuits internal to the modular. Please see schematic.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). Yes, The modular meets the FCC antenna requirements. It has a unique connector. Please see External Photo.pdf 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing No, This modular transmitter was tested inside the host device during testing. The host device is DVR. Please see Internal Photo.pdf 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Yes, The label position of modular is clearly indicated. Please see the Label & Location.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes, The modular is compliant with all applicable FCC rules. Detail instructions are given in the User Manual 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Yes, The modular comply with applicable RF exposure requirements. Please see MPE Report. pdf Sincerely, Signature Name Jamili On behalf of the Company: Shanghai Xunzhao Communication Technology Co., Ltd

Shanghai Xunzhao Communication Technology Co., Ltd U-NII Declaration Letter We have declared below featured for FCC equipment authorization, Product Name: WIFI Modular Model Number: WC18R2211 FCC ID: 2ADY6WC18R2211 (1) DFS Device Mode: Master Client without radar detection; Client with radar detection N/A (2) Active / Passive Scanning, ad-hoc access point capability Frequency band(MHz) Active Scanning (The device can transmit a probe(beacon)) Passive scanning (Where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412-2462 Yes No Yes No Yes No Yes No 5180-5240 Yes No Yes No Yes No Yes No 5260-5320 Yes No Yes No Yes No Yes No 5500-5700 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No (3) Country code selection ability - Yes No If no, please explain how was implemented: Devices cannot have the ability to be configured by end users or professional installers to operate outside the authorized bands. Such devices must not have the option to set or select country codes or permit similar configuration options through software parameters for different regulatory domains to configure the device transmitter power or frequency or other technical parameters. (4) Meet 15.202 requirements - Yes No Please check below: A master device is defined as a device operating in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices. A client device is defined as a device operating in which the transmissions of device are under control of master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply No Apply (If apply, please help to provide explanation on how it was implement (By software or hardware), and how software controlled) Thank you. Sincerely, Signature: Name : Jamili

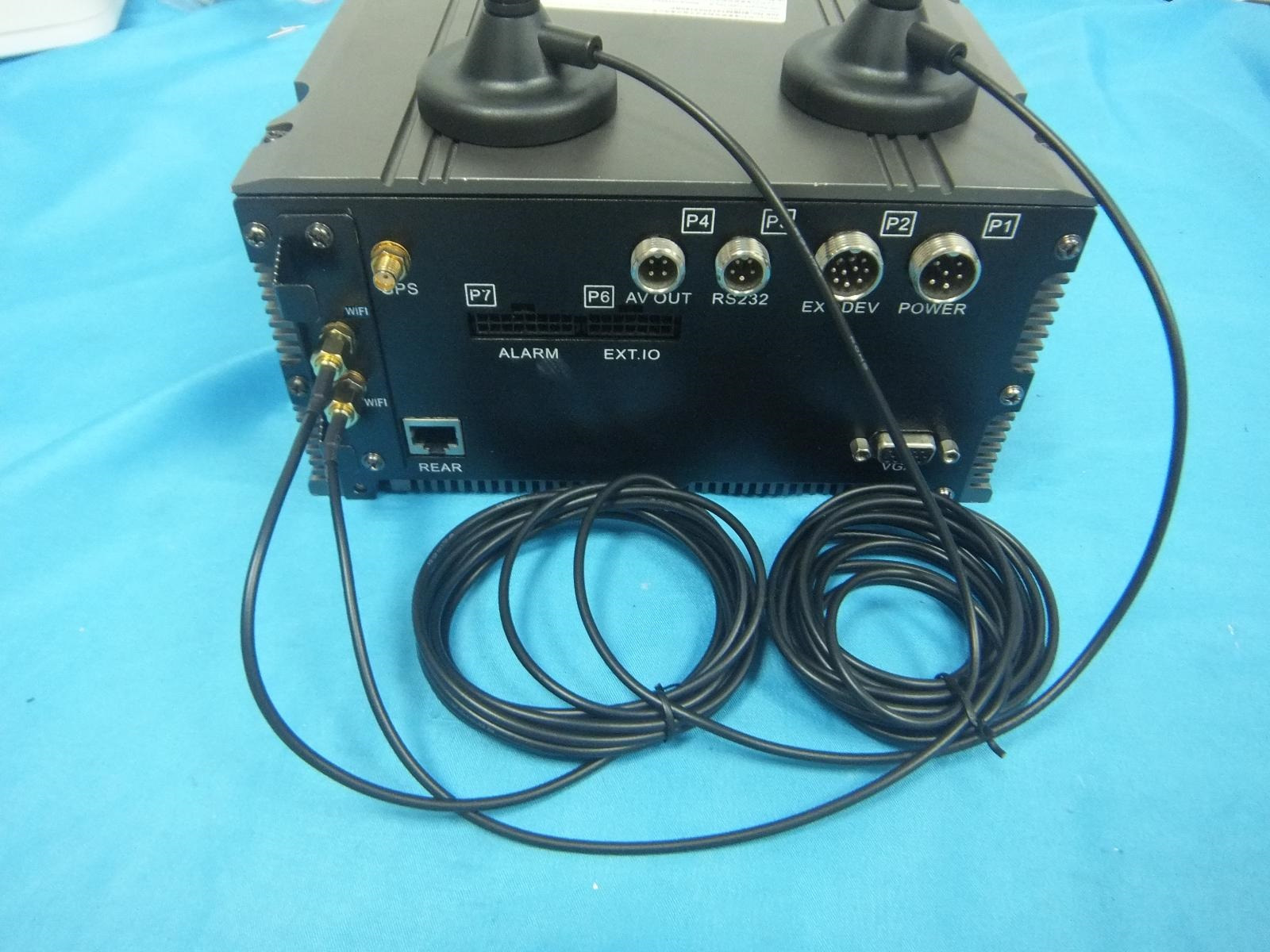

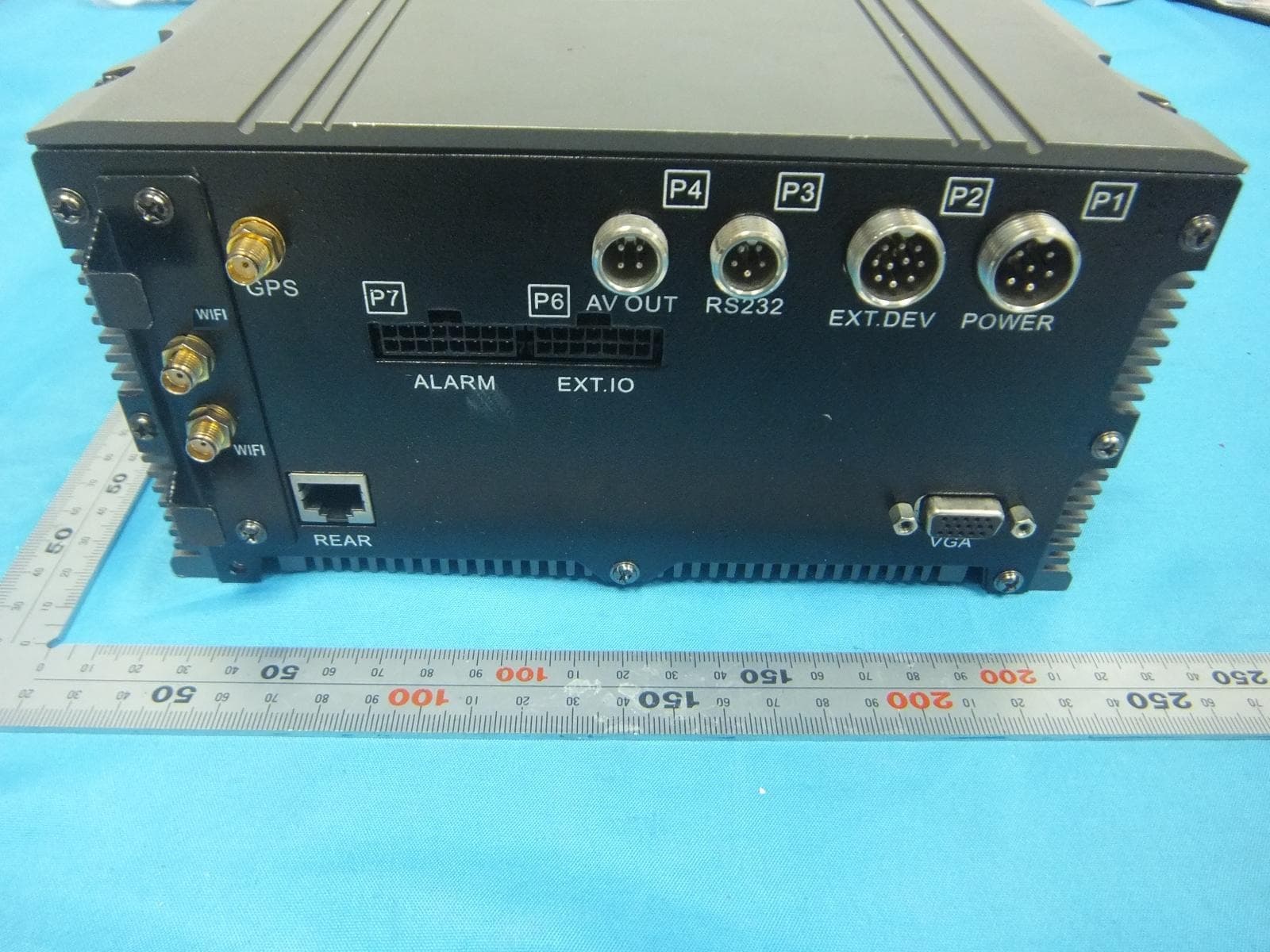

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 8 Page 1 of 8 WC18R2211_External Photos-FCC Application No.: SHEM1412003180RF Applicant: Shanghai Xunzhao Communication Technology Co., Ltd Address of Applicant: 1759 Jinshajiang road putuo district of Shanghai Equipment Under Test (EUT): Product Name: WiFi Modular Brand Name: EBD Model No.: WC18R2211 FCC ID: 2ADY6WC18R2211 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 8 Page 2 of 8 1 Contents Page 1 CONTENTS.......................................................................................................... 2 2 EXTERNAL PHOTOS ........................................................................................ 3 2.1 EUT .................................................................................................................. 3 2.2 HOST ................................................................................................................. 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 8 Page 3 of 8 2 External Photos 2.1 EUT SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 8 Page 4 of 8 2.2 Host SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 8 Page 5 of 8 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 8 Page 6 of 8 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 8 Page 7 of 8 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 8 of 8 Page 8 of 8 End

Label Size:13.8mm*16mm

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 7 Page 1 of 7 WC18R2211 _Internal Photos-FCC Application No.: SHEM1412003180RF Applicant: Shanghai Xunzhao Communication Technology Co., Ltd Address of Applicant: 1759 Jinshajiang road putuo district of Shanghai Equipment Under Test (EUT): Product Name: WiFi Modular Brand Name: EBD Model No.: WC18R2211 FCC ID: 2ADY6WC18R2211 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 7 Page 2 of 7 1 Contents Page 1 CONTENTS.......................................................................................................... 2 2 INTERNAL PHOTOS ......................................................................................... 3 2.1 EUT .................................................................................................................. 3 2.2 HOST ................................................................................................................. 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 7 Page 3 of 7 2 Internal Photos 2.1 EUT SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 7 Page 4 of 7 2.2 Host SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 7 Page 5 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 7 Page 6 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 7 Page 7 of 7 E EE En nn nd dd d

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5678 [email protected] Report No.: SHEM141200318003 Page: 1 of 12 Parlam Zhan E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page FCC MPE REPORT Application No.: SHEM1412003180RF Applicant: Shanghai Xunzhao Communication Technology Co., Ltd FCC ID: 2ADY6WC18R2211 Equipment Under Test (EUT): NOTE: The following sample(s) was/were submitted and identified by the client as Product Name: WiFi Modular Model No.(EUT): WC18R2211 Standards: FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance Date of Receipt: December 11, 2014 Date of Test: December 23, 2014 to May 17, 2015 Date of Issue: May 26, 2015 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200318003 Page: 2 of 12 2 Version Revision Record Version Chapter Date Modifier Remark 00 / May 26, 2015 / Original Authorized for issue by: Engineer Eddy Zong Print Name Clerk Susie Liu Print Name Reviewer Keny Xu Print Name This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200318003 Page: 3 of 12 3 Contents Page 1 COVER PAGE ................................................................................................................................. 1 2 VERSION ......................................................................................................................................... 2 3 CONTENTS .....................................................................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200310801 Page: 1 of 60 Appendix III Test data of Radiated Band edge SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200310801 Page: 2 of 60 802.11 a Antenna A Channel: 36 MK. Frequency (MHz) Reading (dBuV/m) Corrected factor(dB) Result (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector Polarization 1 5012.91 42.63 7.64 50.27 54 -3.73 Peak Horizontal 2 5150 41.07 6.92 47.99 54 -6.01 Peak Horizontal 3 5173.455 85.75 6.80 92.55 54 38.55 Peak Horizontal 1 5069.205 42.56 7.35 49.91 54 -4.09 Peak Vertical 2 5150 43.91 6.92 50.83 54 -3.17 Peak Vertical 3 5174.845 94.49 6.79 101.28 54 47.28 Peak Vertical Horizontal Vertical SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200310801 Page: 3 of 60 802.11 a Antenna A Channel: 64 MK. Frequency (MHz) Reading (dBuV/m) Corrected factor(dB) Result (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector Polarization 1 5323.2 84.41 6.81 91.22 54 37.22 Peak Horizontal 2 5350 40.55 6.98 47.53 54 -6.47 Peak Horizontal 3 5405.28 43.19 7.30 50.49 54 -3.51 Peak Horizontal 1 5313.28 94.42 6.74 101.16 54 47.16 Peak Vertical 2 5350 41.83 6.98 48.81 54 -5.19 Peak Vertical 3 5405.6 43.65 7.30 50.95 54 -3.05 Peak Vertical Horizontal Vertical SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200310801 Page: 4 of 60 802.11 a Antenna A Channel: 100 MK. Frequency (MHz) Reading (dBuV/m) Corrected factor(dB) Result (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector Polarization 1 5425.14 43.30 7.23 50.53 54 -3.47 Peak Horizontal 2 5460 39.49 7.11 46.60 54 -7.40 Peak Horizontal 3 5492.8 80.81 6.99 87.80 54 33.80 Peak Horizontal 1 5405.25 43.18 7.30 50.48 54 -3.52 Peak Vertical 2 5460 40.01 7.11 47.12 54 -6.88 Peak Vertical 3 5494.5 90.53 6.98 97.51 54 43.51 Peak Vertical Horizontal Vertical SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200310801 Page: 5 of 60 802.11 a Antenna A Channel: 149 MK. Frequency (MHz) Reading (dBuV/m) Corrected factor(dB) Result (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector Polarization 1 5715 43.51 6.84 50.35 54 -3.65 Peak Horizontal 2 5725 42.56 6.82 49.38 54 -4.62 Peak Horizontal 3 5752.24 84.63 6.77 91.40 54 37.40 Peak Horizontal 1 5715 42.13 6.84 48.97 54 -5.03 Peak Vertical 2 5725 46.11 6.82 52.93 54 -1.07 Peak Vertical 3 5741.88 93.85 6.79 100.64 54 46.64 Peak Vertical Horizontal Vertical SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200310801 Page: 6 of 60 802.11 a Antenna A Channel: 165 MK. Frequency (MHz) Reading (dBuV/m) Corrected factor(dB) Result (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector Polarization 1 5828.6 80.98 6.66 87.64 54 33.64 Peak Horizontal 2 5850 42.66 6.64 49.30 54 -4.70 Peak Horizontal 3 5860 41.54 6.63 48.17 54 -5.83 Peak Horizontal 1 5819.8 93.19 6.65 99.84 54 45.84 Peak Vertical 2 5850 43.41 6.64 50.05 54 -3.95 Peak Vertical 3 5860 43.13 6.63 49.76 54 -4.24 Peak Vertical Horizontal Vertical SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200310801 Page: 7 of 60 802.11 n(HT20) Antenna A Channel: 36 MK. Frequency (MHz) Reading (dBuV/m) Corrected factor(dB) Result (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector Polarization 1 4969.125 42.08 7.54 49.62 54 -4.38 Peak Horizontal 2 5150 41.70 6.92 48.62 54 -5.38 Peak Horizontal 3 5172.76 86.21 6.80 93.01 54 39.01 Peak Horizontal 1 5060.17 42.48 7.40 49.88 54 -4.12 Peak Vertical 2 5150 42.57 6.92 49.49 54 -4.51 Peak Vertical 3 5174.15 92.26 6.80 99.06 54 45.06 Peak Vertical Horizontal Vertical SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200310801 Page: 8 of 60 802.11 n(HT20) Antenna A Channel: 64 MK. Frequency (MHz) Reading (dBuV/m) Corrected factor(dB) Result (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector Polarization 1 5325.6 82.01 6.82 88.83 54 34.83 Peak Horizontal 2 5350 40.62 6.98 47.60 54 -6.40 Peak Horizontal 3 5376.32 43.23 7.16 50.39 54 -3.61 Peak Horizontal 1 5314.88 91.71 6.74 98.45 54 44.45 Peak Vertical 2 5350 41.10 6.98 48.08 54 -5.92 Peak Vertical 3 5401.44 42.75 7.32 50.07 54 -3.93 Peak Vertical Horizontal Vertical SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200310801 Page: 9 of 60 802.11 n(HT20) Antenna A Channel: 100 MK. Frequency (MHz) Reading (dBuV/m) Corrected factor(dB) Result (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detec…
