2ADYF-AP20802.11AC Wireless Internet Router

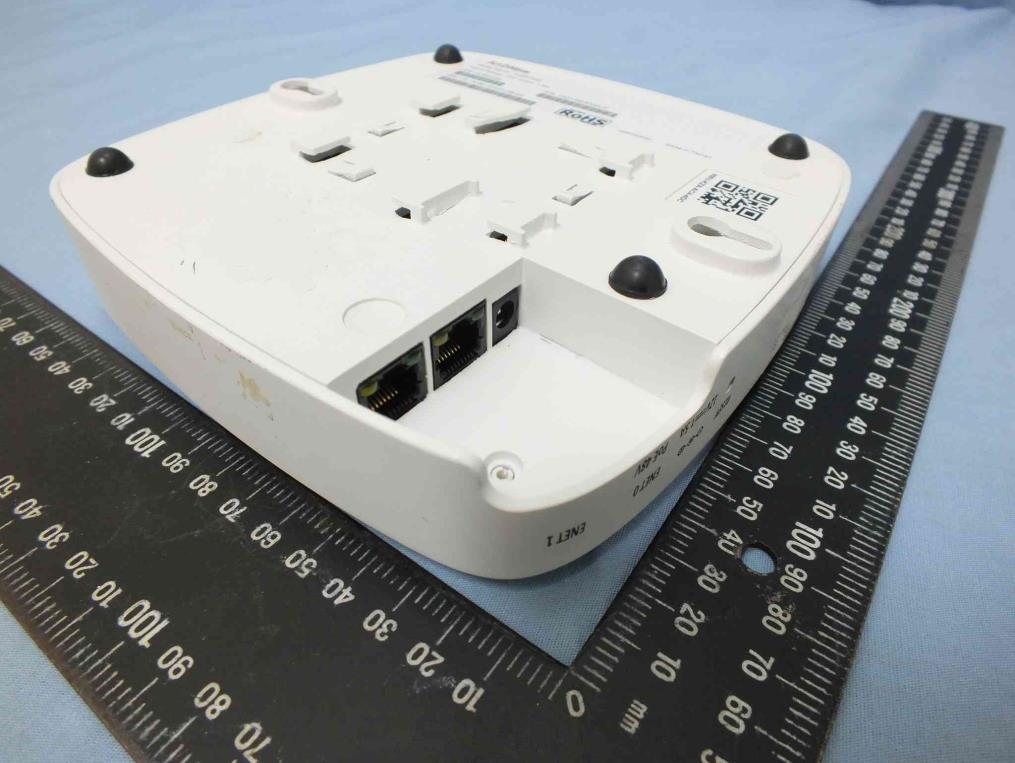

AP20 Installation Guide 1 Contents of the box and important features: Factory Reset Switch Power Port ENET 0 (Uplink Ethernet Port, Power-over-Ethernet enabled) ENET 1 (Reserved do not use) 9/16” Ceiling Rail Adapter 15/16” Ceiling Rail Mount Identity QR Code Slots for 9/16” Ceiling Rail Adapter Ethernet Cable Power Adapter, cover and prong Wall Mount Installation Kit: 2 Phillips Screws 2 Sinkers 5 Mounting the Access Point Note: Do not mount the access point until it is linked to your Art2Wave account. You can mount the AP20 in the following ways: • Ceiling mounting (with 15/16” or 9/16” rails) • Wall mounting • Desk mounting 2 Setting up your AP20 Access Point 3 Linking the Access Point to your Art2Wave account 3.1 Using your mobile device 3.2 Using the Website 4 Connecting the Access Point to your network and power supply There are four steps to setting up an AP20 access point: 1. Linking the access point to your Art2Wave account 2. Connecting the access point to your network and power supply 3. Mounting the access point 4. Verifying connectivity There are two ways to link your access point to your account: using your mobile device or using the Art2Wave website. By installing the Art2Wave mobile device app, you can scan the QR code on the back of the access point and link it to your account. Information about the app is available at http://art2wave.com. The mobile device app includes instructions for completing the process. To link the access point to your account using the Website, sign into your account at http://art2wave.com and follow the instructions in the Art2Wave web site to complete the process. Connect the access point to your network by plugging an Ethernet cable into the ENET 0 port. Do not connect to the ENET 1 port (this port is reserved for future use). The Access point is powered either by connecting the supplied power adapter to an AC wall outlet or by connecting the ENET 0 port to a device that provides 802.3af Power-over- Ethernet. If using the supplied power adapter, remove the cover and insert the prong as shown in Section 1. 5.1 Tips for selecting a location The best location for your access point is at the center of your wireless coverage area, within line of sight of all wireless devices. To get the best performance, consider the following: • Mount the access point as high as possible above any obstructions • Do not mount the access point next to building support columns or any other physical obstructions that may cause dead zones • Do not mount the access point near any material that may absorb or reflect Wi-Fi signals This unit must be installed indoors. The unit, AC power adapter, and its cables are not designed for outdoor use. Warning The figure below shows you how to clip the access point to a 15/16” ceiling rail. Printed instructions on the back of the unit explain which clips to use. 5.2 Ceiling mounting to a 15/16” rail Slide the Access point diagonally over the rail and rotate until the unit clicks into place. Press thess clips in and turn to dismount the Access Point 5.3 Ceiling mounting to a 9/16” rail The figure below shows you how to use the adapter to clip the access point to a 9/16” ceiling rail. Printed instructions on the back of the unit explain which clips to use. 1. Slide the adapter into the clips on the back on the unit. 2. With the adapter in place, slide the Access Point diagonally over the rail and rotate until the unit clicks into place. Press these clips and turn to dismount the Access Point 5.4 Wall mounting The figure below shows you how to mount the access point to a wall using screws and sinkers. Note: Screw center distance = 141mm. 6 Verifying connectivity 7 Tips and Troubleshooting 7.1 If your access point status light is flashing yellow You can verify that the AP20 Access point is connected to your network by using either the Art2Wave website, or mobile device app that you used to link the unit to your Account. Check the Status LED to determine whether the access point is operating correctly. The access point is properly installed and connected to the Art2Wave management services when the LED turns solid blue after a few minutes. When the access point is powered on, the Status LED should display the following sequence: The access point cannot connect to the Art2Wave management services. This usually occurs when the unit cannot get an IP Address from your network using DHCP and has switched to Local Network Configuration mode. Note: See the Tips and Troubleshooting section if the access point does not reach Solid blue. For a full description of LED Status Description visit the Support website (www.art2wave.com/support). Unit has just received power and has started booting Solid red (for less than 5 seconds) Solid Yellow (for less than a minute) Blinking blue (for less than a minute) Solid blue Unit is starting up. Or if the Factory Reset switch has been pressed, the unit is resetting to factory condition. Access point is negotiating a connection with Art2Wave management services in the cloud. Access point is successfully set up to be managed by Art2Wave management services in the cloud. Status Description#LED 1 2 3 4 8 Learning More, Service, and Support 8.1 Online Resources 7.2 Resetting back to factory defaults While in this mode, the access point will not pass data through the ENET 0 port and will broadcast an SSID that contains a portion of the access point’s MAC Address. You can use any Wi-Fi enabled device to connect to this SSID and configure the network settings for this access point using a web browser To connect to the access point using the Local Network Configuration interface: 1. Connect your Wi-Fi enabled device to the SSID in the form of “AP-XX:XX:XX” (where X is a placeholder). You are successfully connected when the LED on the Access Point becomes solid purple 2. Use your web browser to navigate to http://192.168.100.1 3. Follow the on-screen instructions See the Support section (http://art2wave.com/support) fo…

Text truncated - open the document above for the full version.

Project No.: EP582101 Page No. : 1 of 10 Photographs of EUT Project No.: EP582101 Page No. : 2 of 10 Project No.: EP582101 Page No. : 3 of 10 Project No.: EP582101 Page No. : 4 of 10

PANTONE BLACK Diecut display only Colors Printed/Dimensions/ WIDTH HEIGHT 114 mm x 35mm Models Name/Part Name/ Artwork Number/ Artwork Rev./ Unit:mm FCC LABEL 02 Designed/Date/ 19 Aug.‘15 Renee Teng 3264248900 AP20-US-R DELTA NETWORKS, INC. THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF DELTA NETWORKS. AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SELL OF APPARATUSES OR DEVICES WITHOUT PERMISSION . Graphic Layout Scale/ 1:1 Comment/ ADD DNI P/N Model Name : AP20 P/N:S/N: MAC ID: 3264248900 3264248900 Input Rating: 12V Made in China FCC ID: 2ADYF-AP20 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. 1.5A Model Name : AP20 P/N:AP20-USS/N:XXXXXXXXXXX1 MAC ID:74-9C-E3-01-00-00 Input Rating: 12V Made in China FCC ID: 2ADYF-AP20 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. 1.5A 打印後 打印前 R 2002/95/EC COMPLIANT oHS R 2002/95/EC COMPLIANT oHS Label Location

Project No.: EP582101 Page No. : 5 of 10 Project No.: EP582101 Page No. : 6 of 10 Project No.: EP582101 Page No. : 7 of 10 Project No.: EP582101 Page No. : 8 of 10 Project No.: EP582101 Page No. : 9 of 10 Project No.: EP582101 Page No. : 10 of 10

Report No.: FA582101 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : 2ADYF-AP20 Equipment : 802.11AC Wireless Internet Router Model No. : AP20 Brand Name : Art2Wave Applicant : Art2Wave Inc Address : 1901 South Bascom Ave, Suite 1300, Campbell, CA 95008, USA Standard : 47 CFR FCC Part 2.1091 Received Date : Mar. 19, 2015 Tested Date : Apr. 14 ~ Sep. 03, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA582101 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA582101 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA582101 Rev. 01 Initial issue Sep. 15, 2015 Report No.: FA582101 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance Report No.: FA582101 Page : 5 of 6 Report Version: Rev. 01 1.3 MPE EVALUATION RESULTS MPE Evaluation of Single Transmission Non-beamforming mode Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 26.00 3.5 20 0.177 1 5180~5240 23.72 5.28 20 0.158 1 5745~5825 25.60 5.28 20 0.244 1 Beamforming mode Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 25.55 6.51 20 0.320 1 5180~5240 24.04 8.21 20 0.334 1 5745~5825 25.93 8.2 20 0.515 1 Note: 1. For 2412~2462 MHz band Directional gain = 3.5+10* log(2/1) = 6.51 dBi For 5150~5250 MHz band Directional gain = 10 * log((10 5.28/20 +10 5.12/20 ) 2 /2) = 8.21 dBi For 5745~5850 MHz band Directional gain = 10 * log((10 5.1/20 +10 5.28/20 ) 2 /2) = 8.2 dBi MPE Evaluation of Simultaneous Transmission 2.4 and 5GHz can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1, PD = Power density Non-beamforming mode MPE Evaluation = Maximum MPE of 2.4GHz + Maximum MPE of 5 GHz = 0.177 / 1 + 0.244 / 1 = 0.421 < 1 Beamforming mode MPE Evaluation = Maximum MPE of 2.4GHz + Maximum MPE of 5 GHz = 0.320 / 1 + 0.515 / 1 = 0.835< 1 Conclusion MPE evaluations of single and simultaneous transmission meet the requirement of standard. Report No.: FA582101 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR582101AN Page : 1 of 127 Report Version: Rev. 01 FCC Test Report FCC ID : 2ADYF-AP20 Equipment : 802.11AC Wireless Internet Router Model No. : AP20 Brand Name : Art2Wave Applicant : Art2Wave Inc Address : 1901 South Bascom Ave, Suite 1300, Campbell, CA, 95008, USA Standard : 47 CFR FCC Part 15.407 Received Date : Mar. 19, 2015 Tested Date : Apr. 23 ~ Sep. 03, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR582101AN Page : 2 of 127 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 9 1.3 Test Setup Chart .................................................................................................................................... 9 1.4 The Equipment List .............................................................................................................................. 10 1.5 Testing Applied Standards ................................................................................................................... 11 1.6 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Condition ................................................................................................................................. 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 13 3 TRANSMITTER TEST RESULTS ........................................................................................................ 15 3.1 Conducted Emissions ........................................................................................................................... 15 3.2 Emission Bandwidth ............................................................................................................................. 32 3.3 RF Output Power .................................................................................................................................. 37 3.4 Peak Power Spectral Density ............................................................................................................... 40 3.5 Transmitter Radiated and Band Edge Emissions ................................................................................ 46 3.6 Frequency Stability ............................................................................................................................. 125 4 TEST LABORATORY INFORMATION ............................................................................................. 127 Report No.: FR582101AN Page : 3 of 127 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR582101AN Rev. 01 Initial issue Sep. 15, 2015 Report No.: FR582101AN Page : 4 of 127 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.434MHz 41.61 (Margin -5.56dB) - AV Pass 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 5715.00MHz 68.08 (Margin -0.12dB) - PK Pass 15.407(a) Emission Bandwidth Meet the requirement of limit Pass 15.407(e) 6dB bandwidth Meet the requirement of limit Pass 15.407(a) RF Output Power Max Power [dBm]: Non-beamforming mode 5150-5250MHz: 23.72 5725-5850MHz: 25.60 Beamforming mode 5150-5250MHz: 24.04 5725-5850MHz: 25.93 Pass 15.407(a) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR582101AN Page : 5 of 127 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5150-5250 a 5180-5240 36-48 [4] 1 6-54 Mbps 5150-5250 n (HT20) 5180-5240 36-48 [4] 2 MCS 0-15 5150-5250 n (HT40) 5190-5230 38-46 [2] 2 MCS 0-15 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 2 MCS 0-9 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 2 MCS 0-9 5150-5250 ac (VHT80) 5210 42 [1] 2 MCS 0-9 5725-5850 a 5745-5825 149-165 [5] 1 6-54 Mbps 5725-5850 n (HT20) 5745-5825 149-165 [5] 2 MCS 0-15 5725-5850 n (HT40) 5755-5795 151-159 [2] 2 MCS 0-15 5725-5850 ac (VHT20) 5745-5825 149-165 [5] 2 MCS 0-9 5725-5850 ac (VHT40) 5755-5795 151-159 [2] 2 MCS 0-9 5725-5850 ac (VHT80) 5775 155 [1] 2 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. Note 3: 802.11a is transmitting signal through chain 0 only. Note 4: 802.11n/ac supports beamforming mode. 1.1.2 Antenna Details Ant. No. Type Connector Operating Frequencies (MHz) / Antenna Gain (dBi) 2400~2483.5 5150~5250 5725~5850 1 PIFA UFL 3.5 - - 2 3.5 - - 3 - 5.28 5.10 4 - 5.12 5.28 Report No.: FR582101AN Page : 6 of 127 Report Version: Rev. 01 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 1 12Vdc…

Text truncated - open the document above for the full version.

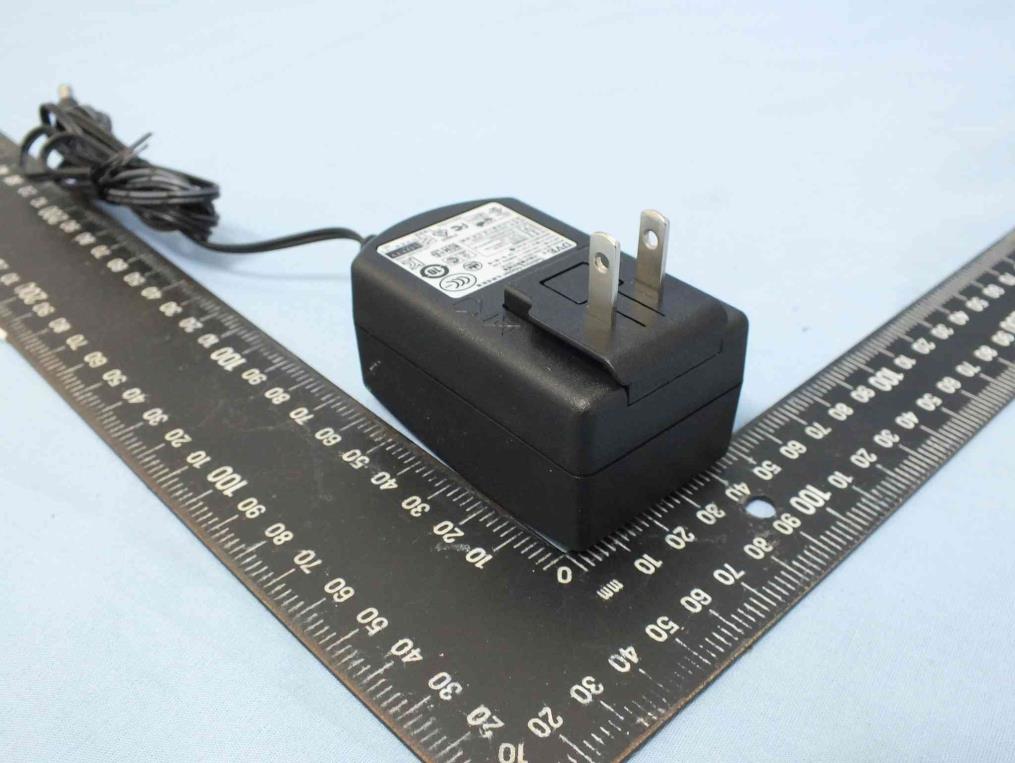

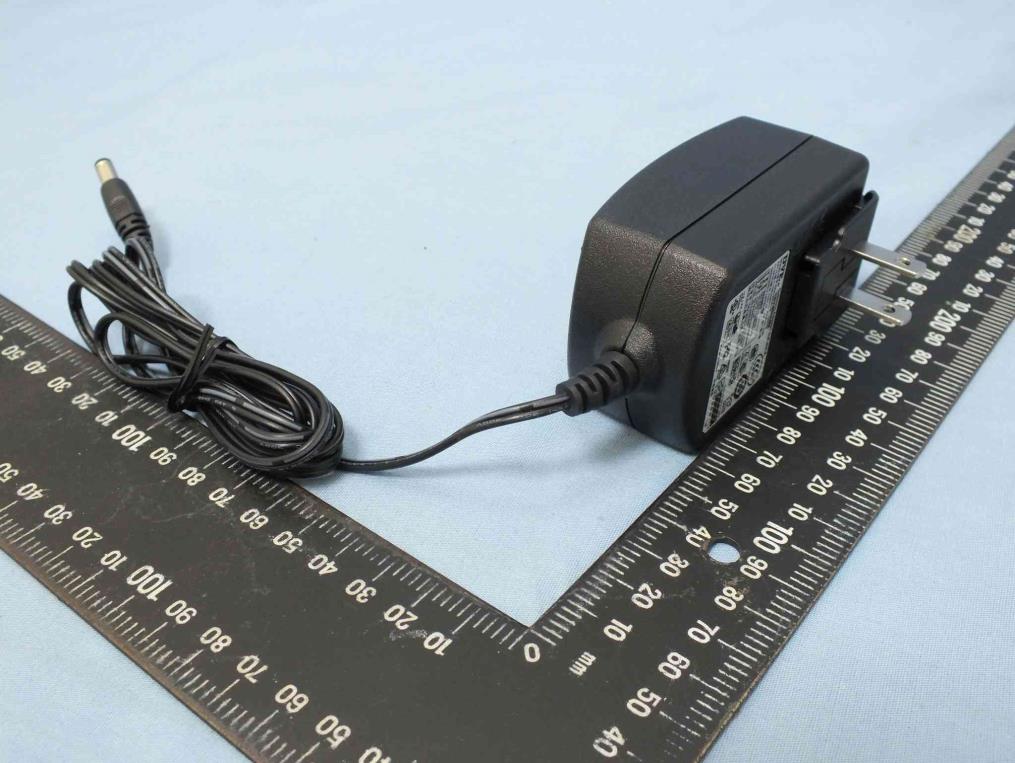

Report No.: FR582101 Page: : 1 of 14 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test (Adapter mode) Report No.: FR582101 Page: : 2 of 14 Report Version: Rev. 01 Conducted Emission Test (POE mode) Report No.: FR582101 Page: : 3 of 14 Report Version: Rev. 01 For 2.4GHz Radiated Emission Below 1GHz Test (Adapter mode) Report No.: FR582101 Page: : 4 of 14 Report Version: Rev. 01 Radiated Emission Below 1GHz Test (POE mode) Report No.: FR582101 Page: : 5 of 14 Report Version: Rev. 01 Radiated Emission Above 1GHz Test (Adapter mode) Report No.: FR582101 Page: : 6 of 14 Report Version: Rev. 01 Radiated Emission Above 1GHz Test (Adapter mode) Report No.: FR582101 Page: : 7 of 14 Report Version: Rev. 01 Radiated Emission Above 1GHz Test (POE mode) Report No.: FR582101 Page: : 8 of 14 Report Version: Rev. 01 Radiated Emission Above 1GHz Test (POE mode) Report No.: FR582101 Page: : 9 of 14 Report Version: Rev. 01 For 5GHz Radiated Emission Below 1GHz Test (Adapter mode) Report No.: FR582101 Page: : 10 of 14 Report Version: Rev. 01 Radiated Emission Below 1GHz Test (POE mode) Report No.: FR582101 Page: : 11 of 14 Report Version: Rev. 01 Radiated Emission Above 1GHz Test (Adapter mode) Report No.: FR582101 Page: : 12 of 14 Report Version: Rev. 01 Radiated Emission Above 1GHz Test (Adapter mode) Report No.: FR582101 Page: : 13 of 14 Report Version: Rev. 01 Radiated Emission Above 1GHz Test (POE mode) Report No.: FR582101 Page: : 14 of 14 Report Version: Rev. 01 Radiated Emission Above 1GHz Test (POE mode)
