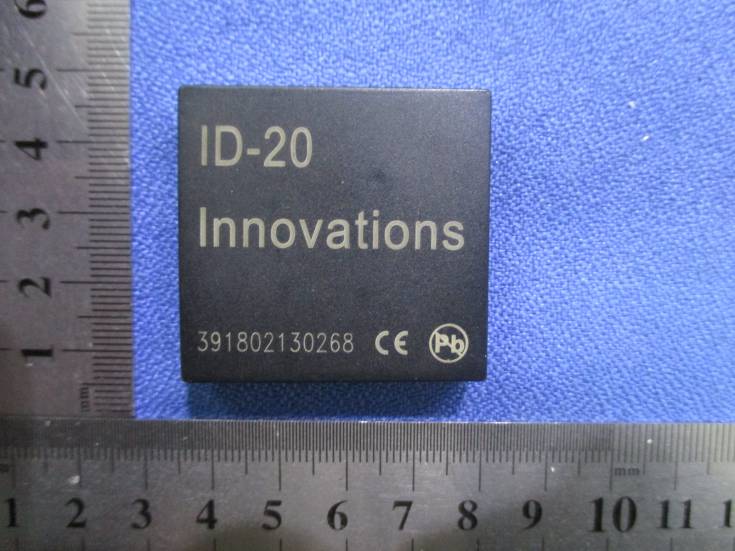

2ADZBID-2RFID reader

ID-2 Series Datasheet X1 2.07.2013 www.id-innovations.com ID-2, ID-12LA Low Voltage Series RFID reader Modules Datasheet Version1.0 Date 09/01/13 ID-3/12/20 LA Series Datasheet X1 2.07.2013 www.id-innovations.com 1. Overview ID2 series are small footprint 2.8- 5.0volt reader modules that support ASCII, Wiegand26 and Magnetic ABA Track2 data formats. The modules are pin and function compatible with the ID2/12/20 series. 2. Pin Out for ID-2 ID-2 1. GND 2. RES (Reset Bar) 3. Do not connect 4. Do not connect 5. CP 6. Tag in Range 7. Format Selector 8. D1 (Data Pin 1) 9. D0 (Data Pin 0) 10. Read (LED / Beeper) 11. +2.8V thru +5.0V ID-3LA 1. GND 2. RES (Reset Bar) 3. ANT (Antenna) 4. ANT (Antenna) 5. CP 6. Tag in Range 7. Format Selector 8. D1 (Data Pin 1) 9. D0 (Data Pin 0) 10. Read (LED / Beeper) 11. +2.8V thru +5.0V ID-2 LA Series Datasheet X1 2.07.2013 www.id-innovations.com 3. Device Operational Characteristics Parameter ID-2 Frequency 125 kHz nominal Card Format EM 4001 or compatible Read Range ID-2 Up to 30 using suitable antenna using ID-Innovations clamshell card Encoding Manchester 64-bit, modulus 64 Power Requirement +2.8 VDC thru +5 VDC @ 35mA ID-2 RF I/O Output Current +/- 200mA PKPK 4. Data Formats Output Data Structure - ASCII - 9600 Baud, No Parity, 1 stop bit. Output = CMOS (Push Pull) 0-Vdd STX (02h) DATA (10 ASCII) CHECK SUM (2 ASCII) CR LF ETX (03h) Example for Calculation of Checksum for ASCII Suppose the output Data is 0C000621A58E Here the actual data is 0C,00,00,06,21,A5 and the checksum is 6E Using binary we Exclusive OR the bit columns 0C = 00001100 00 = 00000000 06 = 00000110 21 = 00100001 A5 = 10100101 CHECKSUM 10001110 (8E) Output Data Structure - Wiegand26 – 1mS repeat, 50uS pulse. Open Drain 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 P E E E E E E E E E E E E O O O O O O O O O O O O P Even parity (E) Odd parity (O) P = Parity start bit and stop bit Output Data Magnetic ABA Track2 – At Approx. 80cm/sec. Open Drain 10 Leading Zeros SS Data ES LCR 10 Ending Zeros [SS is the Start Character of 11010, ES is the end character of 11111, and LRC is the Longitudinal Redundancy Check.] ID-2 Series Datasheet X1 2.07.2013 www.id-innovations.com 5. Magnetic Emulation Waveforms Blue = Clock, Brown = Data Start and End Sequences for Magnetic Timing Fig. 3 Fig. 4 Data Timings for Magnetic Emulation Fig. 5 The magnetic Emulation Sequence starts with the Card Present Line going active (down). There next follows 10 clocks with Zero ‘0’ data. At the end of the 10 leading clocks the start character (11010) is sent and this is followed by the data. At the end of the data the end character is sent followed by the LCR. Finally 10 trailing clocks are sent and the card present line is raised. The data bit duration is approximately 330uS. The approximate clock duration is 110uS. Because of the symmetry data can be clocked off either the rising or falling edge of the clock. ID-3/12/20 LA Series Datasheet X1 2.07.2013 www.id-innovations.com 7. Maximum voltage applied to Pin 2 (Vcc) 5.5volt Maximum voltage applied to Pin 2 (Reset) Vcc + 0.7v, -0.7v Maximum current drawn from Pin 3 (Antenna) +/- 75mA Maximum 125 KHz RF Voltage at Pin 4 (Antenna) +/- 80volt Peak Maximum current drawn from Pin 5 (Card Present) +/- 5mA Maximum current drawn from Pin 6 (Tag in Range) +/- 5mA Maximum Voltage at Pin 7 (Format Selector) Vcc + 0.7v, -0.7v Maximum current drawn from Pin 8 (Data1) +/- 5mA Maximum current drawn from Pin 9 (Data0) +/- 5mA Maximum current drawn from Pin 10 (Beeper) +/- 10mA Additionally, Pins 5, 6, 7, 8, 9 & 10 may not have a voltage exceeding Vcc + 0.7v, -0.7v These ratings are absolute maximums and operation at or near the maximums may cause stress and eventual damage or unpredictable behaviour. ID-2 Series Datasheet X1 2.07.2013 www.id-innovations.com Parts List Part # Value R1 100R R2 4K7 R3 2K2 C1 10uF 25v electrolytic C2 1000uF 10v electrolytic C3 100nF L1 1.337mH Q1 BC457 or similar LED1 Read LED LED2 Tag In Range LED B1 2.7khz – 3kHz 5v PKPK AC 8. Circuit Diagram 8.1 Circuit Diagram for ID-2 8.2 Circuit Diagram for ID-3LA Parts List Part # Value R1 100R R2 4K7 R3 2K2 C1 10uF 25v electrolytic C2 1000uF 10v electrolytic C3 100nF Q1 BC457 or similar LED1 Read LED LED2 Tag In Range LED B1 2.7khz – 3kHz 5v PKPK AC ID-2 Series Datasheet X1 2.07.2013 www.id-innovations.com 9. Dimensions (mm) ID-3LA Nom. Min. Max. A 12.0 11.6 12.4 B 8.0 7.6 8.4 C 15.0 14.6 15.4 D 20.5 20.0 21.5 E 18.5 18.0 19.2 F 14.0 13.0 14.8 G 22.0 21.6 22.4 P 2.0 1.8 2.2 H 5.92 5.85 6.6 J 9.85 9.0 10.5 W 0.66 0.62 0.67 ID-12LA Nom. Min. Max. A 12.0 11.6 12.4 B 8.0 7.6 8.4 C 15.0 14.6 15.4 D 25.3 24.9 25.9 E 20.3 19.8 20.9 F 16.3 15.8 16.9 G 26.4 26.1 27.1 P 2.0 1.8 2.2 H 6.0 5.8 6.6 J 9.9 9.40 10.5 W 0.66 0.62 0.67 ID-2 Series Datasheet X1 2.07.2013 www.id-innovations.com 10. Connection direct to a computer Direct connection to a computer RS232 can be made by connecting Pin8 to a 1k series resistor and connecting the other end of the resistor to the computer RS232 input. The mode is called pseudo RS232. On a standard D9 socket, connect module Pin8 via the series 1k to pin2 of the D-type. Connect the ground to Pin5 on the D-type. Leave the TX pin3 open. See “Useful Information” below for free terminal download information. Note that a +2.8v rail will result in the data outputs having a lower swing and may not be suitable for all computers. 10.1 Connection to a Processor UART Direct connection to UART is made by connecting Pin9 to the UART Rx in pin 10.2 Connecting a Read LED Sometimes the user may not want to drive a beeper but may still need to drive an LED. In this case a driver transistor may not be necessary because the Beeper Output Pin can supply 5mA continuously. Connect a 1k5 resistor to the Beeper Pin. This will limit the current. Connect the other end of the resistor to the LED anode and connect the cathode to ground. 11. Useful information For general testing we suggest the user down…
