2ADZCHLWH003BWireless Video Transmission System

Wireless Video Transmission System HLWH003B User manual Preface ....................................................................................................... 1 1. Cautions ................................................................................................. 2 2. About ..................................................................................................... 3 3. Installation ............................................................................................. 4 4. Operation instruction ............................................................................. 5 5. Maintenance ........................................................................................... 6 6. Truble shooting ...................................................................................... 7 1 Preface Thanks for purchasing our Wireless Video Tran smission System. Before using this product, read this user manual carefully please. Follow the instruction to keep your safety and avoid p roducts damage. This user manual might be modified irregularly because of updated products, and the manual is for instruction only. 2 1. Cautions Logo and meaning Careful, warning, dangerous, Pay attend to following items. Cautions  Do not use this product in the extreme hot, cold, dusty or humid environments.  Prevent friction with hard objects.  Avoid the product falling down from a high place, or it may damage the hardware.  The product is not water proofed. So do not get any liquid into the unit please.  Do not dismantle, assemble or alter the product arbitrarily. 3 2. About Product model and standard The Wireless Video Transmission System utilize today’s most advanced wireless video transmission technology, which can realize the broadcast-class and uncompressed 3G SDI/HDMI HD video signal transmitted with no compression and zero delay. The suite includes one transmitter and one receiver, where the transmitter provides a 3G/HD SDI input and a HDMI input, and the receiver also provides a 3G/HD SDI output and a HDMI output. The wireless HD suite has 2 stick antennas in transmitter side, and 5 stick antennas in receiver side, and it can work in 5.75-5.83GHz frequency band and be flexibly software configured to licensed or ISM band of global different regions, as well as the side panel of both transmitter and receiver have been installed a frequency select knob, which provides maximum 10 workable frequency channels, and supports maximum 4 sets working simultaneously. The wireless suite can accept wide range DC power input, which is suitable for many kinds of camera battery model. The suite also can sustain ±8 kV ESD (HBM, contact discharge), the industry class metal case and professional heat design would guarantee most robust reliability. Main features:  HDMI 1.3 spec supports 4  HDMI and 3G SDI input and output  Highest resolution 1080p 60no delay and no compression  Support audio formats include Dolby True HD, DTS-master, etc.  AES-128 encryption with air interface HD video data stream  Support point to point, and point to multi points network topology  Each RX paired to the unique TX in factory,  5GHz ISM frequency band by user knob.  Maximum transmission distance 300m  Signal indicators for wireless power status, Video status and receiver RSSI  Wide range power voltage input, adapt most kinds of camera battery  Optional Sony F970 battery buckle, convenient for field battery install and replacement  Any input and output ports with ±8 kV ESD protection level (HBM, contact discharge)  Industrial metal case, stable and reliable  Parameters: Transmitter Receiver Interface SDI InputBNC Female; HDMI Input(Type A female); 2 Antenna port(2 SMA male; DC input (4 pin LEMO female) SDI OutputBNC Female; HDMI Output(Type A female); 5 Antenna port(SMA male; DC input (4 pin LEMO female) Supply voltage range 7.4V DC 7.4V DC Power consumption <6.5W < 6 W 5 Size (L x W x H): 120x 70 x 25mm don’t include antennas (L x W x H): 160x 110 x 25mm don’t include antennas Mass380g540g Input Video Format HDMI 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/ 59.94/60HDMI Type A SDI3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/4251x BNC / Output Video Format / HDMI 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/5 9.94/60HDMI Type A SDI3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/4251x BNC Input Audio Format SDI embedded 4 channel 24 bit/48KHz / Output Audio / SDI embedded 4 channel 24 bit/48KHz Signal Indicator POWER-Green VIDEO-Yellow POWER-GreenWireless RSSI-Green(5 LEDs)VIDEO-Yellow Frequency Band 5.75-5.83GHz 5.75-5.83GHz Modulation Mode OFDM 16QAM OFDM 16QAM Transmission Power Maximum 20 mW/ Receiver Sensitivity / -75dBm Occupied Bandwidth 40MHz 40MHz Temperature Range 0 ~ 40°C (operating condition); -20~60°C(Storage) 0 ~ 40°C (operating condition); -20~60°C(Storage) Compliance FCC; CE. FCC; CE. 6 Product introduction Transmitter:  1 1/4-20 Screw Hole  2 RP-SMA male antenna connector  3 Video input indicator, 1 yellow LED  4 Power on Indicator, 1 green LED  5 Frequency selection knob,1-10  6 3G SDI input  7 HDMI Input  8 DC power switch 7 Receiver:  1 1/4-20 Screw Hole  2 RP-SMA male antenna connector  3 RSSI(Wireless received signal strength indicator), 5 green LEDs  4 Video input indicator, 1 yellow LED  5 Power on Indicator, 1 green LED  6 Frequency selection knob,1-10  7 3G SDI Output  8 HDMI Output  9 DC power switch 8 Pa cking list  1 unit transmitter  1 unit receiver  7 5GHz Omni-directional and h igh efficiency antennas.  1 user manual, 2 torx screwdriver, 1 1/4-20 screw to ISO518 hot-shoe converter.  SONY NP-F970/Panasonic D28s/Canon 5D2 battery buckle (Optional)  350*250*50mm carton packing 9 3. Installation Installation details and cautions  Transmitter side a) Install 2 Omni-directional and high efficiency antennas to Tran…

Text truncated - open the document above for the full version.

Shenzhen Hollyland Technology Co.,Ltd 6/F, 3rd Bldg., 2nd South Zone, Honghualing Industrial Park, No.1213 Liuxian Avenue, Xili Town, Nanshan District, Shenzhen, China P.C.518055 TEL: +86-755-86000682 FAX: +86-755-83940008 DOC ATTESTATION LETTER FCC ID: 2ADZCHLWH003B Date: Jan. 15, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the computer peripheral. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely, Vincent Ma/ Sales Director

Shenzhen Hollyland Technology Co.,Ltd 6/F, 3rd Bldg., 2nd South Zone, Honghualing Industrial Park, No.1213 Liuxian Avenue, Xili Town, Nanshan District, Shenzhen, China P.C.518055 TEL: +86-755-86000682 FAX: +86-755-83940008 DATE 01-15-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADZCHLWH003B Product Name: Wireless Video Transmission System Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 01-15-2015 By: Vincent Ma Signature Printed Title: Sales Director On behalf of : Shenzhen Hollyland Technology Co.,Ltd Telephone: +86-755-86000682

Shenzhen Hollyland Technology Co.,Ltd 6/F, 3rd Bldg., 2nd South Zone, Honghualing Industrial Park, No.1213 Liuxian Avenue, Xili Town, Nanshan District, Shenzhen, China P.C.518055 TEL: +86-755-86000682 FAX: +86-755-83940008 Series Models Description To whom concern: The device (Product Name: Wireless Video Transmission System), Models Name: HLWH003B, HLWH005, HLWH006 have same electrical, PCB and BOM, only the model’s name is different for marketing requirements. Date and Applicant’s Signature: Vincent Ma/Sales Director 01-15-2015 The device (Product Name: Wireless Video Transmission System), Models Name: HLWH003B, HLWH005, HLWH006 have same electrical circuit and components, PCB and BOM, only the model’s name is different for marketing requirements.

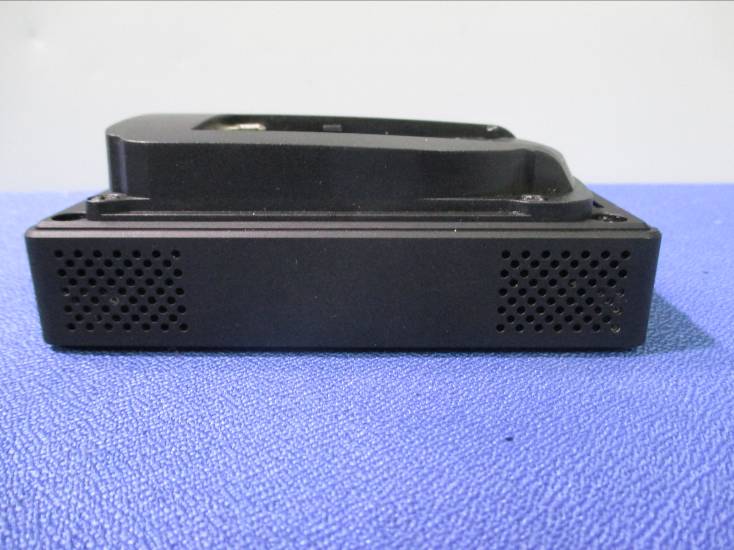

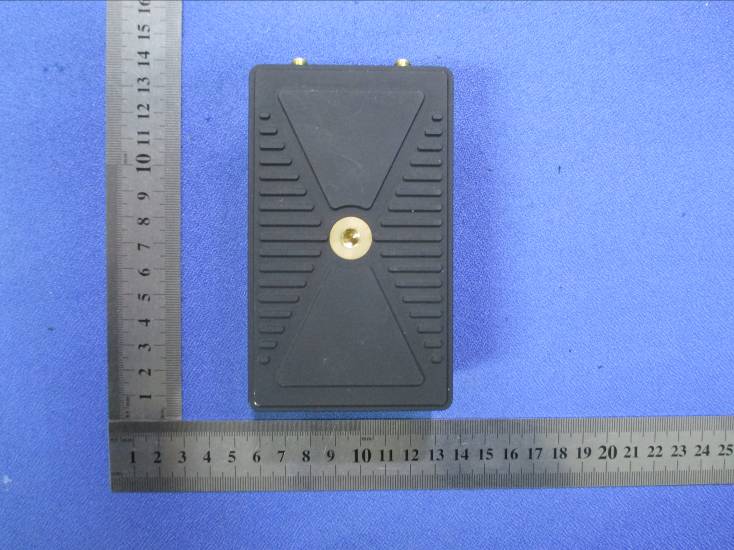

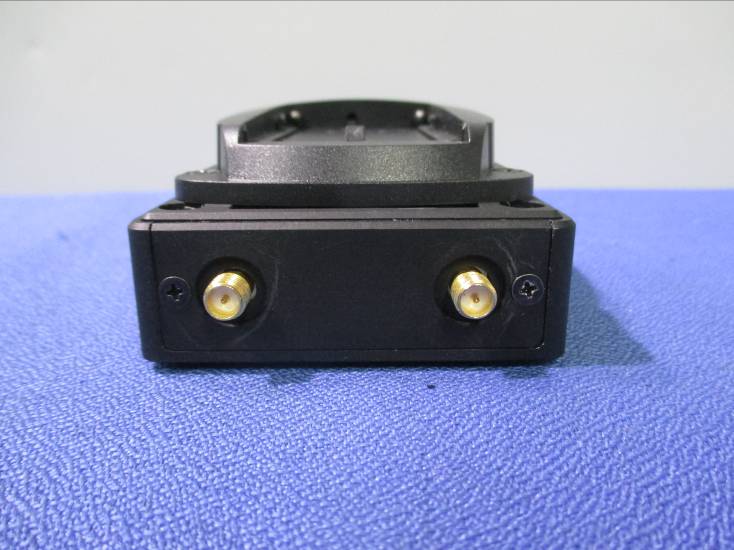

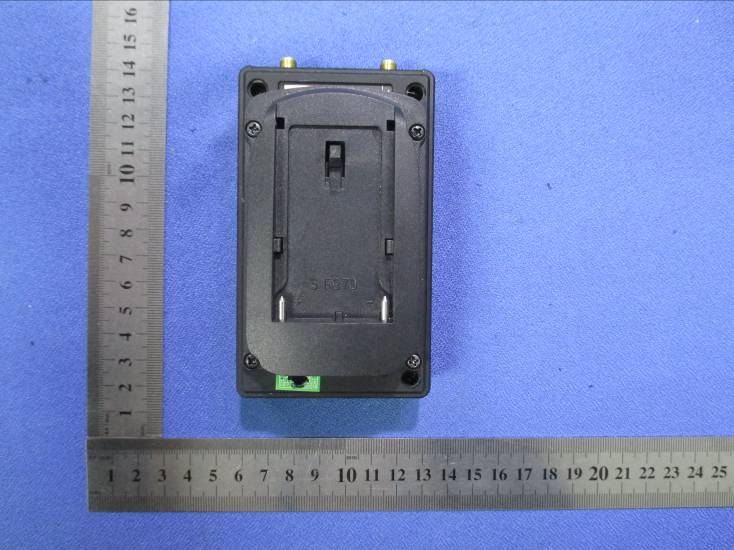

External Photos of EUT Non-standard SMA Connector

FCC ID Label Information 1. Label location: 2. FCC ID Label: Shenzhen Hollyland Technology Co.,Ltd Wireless Video Transmission System Model: HLWH003B FCC ID: 2ADZCHLWH003B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location

Internal Photos of EUT

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 MPE TEST REPORT FCC Per 47 CFR 2.1091(b) Report Reference No......................: CTL1412082952-WM FCC ID..............................................: Compiled by ( position+printed name+signature)..: File administrators Jennifer NI Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Jacky Chen Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Dec. 30, 2014 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name............................: Shenzhen Hollyland Technology Co.,Ltd Address.............................................: 6/F, 3rd Bldg., 2nd South Zone, Honghualing Industrial Park, No.1213 Liuxian Avenue, Xili Town, Nanshan District, Shenzhen, China P.C.518055 Test specification: Standard ...........................................: FCC Per 47 CFR 2.1091(b) TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader’s interpretation of the reproduced material due to its placement and context. Test item description.................... : Wireless Video Transmission System FCC ID.......................................: 2ADZCHLWH003B Trade Mark .......................................: N/A Model/Type reference.......................: HLWH003B, HLWH005, HLWH006 Modulation .......................................: DSSS Work Frequency Range....................: 5750MHz~5830MHz Antenna Type ...................................: MIMO Antenna Gain....................................: 2.5dBi Result................................................: Positive V1.0 Page 2 of 7 Report No.: CTL1412082952-WM Test Report Test Report No. : CTL1412082952-WM Dec. 30, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wireless Video Transmission System Type / Model(s) : HLWH003B Listed Models : HLWH005, HLWH006 Difference Description : Only the color and model's name is different Applicant : Shenzhen Hollyland Technology Co.,Ltd Address : 6/F, 3rd Bldg., 2nd South Zone, Honghualing Industrial Park, No.1213 Liuxian Avenue, Xili Town, Nanshan District, Shenzhen, China P.C.518055 Manufacturer : Shenzhen Hollyland Technology Co.,Ltd Address : 6/F, 3rd Bldg., 2nd South Zone, Honghualing Industrial Park, No.1213 Liuxian Avenue, Xili Town, Nanshan District, Shenzhen, China P.C.518055 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 7 Report No.: CTL1412082952-WM Content 1. SUMMARY............................................................................. 4 1.1. EUT configuration 4 1.2. Equipment Under Test 4 1.3. Description of the test mode 4 1.4. NOTE 4 2. TEST ENVIRONMENT ............................................................... 4 2.1. Address of the test laboratory 5 2.2. Environmental conditions 5 2.3. Statement of the measurement uncertainty 5 3. METHOD OF MEASUREMENT..................................................... 6 V1.0 Page 4 of 7 Report No.: CTL1412082952-WM 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer o - supplied by the lab o Battery Manufacturer: Jingnengte Model: F970 1.2. Equipment Under Test Power supply system utilised Power supply voltage :o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC „ Other (specified in blank below) DC 7.4V from battery 1.3. Description of the test mode 1. Test program used to control the EUT for staying in continuous transmitting mode is programmed. Channel low (5750MHz), mid (5790MHz) and high (5830MHz) with highest data rate are chosen for full testing. 2. Test Mode: Test Mode(TM) Description Remark 1 Transmitting 5750MHz 2 Transmitting 5790MHz 3 Transmitting 5830MHz 1.4. NOTE The EUT is a Wireless Video Transmission System,The functions of the EUT listed as below: Test Standards Reference Report FCC Part 15 Subpart C (Section15.247) CTL1412082952-WF Wireless Video Transmission System(5750-5830MHz) FCC Per 47 CFR 2.1091(b) CTL1412082952-WM V1.0 Page 5 of 7 Report No.: CTL1412082952-WM 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 The sites are constructed in conformance with the requirements of ANSI C6230, ANSI C63.4 (2009) and CISPR Publication 22. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16 - 4 „Specification for radio disturbance and immunity measuring apparatus and m…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Part 15.247 Report Reference No......................: CTL1412082952-WF Compiled by ( position+printed name+signature) .: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature) .: Test Engineer Tracy Qi Approved by ( position+printed name+signature) .: Manager Tracy Qi Date of issue.....................................: Dec. 30, 2014 Test Laboratory Name...................: Shenzhen CTL Testing Technology Co., Ltd. Address ............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name............................: Shenzhen Hollyland Technology Co.,Ltd Address ............................................: 6/F, 3rd Bldg., 2nd South Zone, Honghualing Industrial Park, No.1213 Liuxian Avenue, Xili Town, Nanshan District, Shenzhen, China P.C.518055 Test specification: Standard ...........................................: FCC Part 15.247: Operation within the bands 902–928 MHz, 2400– 2483.5 MHz, and 5725–5850 MHz. TRF Originator..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.....................: Wireless Video Transmission System FCC ID.......................................: 2ADZCHLWH003B Trade Mark ....................................... : N/A Model/Type reference ......................: HLWH003B, HLWH005, HLWH006 Modulation ....................................... : OFDM Work Frequency Range...................: 5750MHz~5830MHz Antenna Type ................................... : Undetachtable Antenna Gain.................................... : 2.5dBi Result ............................................... : Positive V1.0 Page 2 of 49 Report No.: CTL1412082952-WF T E S T R E P O R T Test Report No. : CTL1412082952-WF Dec. 30, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wireless Video Transmission System Type / Model(s) : HLWH003B Listed Models : HLWH005, HLWH006 Difference Description : Only the color and model's name is different Applicant : Shenzhen Hollyland Technology Co.,Ltd Address : 6/F, 3rd Bldg., 2nd South Zone, Honghualing Industrial Park, No.1213 Liuxian Avenue, Xili Town, Nanshan District, Shenzhen, China P.C.518055 Manufacturer : Shenzhen Hollyland Technology Co.,Ltd Address : 6/F, 3rd Bldg., 2nd South Zone, Honghualing Industrial Park, No.1213 Liuxian Avenue, Xili Town, Nanshan District, Shenzhen, China P.C.518055 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 49 Report No.: CTL1412082952-WF Contents 1. TEST STANDARDS................................................................. 4 2. SUMMARY............................................................................ 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 6 2.5. EUT configuration 6 2.6. NOTE 6 2.7. Related Submittal(s) / Grant (s) 6 2.8. Modifications 6 3. TEST ENVIRONMENT ............................................................. 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Duty Cycle 8 3.6. Statement of the measurement uncertainty 8 3.7. Equipments Used during the Test 9 3.8. Summary of Test Result 10 4. TEST CONDITIONS AND RESULTS.......................................... 11 4.1. Conducted Emissions Test 11 4.2. Radiated Emission Test 14 4.3. 6dB Bandwidth Measurement 19 4.4. Maximum Peak Output Power 22 4.5. Band Edge Measurement 23 4.6. Power Spectral Density Measurement 32 4.7. Spurious RF Conducted Emission 35 4.8. Antenna Requirement 41 5. TEST SETUP PHOTOS OF THE EUT ........................................ 42 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ..................... 44 V1.0 Page 4 of 49 Report No.: CTL1412082952-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices. ANSI C63.4-2009 KDB Publication No. 558074 D01 v03r02 Guidance on Measurements for Digital Transmission Systems V1.0 Page 5 of 49 Report No.: CTL1412082952-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Dec. 10, 2014 Testing commenced on : Dec. 10, 2014 Testing concluded on : Jan. 21, 2015 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 7.4V from battery Channel list: Channel Frequency(MHz) 1 5750 2 5790 3 5830 2.3. Short description of the Equipment under Test (EUT) Wireless Video Transmission System, work range 5750~5830 MHz. For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 49 Report No.: CTL1412082952-WF 2.4. EUT operation mode Test Mode: 1. Test program used to con…
