2ADZDJW-1403Anti-lost Alarm

OperatingManualforJW-1403 JoywayAnti-LostAlarm(JW-1403),isasmallbluetoothdeviceconnectingwith smartphoneandcommunicatingwithapp. Howtouse? 1,InstallAPP.Thereare2waystoInstallappintoyoursmartphone. (1)ScantheQRCODEinthebackofpackingboxbyyoursmartphone. (2)Followthislink:http://www.joyway.cn/Page_ProductDetail.aspx?id=764 2,ActivateAnti-LostAlarmbypressingitsbutton. 3,Runapp,click‘Scan’or‘+’tofindallnearbyAnti-LostAlarms,thenclickone,the appwillconnectit,then,showdetailsofthealarm. AndroidPhone: Clickhere iPhone: 4,Movethealarmnearandfar,checkthe‘Currentdistance’value,configurethesafe distance.Ifitisfaraway,smartphonewillplayringingandvibrate(Distancing alarm). 5,Click‘Call’buttoninapp,alarmwillbeep. 6,Clickbuttoninalarmwillmakesmartphoneplayingringing(FakeCall). 7,Itworkswellwhenappruninbackground. 8,Ifyouquitapp,thealarmwillsleepdowntosaveenergyuntilyouactivateitagain. FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Joyway Technology Co., Ltd. Room D89,Huafeng times plaza,25 area,Bao'an district,Shenzhen city, Guangdong province,China Confidentiality Request Letter Page 1 of 1 Rev 2.0 JAN. 13 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID:2ADZDJW-1403 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Xia Jiangbo / Manager Contact information / address:Room D89,Huafeng times plaza,25 area,Bao'an district,Shenzhen city,Guangdong province,China TEL: 86-755-27662285 FAX: 86-755-27662285 E-mail: [email protected]

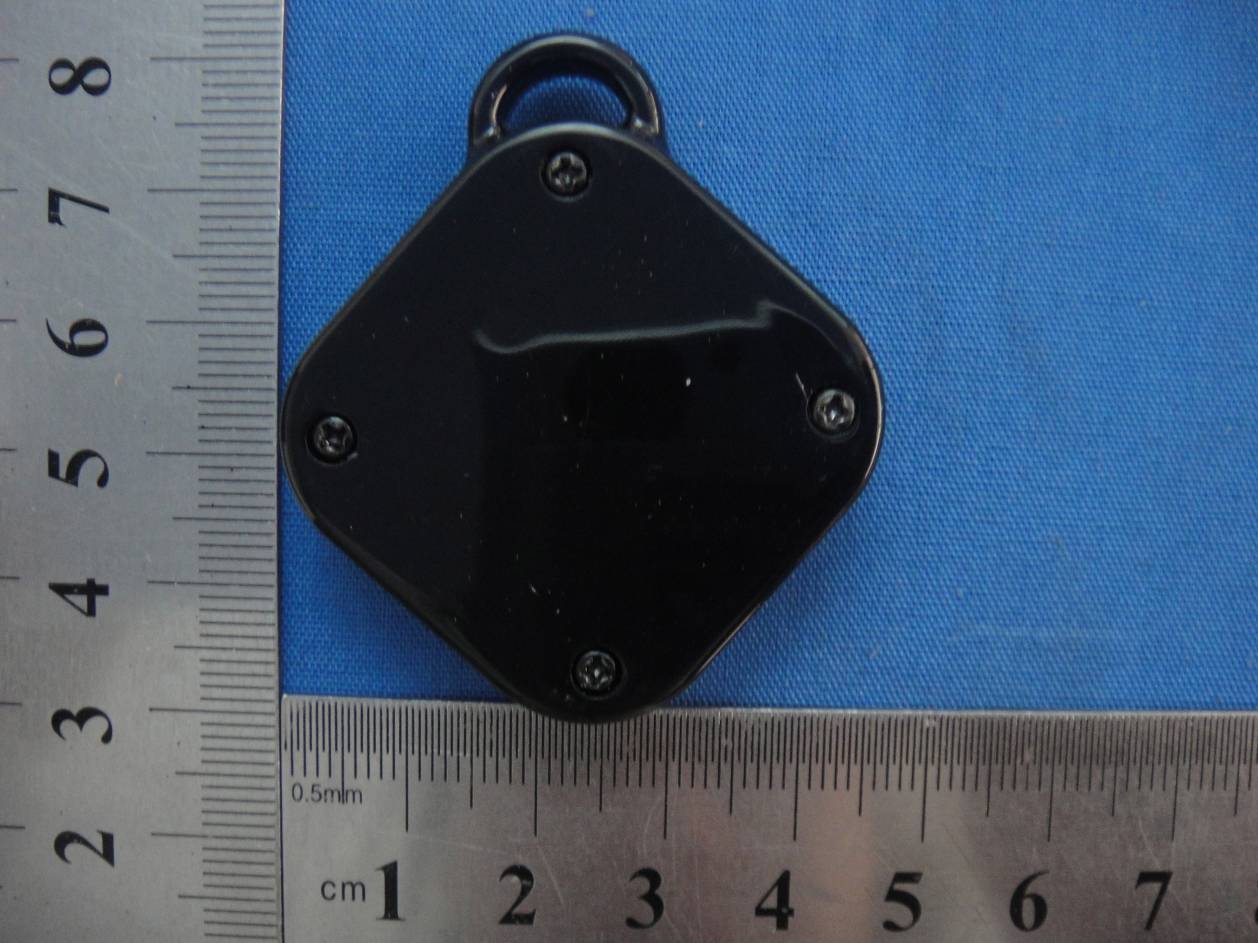

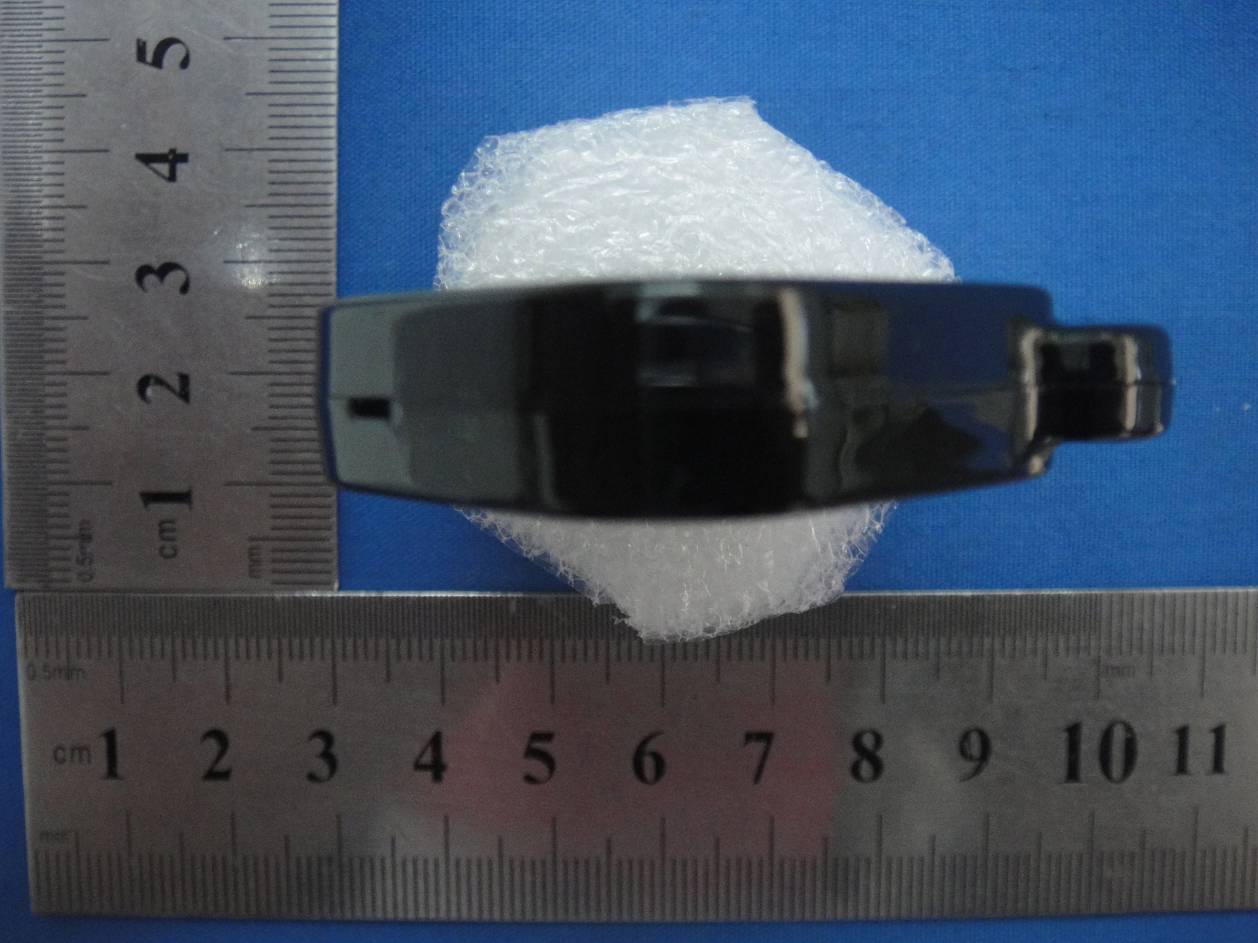

External Photo

FCC Certification Label FCC ID:2ADZDJW-1403 Label Location on EUT EUT Bottom View/ FCC ID Label Location label size:high:0.5cm,Wide:1.5cm

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Shenzhen Joyway Technology Co., Ltd. Room D89,Huafeng times plaza,25 area,Bao'an district,Shenzhen city,Guangdong province,China FCC ID:2ADZDJW-1403 JW-1403,JW-1400,JW-1401,JW-1402,JW-1404,JW-1405,JW-1406,JW-1407,JW-1409 This Report Concerns: Original Report Equipment Type: Anti-lost Alarm Test Engineer: Lisa Chen Report No.: BSL20150113-1 Receive EUT Date/Test Date: January 02, 2015 / January 02- January 13, 2015 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID:2ADZDJW-1403 Page 2/24 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................13 7.5. Radiated Emission Test Result .......................................................................................14 8. BAND EDGE .............................................................................................................................19 8.1. Test Equipment ...............................................................................................................19 8.2. Test Procedure ................................................................................................................19 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................19 8.4. Band Edge Test Result ....................................................................................................20 9. 20-DB BANDWIDTH ...............................................................................................................21 9.1. Test Equipment ...............................................................................................................21 9.2. Test Procedure ................................................................................................................21 9.3. Limit................................................................................................................................21 9.4. Test Result /Plots ............................................................................................................21 FCC ID:2ADZDJW-1403 Page 3/24 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specif…

Text truncated - open the document above for the full version.

Radiated emissions test
