2ADZJWM-100selfie stick Remote Shutter

selfie stick Remote Shutter Bluetooth User Manual Bluetooth Selfie Stick No background Narrow space, always "headshot" Someone must be "sacrificed" when shooting family picture Short arm Helping you to work out four major troubles in shooting WM-100 Prod uct Name selfie stick Remote Shutter Support Distance 10MFlex Length 235-1005mm Flex Sections 7 steps Function Self Portrait Working current 3mAMaterial Stainless steel Battery capacity 45mAHCharging voltage DC 5V/100mAStandby Current 300uAStandby time >100 Hours Burst times >500 times Charging time 1 Hour (After charging,the red light on, when full charged, the light off) Bluetooth Version BT 2.1Compatiable IOS/Android WM-100 1.Turn on the power switch at the bottom of the handle of the selfie stick. Then the blue light starts to flicker 3.Once the bluetooth matching succeeded, pictures could be taken by pressing the shooting button on the selfie stick. 1 ） Enable bluetooth 2 ） searching devices, and match with bluetooth sefie stick3 ） matching succeeds 2.How to connect with the bluetooth of the iPhones? How to use bluetooth selfie stick? Bluetooth remote control selfie stick, adjustable focal distance, portable, wireless selfie tool for cameras of Samsung phones and iPhones The product will sleep if it's idle for 2 hours. Press shooting button for 5 seconds to wake up itAttentions: 1, Please read the guidance before using2, Turn off the bluetooth equipment nearby to avoid interference3, As it may be impacted if using the keypad of the mobile phone, please turn off the bluetooth or monopod before using the keypad. Safety:1, Please don't disassemble the product2, Please don't use corrosive agent to clean the product3, It's forbidden to use it under heat and hard light environment4, It's forbidden to use it where rainy and humid. 5, it's forbidden to be placed into the fire6, Please avoid impact FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Zhongshan Winner Electronic Technology Co.,Ltd Jiahua Road No.21,Qianlong industrial area,Sanxiang town,Zhongshan city,Guangdong Province,China Confidentiality Request Letter Page 1 of 1 Rev 2.0 JAN. 19 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID:2ADZJWM-100 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Sunny Xu / Manager Contact information / address:Jiahua Road No.21,Qianlong industrial area,Sanxiang town,Zhongshan city,Guangdong Province,China TEL: 86-760-86380988 FAX: 86-760-86380686 E-mail:[email protected]

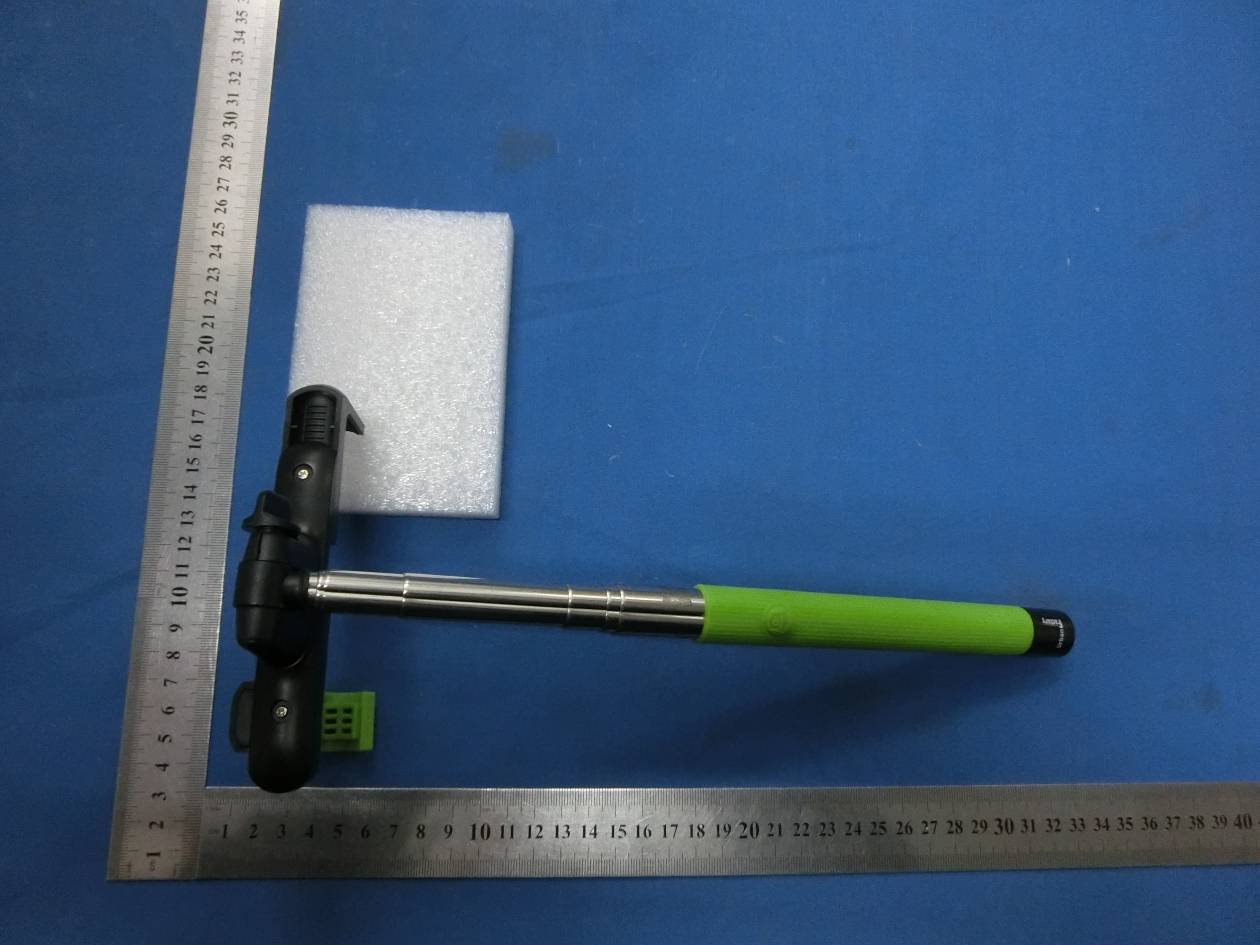

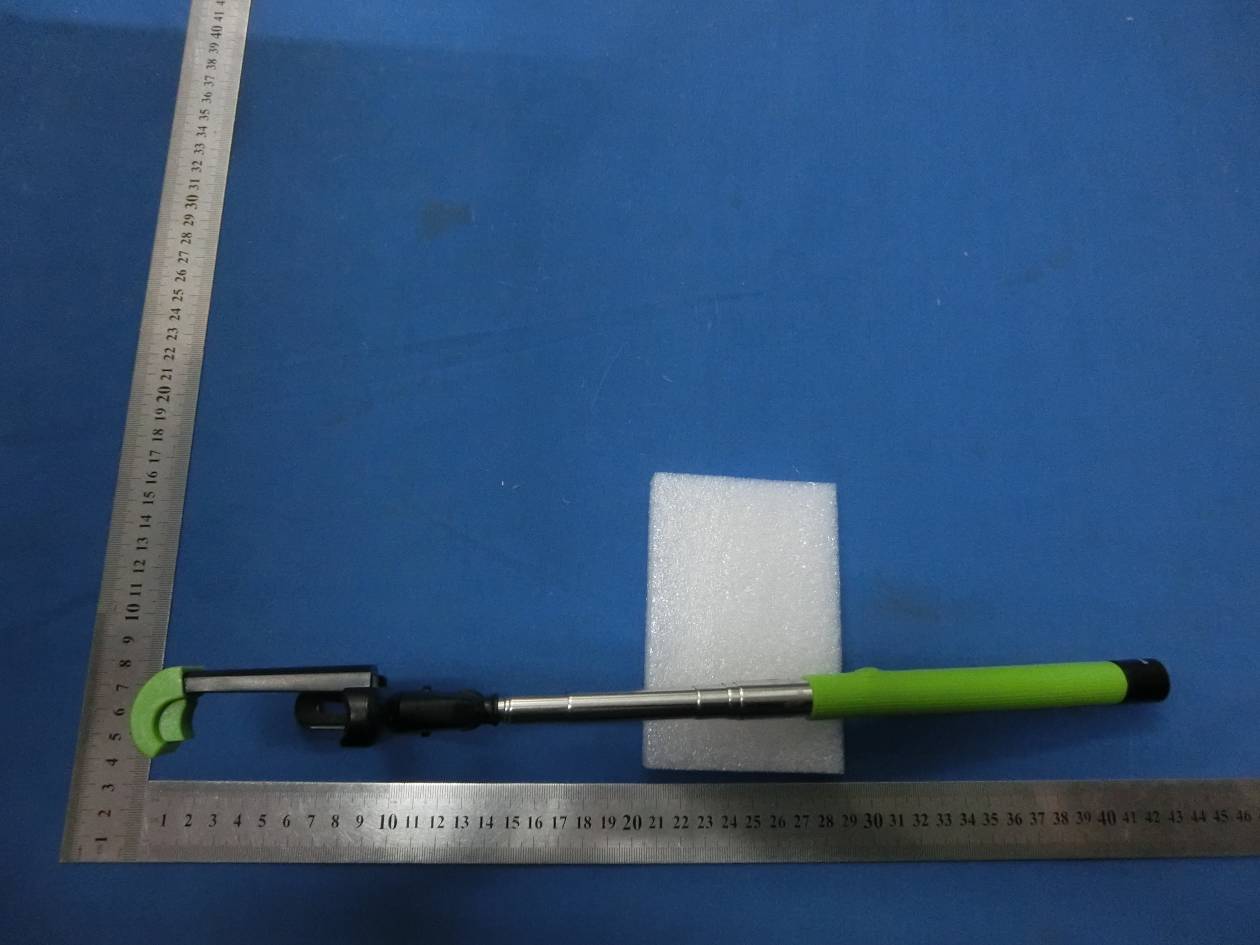

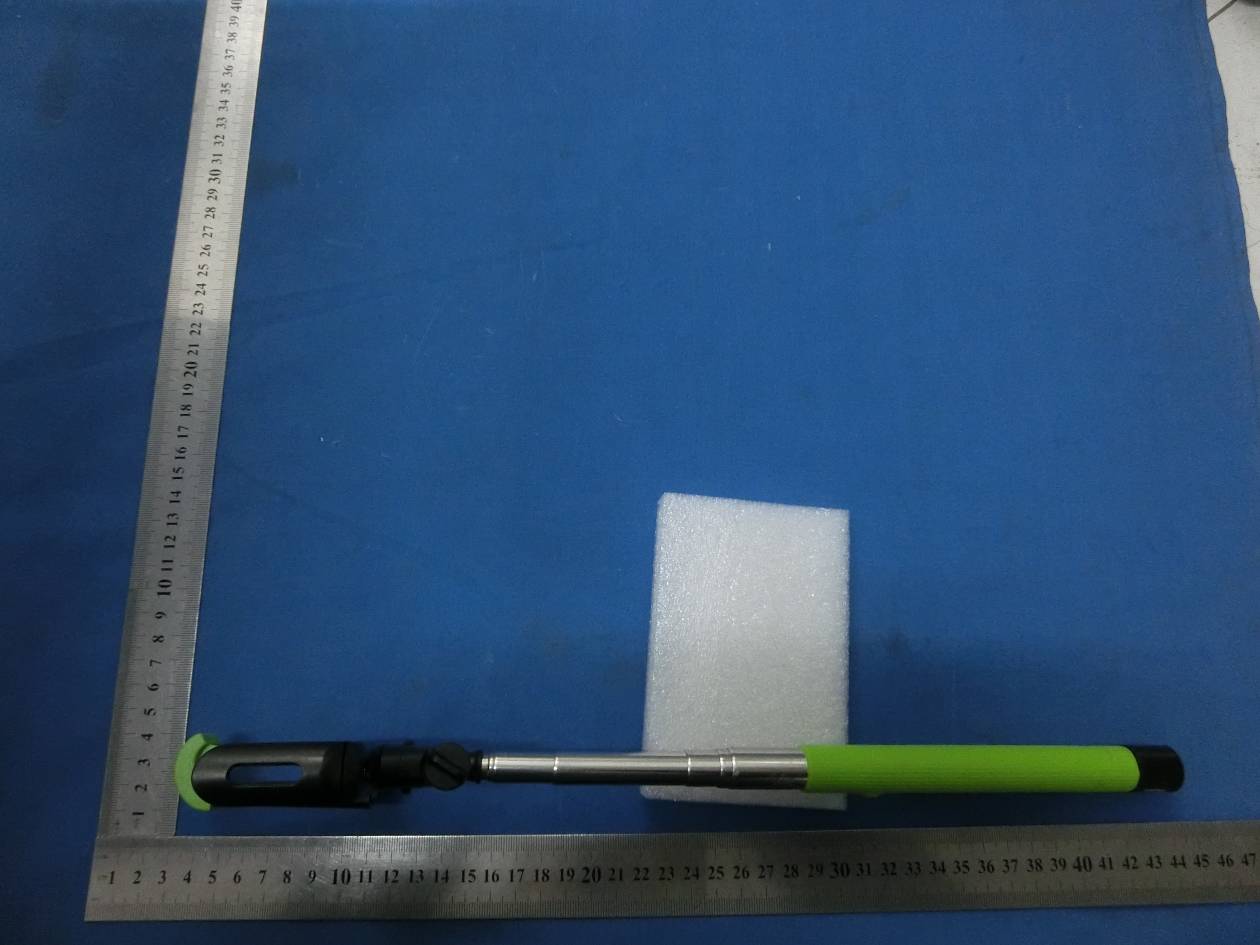

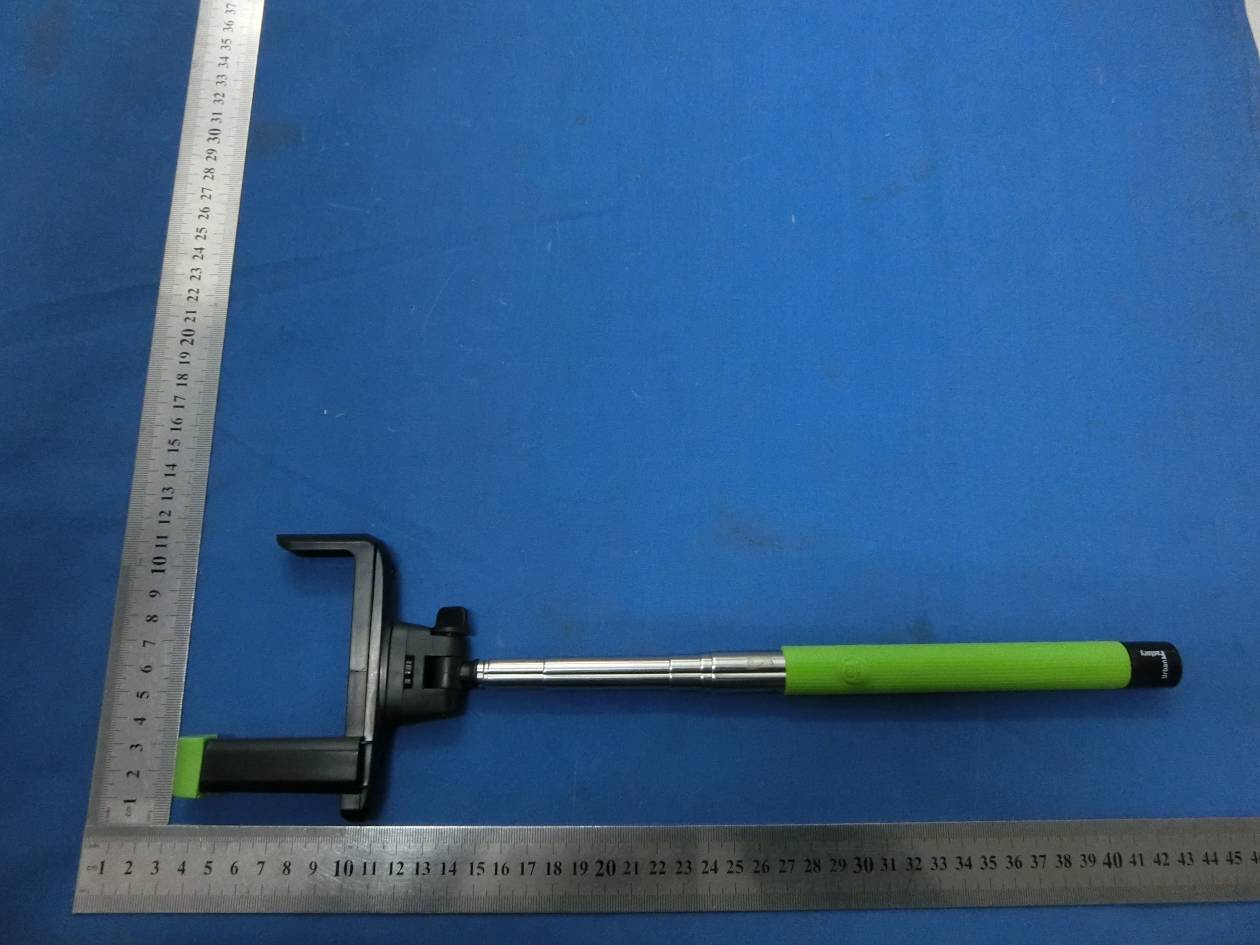

External Photo

FCC Certification Label FCC ID:2ADZJWM-100 Label Location on EUT EUT Bottom View/ FCC ID Label Location label size:high:0.5cm,Wide:1.5cm

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Zhongshan Winner Electronic Technology Co.,Ltd Jiahua Road No.21,Qianlong industrial area,Sanxiang town,Zhongshan city,Guangdong Province,China FCC ID:2ADZJWM-100 WM-100,WM-101,WM-102,WM-103,WM-104,WM-105,WM-106,WM-107,WM-108, WM-109-130,W-2228 This Report Concerns: Original Report Equipment Type: selfie stick Remote Shutter Test Engineer: Lisa Chen Report No.: BSL20150119-1 Receive EUT Date/Test Date: January 02, 2015 / January 02- January 19, 2015 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID:2ADZJWM-100 Page 2/25 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................12 7.1. Test Equipment ...............................................................................................................12 7.2. Test Procedure ................................................................................................................12 7.3. Radiated Test Setup ........................................................................................................12 7.4. Radiated Emission Limit.................................................................................................14 7.5. Radiated Emission Test Result .......................................................................................15 8. BAND EDGE .............................................................................................................................20 8.1. Test Equipment ...............................................................................................................20 8.2. Test Procedure ................................................................................................................20 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................20 8.4. Band Edge Test Result ....................................................................................................21 9. 20-DB BANDWIDTH ...............................................................................................................22 9.1. Test Equipment ...............................................................................................................22 9.2. Test Procedure ................................................................................................................22 9.3. Limit................................................................................................................................22 9.4. Test Result /Plots ............................................................................................................22 FCC ID:2ADZJWM-100 Page 3/25 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only a…
