2AE23-ZANO1Zano - Autonomous Intelligent Swarming Nano Drone

1 1.5 USER GUIDE: ZANO DRONE VERSION 1.5 - 2015 Torquing Robotics Ltd © 2015. All rights reserved. Under the copyright laws, this user guide may not be copied, in whole or in part, without the written consent of Torquing Robotics Ltd. Any mention of third-party products is for informational purposes and is neither an endorsement nor a recommendation. Torquing Robotics Ltd assumes no responsibility with regard to the performance or use of these products. • ZANO is a registered trademark of Torquing Group Ltd. • App Store SM is a trademark of Apple Inc. • Google Play TM is a trademark of Google Inc. • All other trademarks in this ZANO Drone User Guide are protected and are the property of their respective owners. Table of contents 1. INTRODUCTION 8 2. DISCLAIMER 9 4. SAFETY PRECAUTIONS & MAINTENANCE 11 5. BATTERY USAGE 13 6. TECHNICAL SPECIFICATIONS 14 7. THE ZANO DRONE PACKAGE 15 8. CONNECTING YOUR ZANO DRONE 16 9. FLYING YOUR ZANO DRONE 17 10. IMAGES AND VIDEOS 21 11. FAQ’S 22 12. TROUBLESHOOTING 24 13. REFERENCE TABLES 25 14. SERVICE AND SUPPORT 27 6ZANO RegulAtORy INfORmAtION ZANO Regulatory Information No changes shall be made to the equipment without the manufacturer’s permission as this may void the user’s authority to operate the equipment. FCC Requirements: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This device complies with the FCC safety requirements for RF exposure in accordance with FCC rule part §2.1091 Industry Canada Requirements: This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and 7ZANO RegulAtORy INfORmAtION (2) This device must accept any interference, including interference that may cause undesired operation of the device This device complies with the IC safety requirements for RF exposure in accordance with RSS-102 Issue 5 Section 2.5.2 Besoins pour les normes Canadiennes: Cet appareil est conforme aux normes canadiennes d’utilisation hors-license RSS. L’utilisation est sujette aux deux conditions suivantes: (1) Cet appareil ne doit pas causer d’interferences; et (2) Cet appareil est capable d’accepter quelconques interferences, incluant les interférences qui pourraient causer un fonctionnement indésirable de l’appareil. Cet appareil est conforme aux normes canadiennes de sécurité vis a vis de l’exposition aux HF en accord avec RSS-102 Edition 5 paragraphe 2.5.2 European CE Requirements: Torquing Robotics declares that the ZANO1 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. http://support.flyzano.com/wp-content/uploads/2015/07/EC-Declaration.jpg 8INtROductION 1. INTRODUCTION Welcome to your new ZANO Drone and thank you for purchasing our product. Our ZANO Drone is an ultra-portable, personal aerial photography and HD Video Capture Platform. It is small enough to fit in the palm of your hand and intelligent enough to fly itself with your guidance. The ZANO Drone connects directly to your smart device (iOS or Android) via onboard WiFi and enables you to instantly begin capturing and sharing moments. Please read the entire manual and follow these steps to use the Torquing Robotics LTD ZANO Drone product. You can obtain up-to-date advice on changes at the www.flyzano.com website. Regards, The Torquing Robotics ZANO Team www.flyzano.com 9dIsclAImeR 2. DISCLAIMER Please read this disclaimer carefully before using the ZANO Drone. By using this product, you hereby agree to this disclaimer and signify that you have read them fully. Failure to follow these steps each time you use your ZANO Drone can result in issues that may damage or destroy your product. Your warranty does not cover damage resulting from user error. The conditions for the effectiveness of the product are the professional installation and maintenance according to the operating instructions and the generally acknowledged rules of technology (e.g. by an authorised specialist) and the compliance with the operating instructions and the use of the Torquing Robotics Ltd products according to Torquing Robotics Ltd’s technical and care instructions. Torquing Robotics Ltd accepts no liability for damage(s) or injuries incurred directly or indirectly from the use of this product in the following conditions: • non-conformity with the mounting instructions and instructions for use and care that were provided or are available at www.flyzano.com; • installation, maintenance, repair or care by non-authorised persons; • product defects that have been caused by the seller or third persons; 10dIsclAImeR • damage attributed to normal wear or intentional damage • improper installation or putting into operation • lack of or incorrect maintenance • products that have not been or are not used according to their intended purposes • damage caused by force majeure or natural disasters, in particular, but not exclusively, in case of floods, fires or frost damage • ZANO Drone is stated as an “autonomous, intelligent” drone, however, ultimate responsibility when using the ZANO Drone lies with the user. Autonomous is defined here as a highly autonomous pilot correction system, having the ability to make decisions in flight, but the autonomous decisions are based on the user-operated functions encoded. Torquing Robotics Ltd is not liable for any potential injury caused by ZANO Drone when it is in flight • The use of the ZANO Drone in public areas may be prohibited & you should check your local laws in relation to this • The ZANO Drone’s media functions should be used in respect of people’s privacy and you must not record and/or circulate any person’s image without their consent 11sAfety PRecAutIONs & mAINteNANce 4. SAFETY PRECAUTIONS & MAINTENAN…

Text truncated - open the document above for the full version.

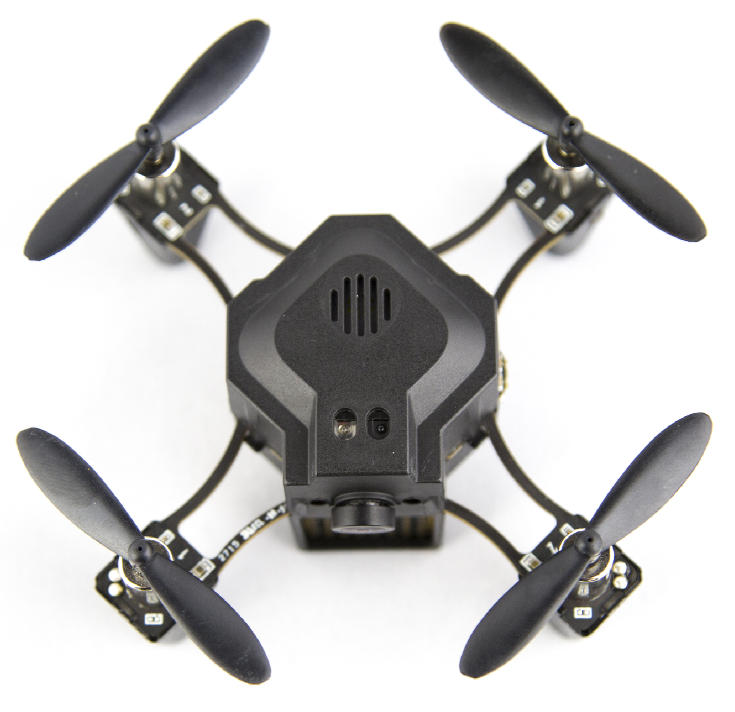

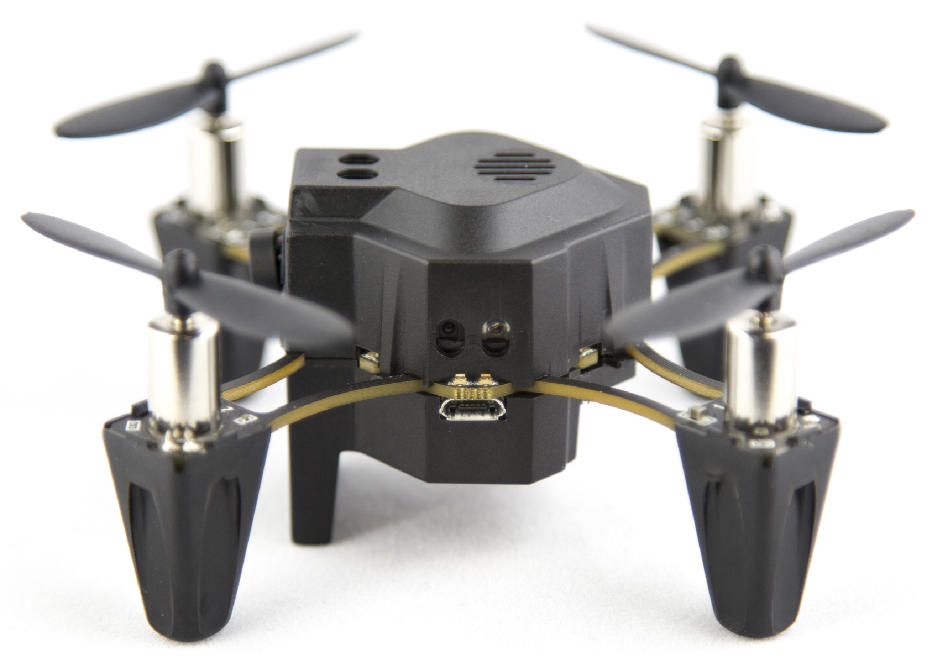

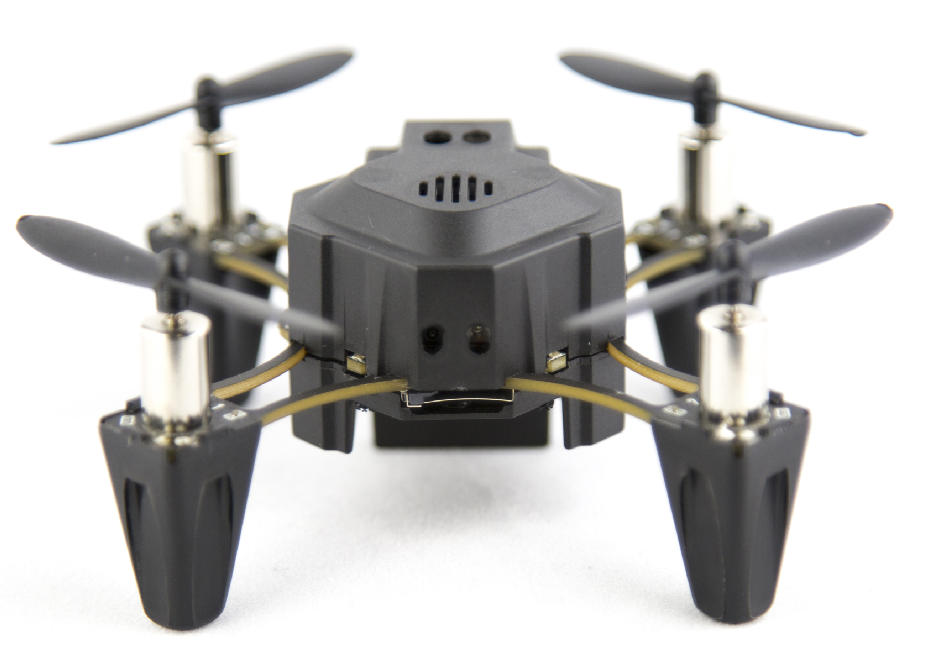

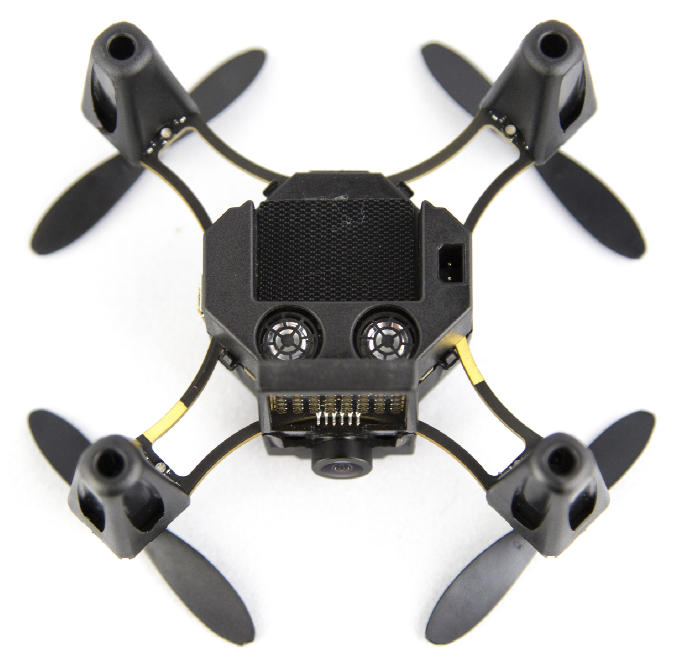

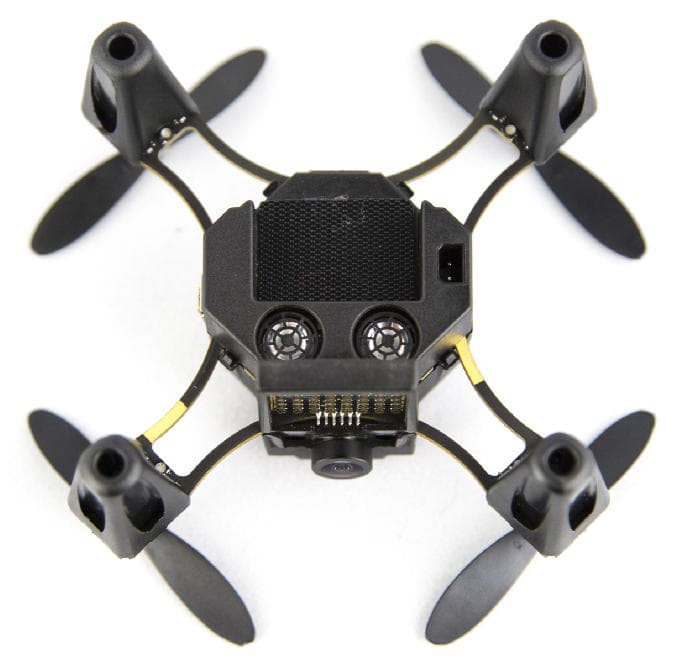

External Photos of Zano (Black) Front view Left side view Right side view Rear view Top view Bottom view

Zano Compliance Label This label shall be permanently attached to all Zano products sold in the USA and Canada. The label is located near the battery, behind the LED sign board, as shown below... 22mm 11mm

Internal PCB photos of Zano Flight Board, Top view Flight Board, Bottom view RF (Top) Board, Top view RF (Top) Board, Bottom view GPS Receiver SRD Radio SRD Radio PCB Antenna WiFi PCB Antenna WiFi Module All Boards Assembled, Top view

UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP10816619JD06A V2.0 Manufacturer : Torquing Robotics Ltd Model No. : ZANO1 FCC ID : 2AE23-ZANO1 Test Standard(s) : FCC Parts 15.209(a) & 15.249 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 2.0 supersedes all previous versions. Date of Issue: 10 September 2015 Checked by: Sarah Williams Engineer, Radio Laboratory Issued by : pp John Newell Quality Manager, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its terms of accreditation. TEST REPORT SERIAL NO: UL-RPT-RP10816619JD06A VERSION 2.0 ISSUE DATE: 10 SEPTEMBER 2015 Page 2 of 20 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10816619JD06A VERSION 2.0 ISSUE DATE: 10 SEPTEMBER 2015 UL VS LTD Page 3 of 20 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) .................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 6 3.3. Modifications Incorporated in the EUT 6 3.4. Additional Information Related to Testing 6 3.5. Support Equipment 6 3.6. Antenna 7 4. Operation and Monitoring of the EUT during Testing ............................................................. 8 4.1. Operating Modes 8 4.2. Configuration and Peripherals 8 5. Measurements, Examinations and Derived Results ................................................................ 9 5.1. General Comments 9 5.2. Test Results 10 5.2.1. Transmitter Fundamental Field Strength 10 5.2.2. Transmitter 20 dB Bandwidth 11 5.2.3. Transmitter Radiated Emissions 13 5.2.4. Transmitter Band Edge Radiated Emissions 17 6. Measurement Uncertainty ........................................................................................................19 7. Report Revision History ...........................................................................................................20 TEST REPORT SERIAL NO: UL-RPT-RP10816619JD06A VERSION 2.0 ISSUE DATE: 10 SEPTEMBER 2015 Page 4 of 20 UL VS LTD 1. Customer Information Company Name: Torquing Robotics Ltd Address: Unit 13 Pembrokeshire Science & Technology Park Pembroke Dock Pembrokeshire SA72 6UN United Kingdom TEST REPORT SERIAL NO: UL-RPT-RP10816619JD06A VERSION 2.0 ISSUE DATE: 10 SEPTEMBER 2015 UL VS LTD Page 5 of 20 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.249 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Section 15.249 Specification Reference: 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Section 15.209 Site Registration: 209735 Location of Testing: UL VS LTD, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 22 June 2015 to 25 June 2015 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.249(a)(e) Transmitter Fundamental Field Strength Part 2.1049 Transmitter 20 dB Bandwidth Part 15.249(a)(d)(e)/ 15.209(a) Transmitter Radiated Emissions Part 15.249(d)/ 15.209(a) Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP10816619JD06A VERSION 2.0 ISSUE DATE: 10 SEPTEMBER 2015 Page 6 of 20 UL VS LTD 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Torquing Robotics Model Name or Number: ZANO1 Hardware Version Identification Number: 1.0 Firmware Version Identification Number: 1.0 Test Sample Serial Number: ZANO1_915 FCC ID: 2AE23-ZANO1 3.2. Description of EUT The Equipment Under Test was a drone containing WiFi and SRD radios. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Information Related to Testing Tested Technology: Low Power Transceiver Power Supply Requirement: Nominal 3.7 VDC Type of Unit: Transceiver Modulation: FSK Transmit Frequency Range: 902 MHz to 928 MHz Transmit Channel Tested: Channel ID Channel Frequency (MHz) Single channel 915 3.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: WiFi Router Brand Name: Belkin Model Name or Number: N600 DB Serial Number: 121142GF101099 Description: Test Laptop Brand Name: ASUS Model Name or Number: S200E Serial Number: D3N0BC0735526118 TEST REPORT SERIAL NO: UL-RPT-RP10816619JD06A VERSION 2.0 ISSUE DATE: 10 SEPTEMBER 2015 UL VS LTD Page 7 of 20 3.6. Antenna The…

Text truncated - open the document above for the full version.
