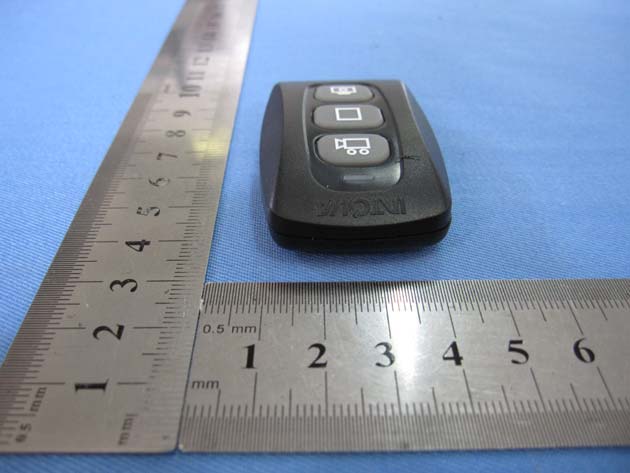

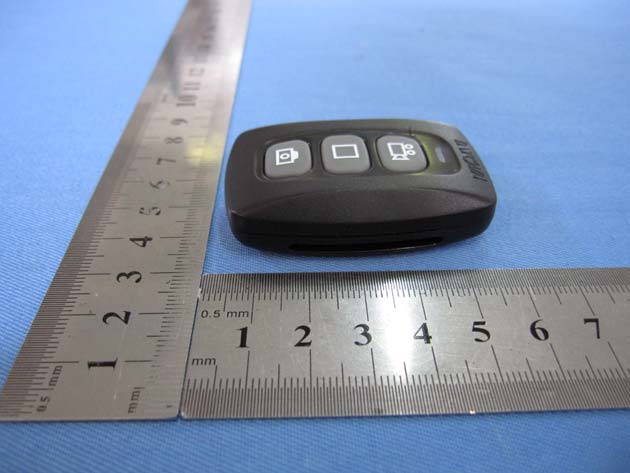

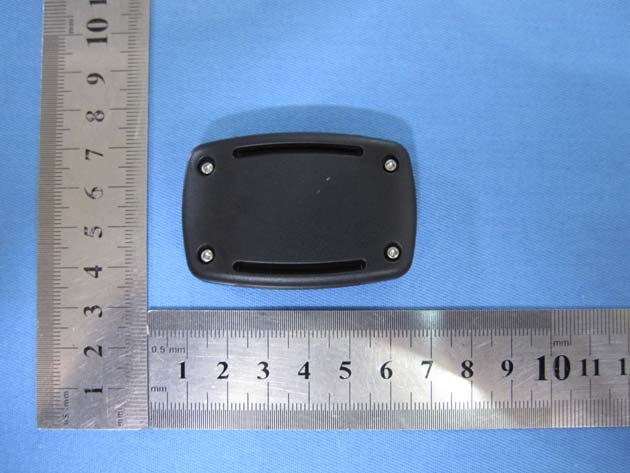

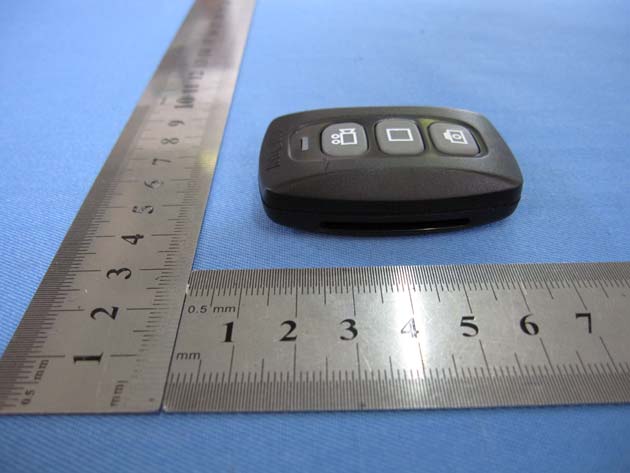

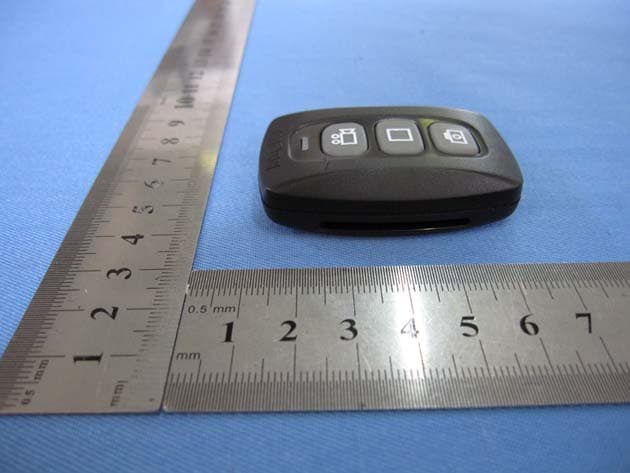

2AE2B-CONNEXConneX Camera

0 Born in Hawaii – Built for the World ConneX Waterproof HD Video Camera with Hardwire Port User’s Manual 1 Table of Contents: Preface....................................................................................2 Computer requirements for 1080P HD video ...................................4 Getting to know your camera ........................................................5 Getting Started..........................................................................5 Using ConneX.........................................................................7 Basic Operations of ConneX camera...........................................8 2.4G remote operations............................................................9 Camera Settings........................................................................9 Video Menu...............................................................................9 Photo Menu.........................................................................12 Setting Menu........................................................................14 View Photos or Playback Videos.................................................15 Deleting Files..........................................................................16 ConneX Accessories...............................................................16 ConneX Camera Live View Setup...................................................18 Specifications..........................................................................19 2 PREFACE Thank you for purchasing the Intova ConneX waterproof video camera! ConneX features a waterproof hardwire port that allows cable connection up to 300 feet. Cable is available in either HD (component) or VGA (composite) format and provides live video output and 12 volt DC power input. The system is compatible with many Marine Electronics monitors or Intova’s 7” water resistant 12 volt DC monitor. A 2.4G remote is included for surface control of camera. NOTE: The remote does not function below water and is only waterproof to 6 feet. The rugged, durable and waterproof ConneX provides new and unmatched functionality for many different uses. Visit www.intova.net to view the wide range of mount and system options available. Enjoy!! Main features:  Video Resolution: 1080p@30fps, 720p@60fps, 720p@30fps (WVGA)848x480p@60fps, 848x480p@30fps VGA  Photo Resolution: 12MP, 8MP, 5MP and 3MP  Waterproof hardwire port for power in and live video out.  Rugged polycarbonate housing  Waterproof to 330 feet / 100M  140 degree Wide-angle lens  4x Digital Zoom  Uses same filters and lenses as EDGE X and NOVA HD  2.4G remote (for above water use only)  1.5” / 3.8cm TFT-LCD 480x240  Rechargeable Li-ion battery 1450mAh  Micro USB charger/download port  Battery life: 2.0 hours (LCD on), 3 hours (LCD off)  Diving Mode  Motion Detection Mode  Time Lapse mode  Self-capture mode  Burst Mode: 3, 5, 10 photos  Video Rotation Mode (rotate video 180° when camera is mounted upside down)  Manual White Balance  Picture in Video (take photo at same time as video recording by pressing OK button)  Video recording LED indicator- blinking red light in front and blinking blue light on top  Audible record alert  Camera floats  High Definition TV output  Video codec: H.264 / Video format: MP4 / Photo format: JPEG  Supports Micro SD Card up to 32GB with class 10 required for HD video recording (not included) 3 FCC STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Product Name: ConneX Camera Model Name: ConneX FCC ID: 2AE2B-ConneX Intova LLC FCC ID:2AE2B-CONNEX 4 Important notice:  Use only with approved mount systems that will not put pulling pressure directly on cable connector. Improper pulling on cable/connector can damage connector and is not covered by warranty.  WARNING: Do not attempt to take apart the camera-there are high voltage parts and dangerous electric shock can occur.  WARNING: If the camera is dropped or smashed and internal parts are exposed, do not touch- there is a danger of electric shock.  Do not leave the camera in direct sunlight or near heat sources as these can damage the camera.  If camera becomes hot during use, turn off the power immediately.  For storage, remove the memory card and keep camera in a cool, dry place with housing door slightly open.  Before each use, clean and maintain all O-rings in areas that have been opened by removing any dirt, sand and any other debris  O-rings should be visually inspected and lightly lubricated as needed with silicone…

Text truncated - open the document above for the full version.

FCC ID:2AE2B-CONNEX

 Product Name: ConneX Camera Model Name: ConneX FCC ID: 2AE2B-ConneX Intova LLC FCC ID:2AE2B-CONNEX

FCC ID: 2AE2B-ConneX According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances  50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[f(GHz)]  3.0 for 1-g SAR and  7.5 for 10-g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (EXd) 2 /30 x gt Field strength = 95.57dBuV/m @3m Ant gain = 0dBi; so Ant numeric gain=1 So pt={[10 (95.57) /10 6 x3] 2 /(30x1 )}x1000 mW =1.082mW So (1.082mW /5mm)x 2.45025 =0.339<3 Then SAR evaluation is not required FCC ID:2AE2B-CONNEX

Global United Technology Services Co., Ltd. Report No.: GTSE15050067901 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT Applicant: Intova LLC Address of Applicant: 1100 Alakea St. 18th floor Honolulu, HI 96813,U.S.A Equipment Under Test (EUT) Product Name: ConneX Camera Model No.: ConneX FCC ID: 2AE2B-ConneX Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2014 Date of sample receipt: May 28, 2015 Date of Test: May 28- June 03, 2015 Date of report issued: June 03, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. 2AE2B-CONNEX Report No.: GTSE15050067901 Global United Technology Services Co., Ltd. Project No.: GTSE150500679RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 21 2 Version Version No. Date Description 00 June 03, 2015 Original Prepared By: Date: June 03, 2015 Project Engineer Check By: Date: June 03, 2015 Reviewer Tested By Report No.: GTSE15050067901 Global United Technology Services Co., Ltd. Project No.: GTSE150500679RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 21 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3CONTENTS .............................................................................................................................................. 3 4TEST SUMMARY ..................................................................................................................................... 4 4.1MEASUREMENT UNCERTAINTY ............................................................................................................ 4 5GENERAL INFORMATION ...................................................................................................................... 5 5.1CLIENT INFORMATION ......................................................................................................................... 5 5.2GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3TEST MODE ........................................................................................................................................ 6 5.4DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 5.5TEST FACILITY .................................................................................................................................... 6 5.6TEST LOCATION ................................................................................................................................. 6 5.7OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 6 6TEST INSTRUMENTS LIST ..................................................................................................................... 7 7TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 8 7.1ANTENNA REQUIREMENT ..................................................................................................................... 8 7.2RADIATED EMISSION METHOD ............................................................................................................. 9 7.2.1Field Strength of The Fundamental Signal ................................................................................ 11 7.2.2Spurious emissions .................................................................................................................... 12 7.2.3Bandedge emissions.................................................................................................................. 14 7.320DB OCCUPY BANDWIDTH .............................................................................................................. 15 8TEST SETUP PHOTO ............................................................................................................................ 16 9EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 17 Report No.: GTSE15050067901…

Text truncated - open the document above for the full version.

Radiated Emission
