2AE2I-GC632461Wireless transporter dongle

Wireless transporter dongle V2.0 Page １ １ ACI-RS232/ ADV transporter dongle User Manual 1. Package: 1-1 ACI-RS-232/ ADV transporters dongle x 2 1-2 User manual x 1 1-3 USB to Micro-USB cable x 2 1-4 433MHz Antenna x 2 2. Setting guide: 2-1 Use the USB to Micro-USB cable, the micro-USB connector plugs the RS232 dongle and USB connector plugs to NB/ PC’s USB port. 2-2 To settled the power, Red LED light will be light that is meaning power “ON”. ※ Tx LED light is yellow; Rx LED light is green. Note: 433MHz antenna is pluggable. Wireless transporter dongle V2.0 Page ２ ２ <Top view> <Back view> 2-3 Default setting: Baud rate: 9600 bps Data bit: 8 Parity: None Stop bit: 1 RF data-rate: 10k Timeout: 300ms Starting paired: 1 to 1 mode ※ If the RS232 dongle was used, Not sure the “Baud Rate” setting, turn bac to see a hole and press the Pairing/ Reset button and re-plugs the 5VDC power, waiting for 6 seconds and then release the button, Tx/ Rx LED light will be flashing each other about 5 times to be the default setting. Wireless transporter dongle V2.0 Page ３ ３ 2-4 Baud rate AP setting: 2-4-1 Execute the R232/ 485/ USB AP.exe, it shows a window above. 2-4-2 Use the RS232(DB9) to USB cable connecting between the RS232 dongle and NB/ PC’s USB port. 2-4-3 Please check RS232 dongle and NB/ PC connecting or not and then AP window will show “Auto Scan” to select the Com Port. 2-4-4 Baud Rate: Baud rate value. 2-4-5 Parity Bit: None / Odd / Even. Wireless transporter dongle V2.0 Page ４ ４ 2-4-6 Data Bit: 6/ 7/ 8 (bit). 2-4-7 Stop Bit: 1/ 2 (bit). 2-4-8 Time Out: (UART wait for the time out value), selecting 2ms ~ 1000ms. 2-4-9 Data Rate: 2k bps ~ 250k bps. 2-4-10 RF Channel: Ch0 to Ch15 (16 channel). ※If RS232 dongle on 1 to 1 or 1 to more mode, it must select the same channel. 2-4-11 RF Power: Min -8dBm to Max +17dBm (4 levels is selected). 2-4-12 Data Length: 13 bit to 63 bit (11 levels selected). 2-4-13 Press the “Setting” button, if the RS232 dongle was succeed, it Tx/ Rx LED light will be flashing 3 times. Wireless transporter dongle V2.0 Page ５ ５ 2-5 Pairing setting < 1 to 1 > 2. Check PW(Power) light. 1. Switch dongle to Master/ Slave 3.Default setting : Jabbing Pairing/ Reset button, over 7 seconds and release it. When it finished that Tx/ Rx LED light flashing each other 5 times. Wireless transporter dongle V2.0 Page ６ ６ Video for reference: https://www.youtube.com/watch?v=89LcFNZfsUs Master Slave 4.Jabbing Pairing/ Reset button, Tx/ Rx LED light holding to be pairing mode. (When it finished that Tx/ Rx LED light flashing 5 times) 5. Jabbing Pairing/ Reset button, Tx/ Rx LED light holding to be pairing mode. (When it finished that Tx/Rx LED light flashing 5 times) Wireless transporter dongle V2.0 Page ７ ７ 2-6 Pairing setting < 1 to more >: 1. Setting the same one to one steps again. Slave : S1 2. Jabbing Pairing/ Reset button, over 3 seconds and release it. The Tx/ Rx LED light flashing 3 times, it finished one to more mode. Master 3. Jabbing Pairing/ Reset button, over 3 seconds and release it The Tx/ Rx LED light flashing 3 times, it finished one to more mode PS: If you wanna pair one to more, please to see step 4 ~ step 10. Slave : S2 4. Switch S2 Dongle to Slave Wireless transporter dongle V2.0 Page ８ ８ 5. Plug Micro-USB to be supporting 5VDC power. Slave : S2 6. Default setting: Jabbing Pairing/ Reset button over 7 seconds and release it. (Tx/ Rx LED light flashing 5 times) See <1 to 1> step 3 7. Jabbing Pairing/ Reset Key, about 3 seconds and release it. The Tx/ Rx LED light flashing 3 times, it will be one to more mode. See <1 to more > step 2 8. Jabbing Pairing/ Reset button, it will be pairing mode, The Tx/ Rx LED will be holding light. (It’s finished, Tx/ Rx LED light flashing 5 times) See <1 to 1> step 4 (Slave S2 finished 1 to more) 9. Jabbing Pairing/ Reset button, to be pairing mode. The Tx/ Rx LED light will be flashing 3 times, it finished the pairing. (Master has a first pairing group.) 10. The Tx/ Rx LED light will be flashing 5 times, it finished the pairing. (Master has a second pairing group.) PS: If you wanna pair S3, S4, ...Sn, Please re-setting step 4 to step 10. Master Wireless transporter dongle V2.0 Page ９ ９ 2-7 DTE / DCE Switch note: 3. RS232 interface 3-1 Pin out 3-2 Signals: Pin Signal DTE Direction DCE Direction Description 1 NC 2 TxD Output Input Transmitted data 3 RxD Input Output Received data 4 NC 5 GND N/A N/A Signal ground Wireless transporter dongle V2.0 Page １０ １０ 6 NC 7 CTS Input Output Clear to send 8 RTS Output Input Request to send (Default) 9 Vcc Input Input Power supply (5VDC, 1.5A Max.) 4. Our contact info: Avant-Com, Inc. 瑋忠科技企業股份有限公司/ 台灣/ 台北 11494 台北市內湖區民權東路6段 13-23 號3 樓 3F., No.13-23, Sec. 6, Minquan E. Rd., Neihu Dist., Taipei City 114, Taiwan, R.O.C. TEL:+886-2-8792-5853 FAX:+886-2-8792-5796 E-Mail： [email protected] Website: www.avantcom.com.tw Avant-Com, Inc./ SZ 深圳奇翰电子有限公司/ 深圳市 深圳市南山区南头街98号南头大厦7D（南头街道办事处楼上） TEL:+86-0755-8279-3556 FAX:+86-0755-8279-3553 E-Mail: [email protected] Website: www.avantcom.com.cn This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correcting the interference by one or more of the following measures: - Reorient the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into and outlet on a circuit differe…

Text truncated - open the document above for the full version.

Wireless transporter dongle V2.0 Page １ １ ACI-RS485/ ADV transporter dongle User Manual 1. Package: 1-1 ACI-RS-485/ ADV transporter dongl x 2 1-2 User manual x 1 1-3 USB to Micro-USB cable x 2 1-4 433MHz Antenna x 2 2. Setting guide: 2-1 Use the USB to Micro-USB cable, the micro-USB connector plugs the ACI-RS485/ ADV dongle and USB connector plugs to NB/PC’s USB port. 2-2 To finished settled the power, Red LED light will be light that is meaning power “ ON “. ※ Tx LED light is yellow; Rx LED light is green. Note: 433MHz antenna is pluggable. Wireless transporter dongle V2.0 Page ２ ２ <正面> <背面> 2-3Default setting : Baud rate: 9600 bps Data bit: 8 Parity: None Stop bit: 1 RF data-rate: 10k Timeout: 300ms Starting paired : 1 to 1 mode ※If the ACI-RS485/ ADV dongle was used, Not sure the “Baud rate” setting, turn back to see a hole and press the Pairing/Reset button, and re-plugs the 5VDC pwer, waiting for 6 second and then release the button, TX/RX LED light will be flashing each other about 5 times to be the default setting . Wireless transporter dongle V2.0 Page ３ ３ 2-4 Baud rate AP setting: 2-4-1 Execute the RS232/485/USB AP.exe it show a window above. 2-4-2 Use the RS485 to USB cable connecting between the RS485 dongle and NB/PC USB prot. 2-4-3 Please check ACI-RS485/ ADV dongle and NB/PC connecting or not and then AP window will show ”Auto Scan” to select the Com Port. 2-4-4 Baud Rate：Baud Rate value. 2-4-5 Parity Bit : None/ Odd/ Even. 2-4-6 Data Bit：6/ 7/ 8 (bit)。 Wireless transporter dongle V2.0 Page ４ ４ 2-4-7 Stop Bit：1/ 2 (bit)。 2-4-8 Time Out ：(UART wait for Time Out value)， is selecting 2ms ~ 1000ms。 2-4-9 Data Rate：2k bps ~ 250k bps. 2-4-10 RF Channel：Ch0 to Ch15(16 channel). ※If ACI-RS485/ ADV dongle on 1to 1 or 1 to more mode must select the same channel. 2-4-11 RF Power：Min -8dBm to +17dBm( 4 levels is selected). 2-4-12 Data Length：13 bit to 63 bit (11 levels is selected). 2-4-13 Press the” Setting” button, If the ACI-RS485/ ADV dongle was succeed, it TX/RX LED light will be flashing 3 times. Wireless transporter dongle V2.0 Page ５ ５ 2-5 Pairing setting < 1 to 1> 2.Check PW(Power) light 1. Switch dongle to Master/ Slave 3.Default setting : Jabbing Pairing/ Reset button, over 7seconds and release it When it finished that, Tx/ Rx LED light flashing each other 5 times. Wireless transporter dongle V2.0 Page ６ ６ Video for reference : https://www.youtube.com/watch?v=89LcFNZfsUs Master Slave 4.Jabbing Pairing/ Reset button, Tx/ Rx LED light holding to be pairing mode. (When it finished that Tx/ Rx LED light flashing 5 times) 5.Jabbing Pairing/ Reset button, Tx/ Rx LED light holding to be pairing mode. (When it finished that Tx/ Rx LED light flashing 5 times) Wireless transporter dongle V2.0 Page ７ ７ 2-6 Pairing setting < 1 to more >: 1. Setting the same one to one steps again. Slave : S1 2. Jabbing Pairing/ Reset button, over 3second and release it The Tx/ Rx LED light flashing 3 times it finished one to more mode. Master 3. Jabbing Pairing/ Reset button, over 3seconds and release it. The Tx/ Rx LEDlight flashing 3 times, it finished one to more mode. PS: If you wanna pair one to more, please to see step 4 ~ step 10。 Slave : S2 4.Switch S2 Dongle to Slave Wireless transporter dongle V2.0 Page ８ ８ 5. Plug Micro-USB to be supporting 5VDC Power. Slave : S2 6. Default setting : Jabbing Pairing/ Reset button over 7 second and release it. (Tx/ Rx LE light flashing 5 times) See <1 to 1> Step 3 7. Jabbing Pairing Key, about 3 seconds and release it. The Tx/ Rx LED light flashing 3 times, it will be one to more mode. See <1 to more > step 2 8. Jabbing Pairing/ Reset button, it will be pairing mode, The Tx/ RX LED will be holding light. (It’s finished,, Tx/ Rx LED light flashing 5 times) See <1 to 1> step4 (Slave S2 finished 1 to more) 9. Jabbin Pairing/ Reset button, to be pairing mode. The Tx/ Rx LED light will be flashing 3 times, it finished the pairing. (Master has a first pairing group) 10.The Tx/ Rx LED light will be flashing 5 times, it finished the pairing. (Master has a second pairing group) PS: If you wanna pair S3，S4，...Sn， Please re-setting step 4 to step 10. Master Wireless transporter dongle V2.0 Page ９ ９ 2-7 DTE / DCE Switch Note: 3. RS485 Interface 3-1 Pin out 3-2 Signals: Pin Signal Description 1 VDD Input Power (24VDC, 1.0A Max) Wireless transporter dongle V2.0 Page １０ １０ 2 D+ / A TxD+ / RxD+ 3 D- / B TxD- / RxD- 4 GND Ground 4. Our contact info: Avant-Com, Inc. 瑋忠科技企業股份有限公司/ 台灣/ 台北 11494 台北市內湖區民權東路6段 13-23 號3 樓 3F., No.13-23, Sec. 6, Minquan E. Rd., Neihu Dist., Taipei City 114, Taiwan, R.O.C. TEL:+886-2-8792-5853 FAX:+886-2-8792-5796 E-Mail： [email protected] Website: www.avantcom.com.tw Avant-Com, Inc./ SZ 深圳奇翰电子有限公司/ 深圳市 深圳市南山区南头街98号南头大厦7D（南头街道办事处楼上） TEL:+86-0755-8279-3556 FAX:+86-0755-8279-3553 E-Mail: [email protected] Website: www.avantcom.com.cn This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correcting the interference by one or more of the following measures: - Reorient the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved…

Text truncated - open the document above for the full version.

Wireless transporter dongle V2.0 Page １ １ ACI-USB/ ADV transporter dongle Manuel 1. Package : 1-1 ACI-USB/ADV transporter dongle x 2 1-2 User manual x 1 1-3 433MHz Antenna x 2 2. Setting guide: 2-1 Please to check OS system to USB driver software(Windows /Mac /Linux) you can find the driver below address. http://www.ftdichip.com/Drivers/D2XX.htm 2-2 Finished the ACI-RSUSB dongle to plug to NB/PC’s USB port, PW(Power) LED light will be light “ON “. ※ Tx LED light is yellow; Rx LED light is green. Note: 433MHz antenna is pluggable. Wireless transporter dongle V2.0 Page ２ ２ <Top View> < Back View> 2-3 Default setting: Baud rate: 9600 bps Data bit: 8 Parity: None Stop bit: 1 RF data-rate: 10k Timeout: 300ms Starting Paired : 1 to 1 mode ※If the ACI-USB/ ADV dongle was used, Not sure the “Baud rate” setting, turn back to see a hole and press the Pairing/ Reset button and re-plugs the 5VDC power, waiting for 6 seconds and then release the button, Tx/ Rx LED light will be flashing each other about 5 times to be the default setting. 2-4 Baud rate AP setting: Wireless transporter dongle V2.0 Page ３ ３ 2-4-1 Execute the RS232/485/USB AP.exe, it show a window above. 2-4-2 Use the USB(Male) to USB(female) cable connecting between the USB dongle and NB/PC USB port. 2-4-3 Please check USB dongle and NB/PC connecting or not and then AP window will show “Auto scan” to select the Com Port. 2-4-4 Baud Rate: Baud Rate value. 2-4-5 Parity Bit: None/ Odd/ Even。 2-4-6 Data Bit: 6/ 7/ 8 (bit)。 2-4-7 Stop Bit: 1/ 2 (bit)。 Wireless transporter dongle V2.0 Page ４ ４ 2-4-8 Time Out: (UART wait for the time out value), selecting 2ms ~ 1000ms. 2-4-9 Data Rate: 2k bps ~ 250k bps. 2-4-10 RF Channel: Ch0 to Ch15( 16 channel). ※ If USB dongle on 1 to 1 or 1 to more mode, it must select the same channel. 2-4-11 RF Power: Min -8dBm to +17dBm, (4 levels is selected). 2-4-12 Data Length: 13 bit to 63 bit (11 levels is selected) 2-4-13 Press the ”Setting” button, If the USB Dongle was succeed, it Tx/ Rx LED light will be flashing 3 times. Wireless transporter dongle V2.0 Page ５ ５ 2-5 Pairing setting < 1 to 1> 2. Check PW(Power) light. 1. Switch dongle to Master/ Slave 3. Default setting : Jabbing Pairing/ Reset button, over 7 second and release it. When it finished that Tx/ Rx LED light flashing each other 5 times. Wireless transporter dongle V2.0 Page ６ ６ Video for reference : https://www.youtube.com/watch?v=89LcFNZfsUs Master Slave 4. Jabbing Pairing/ Reset button, Tx/ Rx LED light holding to be pairing model (When it finished that Tx/ Rx LED light flashing 5 times) 5. Jabbing Pairing/ Reset button, Tx/ Rx LED light holding to be pairing mode. (When it finished that Tx/ Rx LED light flashing 5 times) Wireless transporter dongle V2.0 Page ７ ７ 2-6 Pairing setting < 1 to more > 1. Setting the same one to one step again. Slave : S1 2. Jabbing Pairing/ Reset button, over 3 second and release it The Tx/ Rx LED light flashing 3 times, finished one to more mode. Master 3. Jabbing Pairing/ Reset button, over 3 seconds and release it The Tx/ Rx LED light flashing 3 times, it finished one to more mode PS: If you wanna pair one to more, please to see step 4 ~ step 10. Slave : S2 4. Switch S2 Dongle to Slave Wireless transporter dongle V2.0 Page ８ ８ 5. Plug Micro-USB to be supporting 5VDC power Slave : S2 6. Default setting : Jabbing Pairing/ Reset button over 7 seconds and release it. (Tx/ Rx LED ligh flashing 5 times) See <1 to 1> step3 7. Jabbing Pairing/ Reset button, about 3 seconds and release it. The Tx/ Rx LED light flashing 3 times, it will be one to more mode. See <1 to more > step 2 8. Jabbing Pairing/ Reset button, it wil be pairing mode, The Tx/ Rx LED will be holding light. (It’s finished, Tx/ Rx LED light flashing 5 times) See <1 to 1> step 4 (Slave S2 finished 1 to more) 9. Jabbing Pairing/ Reset button, to be pairing mode. The Tx/ Rx LED light will be flashing 3 times, it finished the pairing. (Master has a first pairing group) 10. The Tx/ Rx LED light will be flashing 5 times, it finished the pairing. (Master has a second pairing group) PS: If you wanna pair S3, S4, ...Sn, Please re-setting step 4 to step 10. Master Wireless transporter dongle V2.0 Page ９ ９ 3. Our contact info: Avant-Com, Inc. 瑋忠科技企業股份有限公司/ 台灣/ 台北 11494 台北市內湖區民權東路6段 13-23 號3 樓 3F., No.13-23, Sec. 6, Minquan E. Rd., Neihu Dist., Taipei City 114, Taiwan, R.O.C. TEL:+886-2-8792-5853 FAX:+886-2-8792-5796 E-Mail： [email protected] Website: www.avantcom.com.tw Avant-Com, Inc./ SZ 深圳奇翰电子有限公司/ 深圳市 深圳市南山区南头街98号南头大厦7D（南头街道办事处楼上） TEL:+86-0755-8279-3556 FAX:+86-0755-8279-3553 E-Mail: [email protected] Website: www.avantcom.com.cn This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correcting the interference by one or more of the following measures: - Reorient the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. 低功率電波輻射性電機管理辦法(NCC) 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅 自變更頻率、加大功率或變更原設計之特性及功能。 Wireless transporter dongle V2.0 Page １０ １…

Text truncated - open the document above for the full version.

样品承认书 客 户： 瑋忠科技 品 名： RF Antenna Assembly 规 格： 433Mhz天线，黑色, 90°SMA PLUG 新盛料号： 409621-21001-01 客户料号： 版 本： X1 制作 客户承认 制作人 核准 日期 判定： 审核 核准 崔园园 陈路路 2015.3.30 承认 □ 退回 □ 公司章 公司章 地址：東莞市大嶺山鎮大塘朗管理區六村 Address：6Village，Datanglang District，Dalingshan，Dongguan，Guangdong，PRC TEL：886-769-85639708 85639728 FAX：886-769-85652960 東莞市新盛電子有限公司 Dongguan City Xinsheng Electronics Co.,Ltd Contents Item Description Page 1. ............... ....... 規格表 ............ .......... 1 2. ............... ....... 成品图 ............ .......... 2 3 ............... ....... 测试报告 ............ .......... 3 4 ............... ....... 材质证明 ............ .......... 4~16 5 ............... ....... SGS ............ .......... 17~70 . 東莞市新盛電子有限公司 Dongguan City Xinsheng Electronics Co.,Ltd RF Antenna Cable Assembly Specification 1. Electrical Properties : 1.1 Frequency Range.................................................. 433MHz 1.2 VSWR ............................................................... 2.0 :1Max. 1.3 Connector.................................. ........................ 90° SMA Plug 1.4 Impedance................................................. 50Ω 1.5 Radiation ................................................. Omni-directional 1.6 Polarization................................................ Linear; Vertical 1.7 Admitted Power........................................ 1W 1.8 Return Loss.............................................. -9.8.dB Max. 2. Physical Properties : 2.1 Antenna Body................ ...................................... TPE 2.2 Operating Temp. ................................................. -10°C ~ +60°C 2.3 Storage Temp. ................................................... -10°C ~ +70°C 2.4 Color ............................................................... Black 東莞市新盛電子有限公司 Dongguan City Xinsheng Electronics Co.,Ltd RF Antenna Assembly Spec:433MHZ 東莞市新盛電子有限公司 NOV-12-2007 12 : 1 ?PM FRQYTA I WAN YOSON t886 4 23501800 T-218 P.006 F-078 Fax : (067)680-6070 TO I : ( 061 1ti~o-1 S~Q . I 594 - . - - - - - - - YOSON I NTEFINAT I OWL CO . , LTD Produc t/Grade LotTk:~t y(Ep) ~ata of lssus I Shipment No. .' zod Notched 114" 1 WE HEREBY CERT l FY THAT ABOVE-MENT I ONE5 TEST RESULTS ARE CORRECT AND MEET OUR SPEC I F I CAT I ONS . YEOW !YE(; I ALP( POLYMERS PLANT KE O. A. MANAGER 深圳市宝安区齐峰弹簧材料商行 产品质量证明书 客户： 2011年 08月11日 牌 号 名 称 规 格 制 造 方 法 及 状 态 实 发 数 量 H65黄铜丝 φ0.8/1.20mm 3\4Y 500KG 铜 Cu 锌 Zn 铅 Pb 磷 P 主 要 成 分 63.5-67 余量 0.005 铁 Fe 铝 Al 锑 Sb 铋 Bi 锡 Sn 硅 Si 镍 Ni 砷 As 硫 S 氧 O 杂和 化 学 成 分 含 杂 量 ≦% 0.05-0.1-0.3 0.001 0.005 0.002 0.007 - 0.1-0.3 抗拉强度 N/mm 2 延伸率 % 维氏硬度 导电率 机 械 性 能 500-600 技术条件 GB5232-85 GBT/14955-94 Generated by Foxit PDF Creator © Foxit Software http://www.foxitsoftware.com For evaluation only.

Avant-Com, Inc. 3F.,No.13-23,sec.6,Minquan E.Rd.,Neihu Dist.,Taipei City 114, Taiwan July 21, 2015 Product Name: Wireless Transporter dongle Model: ACI-RS232/ ADV Serial Model: ACI-RS485/ ADV, ACI-USB/ ADV To Whom It May Concern: Due to the business consideration, we hereby declare that our product have as following difference 1. ACI-RS232/ ADV => I/O Port Change RS232 tab 2. ACI-RS485/ ADV => I/O Port Change RS485 Tab 3. ACI-USB/ ADV => I/O Port Change USB Tab Model Number Trade Name Difference ACI-RS232/ ADV RS232 tab ACI-RS485/ ADV RS485 tab ACI-USB/ ADV BeCom USB tab Should any further information be required, please do not hesitate to contact the undersigned. Sincerely, _______________________________________________________ Name / Title: CHI CHUNG LIN Company Name: Avant-Com,inc. Address: 3F.,No.13-23,Sec.6 Minquan E. Rd., Neihu Dist.,Taipei City 114,Taiwan TEL: +886-2-8792-5853 Fax.+8862-8792-5796 E-mail:[email protected]

RF_160, Issue 03 Declaration of Authorization We Name: Avant-Com, Inc. Address: 3F.,No.13-23,Sec.6 Minquan E. Rd., Neihu Dist., City: Taipei City Country: Taiwan Declare that: Name Representative of agent : Gloria Chang Agent Company name : Compliance Certification Services Inc. Address : No. 989-1 Wenshan Rd., Shang Shan Village, Qionglin Shiang, Hsinchu County 30741, Taiwan City : Hsinchu County 30741 Country : Taiwan R.O.C is authorized to apply for Certification of the following product(s): Product description: Wireless Transporter dongle Type designation: ACI-RS232/ ADV Trademark: BeCom on our behalf. Date:07/21/2015 City: Taipei City Name: CHI CHUNG LIN Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

DECLARATION OF CONFORMITY (DoC) Equipment:Wireless transporter dongle Trademark(s) and Model(s): Manufacturer: BeCom / ACI-RS232/ ADV Avant-Com, Inc. FCC ID in case other parts of this equipment are subject to certification: 2AE2I-GC632461 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:Issue date: T150407L04-DJuly 9,2015 Company name: Avant-Com, Inc. Name/Title (legal representative): CHI CHUNG LIN / Private Sector Phone: +886-2-8792-5853 Fax: +8862-8792-5796 E-mail: [email protected] Date: 07/21/2015 Signature:

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Avant-Com, Inc. Address: 3F.,No.13-23,sec.6,Minquan E.Rd.,Neihu Dist.,, City: Taipei City 114 Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AE2I-GC632461 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 07/21/2015 Name and signature of applicant: CHI CHUNG LIN Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

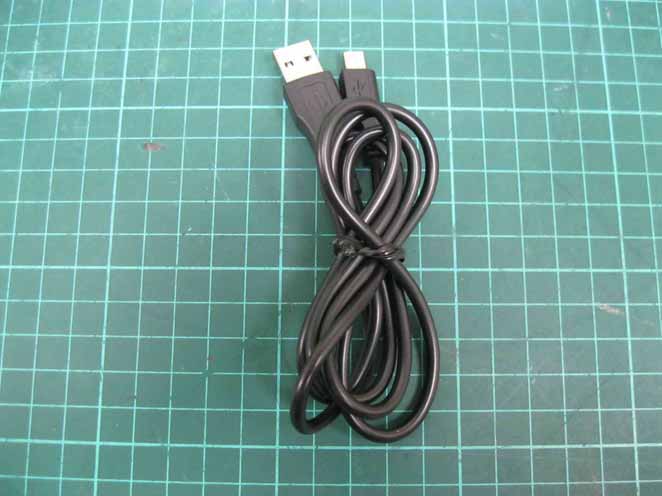

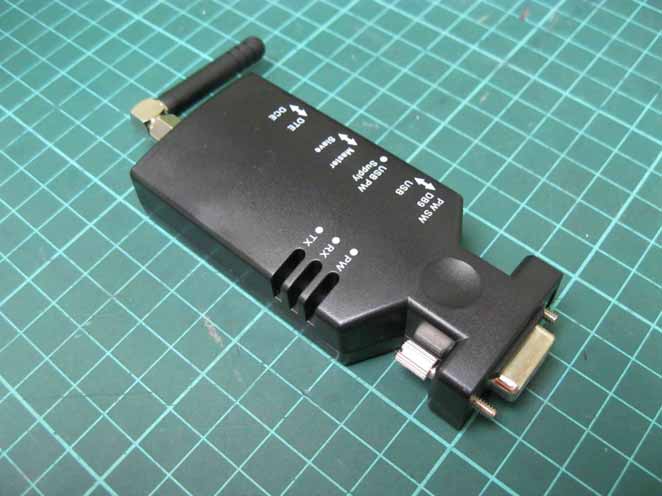

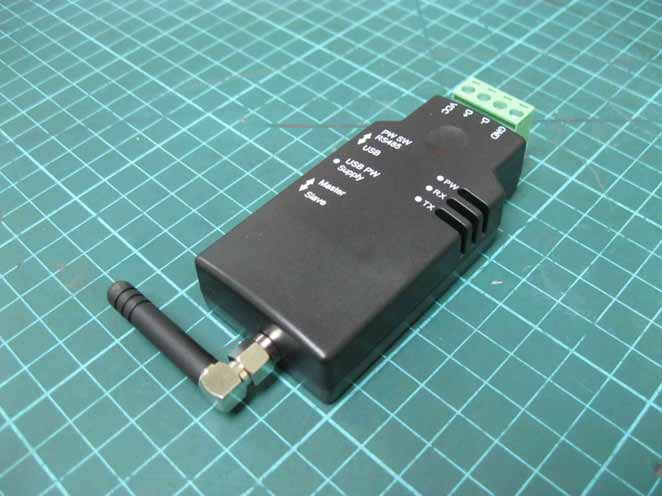

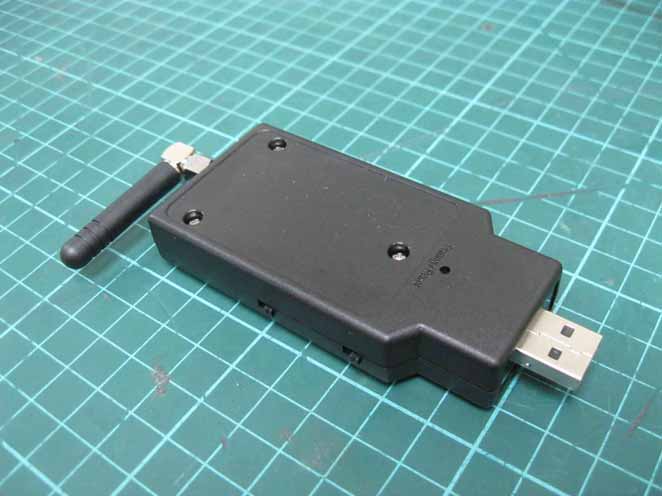

Report No.T150407L04 Page 1 of 8 External Photo(Model : ACI-RS232/ ADV) Report No.T150407L04 Page 2 of 8 Report No.T150407L04 Page 3 of 8 Report No.T150407L04 Page 4 of 8 External Photo(Model : ACI-RS485/ ADV) Report No.T150407L04 Page 5 of 8 Report No.T150407L04 Page 6 of 8 External Photo(Model : ACI-USB/ ADV) Report No.T150407L04 Page 7 of 8 Report No.T150407L04 Page 8 of 8 Cable

Avant-Com, Inc. Modle: Wireless transporter dongle Type: ACI-RS232/ ADV FCC ID: 2AE2I-GC632461 Avant-Com, Inc. Modle: Wireless transporter dongle Type: ACI-RS485/ ADV FCC ID: 2AE2I-GC632461 Avant-Com, Inc. Modle: Wireless transporter dongle Type: ACI-USB/ ADV FCC ID: 2AE2I-GC632461 Label LLocatioon

Report No.T150407L04 Page 1 of 12 Internal Photo(Model : ACI-RS232/ ADV) Report No.T150407L04 Page 2 of 12 Report No.T150407L04 Page 3 of 12 Report No.T150407L04 Page 4 of 12 Internal Photo(Model : ACI-RS485/ ADV) Report No.T150407L04 Page 5 of 12 Report No.T150407L04 Page 6 of 12 Report No.T150407L04 Page 7 of 12 Report No.T150407L04 Page 8 of 12 Internal Photo(Model : ACI-USB/ ADV) Report No.T150407L04 Page 9 of 12 Report No.T150407L04 Page 10 of 12 Report No.T150407L04 Page 11 of 12 Report No.T150407L04 Page 12 of 12 Antenna

Compliance Certification Services Inc. FCC ID : 2AE2I-GC632461 Report No.T150407L04-RP1 Page 29 / 31 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz Compliance Certification Services Inc. FCC ID : 2AE2I-GC632461 Report No.T150407L04-RP1 Page 30 / 31 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz Compliance Certification Services Inc. FCC ID : 2AE2I-GC632461 Report No.T150407L04-RP1 Page 31 / 31 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
