2AE32RED-M800BBluetooth speaker

FCC ID:2AE32RED-M800BT N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Gowin International, LLC. 4327 Bandini Blvd,Vernon Washington 90058 United States TEL: 528 183 4580 FAX: 528 183 4580 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/17/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AE32RED-M800BT including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Gowin International, LLC. Contact person: Roberto Elizalde Title: Manager

Gowin International, LLC. 4327 Bandini Blvd,Vernon Washington 90058 United States TEL: 528 183 4580 FAX: 528 183 4580 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/17/2015 Request for Confidentiality Company name: Gowin International, LLC. FCC ID: 2AE32RED-M800BT FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Moment Inc hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which Moment Inc considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Moment Inc considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Roberto Elizalde] [Manager] Gowin International, LLC. 4327 Bandini Blvd,Vernon Washington 90058 United States

Subject: Re: Confirmation letter for AGC Report From: "[email protected]" <[email protected]> Date: 18.06.15 11:18 To: "Roland Becker" <[email protected]> CC: "Roland Becker" <[email protected]> Dear Roland The testing was performed at our lab. It is right. And the attached document was from our lab. It is ok. Any questing, please feel free to contact me. Thanks and best regards, Chris Du 实验 Laboratory ------------------------------------------------------------------------------------------------------ 东检测务 Dongguan Precise Testing Service Co.,Ltd About ushttp://www.pts-testing.com TEL0769 - 8928 2919 FAX0769 - 2336 8602 M.P.136 8898 8976 [email protected] Address: 东东D栋 Building D, Baoding Technology Park, Guangming Road 2, Guangming Community, Dongcheng District, Dongguan, Guangdong, China 发 Roland Becker 发时间 2015-06-18 09:57 chris.du Roland Becker 题 Confirmation letter for AGC Report Dear Mr. Du, This is Roland Becker and I am dealing with AGC Shenzhen's projects seaking FCC certification. For two of their projects I received attached confirmation letter (Dec Letter.pdf). Could you please confirm the validity of this attached document and that testing was performed at your laboratories at the specified dates and as documented in AGC test report No AGC04047150501FE03 (RED-M100BT) and AGC04047150502FE03 (RED-M800BT)! Thank you very much! Re: Confirmation letter for AGC Report 1 of 218.06.15 16:02 Kind regards, Roland T: 1 3 5 2 1 4 3 6 4 3 4 Re: Confirmation letter for AGC Report 2 of 218.06.15 16:02

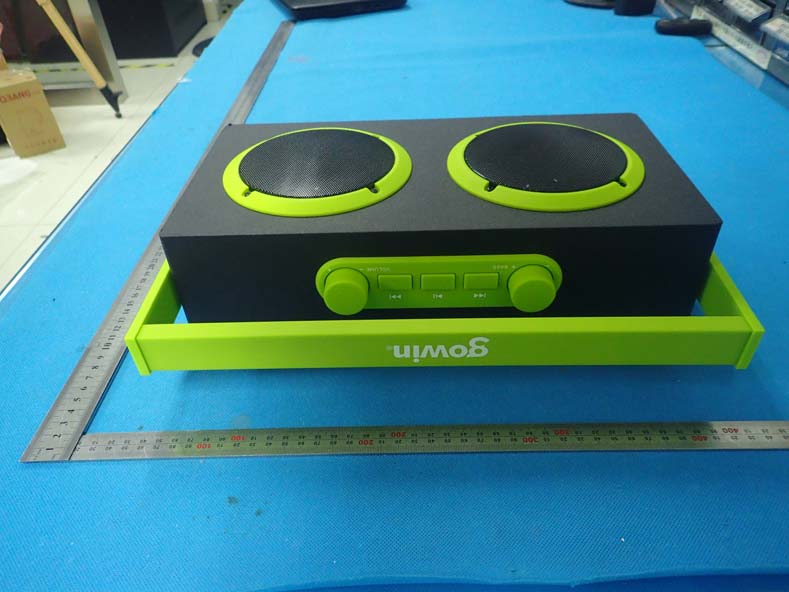

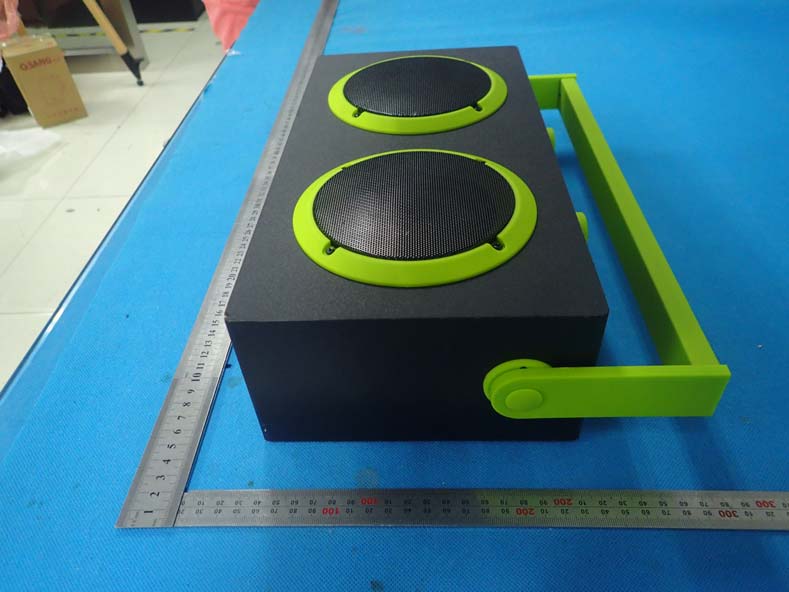

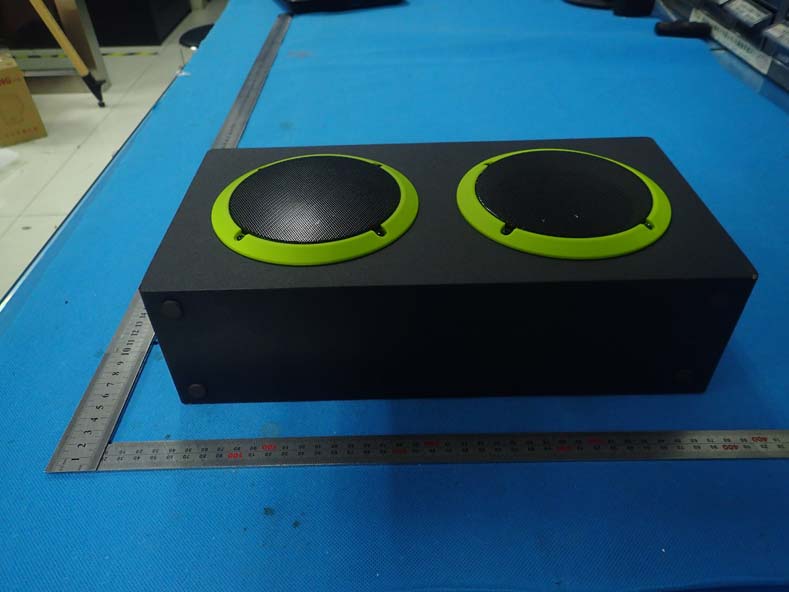

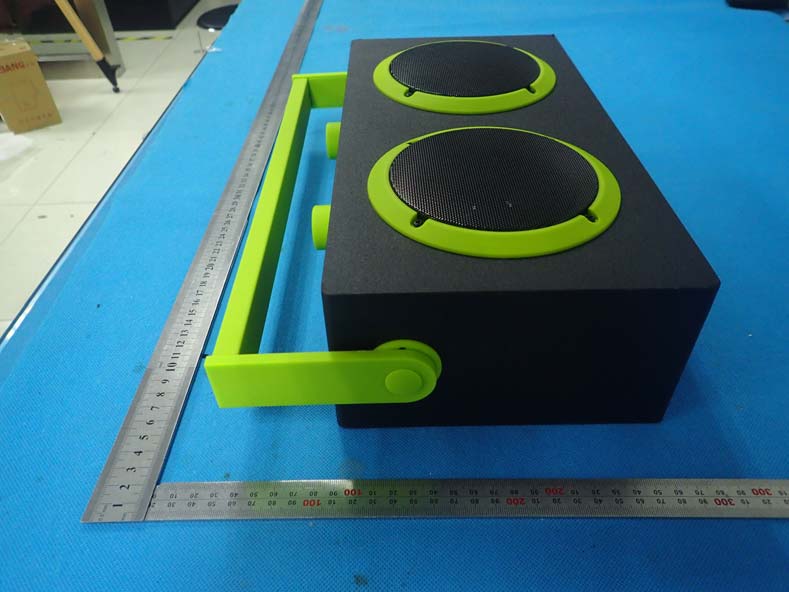

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Bluetooth Speaker Model:RED-M800BT Brand: gowin FCC ID: 2AE32RED-M800BT

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 BT Antenna INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4

RF Exposure evaluation Product Description: Bluetooth speaker Model Number: RED-M800BT FCC ID: 2AE32RED-M800BT According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=96.78dBuv/m=0.069V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.069x3) 2 /(30x1)=0.001428W=1.43mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -1.43mW output power] (1.43mW /5mm)*[√2.402(GHz)]= 0.443<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 51 FCC Test Report Report No.: AGC04047150502FE03 FCC ID : 2AE32RED‐M800BT APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth speaker BRAND NAME : gowin MODEL NAME : RED‐M800BT CLIENT : Gowin International, LLC. DATE OF ISSUE : June 11, 2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC04047150502FE03 Page 2 of 51 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / June 11, 2015Valid Original Report Report No.: AGC04047150502FE03 Page 3 of 51 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT ................................................................................................................................... 10 8.2. MEASUREMENT PROCEDURE ................................................................................................ 11 8.3. TEST SETUP .............................................................................................................................. 13 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................... 15 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 28 9.2 TEST SETUP ............................................................................................................................... 28 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ................................................................. 29 10. 20DB BANDWIDTH .......................................................................................................... 33 10.1. MEASUREMENT PROCEDURE .............................................................................................. 33 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................... 33 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 33 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 40 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 40 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 40 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 41 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 41 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 42 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 44 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 46 Report No.: AGC04047150502FE03 Page 4 of 51 1. VERIFICATION OF CONFORMITY Applicant Gowin International, LLC. Address 4327 Bandini Blvd, Vernon, CA 90058, United States Manufacturer CROSBY LIMITED Address Room 201B Floor 2, Lee Wai Commercial Building,1-3 Hart Avenue, T.S.T., Kowloon, Hong Kong Product Designation Bluetooth speaker Brand Name gowin Test Model RED-M800BT Date of test June 09,2015 to June 10,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Dongguan Precise Testing Service Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Matt Zhang June 11, 2015 Checked By Forrest Lei June 11, 2015 Authorized By Solger Zhang June 11, 2015 Report No.: AGC04047150502FE03 Page 5 of 51 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Oper…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
