2AE3VEAPPLY1Bluetooth Speaker

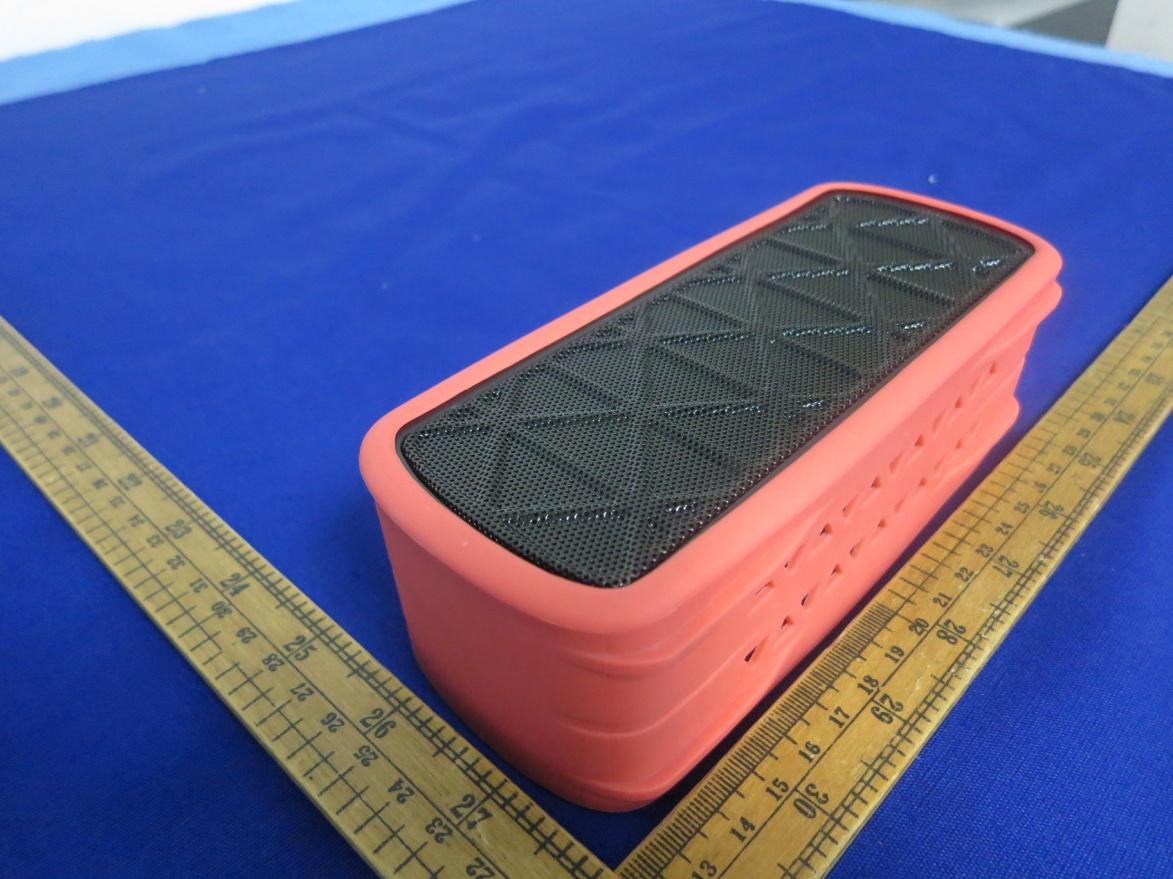

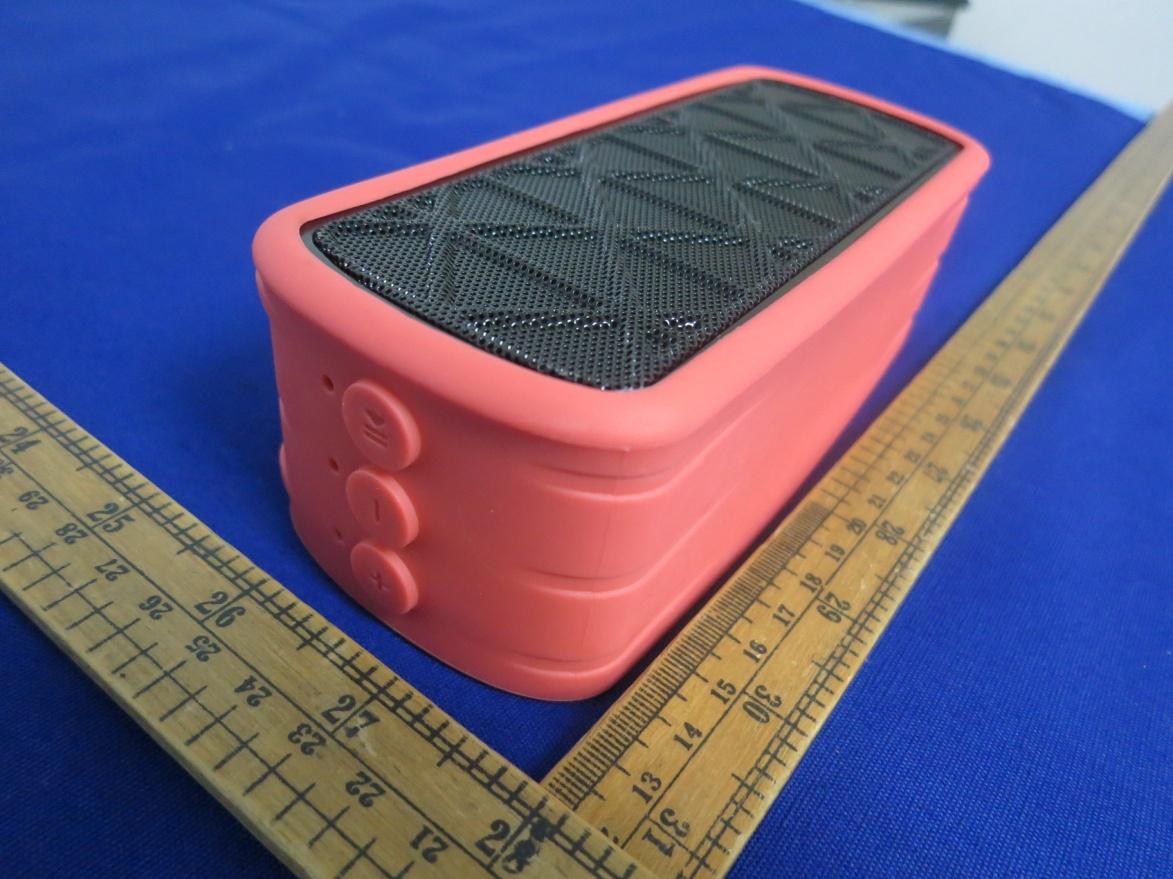

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a BLUETOOTH SPEAKER with Bluetooth function. The EUT was powered by DC 3.7V lithium battery and charged by DC 5V USB port. For more detail information pls. refer to the user manual. Modulation Type: GFSK, /4DQPSK, 8DPSK. Bluetooth Version: 2.1+EDR. Antenna Type: Integral antenna. Antenna Gain: 4.26dBi. The nominal conducted output power specified: 1.0dBm (+/-3dB). The nominal radiated output power (e.i.r.p) specified: 5.3dBm (+/- 3dB) According to the KDB 447498: The maximun peak radiated emission for the EUT is 99.7dBμV/m at 3m in the frequency 2440MHz The EIRP = [(FS*D) ^2 / 30] mW =4.47dBm which is within the production variation. The minimum peak radiated emission for the EUT is 98.9dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = 3.67dBm which is within the production variation. The maximun conducted output power specified is 4.0dBm = 2.5 mW The source- based time-averaging conducted output power = 2.5 * Duty Cycle mW (where Duty Cycle < 100%) < 2.5mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AE3VEAPPLY1

Date: 30.JUL.2015 10:03:17 Date: 30.JUL.2015 10:00:56

Date: 30.JUL.2015 10:02:41 Date: 30.JUL.2015 10:01:26

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Shenzhen Eapply Technology Co., Ltd Application For Certification FCC ID: 2AE3VEAPPLY1 Bluetooth Speaker Model: 1503121 Additional Model: 1503127, 1503166, 1503147, 1503146, 1503161, 1503162, 1503163, 1503164, 1503165, 1503148 Brand name: N/A 2.4GHz Transceiver Report No.: 150612001SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Wu RangLin Project Engineer Andy Yan Senior Project Engineer Date: August 18, 2015 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_c FCC ID: 2AE3VEAPPLY1 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_c FCC ID: 2AE3VEAPPLY1 ii MEASUREMENT/TECHNICAL REPORT Shenzhen Eapply Technology Co., Ltd MODEL: 1503121 Additional Model: 1503127, 1503166, 1503147, 1503146, 1503161, 1503162, 1503163, 1503164, 1503165, 1503148 Brand name: N/A FCC ID: 2AE3VEAPPLY1 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-13 Edition] provision. Report prepared by: Wu RangLin Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0684 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_c FCC ID: 2AE3VEAPPLY1 iii Table of Contents 1.0 General Description ............................................................................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................................................................. 2 1.3 Test Methodology .............................................................................................................................................. 2 1.4 Test Facility ....................................................................................................................................................... 2 2.0 System Test Configuration ................................................................................................................................ 4 2.1 Justification ......................................................................................................................................................... 4 2.2 EUT Exercising Software .................................................................................................................................. 4 2.3 Special Accessories .......................................................................................................................................... 4 2.4 Equipment Modification ..................................................................................................................................... 4 2.5 Measurement Uncertainty ................................................................................................................................. 5 2.6 Support Equipment List and Description ......................................................................................................... 5 3.0 Emission Results ................................................................................................................................................ 7 3.1 Radiated Test Results ....................................................................................................................................... 8 3.1.1 Field Strength Calculation .............................................................................................................................. 8 3.1.2 Radiated Emission Configuratio…

Text truncated - open the document above for the full version.
